Summary of Contents for Dreamsat F210

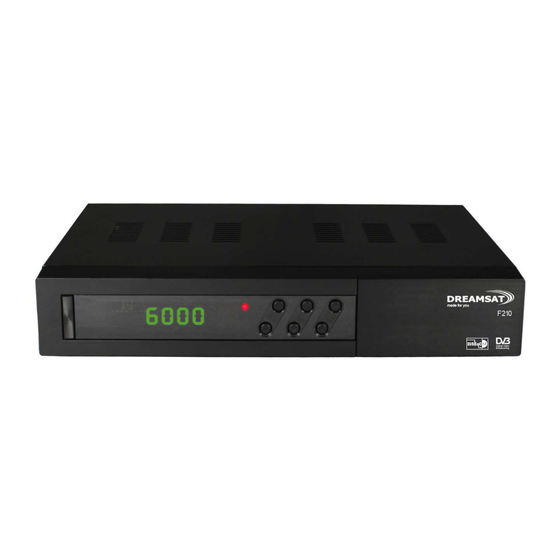

- Page 1 User Manual of Digital Set Top Box DREAMSAT F210 Please read this User Manual carefully to ensure proper use of this product and keep this manual for future reference...
-
Page 2: Important Safety Instructions
Important Safety Instructions: 1) Read these instructions, follow all instructions and heed all warnings, also keep these instructions. 2) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vase, shall be placed on the apparatus. 3) Turn off the power when you do not use this unit, pull out the plug from outlet if this apparatus during lighting storms or when unused for long periods of time. - Page 3 The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit. The symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.
-
Page 4: Table Of Contents
Content Important Safety Instructions:.......................1 Front and Rear Panel ........................4 Remote Control..........................5 Installing the Batteries ........................6 Using the Remote Control......................7 Connection ............................7 Main Menu............................8 1. Channel ..........................9 1.1 TV Channel .......................9 1.2 Radio Channel......................11 1.3 Add Channel ......................11 2. Installation .........................12 2.1Auto Scan.........................12 2.2 Add Satellite......................13 2.3 Edit Satellite......................14... -
Page 5: Front And Rear Panel
Front and Rear Panel Front Panel 1.Power 2. LED display window: Indicates channel number and time (optional) 3. REMOTE CONTROL SENSOR: Receive the signal from the remote control. 4/5. ∧/∨: Navigate through the Menu and change Channel. 6.7. ＜/＞: Navigate through the Menu and adjust the volume. 8. -
Page 6: Remote Control
2. R: Connect to TV set R audio input terminal 3. Spare port TV: To TV set input terminal. RS232: For software upgrading. L: Conned to TV set L audio input terminal VIDEO: Conned to TV set Video input terminal. AC IN: Power Supply 100V to 250V. -
Page 7: Installing The Batteries
Switch the receiver on / standby mode 1 .POWER- 2. MUTE - : Turn the sound on/off. 3.0-9(Numeric Button): Select a channel or setting. Back 5. 9PIC:Show 9 channels in the screen at the same time. 6.MENU: Press this button to run menu on screen and call command box. ．... -
Page 8: Using The Remote Control
Using the Remote Control To use the Remote Control, point it towards the front of the Digital Set Top Box. The Remote Control has a range of up to 7 meter from the Set Top Box at an angle of up to 60 degree. -
Page 9: Main Menu
Note: When connecting the receiver to other equipment, e.g., TV, VCR and amplifier, make sure to refer to relevant user manual for instruction. Also, make sure you disconnect all the equipments from the power before connecting. Main Menu Press MENU button to bring up the Main Menu that includes 4 submenus. Press ◄LEFT/RIGHT►... -
Page 10: Channel
move the cursor up or down . ◆ Channel ◆ Installation ◆ System ◆ Tools 1 Channel There are 3 submenus under this directory: TV Channel Radio Channel Add Channel 1.1 TV Channel 1.Press ▲ ▲ ▲ ▲ UP/DOWN▼ ▼ ▼ ▼ button to select the program that you want to play, view it in the small window. - Page 11 9. Select the program you want to Delete and press Numeric Button 1 to mark this program with the deletion mark. You can cancel this mark by pressing Numeric Button 1 again. 10. Select the program you want to Move and press Numeric Button 2 to mark this program with the move mark.
-
Page 12: Radio Channel
Name (A-Z): The ascending order, omitting the $character, the number is ahead, then the capital letter , last the lowercase. Name (Z-A): The opposite order of the above Name (A-Z). Free/$(Scramble): All FTA programs are listed ahead, while all scrambled programs are listed last. -
Page 13: Installation
2. Installation There are 7 submenus under this directory: Auto Scan Add Satellite Edit Satellite Delete Satellite NIT Search Satellite Search PID Satellite 2.1Auto Scan Satellite: ● Press ◄LEFT/RIGHT► button to select a satellite in circle. Or press OK button to pop up the drop-down list, then select the desired satellite in the list. ●Press ◄LEFT/RIGHT►... - Page 14 2.2 Add Satellite Satellite: Press OK button to pop up the Satellite Rename window, press ● alphanumeric characters ◄LEFT/RIGHT► and ▲ ▲ ▲ ▲ UP/DOWN▼ ▼ ▼ ▼ button to select the from the window. Press EXIT button to delete and Press MENU to exit. ●LNB Type: Press ◄LEFT/RIGHT►...
-
Page 15: Edit Satellite
2.3 Edit Satellite Please refer to the similar operation as 2.2 Add Satellite 2.4 Delete Satellite Press ◄LEFT/RIGHT► button to move the cursor up or down and select. Press ▲ ▲ ▲ ▲ UP/DOWN▼ ▼ ▼ ▼ button to turn the page. Press OK button to delete. Press MENU/EXIT button to exit. -
Page 16: Satellite Search
2.6 Satellite Search Please refer to the similar option as 1.3 Add Channel. 2.7 PID Satellite Please refer to the similar option as 1.3 Add Channel. 3. System There are 5 submenus under this directory: Language TV System Auto Shut Down OSD Setting Parent Lock Press ▲... -
Page 17: Parental Lock
3.1Language Press ◄LEFT/RIGHT► button to select the language in circle 3.2 TV System Press ◄LEFT/RIGHT► button to select among Auto, PAL or NTSC 3.3 Auto Shut Down Press Numeric button(0-9) to input the time. Press OK button to save and MENU or EXIT button to exit. -
Page 18: Tools
4. Tools There are 4 submenus under this directory: Information Satellite Guide Default Value Software Upgrade... - Page 19 4.1 Information Show the satellite’s information of current program. 4.2 Satellite Guide Press Numeric (0-9) button to input the Longitude and Latitude.
-
Page 20: Software Upgrade
4.3 Default Value If you select OK, all the parameters of this receiver will reset to the default value. Note: please use this function carefully. 4.4 Software Upgrade Press ◄LEFT/RIGHT► button to select the upgrade type and mode. -
Page 21: Troubleshooting
Troubleshooting Problem Potential Reasons What to do Power isn’t connected Connect the power No picture The power switch is not on Switch on the power Screen shows “ No Not connect DVB cable Plug in the DVB cable Signal” Incorrect setting Set up correct parameter No or incorrect connection with Connect the audio cable... -
Page 22: Technical Specifications
Technical Specifications: Item Sub Item Parameter Input Frequency 950-2150MHz RF Input level -65~-25dBm Tuner IF Bandwidth 7MHz,8MHz Modulation QPSK, Video Decoder Format MPEG 2 MP@ML.HL Decoder Format MPEG-1(layer1&2) Audio Audio output Digital audio: RCA-L/R Voltage 100-240V~50 / 60Hz Power Power Max 30W This symbol on the product or in the instructions means that your electronic equipment should be disposed at the end of life separately from your Household waste.
