Page 1: User Manual

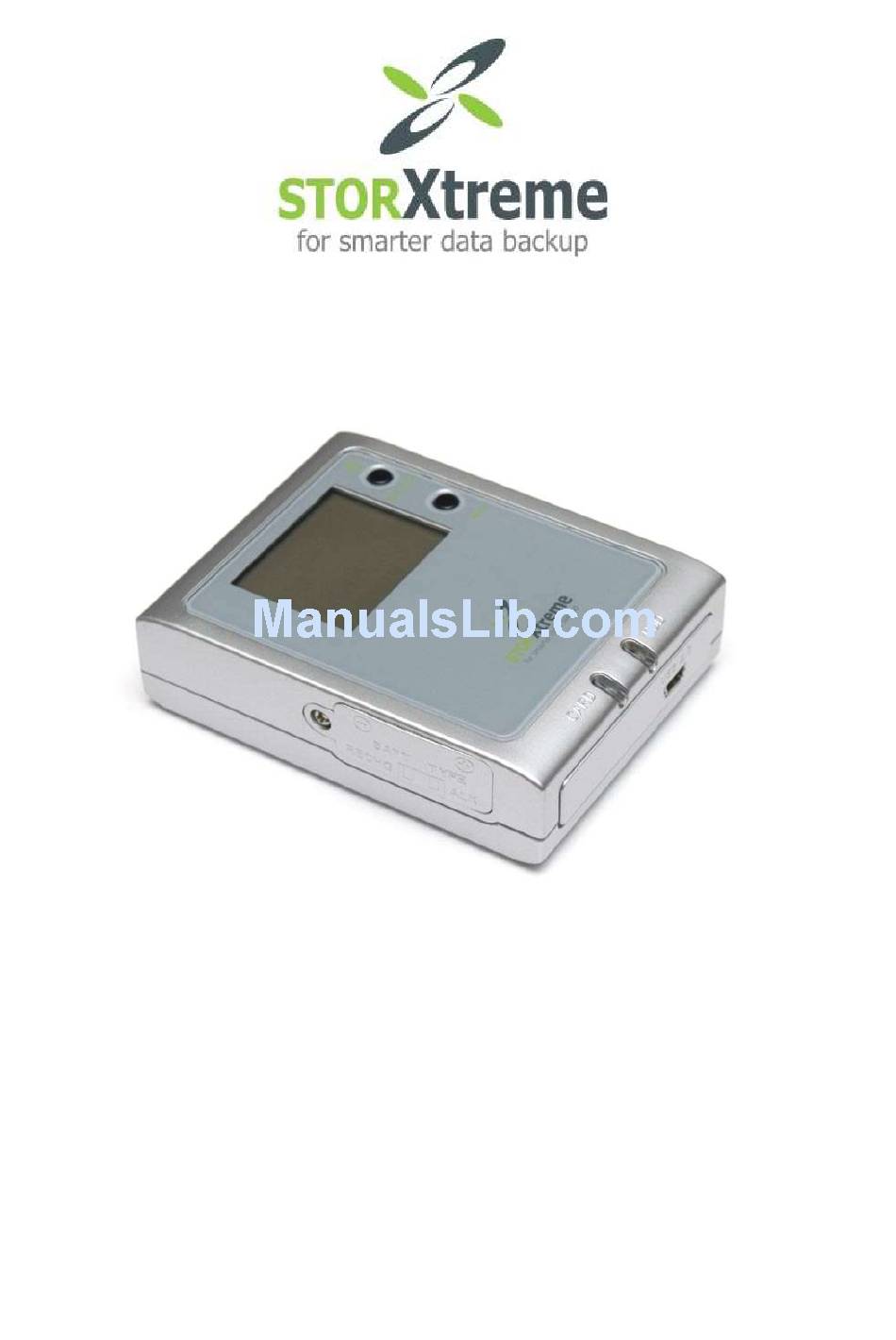

USER MANUAL Model : SX-18D (Version 1.0) -
Page 3: Table Of Contents
Introduction 1. FUNCTIONAL DESCRIPTION 1.1 Buttons 1.2 LED Indication 1.3 LCD Display 1.4 Connectors 2. PRODUCT SPECIFICATIONS 2.1 Technical Specification 2.2 Electrical Specification 2.3 Product Specification 2.4 Minimum PC system requirement 2.5 Accessories Bundling 3. USER INTERFACE DESCRIPTION 3.1 Buttons Description 3.2 LED and LCD Description 3.3 Connectors Description 3.3.1 Mini USB connector... -
Page 5: Introduction
INTRODUCTION STORXtreme is an integrated solution that provides external hard disk drive, card reader and memory card backup functions. As a portable external storage device, STORXtreme is a perfect choice for active mobile users providing a light and optimal solution for personal information storage and transfer. -
Page 6: Functional Description
Chapter 1 : FUNCTIONAL DESCRIPTION This section describe the various parts and functions of the device. You may refer to Chapter 3 : User Interface Description for detail description. Buttons Button Activation Press & Hold [POWER/SELECT] Press & Hold Press [ENTER] Press [RESET]... -
Page 7: Product Specifications
Chapter 2 : PRODUCT SPECIFICATIONS Technical Specification CF to HDD SD to HDD Copy mode Data Transfer MMC to HDD Rate MS to HDD MS Pro to HDD : 3.5 MBps USB Transfer This is a high speed USB device. Hard disk Rate operates in UDMA mode Operating OS... -
Page 8: Bundled Accessories
Bundled Accessories Installation CD Quick Installation Guide USB cable User Manual... -
Page 9: User Interface Description
Chapter 3 : USER INTERFACE DESCRIPTION Button Description Button Activation Operation Mode [POWER/ Press SELECT] Hold [POWER/ Press SELECT] [ENTER] Press [RESET] Press 3. 2 LED and LCD Display Indication Operation Mode [HDD] USB / Standalone [CARD] USB / Standalone User Manual Press and hold this button for 3 seconds to Standalone... -
Page 10: Connectors Description
Connectors Description 3.3.1 Mini USB connector Plug in the mini USB cable into this connector and the other end of the cable to the PC or the notebook’s USB port. Use the mini USB cable that bundle with this device. The device is compliance to USB 2.0 as well as USB1.0 specification. -
Page 11: Pins Connector
3.3.4 44-pin Connector Install the 1.8” Hard disk drive into this connector as shown in the picture below. Ensure that the hard disk drive is connected in the correct direction. 3.3.5 Battery Compartment Select the type of AA battery used : Alkaline or NiMH Rechargeable Batteries. Do not mix the battery type, and remember if you are using rechargeable batteries, make sure they are fully charged before use. -
Page 12: Device Operation
Chapter 4 : DEVICE OPERATION Standalone Mode (Copy) During copy, the content of the memory card is copied to the hard disk. The [CARD] and § [HDD] LEDs will blink indicating that both Memory Card and Hard Disk Drive is being accessed and copy is in progress. -
Page 13: Usb Mode
If an error occurs during copy, the [ERROR] icon will appear on the LCD, you may then repeat the copy sequence. When a copy error occurs, the sub-folder created in the [FILE] directory is empty, you may ignore and delete it. Note : In the unlikely event that the data backup fail, the copy operation will stop, and the {ERROR} icon will show on the... -
Page 14: Windows 98Se / Me Installation
Chatper 5 : WINDOWS 98SE/ME INSTALLATION Operating System Supported Windows 98 Second Edition (SE) or Windows Millennium Edition (ME) § § The device driver can be found in the “Win98SE Driver” directory in the Installation CD Install Device Driver on Windows 98 SE / ME §... - Page 15 Select the directory path (where F:\ is your CD-ROM drive) and click - Follow through the online instruction … User Manual “F:\Win98SE driver” Next...
-
Page 16: Verify Windows98Se Has Properly Installed The Device Driver
§ Upon installation of the device driver, you will notice 3 icons appear on the “My Computer” screen. Refer the section on “Installing new hard disk on Win98SE / ME & configure new hard disk drive in Win98SE / ME” if user do not see your hard disk drive icon. Verify Win98SE/ ME has properly installed the device driver Click on the My Computer... -
Page 17: Installing New Hard Disk On Win98Se / Me
Installing New HDD on Windows 98SE / ME § When a new HDD is installed to this device, Windows 98SE or ME cannot recognize it as local drive because the new HDD does not contain the Master Boot Record and Primary Partition Record information. - Page 18 - Check that INSTEP EzII DRIVE0 is present, - Click on the Start, Program, Accessories and select MS-DOS prompt item, User Manual...
- Page 19 - Type FDISK in the MS-DOS prompt dialog box, - If you cannot get to this screen, reboot the system and try again. Type <Y> to enable large disk support. - Enter the choice <5> to change current fixed disk drive, User Manual...
- Page 20 - 1~3 will depend on the number of HDD present in the computer. Since 20GB HDD is used in this example, enter the choice <2> to change the current fixed disk drive. - Next, enter choice <1> to create DOS partition or logical DOS Drive, - Next, enter choice <1>...
- Page 21 - Enter <Y> to create Primary DOS partition on current fixed disk drive 2, - Enter <Y> to use maximum available size for a Primary DOS partition, - Press [ESC] after Primary DOS partition is created, User Manual...
-
Page 22: Format New Hard Disk In Win98Se / Me
- Press [ESC] to exit fdisk, you must then Format New HDD in Windows 98SE / ME - You must reboot the computer after perform fdisk. Ensure the new HDD is enumerated and the OS will assigned a letter to the new HDD. - Reboot the computer again once the computer has successfully detected the new HDD before formatting it, - Click on the new... - Page 23 - Choose the Full for “Format type” , - You will notice the new HDD is formatting , Reboot the computer again to let the OS initialize the new formatted HDD. User Manual...
-
Page 24: Windoes 200X / Xp Installation
Chapter 6 : WINDOWS 200x / XP INSTALLATION Operating System Supported Windows 2K & Windows § § Supported by Microsoft default driver. (Requires service pack from Microsoft Windows Update website) Verify windows has properly installed the device driver § Connect the device to PC via USB connection. Turn ON the device. -
Page 25: Create Master Boot Record On The New Hard Disk
Create Master Boot Record on the new hard disk. - Login the PC as Administrator, - Click on the My Computer and choose the - Or click on the Administrative - Click the Disk Management User Manual icon by right-click on the mouse Manager item, Control Panel... - Page 26 Click Next in the write signature prompt and Upgrade Disk wizard prompt, - Tick on Disk 1 option and follow through the instruction, - The new HDD will create a Master Boot Record on the new hard disk, - Proceed to create a new primary partition. User Manual...
-
Page 27: Create Primary Partition Record On The New Hard Disk
Create Primary Partition Record on the new hard disk. - After the HDD has created Master Boot Record (write signature), you nee to create a primary partition on your new hard disk. - Click on the Disk 1 Unallocated - Choose the Create Partition Note : Windows XP and Windows 2000 cannot support... - Page 28 - Choose the Primary partition option and let system assign the drive letter , User Manual...
- Page 29 - Choose the FAT32 follow through the on-screen instruction. - Note : Do not choose NTFS because the device Standalone Copy Mode support only FAT or FAT32 format. - The new HDD is formatted and ready to be used. User Manual format, Default allocation unit size and...
