O
W
N
E
R '
S
M
A
N
U
A
L

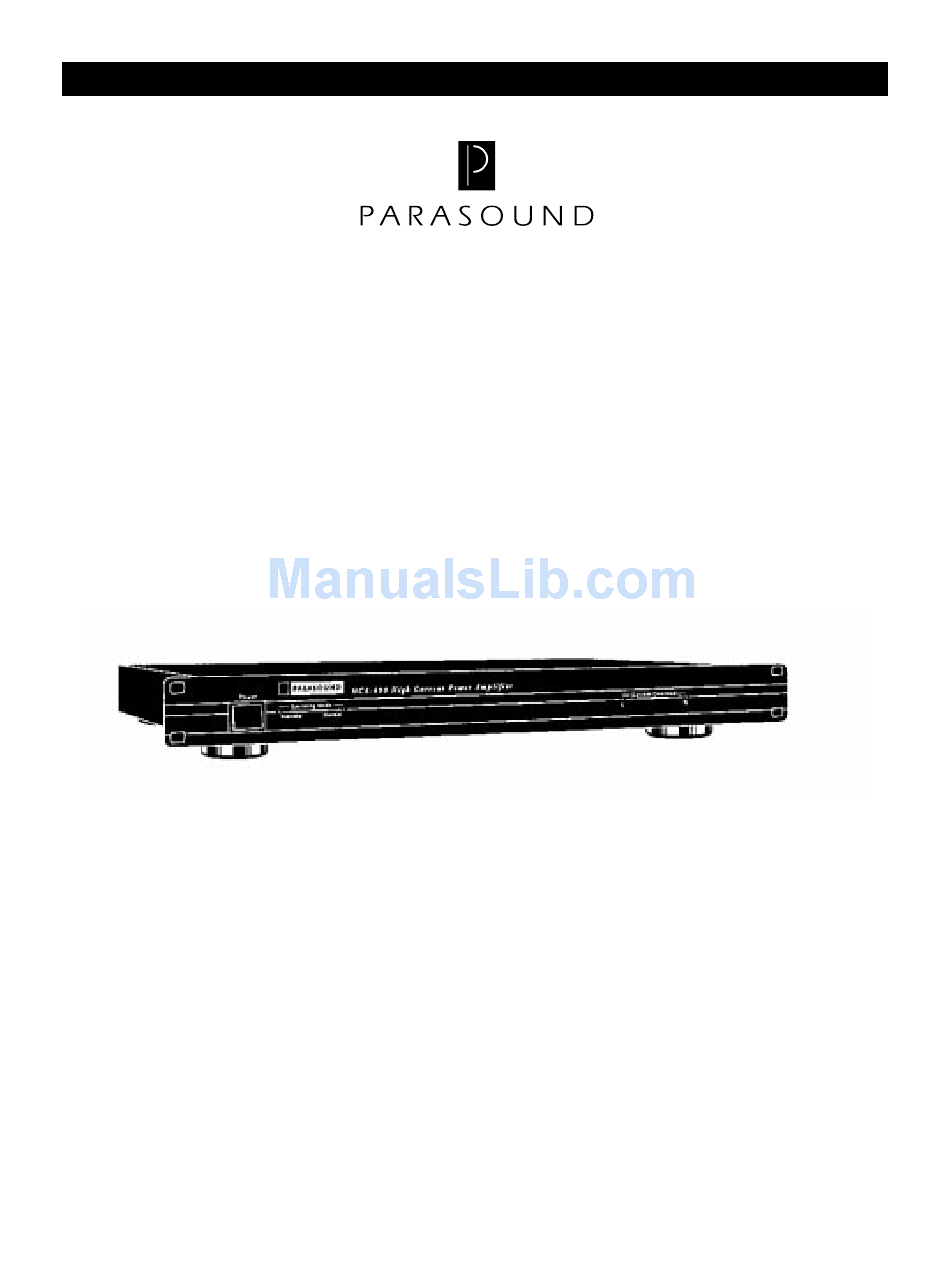

HCA-600 High Current Power Amplifier
Congratulations on your purchase of this precision audio component and thank you for your selection of
Parasound. Your HCA-600 is among the elite of the finest power amplifiers ever made. You have made an
outstanding investment in your musical and home theater pleasure for years to come.
Every part, every direct-coupled circuit, has been painstakingly selected for optimum musical quality on the
finest and most challenging music and loudspeaker loads. Take a look at the special features found near the
end of this manual to fully appreciate its sophisticated design.
Convenient switching permits two operating modes: as a two channel stereo amplifier or a single channel
monoblock amplifier.
The HCA-600 has greater operational flexibility and power than most other power amplifiers you may have
encountered, so please take a few moments now to read these instructions thoroughly so you may fully
understand the capabilities of your new Parasound power amplifier.
Unpacking
Save your carton and the packing inserts for future safe transport in case you move or your unit ever
requires shipping for repair. Note, the white printed carton is not itself strong enough for safe shipping, so
you absolutely must place it into the additional outer "overcarton" before shipment.
The AC cord is packed separately in the carton. This is a specially selected audiophile grade cord and is the
only cord we recommend for use with your HCA-600. Please don't lose it.
Before you proceed, find the serial number which is located on the rear panel of your unit and record it here
for future reference or in case of casualty loss or theft:__________________________
- 1 -
Advertisement
Table of Contents
Related Manuals for Parasound HCA-600
Summary of Contents for Parasound HCA-600
- Page 1 Congratulations on your purchase of this precision audio component and thank you for your selection of Parasound. Your HCA-600 is among the elite of the finest power amplifiers ever made. You have made an outstanding investment in your musical and home theater pleasure for years to come.
-
Page 2: Rear Panel
Rear Panel Input Jacks Input level controls Mono bridge mode selector switch Channels 1, 2 4 Ω - 8 Ω speaker terminals AC cord connector Front Panel 1. PowerSwitch 2. Standby-Operation LEDs 3. Current Overload LEDs - 2 -... -
Page 3: Making Connections
Always place your unit horizontally. Do not place your unit directly on a carpet whose pile could interfere with air flow into its bottom vent openings. If you place your HCA-600 on the floor near your speakers, put its feet on a piece of wood to elevate it above the pile of the carpet. If you stack your components, it's better to place your HCA-600 alongside your other components. -
Page 4: Mono Bridge Switch
You may use 4 Ω rated speakers for mono bridged operation only if you don't intend to run your HCA-600 at high levels for extended periods. We recommend an 8 Ω minimum mono load. - Page 5 In many cases, this will eliminate the problem. If this fails, it may be necessary to reverse the direction of the HCA-600's AC plug. Please do not cut off its 3rd ground pin;...
- Page 6 LEDs illuminate. Level Controls The HCA-600 will sound best with its level controls set to maximum where they are effectively out of the audio signal path. However, if your preamplifier has very high gain, and its volume control cannot track properly for left-right channel balance near its minimum position, it may be necessary to reduce the input level control settings on the HCA-600.
- Page 7 Make sure the unit is turned off while you do this. Fuse The HCA-600 has one external 4 ampere fuse which may blow as a result of an internal fault condition. This protects the unit from possible damage to internal parts. Never replace this fuse with a larger value. Substi- tution of a larger fuse may create serious stress or damage to internal parts and will void your warranty.
- Page 8 Parasound HCA-600 Specifications Continuous Power Output - Stereo 60 watts RMS x 2, 20 Hz-20 kHz, 8 Ω, both channels driven 75 watts RMS x 2, 20 Hz-20 kHz, 4 Ω, both channels driven Continuous Power Output - Mono 150 watts RMS, 20 Hz-20 kHz, 8 Ω...
-
Page 9: Special Features
Special Features • Independent power supplies for each channel • Dual mono circuit board layout • Massive 400 VA toroid power transformer • 14,000 uF computer-grade capacitors in power supply • Multiple polystyrene film bypass capacitors in power supply • Cascode Class A input stages with matched J-FET pairs •... -
Page 10: Parasound Limited Warranty (Usa Only)
Your Parasound HCA-600 amplifier is covered by a limited warranty against defects in materials and work- manship for a period of two years from date of purchase. This warranty is provided by the Parasound dealer where the unit was purchased. Warranty repair will be performed only when your purchase receipt is pre- sented to validate your ownership, date of purchase and authorized status of the selling dealer.
