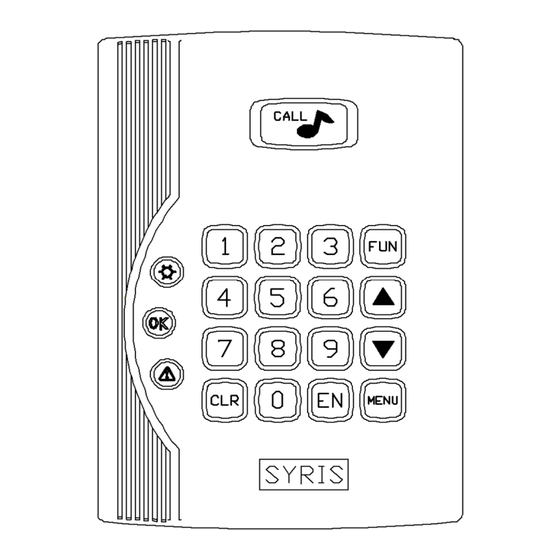

Syris SY120SA Series Operating Manual

Single door access control system.
Hide thumbs Also See for SY120SA Series:

Advertisement

Quick Links

Download this manual See also: Operating Manual
SY120SA Series
Operating Manual
Version 3.0
© 2004 by SYRIS Technology Corp.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SY120SA Series and is the answer not in the manual?

Questions and answers

Related Manuals for Syris SY120SA Series

Summary of Contents for Syris SY120SA Series

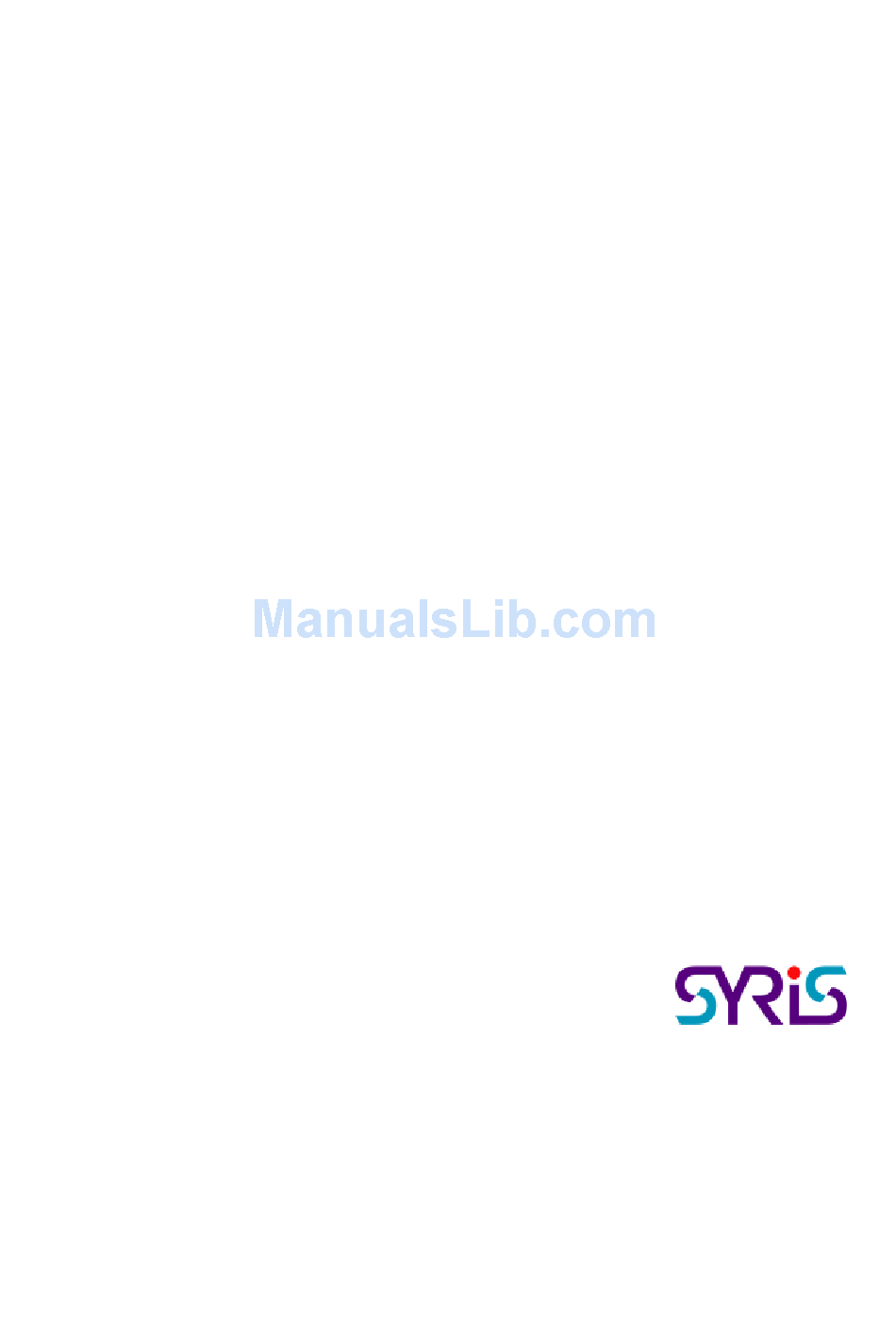

  • Page 1 SY120SA Series Operating Manual Version 3.0 © 2004 by SYRIS Technology Corp.
  • Page 2 2. Proximity Card + Card Password. 3. Proximity Card + Anti-Anti-duress Password. 4. Card Password or Card Number+ Password. 5. Card Number + Anit-Anti-duress Password. 6. Set or modify Card Password. 7. Remove Alarm Status © 2004 by SYRIS Technology Corp.
  • Page 3 *Keep waiting 30secs to response card & password, if delay or push enter and system will login out. *After 2 mins the system will login out when login and no any keypad enter action. © 2004 by SYRIS Technology Corp.
  • Page 4 (pppp): anti-duress password (The password is four digit) * If anti-duress password & personal password are the same, the personal password will be the first priority to be checked and the alarm won’t be triggered. © 2004 by SYRIS Technology Corp.
  • Page 5 3. If new enter password and response waiting enter password status,keypasd enter and check card password. 4. If not need enterpassword or card password correct andwill remove guard system(normal ststus) © 2004 by SYRIS Technology Corp.
  • Page 6 2. response need to add card, if card already response or error status and will back to original status. (NNNN):set card number; Range :0001~2000 (G):set card group code; Range :1~4 2.7.2 Delete single card 1. Enter[FUN][3][2](NNNN)[EN] (NNNN):wanna delete card number; Range :0001~2000 © 2004 by SYRIS Technology Corp.
  • Page 7 2.7.8 Configure multiple cards’ setting 1. Enter[FUN][3][8](NNNN)(EEEE)(S)[EN] (NNNN):amend card status card number; Range :0001~2000 (EEEE):amend card status end number; Range :0001~2000 (S):S = 1 for setting card; S = 0 for setting stop card © 2004 by SYRIS Technology Corp.
  • Page 8 (TT): Time-Out time setting, Range:01~99; default :20,unit:sec 2.8.7 Enabled or Disable Encryption Card (V3.0) 1. Enter[FUN][4][8](E) [EN] (E):E = 1 enabled Encryption Card Mode(Use SYRIS Encryption Card); E = 0 cancel Encryption Card Mode (default) © 2004 by SYRIS Technology Corp.
  • Page 9 1. Enter[FUN][5][6](B)[EN] (B):B = 0 close doorbell voice output, B = 1 allow doorbell voice output(default) 2.9.7 Configure Extern Module (V2.0) 1. Enter[FUN][5][7](E)[EN] (E):E = 0 no extern module(default) E = 1 use extern module © 2004 by SYRIS Technology Corp.
  • Page 10 K = 1 is e-lock output, K = 2 is relay output, K = 3 is extern relay, K = 4 is temp (F):output purpose code,please follw the purpose code list (TTT):output action time setting,Range: 000~255,Unit: sec; Default e-lock output point is 5 sec,relay inport point is 2 sec. © 2004 by SYRIS Technology Corp.
  • Page 11 (A):pass dooe area,1 = enable [EN] (default),0 = disable [EN]; 2.12.4 Group weekly schedule 1. Enter[FUN][8][4](G)(WWWWWWW)(H)[EN] (WWWWWWW):week schedule, from Sunday to saturday, 1 = Enable enter(default),0 = Disable enter; (G):Group No; Range1~4 (H):Holiday control,1 = can enter(default),0 = can’t enter; © 2004 by SYRIS Technology Corp.
  • Page 12 3. The voltage output limits is 5A current. If one needs higher electric current, then please add another relay. 4. Relay output can only accept up to 1A current. if one needs to increase the limits, then please add another relay. © 2004 by SYRIS Technology Corp.
  • Page 13 SY120SA Series Operating Manual © 2004 by SYRIS Technology Corp.
