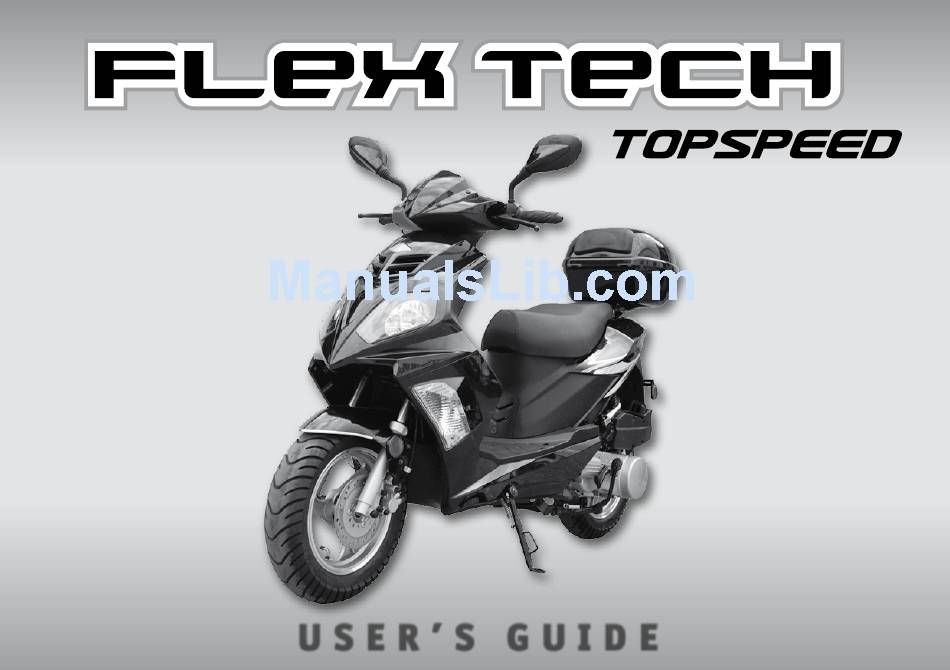

- Page 1 U S E R ’ S G U I D E...
-
Page 2: Table Of Contents
Table of Contents Starting the Engine Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Important Information . -
Page 3: Preface
Flex Tech Topspeed Preface Welcome to the Club of FlexTech Topspeed drivers . We are sure that you will have a lot of fun with and enjoy your new engine scooter . This manual provides you with an overview on the function, maintenance, servicing and operation of your new vehicle . -
Page 4: Important Information
– USER’S GUIDE Flex Tech Topspeed Important Information • The road traffic regulations must be carefully followed at mirror are punishable and lead to the expiration of the any time . guarantee and the insurance coverage . • When using this vehicle, make sure you carry the follow- • The modification of the vehicle frame number is punish- ing cards and documents with yourself: able in the criminal and administrative sector, and the owner will be made liable . -
Page 5: Assembly Instructions
– USER’S GUIDE Flex Tech Topspeed Assembly Instruction screw M6x20 Top Case washers Parts list: rubber stoppers 1 x top case 4 x rubber shock absorbers 1 x rubber plate 7 x screws M6x20 1 x retaining plate 4 x rubber stoppers... -
Page 6: Assembly Of The Rear Mirror
– USER’S GUIDE Flex Tech Topspeed Assembly Instruction Rear Mirror Please take rear mirrors carefully out of the packing and assign via the designation on the rear mirror side to the correct scooter side . NOTE: • L = left mirror / R = right mirror • Both rear mirrors have a right-hand thread! Carefully screw in clockwise the rear mirrors and adjust the position . -
Page 7: First Steps With Your New Vehicle
– USER’S GUIDE Flex Tech Topspeed First Steps with your new Vehicle Warranty Conditions • The warranty period is 24 months from the purchase Before the first operation of your vehicle, please date . observe the following steps: • In case of commercial use, the warranty period is 12 1) The vehicle may only be started with completely up- months from the purchase date . -
Page 8: Engine And Frame Numbers
– USER’S GUIDE Flex Tech Topspeed Engine and Frame Numbers The engine number and frame number is located at the engine or at the frame of your engine scooters according to the fig- ures . These are required, in order to register your vehicle . -
Page 9: Overview
– USER’S GUIDE Flex Tech Topspeed Overview 1 marker light in front 7 seat lock 13 top case sustainer 2 side spot 8 indicator at the rear left... -
Page 10: Operating Elements
– USER’S GUIDE Flex Tech Topspeed Operating Elements Brake Lever Rear-Wheel Brake Left-hand Switch Combination Instrument Reading and Indicator Display A hooter Pull constantly, in order to acti- vate rear-wheel brake A fuel display B indicator switch left and right... -
Page 11: Brake Lever Front-Wheel Brake
– USER’S GUIDE Flex Tech Topspeed Operating Elements D C A Ignition Lock (without Figure) OFF: Complete electric circuit is inter- rupted, engine and lights may not be switched on . The key can be removed . ON: Engine can be started, lights can be switched on . -
Page 12: Kick Starter
– USER’S GUIDE Flex Tech Topspeed Operating Elements Kick Starter Fuel Tank In case of a weak battery, the vehicle can be started using The fuel tank lid is located below the bench at the rear to the kick starter . -
Page 13: Starting The Engine
– USER’S GUIDE Flex Tech Topspeed Starting the Engine Starting with Kick Starter 1 . Check fuel and engine oil level Starting with Electric Starter 2 . Put vehicle on main stand 1 . Check fuel and engine oil level 3 . -
Page 14: Reference For Operation, Maintenance And Driving Safety
– USER’S GUIDE Flex Tech Topspeed Reference for Operation, Maintenance and Driving Safety Running in Exhaust For a maximum service life of your new engine, please ob- The exhaust becomes hot during the driving operations! It serve the following table for running in: is to be noted that the vehicle is only driven with suitable protective clothing, in order to avoid possible burnings . -
Page 15: Cleaning And Maintenance
– USER’S GUIDE Flex Tech Topspeed Cleaning and Maintenance • In case of temperatures below the freezing point, the freezing up of components, such as gas and brake pull To reliably prevent the vehicle from rusting, it is recom- bars as well as the formation of ice on the carburettor mended to thoroughly clean and let dry the vehicle after may cause technical troubles on the vehicle . -
Page 16: Carburettor, Idling Adjustment
– USER’S GUIDE Flex Tech Topspeed Carburettor, Idling Adjustments Battery Start the engine and warm up for about 2-3 minutes . 12V 6 Ah Set the engine speed to about 1800 revs/min by means of 1) With a battery off-load voltage of below 11 .5 V, the bat- an idling screw . -
Page 17: Spark Plug
– USER’S GUIDE Flex Tech Topspeed Spark Plug Gasoline Consumption Clean electrode from fouling by means of a wire brush . The consumption specified of approximately 2,8 - 3,3 liters per 100 km can deviate upwards according to area of opera- Set sparking distance to 0 .6 –... -
Page 18: Brakes
– USER’S GUIDE Flex Tech Topspeed Brakes Tires The clearance on the brake lever (a) is 10 - 20 mm . An insufficient air pressure decreases the service life of the tires and reduces the driving stability . Make sure there is a Adjust set screw such that the clearance on the brake lever sufficient air pressure and tire profile depth . -
Page 19: Troubleshooting
– USER’S GUIDE Flex Tech Topspeed Troubleshooting Problem / Error Correction Lateral stand above? Ignition key to ON? Vehicle does not start . Pulled brake? Gasoline available? Battery unloaded. Never open the battery for loading! The battery contains E-Starter without function, acid! We recommend you to use our battery charger for maintenance-free bat- but vehicle starts via kick starter . -
Page 20: Technical Specifications
– USER’S GUIDE Flex Tech Topspeed Technical Specifications Model: Topspeed Engine Type 4–stroke engine Cylinder Boring and stroke 52 .4 x 57 .8 mm Cylinder volume 125 cm³ Compression ratio 9 .2 : 1 Max . performance 4 .9 kW / 6500 revs/min Max . - Page 21 – USER’S GUIDE Flex Tech Topspeed Technical Specifications Measures Length 1875 mm Width 690 mm Height 1185 mm Wheel base 1290 mm Clearance above ground 110 mm Weight Empty weight 99 kg Permissible total weight 249 kg Max . additional load...
-
Page 22: Electric Scheme
– USER’S GUIDE Flex Tech Topspeed Electric Scheme... - Page 23 – USER’S GUIDE Flex Tech Topspeed Notes ............................
- Page 24 – USER’S GUIDE Flex Tech Topspeed Notes ............................
-
Page 26: Service Intervals
– USER’S GUIDE Flex Tech Topspeed Service Intervals 300 km 1000 km 2500 km 5000 km 7500 km 10000 km In case of non-compliance of the service intervals or in case of unsuitable services by third persons, the warranty claim will expire. - Page 27 WARRANTY VOUCHER (only applies in connection with the purchase voucher) Specifications on the Vehicle Colour: Frame number: Where bought: Purchase date: Specifications of the buyer First name: Family name: Street: Zip code/Location: Telephone: Email: This is to certify that I have read and recognized the “Important Information“ (p . 4) and the ”Warranty Conditions“ (p .
-
Page 28: Customer Service
Entgelt zahlt Bitte senden Sie mir das Benutzerhandbuch in Empfänger folgender Sprache: Please send me the user manual in the following language: Veuillez m’envoyer le manuel d’utilisation dans la langue suivante : Bana lütfen kullanım kılavuzunu işaretlediğim lisanda bana gönderiniz: Proszę...
