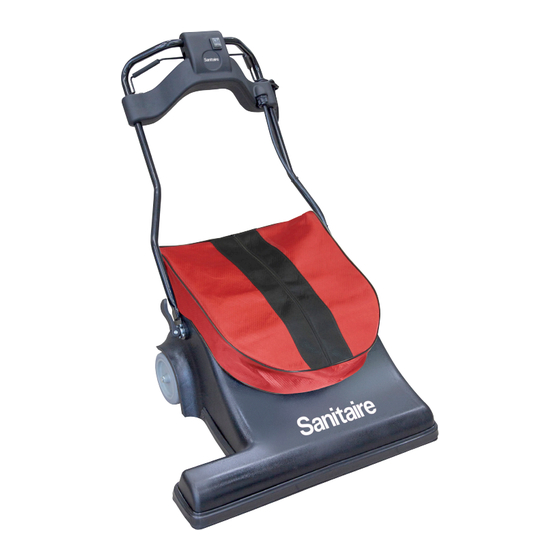

Sanitaire
WIDE AREA
MOTORIZED
VACUUM SWEEPER
SC6093A
Part No. SC6093A Rev 1 (11/13)
PLEASE RETAIN
We suggest you record the model, type, and serial numbers
below. They are located on the silver rating plate on your
unit. For prompt and complete service information, always
refer to these numbers when inquiring about service.
Model & Type____________________________
Serial No._______________________________
It is also important to keep your receipt as proof of date of
purchase.
®
©2013 Electrolux Home Care Products Ltd.
Owner's Guide
IMPORTANT
Do not return this product to the store.
Call 1-800-800-8975*
Monday - Friday 8:00 AM to 7:30 PM
and Saturday 10 AM to 6:30 PM
Central time or visit our web site,
www.sanitairevac.com for any of the
following:
• assembly problems
• replacement of broken or missing
items
• to review repair parts list
• to order replacement parts and
accessories
• to locate the nearest Sanitaire
warranty station
*En Mexico llame al 5670-6169
1
www.sanitairevac.com
Advertisement
Table of Contents
Related Manuals for Sanitaire SC6093A
Summary of Contents for Sanitaire SC6093A
- Page 1 Sanitaire ® WIDE AREA MOTORIZED VACUUM SWEEPER SC6093A Part No. SC6093A Rev 1 (11/13) Owner’s Guide IMPORTANT Do not return this product to the store. Call 1-800-800-8975* Monday - Friday 8:00 AM to 7:30 PM and Saturday 10 AM to 6:30 PM Central time or visit our web site, www.sanitairevac.com for any of the...
-
Page 2: Warranty
Please safeguard the original receipt / invoice. If you experience any problems with your unit during the warranty period, the original receipt / invoice will act as proof of purchase. Contact Sanitaire for any warranty inquiries. Do not return a failed unit to the place of purchase or service center. Any charges for the shipping of a Sanitaire unit under warranty are purchaser’s responsibility unless Sanitaire requests such return in writing. -
Page 3: Safety Instructions And Warnings
Use this unit only as described in this manual. To reduce the risk of personal injury or damage to your unit use only Sanitaire recommended accessories When using an electrical appliance, basic precautions should always be followed including the... -
Page 4: Extension Cords
EXTENSION CORDS When using an extension cord with your unit, refer to the following table to determine the required A.W.G. wire size. Before using the unit make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the unit. Only use extension cords that are rated for outdoor use. -
Page 5: Brush Height Adjustment
Fig 5 Fig 6 BRUSH HEIGHT ADJUSTMENT 1. This machine has 5 brush height adjustment levels. 2. To lower the brush: depress to lower pedal and release one notch of the ratchet at a time until the desired height is reached (Fig 7). 3. -
Page 6: Circuit Breaker
CIRCUIT BREAKER Your new unit comes equipped with a 15 amp manual circuit breaker. If the machine does not turn on you will need to check the circuit breaker. To reset the circuit breaker: 1. Unplug the unit. 2. Check the unit for the following: Full bag, obstructions, clogged brush, brush height set too low. - Page 7 2. Pull down bumper on long end of sweeper to expose screws. 3. With a 10mm wrench, secure the nut inside of the brush roll and use a 4mm Allen wrench for the screw. Loosen screws to release the brush from the vacuum. 4.
- Page 8 5. Insert the new brush roll. Ensure the belt loops around the grooved end of brush roll and that there is tension in the belt. The brush should be able to spin without any interference. 6. Using the 10mm wrench and 4mm Allen wrench, screw in the brush roll with screws and nuts pre- viously used.
-
Page 9: Routine Maintenance Instructions
ROUTINE MAINTENANCE INSTRUCTIONS After each use, carefully wrap power cord around the handle and check cord for wear or damage. If cord is damaged have the cord replaced by an authorized service center immediately. TROUBLESHOOTING THE MACHINE DOES NOT TURN ON CAUSE: SOLUTION: 1) The circuit breaker has tripped...
