Summary of Contents for Universal Remote MFSPOE-8

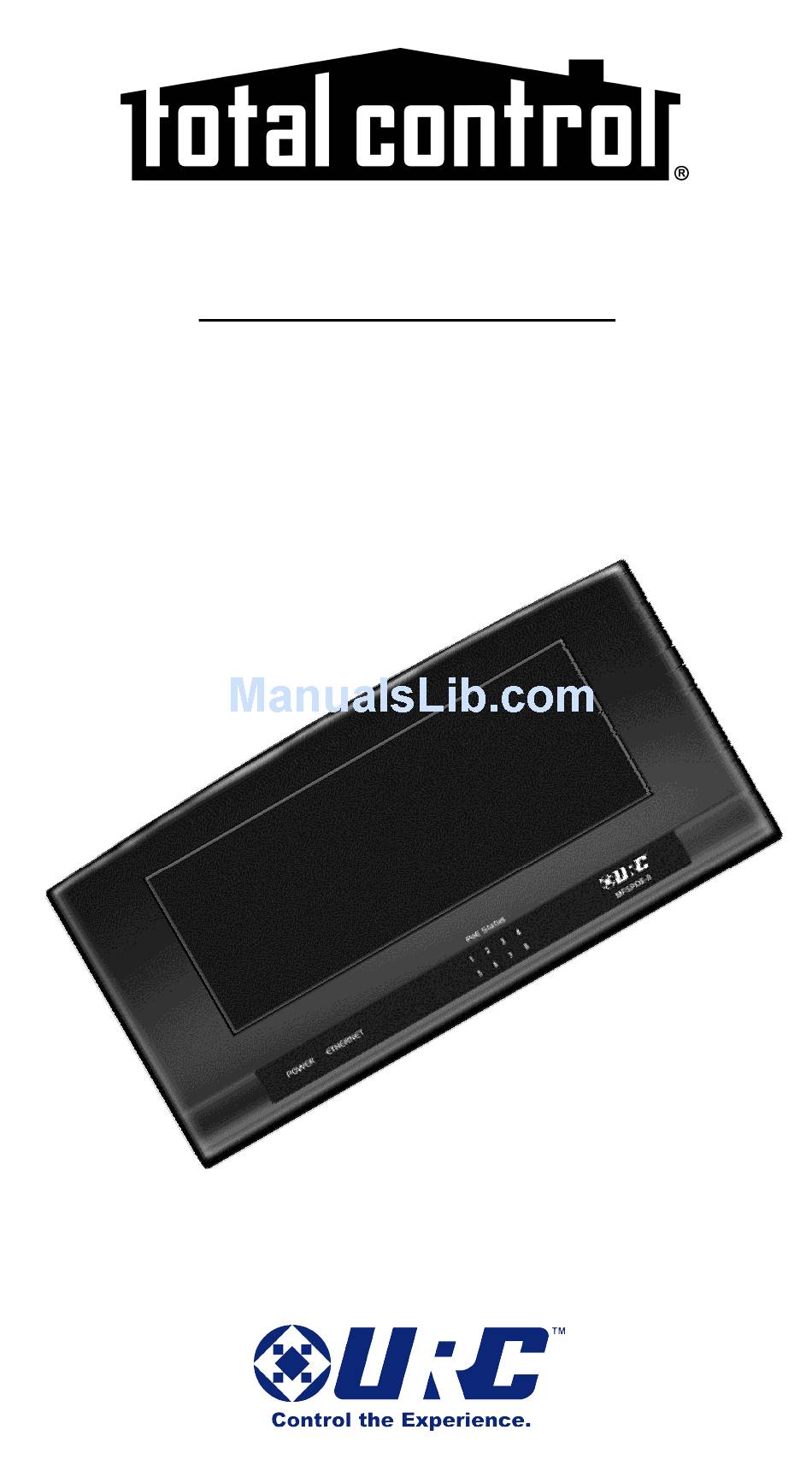

- Page 1 Installation Manual MFSPOE-8 Network Switch...
- Page 2 THIS MANUAL. The information in this owner’s manual may be subject to change without prior notice. URC - Control the Experience is a registered trademark of Universal Remote Control, Inc. Total Control is a registered trademark of Universal Remote Control, Inc.
-
Page 3: Table Of Contents
Rear Panel Description MFSPOE-8 Installation Considerations Installation MFSPOE-8 Installed in a Small System MFSPOE-8 Installation Optimized for Max Number of PoE Ports MFSPOE-8 Installed in the area with the Network Distribution Frequently Asked Questions Specifications Limited Warranty Statement End User Agreement... -
Page 4: Introduction
WAP. There’s no need to worry about accidentally damaging any Non-PoE gear with the MFSPOE-8, it will never happen. Eight “Smart” 10/100 PoE (Power over Ethernet) auto-sensing ports determine if connected devices are PoE compliant or just standard network devices, and then apply the correct voltages. -
Page 5: Features
Activity and Status LEDs, plus Connectivity indicator Includes 48 volt power supply Parts Guide 1 – MFSPOE-8 MAC Filtering Switch with PoE 1 – 1.5M CAT5 Ethernet Cable 1 – 48V AC Power Adapter 1 – Power Cord for AC Power Adapter 1 –... -
Page 6: Front Panel Description
Power Indicator: Illuminates when the MFSPOE-8 Power Supply is connected to AC outlet. Ethernet Network Connectivity Indicator: Illuminates when the MFSPOE-8 is connected to a LAN and has received an IP Address. PoE Port Status Indicators: Illuminate when a PoE compliant device is connected to a port. -
Page 7: Rear Panel Description
Wall Mount Bracket: Convenient removable wall bracket allows the MFSPOE-8 to be mounted to the back of a cabinet or rack. Remove the wall bracket when placing the MFSPOE-8 on a shelf or stand. Page 4... -
Page 8: Mfspoe-8 Installation Considerations
If you have more than eight of the above streaming components, simply connect a stan- dard network switch to any port on the MFSPOE-8 and then con- nect the additional components to the standard switch. This allows the additional components to benefit from the MFSPOE-8’s MAC... -
Page 9: Installation
WITCH NSTALLATION ANUAL Installation 1. On the back of the MFSPOE-8, connect one end of a CAT5 cable to the port labeled LAN 10/100. 2. Connect the other end of the CAT5 cable to the LAN (Local Area Network). 3. Connect Total Control and standard network devices to any of the eight PoE 10/100 Smart Ports. -
Page 10: Mfspoe-8 Installation Optimized For Max Number Of Poe Ports
Camera 2 Notes: The Wireless Access Point CANNOT be connected to the MFSPOE-8; it must be connected to the Router in the LAN. A standard network switch is used to connect the DMS-1200 and SNP-1 to the MFSPOE-8. This configuration provides... -
Page 11: Mfspoe-8 Installed In The Area With The Network Distribution
Occasionally you get a retrofit installation where only one CAT5 wire has been run to a room, and there’s no way to run another one. In this case, locate the MFSPOE-8 in the Utility Room, Garage, or wherever the central distribution point for the Network is located and install standard network switches in rooms where you plan to locate a DMS-1200, DMS-100 or SNP-1. -
Page 12: Frequently Asked Questions
DMS-100 in the system, then the answer is NO, you do not need to use a MFSPOE-8. If you have DMS-1200(s) or DMS-100(s) in the system, then the answer is YES, you must use a MFSPOE-8 or MFS- 8 in the system, connected to the those components. -
Page 13: Specifications
CAT5, and then connect the DMS-100, PC and Printer to the switch. It is not recommended to connect PCs used for internet gaming to a MFSPOE-8, as this may affect the performance of video gaming during heavy stream usage. Specifications... -
Page 14: Limited Warranty Statement
Limited Warranty Statement 1. Limited Warranty and Disclaimers Universal Remote Control, Inc. (“URC”) warrants that the URC equipment shall be free from defects in material and workmanship under normal usage for two (2) years from purchase when such is purchased from URC. This limited warranty is valid only in the United States of America. - Page 15 MFSPOE-8 N ETWORK WITCH NSTALLATION ANUAL SKILL AND CARE, OR OUTCOME OR RESULTS. WITHOUT IN ANY WAY LIMITING THE GENERALITY OF THE OTHER PROVISIONS HEREIN, WARRANTY DOES NOT COVER: (I) DAMAGE FROM MISUSE, NEGLECT OR ACTS OR NATURE, (II) MODIFICATIONS,...
-
Page 16: End User Agreement
MFS-8 N ETWORK WITCH NSTALLATION ANUAL URC’s PC programmable remotes or any of our Total Control® whole-house equipment are authorized for online internet sales. Buying URC’s PC programmable remotes or any of our Total Control® whole-house equipment online means buying equipment that does not have a URC’s limited warranty. Such equipment is not eligible for URC tech support or software support, either. -
Page 17: Federal Communication Commission Interference Statement
MFSPOE-8 N ETWORK WITCH NSTALLATION ANUAL Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 18: Regulatory Information To The User
: EN 55024 lPower : EN-61000-3-2, 3 n Declaration of Conformity “Hereby, Universal Remote Control Inc. declares that this MFSPOE-8 is in compliance with the Essential requirements and other relevant provi- sions of EMC Directive 2004/108/EC.” Certification Type No.(Model No.) MFSPOE-8 Batch/Serial No. -
Page 19: Declaration Of Conformity
MFSPOE-8 N ETWORK WITCH NSTALLATION ANUAL Declaration of Conformity Company Name Universal Remote Control Inc. Company Address 500Mamaroneck Avenue, Harrison, NY 10528, U.S.A www.universalremote.com Contact Info rmation Phone: (914)835-4484 Fax: (914)835-4532 Brand Name UNIVERSAL remote control Product Name Mac Filtering Switch with PoE... - Page 20 Page 17...
- Page 21 Page 18...
- Page 22 Page 19...
- Page 23 Page 20...
- Page 24 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 www.universalremote.com OCE-0076C Rev 01...
