GEN154A

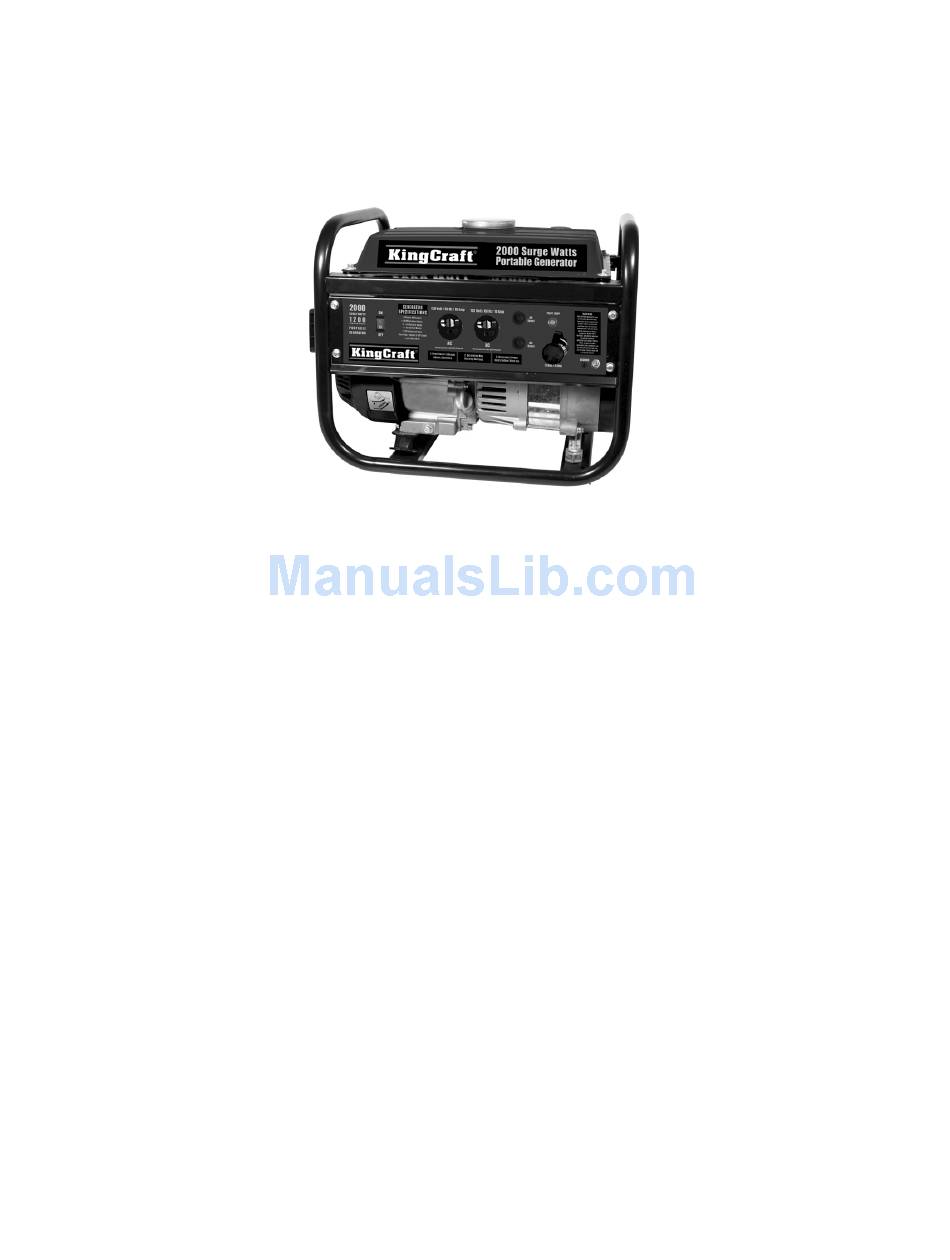

2000 Surge Watts / 1200 Running Watts
PORTABLE GENERATOR
INSTRUCTION MANUAL
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.
This manual provides important information on proper operation & maintenance. Every effort has been
made to ensure the accuracy of this manual. These instructions are not meant to cover every possible
condition and situation that may occur. We reserve the right to change this product at any time without
prior notice.
IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE,
DO NOT OPERATE THIS PRODUCT!
DO NOT RETURN THIS PRODUCT TO THE RETAILER - CONTACT CUSTOMER SERVICE.
If you experience a problem, have questions or need parts for this product, call Customer Service at
1-866-460-9436, Monday-Friday, 8 AM - 4 PM Central Time. A copy of the sales receipt is required.
FOR CONSUMER USE ONLY – NOT FOR PROFESSIONAL USE.
KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR FUTURE
REFERENCE.
Advertisement
Table of Contents
Summary of Contents for KingCraft GEN154A
- Page 1 201002 GEN154A 2000 Surge Watts / 1200 Running Watts PORTABLE GENERATOR INSTRUCTION MANUAL READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT. This manual provides important information on proper operation & maintenance. Every effort has been made to ensure the accuracy of this manual. These instructions are not meant to cover every possible condition and situation that may occur.
- Page 2 GEN154A 2000 Surge Watts / 1200 Running Watts Portable Generator FEATURES: 4-Stroke OHV Engine • Recoil Start • • 2.8 HP Unleaded Gasoline Engine / 3600 RPM • 2-120 Volt 60 Hz / 10 AMP AC Outlets 1-12 Volt DC Outlet / 8 AMP •...
-
Page 3: Table Of Contents
Parts replaced during warranty repairs will be considered as part of the original product and will have the same warranty period as the original product. This warranty gives you specific legal rights, and you may have other rights that vary from state to state. GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator... - Page 4 CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage. GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator...
-
Page 5: Important Safety Instructions
• If the generator is not operated at a temperature of between 5 - 40 °C and a height of 0 - 1000 m, the connected power consumption must be reduced! • Prevent this to ensure the longevity of the device and hazards! GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator... - Page 6 • For power outages, permanently installed stationary generators are better suited for providing backup power to the home. • Even a properly connected portable generator can become overloaded. • This may result in overheating or stressing the generator components, possibly leading to a generator failure. GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator...
- Page 7 GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator...
- Page 8 In addition to the previously described safety information, familiarize yourself with all safety and hazard placards on this generator. GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator...
-
Page 9: Package Contents
PACKAGE CONTENTS The following items are supplied with this Model GEN154A 2000 Surge Watts / 1200 Running Watts Portable Generator. Verify that all items are included. STOP! If there are missing items, call 1-866-460-9436, Monday - Friday, 8 AM - 4 PM Central Time for customer service. DO NOT RETURN THIS GENERATOR TO THE RETAILER. -
Page 10: Generator Components
6) Carburetor Choke Lever 7) Fuel Cock 8) Power On/Off 9) 120 V AC Outlets 10 Amp 10) 12 Volt DC Outlet 8 Amp 11) Pilot Lamp 12) AC Reset 13) DC Reset GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator... -
Page 11: Preparing The Generator For Use
The correct quantity of oil is equal to the oil capacity of the engine crankcase and is 13.5 fluid oz (0.40 L) for this Model GEN154A 2000 Surge Watts / 1200 Running Watts Portable Generator. Add the correct quantity of oil before operating this generator for the first time. -
Page 12: Step 2 - Add Unleaded Gasoline
Grounding codes can vary by location. Contact a local electrician for information on grounding regulations for your area. Figure 3 The Grounding Terminal is located on the front of the generator, to the right of the DC Output socket. GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator... -
Page 13: Subsequent Use Of This Generator
No. 12 AWG (American Wire Gauge) stranded copper wire. The other end of this grounding wire should be connected to a copper or brass grounding rod that is driven into the earth. Grounding codes can vary by location. Contact a local electrician for information on grounding regulations for your area. GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator... -
Page 14: Starting The Generator
30 seconds and then move the choke lever completely over to the “open” position. 9. Allow this generator to run for several minutes before connecting any electrical devices. Figure 4 The Recoil Start is located on the left side of the generator. GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator... -
Page 15: Using The Generator
Electrical devices running on AC current may be connected according to their wattage requirements. The rated (running) and surge wattage for this Model GEN154A 2000 Surge Watts / 1200 Running Watts Portable Generator is 1,200 and 2,000 respectively. The rated (running) wattage corresponds to the maximum wattage a generator can output on a continuous basis. - Page 16 Turn on the connected electrical devices beginning with the device with the highest rated wattage requirement and then each additional device with the next lower rated wattage requirement. Do not connect 50Hz or 3-phase loads to this generator. GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator...
-
Page 17: Dc Usage
• If battery acid is swallowed, drink large quantities of milk and immediately call a physician. Do not secure the generator with a chain or rope, which would prevent it from being moved in an emergency. GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator... -
Page 18: Maintenance/Care
Never clean this generator with a bucket of water and/or a hose as water can get inside and cause a short circuit or corrosion. Never use gasoline to clean parts of this generator. GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator... -
Page 19: Checking The Oil Level
The oil level in this generator should be checked before each use. (See Figure 9.) When the oil level is low, add oil until the level is sufficient to operate this generator. The oil capacity for this Model GEN154A 2000 Surge Watts / 1200 Running Watts Portable Generator engine is 13.5 fluid oz. (0.40 L). To drain the oil from this generator: It is necessary to drain the oil from the crankcase only if it has become contaminated with water and/or dirt. -
Page 20: Air Filter Maintenance
6. Turn the fuel valve to the “off” position. 7. Replace the fuel filter cup. 8. Store the drained gasoline in a suitable place. Do not store gasoline for more than 3 months. GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator... -
Page 21: Troubleshooting
Generator runs but does not support all Short in one of the connected devices. Disconnect any faulty or short-circuited connected electrical devices. electrical loads. Air filter is dirty. Clean or replace air filter. GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator... -
Page 22: Parts Diagram
GEN154A 2000 SURGE WATTS / 1200 RUNNING WATTS PORTABLE GENERATOR PARTS DIAGRAM GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator... -
Page 23: Parts List
GEN154A 2000 SURGE WATTS / 1200 RUNNING WATTS PORTABLE GENERATOR PARTS LIST GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator... - Page 24 GEN154A201002 GEN154A 2000 Surge Watts/1200 Running Watts Portable Generator...
