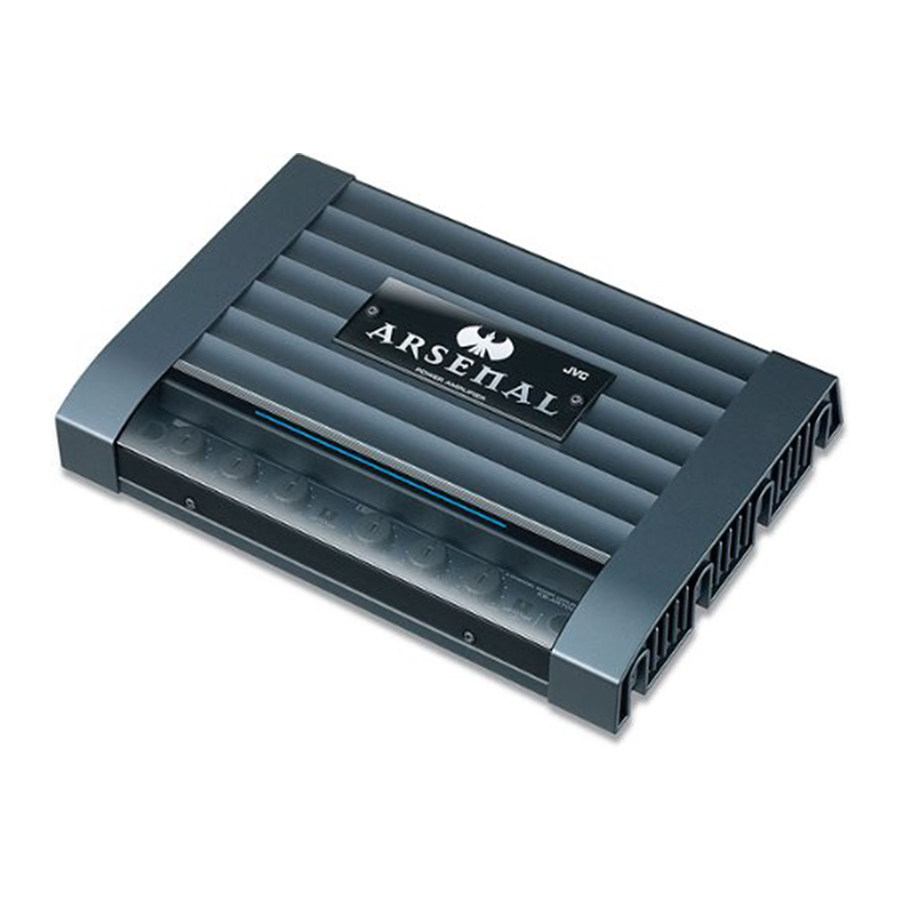

Arsenal KS-AR7004 Instructions Manual

LVT1700-001A
[J)
ARSEnAL
KS-AR7004 / KS-AR7002
POWER AMPLIFIER: INSTRUalONS
AMPLlFICATEUR DE PUISSANCE: MANUEL D'INSTRUOIONS
ENGLISH
•
o
tta.~'J
Thank you for purchasing an ARSENAL product. Please read all instructions carefully before
operation, to ensure your complete understanding and to obtain the best possible performance
from the unit.
For safety....
TERMINAL CONNECTIONS
When making the terminal connections...
1
Peel the insulating vinyl cover of a cord
5/.6
inch (7 mm) to
7/16
inch (10 mm) long and expose the inside conductor.
2
Loosen the hex screw in a terminal with a provided hex wrench
and insert the conductor into the terminal. Then fix the hex screw
again to secure the conductor•
Note
• The exposed conductor should be
5/16
inch (7 mm) to
7/16
inch (10 mm) long.
- If shorter, it may cause
a
poor conductivity.
- If longer, it may cause
a
short circuit.
• Use
a
proper hex wrench for each terminal.
- 4 mm: +8 terminal and GND terminal
- 3 mm: REM terminal and speaker terminals
I
*
Not included with this unit.
I
To metallic body or chassis
f'
... I
JVC
car receiver, at
c·1
Remote turn-on tine
@
Ignition switch
t t A t
(To an accessory terminal)
. "-.. @
..
----- -------
/'
40A fuse
1,.!lIi'.'@'
This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems.
• This unit uses BTL (Balanced Transformerless) amplifier circuitry, Le., floating ground system,
so please comply with the following:
Do not connect the
"8"
terminals of the speakers to each other.
Do not connect the
"8"
terminals of the speakers to the metal body or chassis.
• Cover the unused terminals with insulating tape to prevent them from short circuiting.
• When an extension lead is used, it shouid be as thick and short as possible; connect it firmly
with insulating tape.
• Be sure to leave an appropriate space between the antenna and the wires of this unit.
• When replacing the fuse, only use a 40 A fuse.
• Do not let pebbles, sand or metallic objects get inside the unit.
• To keep the heat dissipation mechanism running effectively, wipe the accumulated dust off periodically.
• Listening to the tape, radio, CD or Digital Audio Player, etc. with the volume set at a high level
for a long period of time will exhaust the battery, while the engine is turned off or while the
engine is idling.
• This unit becomes very hot. Be careful not to touch the unit not only when using but for a while
after using.
DO NOT disassemble the units since there are no user serviceable parts inside.
• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
POWER SUPPLY
• Stop the car before performing any complicated operations.
;..;;.;.;.;:;;;.;.;;;.;;.;.;..;;.;.-======-==--====-----------
CAUTIONS AND NOTES
For Customer Use:
Enter below the Model No. and Serial No. which are located on the top or bottom of the
cabinet. Refain this information for future reference.
Model No. Serial No.
INSTALLATION
The following illustration shows a typical installation. However, you should make adjustments
corresponding to your specific car. If you have any questions or require information regarding
installation kits, consult your JVC car audio dealer or a company supplying the kits.
®
Mount this unit on a firm surface, such as in the trunk room or under the front seat.
• Since heat is generated in the unit, do not mount it near inflammable objects. In addition,
mount it in an area that will not prevent the unit from dissipating the heat.
• Do not mount the unit in the places subject to heat: near a radiator, in a glove compartment
or in insulated areas such as under a car mat that will prevent the unit from dissipating
heat.
When mounting the unit under the front seat, make sure that adjusting the seat position
will not catch any wire of the unit.
@ When mounting this unit, be sure to use the provided screws. If any other screws are used,
there is a risk of loosening the unit or damaging parts inside il.
• Before drilling holes in the trunk to install the unit, make sure that there is a sufficient
space under the trunk so that you do not drill holes in the fuel tank, etc.
• Detach the control cover on the unit before mounting (see "CONTROLS" on page 3).
• To detach and rotate the Logo Plate 180 degrees, use the provided hex wrench (3 mm).
©
When you use more than one KS-AR7000 series' amplifier, you can pile them up to three
with provided brackets, screws and washers in two ways, X or Y. Be sure to mount the lowest
amplifier (CD) primarily following @.
• Before piling amplifiers, attach the provided spacers to "+" on the bottom of the amplifiers
<V
and
Q).
• Fix the amplifiers on both sides with proper brackets as illustrated. Brackets (L) are used
only for the amplifier
Q).
• Before piling amplifiers as X, first make the connections for the power suppiy (see
"POWER SUPPLY") and speakers (see "SPEAKER CONNECTIONS" on page 2).
• It is recommended to pile amplifiers as X so that you can easily operate the controllers on
each amplifier.
To prevent short circuits while making connections, keep the battery's negative terminal
disconnected.
• When using a power cord (purchased separately), be sure to place the 40 A fuse near the
battery as shown.
• Connect the lead wire (power cord) through which power is supplied directly to the battery's
"$"
terminal only after all the other connections have been made.
The proper lead wire connected to each POWER terminal is as follows.
• + Band GND: AWG 8 to AWG 4 (The cross section
is
about 8 mni' t021 mni'.)
• REM: AWG 18 to AWG 8 (The cross section is about 0.8 mni' t08 mni'.)
• If you have any questions regarding the thickness of the power cord, etc., consult your nearest
JVC car audio dealer.
@ When you use JVC car receiver with a remote lead, connect to the REM terminal on this
unit.
(jii When you connect a unit without a remote lead, connect to the accessory circuit of the
car which is activated by the ignition switch. In this case, noise may occur when the car
receiver is turned on or off. To avoid this noise, do not turn on or off the car receiver itself.
You can turn on or off the car receiver along with the on/off operation of the ignition switch.
If the POWER/PROTECTOR lamp lights in red, it indicates incorrect speaker wiring or
connections (see "TROUBLESHOOTING" on page 3). Make sure to correct speaker wiring and
other connections.
SPEAKER SYSTEMS
Make sure to comply with the following notes:
• Be sure not to connect the
"8"
terminals of the speakers to a common point.
• If the ground wire is common to both leWright and fronVrear speaker wirings, this unit cannot be
used. Always use the independent lead wires for the speakers to be used. In this case, redo the
wirings.
• Use the speakers with an impedance of 2
Q
to 8
Q
(4
Q
to 8
Q:
when used in Bridge Mode).
• Use the speakers which have sufficient capacity to the unit.
The proper lead wire connected to each SPEAKER OUTPUT terminal is as follows.
AWG 18 to AWG 8 (The cross section
is
about 0.8 mni' to 8 mni'.)
For KS-AR7004:
When you connect 4 speakers to the unit, down mixed signals (front and rear) are emitted
through the PRE OUT jacks.
For KS-AR7002:
Incoming signals are emitted through the PRE OUT jacks.
Spring Lock Washer
(M4)
14-
Washer
Screw (M4)
(M4
x '/2 inch
(12
mm»
~
®
Onto the trunk room floor
Under the front seat
®
Screw
Logo
Plate (detachable)
(Oia.
3/,. inch (4 mm)
x
13
11. inch (20
mm))
I
Drilled hole
©
Spacer's
bottom
Spacer
Bracket (S)
Y
Bracket (L)
Spacer
