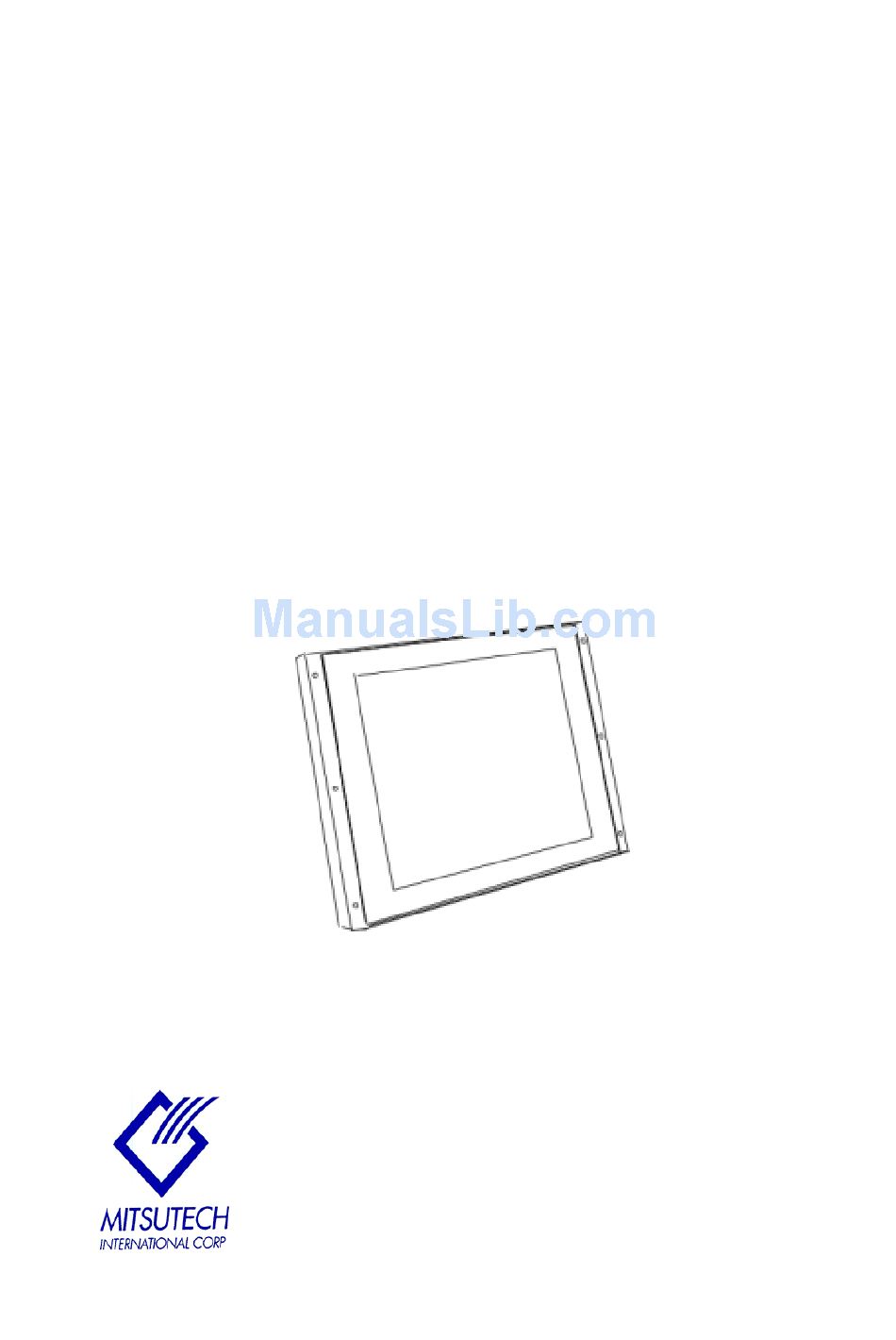

Panel Mount Industrial LCD
Model No. MTK-1xxx
Mitsutech
International Corp.
6F, 431, Rei-Kuang Road
Taipei, Taiwan
R.O.C.
Tel: +886-2-2797-2889
Fax: +886-2-2797-1669
e-mail:info@mitsutech.com.tw e-mail:info@mitsutech.com
httl:\\www.mitsutech.com.tw
Display Kit
(User Manual)
Mitsutech
USA Corp.
48501 Warm Springs Blvd
Suite 114
Fremont, CA94539, USA
Tel: +1-510-656-8986
Fax: +1-510-656-8167
httl:\\www.mitsutech.com
Mitsutech
Asia Limited.
Room 1406,42 Hung To Road
Kwun Tong
Kowloon, Hong Kong
Tel: +852-2304-8429
Fax: +852-2304-8217
e-mail: jimsu@lcdvision.com
Httl:\\www.lcdvision.com
1
Advertisement
Related Manuals for Mitsutech MTK-1xxx
Summary of Contents for Mitsutech MTK-1xxx
-
Page 1: User Manual
Panel Mount Industrial LCD Display Kit (User Manual) Model No. MTK-1xxx Mitsutech Mitsutech Mitsutech International Corp. USA Corp. Asia Limited. 6F, 431, Rei-Kuang Road 48501 Warm Springs Blvd Room 1406,42 Hung To Road Taipei, Taiwan Suite 114 Kwun Tong R.O.C. - Page 2 Be sure to turn off power supply. Avoid exposing the MTK-1xxx to direct sunlight or other heat source. The MTK-1xxx should be facing away from direct sunlight to reduce the glare. Choose a well-ventilated area to position your MTK-1xxx to allow adequate dissipation of heat.
- Page 3 BACK CONTROL PANEL The monitor’s OSD control functions are located on the top middle of the back. (back view of kit) From right to left: Select :To select the input source (VGA, AV1, AV2, AV3) Menu :To select the Basic Setting, Position, Screen Setting, Auto Adjust, Menu Setting, Recall, All Reset and Exit Down :To decrease the value of the Select function...
-
Page 4: Installation
Installation: Product Package Please check the contents first after opening the carton. The package should include the following items; Analog Color TFT LCD Monitor Accessory box: 1. RGB cable 2. AC Adapter & Cord 3. Video cable Operating manual Installation: 2.1 Make sure the monitor and the system unit power switches are OFF. - Page 5 ON SCREEN DISPLAY FOR VGA (OSD) MODE : 1024 X 768 1.1 Fig 1: BASIC SETTING BASIC SETTING: (See section 1.2) POSITION POSITION: (See section 1.3) SCREEN SETTING AUTO ADJUST SCREEN SETTING: (See section 1.4) MENU SETTING AUTO ADJUST: (See section 1.5) RECALL ALL RESET MENU SETTING: (See section 1.6)
- Page 6 1.4 Fig 4: MODE : 1024 X 768 GRAPHIC/TEXT : To exchange the GRAPHIC/TEXT EXPANSION 640x640 (60Hz)/720x350 (60Hz) SMART SCALLING Expansion : To expansion the image to full SHARPNESS EXIT screen or to abbreviate the image to normal (1:1) SMART SCALLING : To adjust the H : 47.7K V : 60 image to interpolation.
- Page 7 1.7 Fig 7: MODE : 1024 X 768 COLOR1 : To setting the color COLOR1 COLOR2 temperature of the image to 9600K. COLOR3 COLOR2 : To setting the color temerature USER EXIT of the image to 6500K. COLOR3 : To setting the color temperature of the image to 5400K.
- Page 8 ON SCREEN DISPLAY FOR VIDEO (OSD) BRIGHTNESS BRIGHTNESS : To adjust the black color level of the image. CONTRAST CONTRAST : To adjust the white color level of the image. SATURATION SATURATION : To adjust the color saturation of the image. HUE : To adjust the color hue of the image.
- Page 9 REFERENCE IGNAL ONNECTOR ONOUTS POWER CONNECTOR Pin 1 Ground Pin 2 + 12V output RGB SIGNAL CONNECTOR Pin 1 Analog Red Input Pin 2 Analog Green Input Pin 3 Analog Blue Input Pin 4 Ground Pin 5 Digital Ground Pin 6 Analog Red Ground Pin 7 Analog Green Ground...
- Page 10 VGA SUPPORT MODE Resolution Horiz. Vert. Freq. (Hz) Polarity 640 x 350 31.46 37.86 720 x 350 31.46 37.86 640 x 400 31.46 37.93 24.82 720 x 400 31.46 37.86 640 x 480 31.46 59.9 35.00 66.6 37.86 72.8 37.50 75.0 43.27 85.0...
