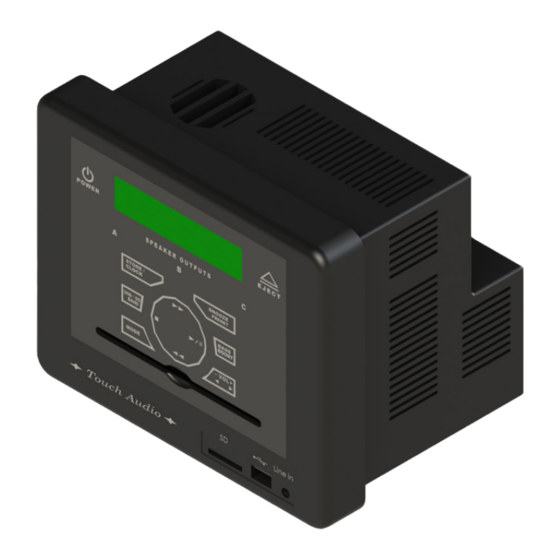

Summary of Contents for Lippert Components Touch Audio VD300WR
- Page 1 T���� A���� VD-300WR OWNER'S MANUAL Page 1 Rev: 04.10.2014 Touch Audio VD300WR Owners Manual...
-
Page 2: Table Of Contents
Speaker Wiring Harness Operation Remote Touch Audio Radio Mode Weather Band Programming TV System Power Resume Auto Play TV Type Rating Default Language Setup Audio Setup Video Setup Speaker Setup Troubleshooting Page 2 Rev: 04.10.2014 Touch Audio VD300WR Owners Manual... -
Page 3: System
CH3 - 162.450 MHz WB CH1 - CH7 MHz CH4 - 162.475 MHz Frequency Range CH5 - 162.500 MHz CH6 - 162.525 MHz CH7 - 162.550 MHz Output Power 200 W PMPO Page 3 Rev: 04.10.2014 Touch Audio VD300WR Owners Manual... -
Page 4: System Controls
USB/ SD/ Band Mode LCD Display Stop/ Play/ Pause/ Fast Forward/ Rewind Eject Remote Sensor Snooze/ Preset Bass Boost Volume Up/ Volume Down SD/ MMC Card Port USB Port Auxiliary In Page 4 Rev: 04.10.2014 Touch Audio VD300WR Owners Manual... -
Page 5: System Wiring Ports
MP3/WMA Play Bass CD Play Disc/Radio/Clock Time Snooze Mode Memory FM Stereo Audio Mode NOAA FM Mono Audio Mode MHz/kHz Mode A/B/C Speaker Outputs Alarm Track/Preset Number Mute FM Mode Play/Pause Page 5 Rev: 04.10.2014 Touch Audio VD300WR Owners Manual... -
Page 6: Wireless Remote Controls
Memory/ Clock Adjust Program Volume Increase Title Setup Rewind Up Arrow Fast Forward Play/ Pause Previous Volume Decrease Next Channel Decrease/ Left Arrow Enter/ Snooze Channel Increase/ Right Arrow Language Zoom Page 6 Rev: 04.10.2014 Touch Audio VD300WR Owners Manual... -
Page 7: Installation
Connect all wires and test the radio. Connecting the speakers wrong will cause distortion and damage the power amplifier. Mount the radio in the wall or cabinet. Screw the unit in place, replace screw covers. Page 7 Rev: 04.10.2014 Touch Audio VD300WR Owners Manual... -
Page 8: Speaker Wiring Harness
Speaker Wiring Harness NOTe: Wrong connection or reversed polarity (+/-) can cause distortion and damage the power amplifier. Page 8 Rev: 04.10.2014 Touch Audio VD300WR Owners Manual... -
Page 9: Operation
A. Changes channel down and selects options in menu. 17. Channel Up /Right A. Changes channel up and selects options in menu. 18. Snooze/Enter A. Confirms selection and snoozes for 9 minutes. Page 9 Rev: 04.10.2014 Touch Audio VD300WR Owners Manual... - Page 10 A. Increases playback speed with no audio. Press multiple times to increase playback speed. 30. Previous A. Skips back to previous chapter or track. 31. Next A. Skips forward to next chapter or track. 32. Zoom A. Magnifies image during VCD/SVD/DVD playback. Page 10 Rev: 04.10.2014 Touch Audio VD300WR Owners Manual...
-
Page 11: Touch Audio
Press previous/next on the remote or fast forward/reverse on the unit to cycle station presets. NOTe: If there is a weak signal adjust the antennae to the most adequate position. Page 11 Rev: 04.10.2014 Touch Audio VD300WR Owners Manual... -
Page 12: Weather Band
Some of the picture may be lost of the sides. NOTe: The aspect ratio chosen should relate to the recorded disk format as some images may not be displayed if native ration is not selected. Page 12 Rev: 04.10.2014 Touch Audio VD300WR Owners Manual... -
Page 13: Rating
Highlight the Key option and press enter on the remote. B. Use the up/down arrows on the remote to designate the key output desired. C. Press enter on the remote to select the key output designated. Page 13 Rev: 04.10.2014 Touch Audio VD300WR Owners Manual... -
Page 14: Video Setup
Output will have two channels of output coming from the left and right soundtrack . III. VSS Output will use a 5.1 format if it was encoded in 5.1 channels. C. Press enter on the remote to select the down mix output designated. Page 14 Rev: 04.10.2014 Touch Audio VD300WR Owners Manual... -
Page 15: Troubleshooting
Clean or replace disk. Interference between remote Move obstacle and/or point remote and unit directly at the wireless remote sensor . Wireless remote does not work Remote battery is dead Replace/recharge battery. Page 15 Rev: 04.10.2014 Touch Audio VD300WR Owners Manual... - Page 16 All information contained within may be distributed as a full document only, unless otherwise permitted by explicit consent of Lippert Components Inc. to distribute individual parts. All information contained within is subject to change without notice. New editions will be posted on www.lci1.
