SV Sound AS-EQ1 Operator's Manual

Subwoofer eq with detachable faceplate
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SV Sound, LLC
© 2009 SV Sound, LLC
6420 Belmont Avenue, Girard, OHIO
703.845.1472
www.svsound.com
•
•
•

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS-EQ1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SV Sound AS-EQ1

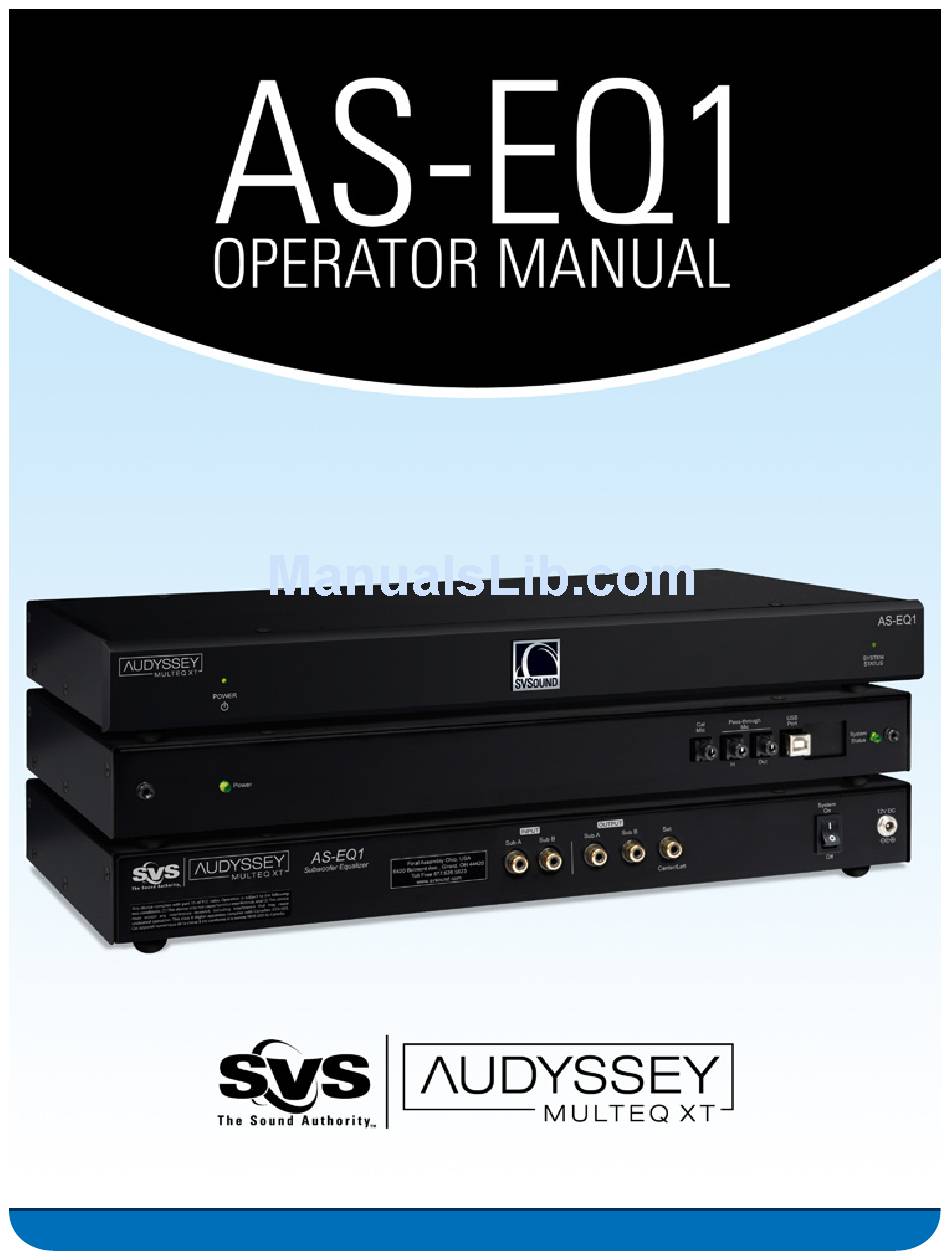

  • Page 1 SV Sound, LLC © 2009 SV Sound, LLC 6420 Belmont Avenue, Girard, OHIO 703.845.1472 www.svsound.com • • •...
  • Page 2 SV Sound, LLC AS-EQ1 Operator Manual What’s in the Box • SVS AS-EQ1 subwoofer EQ with detachable faceplate. • Quick start guide • Installation software CD (Operator Manual, Installation software, CutePDF Writer, SVS desktop pack). • 10’ USB cable. • Matched Audyssey calibration microphone.

  • Page 3: Table Of Contents

    Safety Instructions Introduction About this Manual Installing the SubEQ GUI and AS-EQ1 Manual on your PC Connecting the AS-EQ1 to your Audio System Calibrating the AS-EQ1 in your Listening Environment Integrate the AS-EQ1 with your Auto EQ Receiver or Pre/Pro...

  • Page 4: Safety Instructions

    12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used use caution when moving the cart/apparatus combination to avoid injury from tip-over. FIG. 2 © 2009 SV Sound, LLC 6420 Belmont Avenue, Girard, OHIO 703.845.1472 www.svsound.com •...
  • Page 5 16. To completely disconnect this equipment from the mains, disconnect the power supply cord plug from the receptacle. 17. The mains plug of the power supply cord shall remain readily operable. FIG. 3 © 2009 SV Sound, LLC 6420 Belmont Avenue, Girard, OHIO 703.845.1472 www.svsound.com •...

  • Page 6: Introduction

    Audio lovers, perfect bass is finally possible, easy, and downright fun to achieve. Your AV receiver invest- ment is solidified since the AS-EQ1 is compatible with any sort you have. Your bass needs are covered no matter what your current or future room looks like. Switch one on, run setup, and you won’t ever switch it off.
  • Page 7 SV Sound, LLC AS-EQ1 Operator Manual Introduction SVS AS-EQ1 Features: FIG. 4 © 2009 SV Sound, LLC 6420 Belmont Avenue, Girard, OHIO 703.845.1472 www.svsound.com • • •...

  • Page 8: About This Manual

    This document is intended to provide you with all the information necessary to properly install and integrate the SVS AS-EQ1 into your audio environment. After installing the Sub EQ GUI on your personal computer and properly attaching the AS-EQ1 to your Audio Video Receiver (AVR) or Preamp/Processor (Pre/Pro), you will be able to quickly step through a small number of tasks designed to equalize your subwoofer(s) in your listening environment.
  • Page 9 Installing the Sub EQ GUI on your PC To install the Sub EQ GUI on your computer system, insert the CD that came with your AS-EQ1 into your CD drive on the computer you will be using to configure the AS-EQ1. If the drive has been configured for “AutoRun”, the installer should automatically run.

  • Page 10: Installing The Subeq Gui And As-Eq1 Manual On Your Pc

    All Programs -> Audyssey Labs folder if the defaults are accepted. If you would like shortcuts on your Win- dows Desktop for SubEQ and the AS-EQ1 Operator Manual, you can simply drag a copy from the Start - > All Programs ->...

  • Page 11: Connecting The As-Eq1 To Your Audio System

    AVR or Pre/Pro to the Sub A input. Take the cable formerly run from your AVR or Pre/Pro to your subwoofer and connect to the AS-EQ1 Sub A Output.
  • Page 12 SV Sound, LLC AS-EQ1 Operator Manual Connecting the AS-EQ1 to Your Audio System AS-EQ1 Connection for Day-to-Day Operation FIG. 8 © 2009 SV Sound, LLC 6420 Belmont Avenue, Girard, OHIO 703.845.1472 www.svsound.com • • •...

  • Page 13: Calibrating The As-Eq1 In Your Listening Environment

    Connect your PC to the AS-EQ1 using the supplied USB cable, power on the AS-EQ1 using the on/off switch on the back panel, allow your PC to recognize the AS-EQ1, then start the Sub EQ GUI (note that if you start the Sub EQ GUI before connecting the AS-EQ1 via USB, Sub EQ will not recognize the AS-EQ1 is attached.

  • Page 14: Integrate The As-Eq1 With Your Auto Eq Receiver Or Pre/Pro

    If you use the Auto EQ feature of your AVR or Pre/Pro to EQ your listening environment, you MUST perform this step first. If you do not, your AVR or Pre/Pro and the AS-EQ1 will both apply EQ correction files to the subwoofer, which will result in poor subwoofer sound/performance.
  • Page 15 2. Take the Calibration Microphone from your AVR or Pre/Pro (NOT the Calibration Microphone from the AS-EQ1) and plug it into the Pass-through Mic In jack located on the front of the AS-EQ1. (see Fig. 12) 3. Locate the calibration microphone “patch cable” that came with your AS-EQ1 (1/8” mono male connectors on each end).
  • Page 16 The calibration of the Main/Satellite speakers are unaffected within the AVR or Pre/Pro using this process, and this insures only the AS-EQ1 will be handling the EQ of the subwoofers in actual system operation. 6. After completing the calibration of your AVR or Pre/Pro, remove its Calibration Microphone along with the calibration microphone patch cable from the AS-EQ1 and your AVR or Pre/Pro.
  • Page 17 SV Sound, LLC AS-EQ1 Operator Manual Calibrating the AS-EQ1 in Your Listening Environment AS-EQ1 Configuration for Auto EQ Task FIG. 12 © 2009 SV Sound, LLC 6420 Belmont Avenue, Girard, OHIO 703.845.1472 www.svsound.com • • •...

  • Page 18: Channel Configuration

    Dual discrete IN to dual discrete OUT represents “stereo bass” (two separate sources of bass). Alternatively, it can be used to connect two separate systems in the same room if you have that configuration. The AS-EQ1 will ping Subwoofer A, ping Subwoofer B, EQ Subwoofer A, then EQ Subwoofer B. It will not ping or EQ the combined A+ B.

  • Page 19: Level Matching

    Measurement task. 1. Insure the Gain on your subwoofer(s) plate amp is set to the middle of its range. 2. Set the Phase control of your subwoofer(s) to 0 (the AS-EQ1 will adjust each subwoofer to insure proper phase alignment).
  • Page 20 Calibrating the AS-EQ1 in Your Listening Environment 4. Attach the Calibration Microphone supplied with the AS-EQ1 to the Cal Mic Input on the front of the AS-EQ1. DO NOT use the microphone supplied with your AVR or Pre/Pro or any other Microphone as it may produce inaccurate results.
  • Page 21 (below) with a large number of measurement positions in order to avoid rework. If you are running more than two subwoofers (e.g. multiple subs attached to the AS-EQ1 Sub A or Sub B outputs) it is suggested you contact SVS Support for a discussion of properly Level Matching your specific configuration for your listening environment.
  • Page 22 SV Sound, LLC AS-EQ1 Operator Manual Calibrating the AS-EQ1 in Your Listening Environment AS-EQ1 Configuration for Level Setting and Measurement Tasks FIG. 15 © 2009 SV Sound, LLC 6420 Belmont Avenue, Girard, OHIO 703.845.1472 www.svsound.com • • •...

  • Page 23: Measuring Your Subwoofer(S)

    The AS-EQ1 measures the background noise level in the room before playing the test signal from each subwoofer. For the measurements to be valid the signal-to-noise ratio must be above a certain threshold and if it is not, the test signal from that subwoofer will repeat at a higher level.
  • Page 24 Calibrating the AS-EQ1 in Your Listening Environment 1. If you have not already done so, attach the Calibration Microphone included with the AS-EQ1 to the jack labeled Cal Mic Input on the front panel (behind the magnetically attached faceplate) of the AS-EQ1. DO NOT use the microphone supplied with your AVR or Pre/Pro or any other microphone as it may produce inaccurate results.

  • Page 25: Detection Results Entry Into Avr Or Pre/Pro

    NOTE : If your satellite speaker has useable extension and output at 40Hz, the AS-EQ1 may recommend it be set to LARGE (full range). SVS recommends that all speaker channels be set to SMALL for Home Theater applications unless the speaker(s) in question actually have clean/usable output down to 20Hz (which is very rare).
  • Page 26 The value reported represents the acoustical distance of the subwoofer, plus the electrical latency of the AS-EQ1. The distance reported will always be higher than the actual physical distance between the subwoofer(s) and the microphone location, and this is perfectly normal and not cause for concern.

  • Page 27: Save Results To As-Eq1

    Save Results to AS-EQ1 FIG. 18 The final task in setting up your AS-EQ1 is to save the results of your calibration to the device. WARNING - do not quit the Sub EQ application or disconnect the AS-EQ1 from your PC until the transfer is complete.
  • Page 28 Calibrating the AS-EQ1 in Your Listening Environment 1. By pressing the Transfer to AS-EQ1 button, the calibration file will be sent to the AS-EQ1 and allow you to listen to the non-EQ and EQ environment by selecting the Turn MultEQ On and Turn MultEQ Off buttons.

  • Page 29: Create Html Certificate Document

    Alternatively you can visit the CutePDF web site at http://www.cutepdf.com/Products/CutePDF/writer.asp Remove the USB cable from the AS-EQ1 and replace the front panel. You are now ready to experience some of the best and most accurate bass available. Throw some of your best bass demo material at your system and prepare to hear what flat, accurate bass sounds like in your room.

  • Page 30: Appendix A - Why Eq

    – and definitely different than what the speaker designer and recording engineer intended. The attached graph is an example of the effects of a listening room on our formerly flat subwoofer. © 2009 SV Sound, LLC 6420 Belmont Avenue, Girard, OHIO 703.845.1472 www.svsound.com...
  • Page 31 For example, frequencies that have had their energy boost- ed (louder) can have their energy reduced in the affected frequencies before sending the signal to the speaker or © 2009 SV Sound, LLC 6420 Belmont Avenue, Girard, OHIO 703.845.1472...
  • Page 32 In some cases people found they could hear and see improvements, and in just as many cases only minor improvements would be seen. In any case however, manually EQing a room is a labor-and-time intensive activity, and in many situations a pure “labor of love”. © 2009 SV Sound, LLC 6420 Belmont Avenue, Girard, OHIO 703.845.1472 www.svsound.com...
  • Page 33 Auto Equalization technology – have created the latest and most advanced subwoofer Auto EQ device to date, the AS-EQ1. The AS-EQ1 is designed specifically to Auto EQ just subwoofers – and not just a single subwoofer but duals – tackling one of the most difficult room EQ challenges facing the audio and home theater enthusiast.

  • Page 34: Terms And Conditions

    Shipping: When you receive your new AS-EQ1, please check to insure there is no damage. If after unpacking you discover any damage that may have been caused by transportation on your product, we request you contact SVS or if outside the USA your Dealer immediately and if possible, provide a photo of damage in question to them to ensure the fastest possible correction to the situation.
