Summary of Contents for Nyrius NPCS550

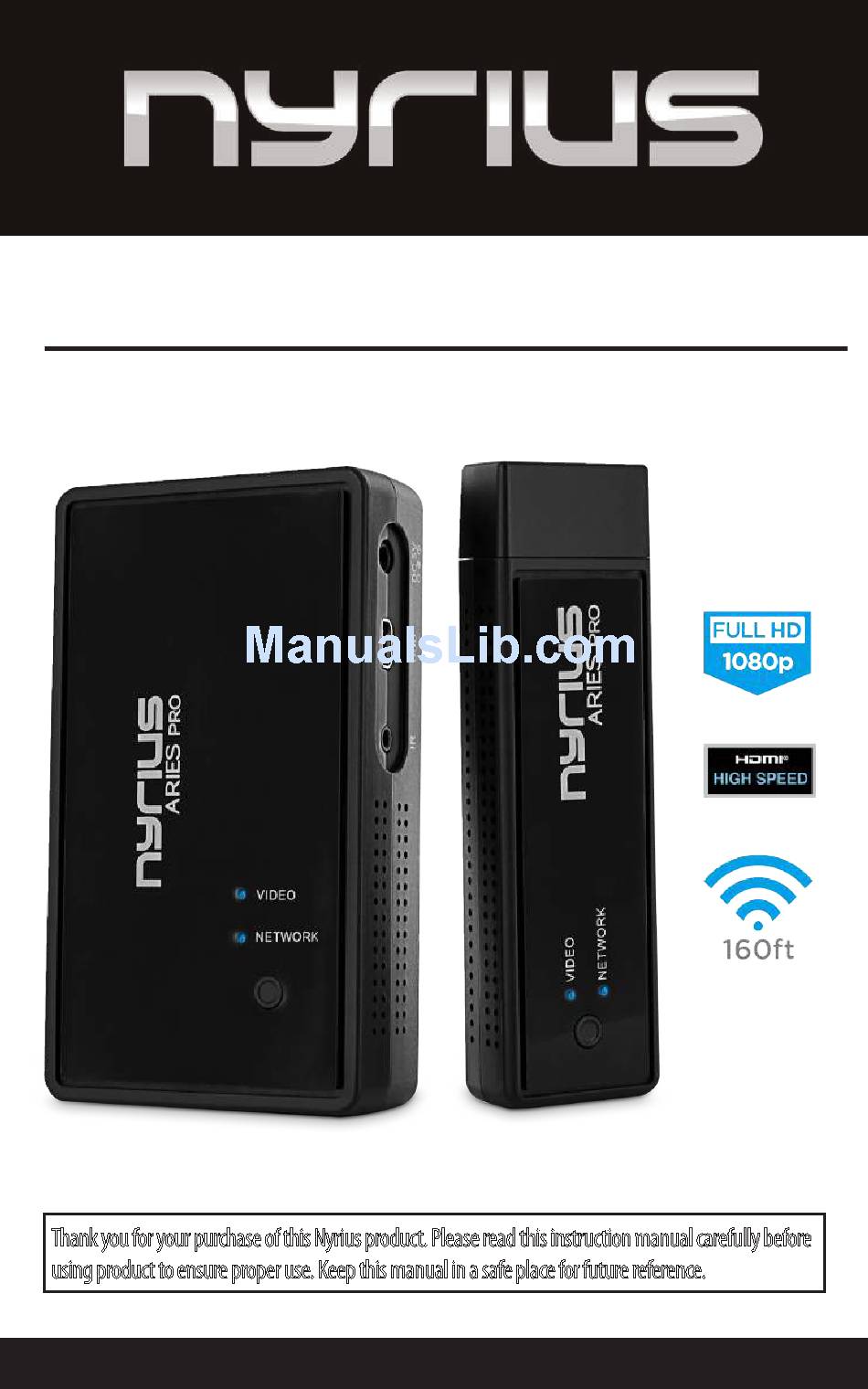

- Page 1 ARIES™ Pro Wireless HD for Laptops www.NYRIUS.com NPCS550 Thank you for your purchase of this Nyrius product. Please read this instruction manual carefully before using product to ensure proper use. Keep this manual in a safe place for future reference.
-
Page 2: Table Of Contents
Playstation is a registered trademark of Sony Computer Entertainment Inc. Xbox is a registered trademark of Microsoft Corporation. • Nyrius®, the Nyrius® logo, ARIES™ and any other Nyrius® marks may be registered. All other trademarks are property of their respective owners. - 2 -... -
Page 3: Buttons And Connections
BUTTONS AND CONNECTIONS Transmitter 1. VIDEO LED - Indicates HDMI Connection 3. NETWORK LED - Indicates wireless connection 2. SYNC BUTTON - Synchronizes receiver 4. USB INPUT - For USB Power Connection and transmitter Receiver 5. SYNC BUTTON - Synchronizes receiver 9. - Page 4 BUTTONS AND CONNECTIONS Remote Control 1. MENU – Enter the main menu 2. EXIT – Return to previous menu 3. SOURCE – Select video source 4. DIRECTIONAL KEYS – To Toggle UP/DOWN/LEFT/RIGHT in the menu screen 5. OK – Confirm your selection - 4 -...
-
Page 5: Setup
SETUP DC IN - Connect the 5V/2A power adapter ( spec: 3.5mm, DC 5V ) to this port. HDMI OUT- Using the HDMI cable provided, connect the receiver to the HDMI Input of any HD display device (HDTV, projector). MINI USB INPUT PORT - HID Remote Control function is supported when it is connected to the mini USB input port of a mouse or keyboard. -
Page 6: Connecting The Transmitter
Wait for 5 to 10 seconds, the network and video indicators will light up, confirming that the Basic Function video connection is successful. The information on the screen will show "Connected to NYRIUS..." and display the video source content from the PC/ Laptop. USB CABLE The network indicator won’t light up unless connection is established with transmitter... -
Page 7: Connecting Multiple Transmitters With One Receiver
SETUP Multicast function means that a receiver can be connected to many transmitters, (up to 8 transmitters) by using the remote control. Connecting multiple transmitters with one receiver Press the [MENU] key of the remote control to enter the MAIN MENU, press the directional keys to select [Add new Video Source] to add a video source. - Page 8 SETUP Select the video source to rename and press [OK] to confirm your selection. Choose Source to Rename Stick Sony TELEVISION Use [LEFT ][RIGHT ][UP][DOWN] direction keys to modify the name of the video source and press [OK] when you are done. Rename Video Source Stick TELEVISION...
-
Page 9: Selecting A Video Source
SETUP Selecting a video source Press the [SOURCE] button on the remote to display the list of video sources to choose from. Use the [UP] / [DOWN] directional keys to select a video source. Press [OK] to confirm your selection. Select Video Source Connecting to DVD... -
Page 10: Standby Mode
SETUP Standby Mode When the receiver’s signal is disconnected from the transmitter, the system will go into Standby Mode and the OSD will display "Wireless Off". Press [SOURCE] or [MENU] to return to the main menu. Wireless Off Changing Audio Output to TV Windows OS Audio setting to switch to HDMI output: Windows7 OS: 1. - Page 11 SETUP Windows Vista OS: 1. Go to START MENU in bottom left corner of the screen. Click WINDOWS MOBILITY CENTER to open. 2. On the VOLUME tab, click the CHANGE AUDIO SETTING icon to open the SOUND section. 3. Select HDMI OUTPUT and press - 11 -...
-
Page 12: Troubleshooting
• If any other issue occurs of if the above issues persist, try disconnecting both Unresolved Issues Transmitter and Receiver and repeating the link setup process For further questions or inquiries, please contact NYRIUS customer support at: www.nyrius.com/support - 12 -... -
Page 13: Specifications
SPECIFICATIONS Wireless Technology GigaXtreme Technology System Requirements Any laptop or desktop system containing an HDMI port including popular models from these manufacturers: Alienware, Lenovo, Dell, HP, Acer, Apple (Display Port cable not included) Supported Audio Resolutions PCM , DTS , Dolby Digital 5.1 surround sound Supported Video Resolutions TV: 1080p, 1080i, 720p, 576p, 480p PC: 1024x768, 1280x1024, 640x480, 800x600... -
Page 14: Fcc Statement
FCC STATEMENT This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: This equipment has been tested and is found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 15: Safety Information
SAFETY INFORMATION 1. Read all instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 16 SAFETY INFORMATION Do not use close to refrigerators, washing machines and metal furniture. Place on a stable surface and make sure connecting wires are routed to minimize the chance of accidents. Only use the DC power adaptors supplied, if they must be replaced make sure the replacements have the same output rating of 5V 2A DC.
-
Page 17: Nyrius Warranty
NYRIUS product or the loss of information.
