  • Page 1 Dual Channel Active Direct Box Artcessories User's Manual...
  • Page 2 IMPORTANT SAFETY INSTRUCTION – READ FIRST This symbol, whenever it appears, alerts you to important operating This symbol, whenever it appears, and maintenance instructions in alerts you to the presence of the accompanying literature. uninsulated dangerous voltage Please read the manual. inside enclosure-voltage that may be sufficient to constitute risk of shock.
  • Page 3 Installation: Install the unit in accordance with the instructions printed in the user guide.

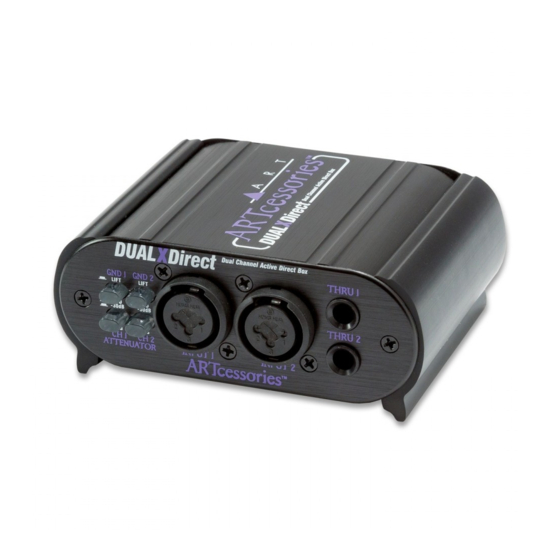

  • Page 4 The DUALXDirect has an extremely flat and wide frequency response and can handle high signal levels. This gives the DUALXDirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.
  • Page 5 The compact black-anodized all aluminum case and it’s active design allow the DUALXDirect to provide years of trouble free service in Live Sound, Permanent/Fixed Install, D.J., and virtually any PA application. It’s full...
  • Page 6 THRU 1/4' TRS phone jack and the other end to where your signal was going to, if connecting the DUALXDirect inline in the signal path. Repeat for the other INPUT and THRU jacks if desired.
  • Page 7 feature to lower hum and other ground loop noise, if present. Signal Flow Chart...
  • Page 9: Specifications

    SPECIFICATIONS: Frequency Response: 10 Hz - 100 kHz, ± 0.5 dB @ +0 dBu THD: <.05% (typical) Dynamic Range: >100 dB (typical) Channel Separation: > 80 dB (typical) Maximum Input Level: +4, +34 dBu Maximum Output Level: +6 dBu (battery powered), +14 dBu (phantom powered) Input Connections:...
  • Page 10: Warranty Information

    This warranty is void if the serial number is altered, defaced, or removed. ART reserves the right to make changes in design or make additions to or improvements upon this product without any obligation to install the same on products previously manufactured.
  • Page 11 or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific rights and you may have other rights, which vary, from state to state. The warranty terms listed above are only valid within the United States of America. For units purchased outside the United States, an authorized distributor...
  • Page 12 You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration. If you believe that the ART unit is at fault, go to www.artproaudio.com. Select "Support", then "Return Authorization Request"...
  • Page 13 E-mail: support@artproaudio.com © 2014 Applied Research & Technology DUALXDIRECT DXD-5004-101...
