Summary of Contents for Origin Instruments Beam

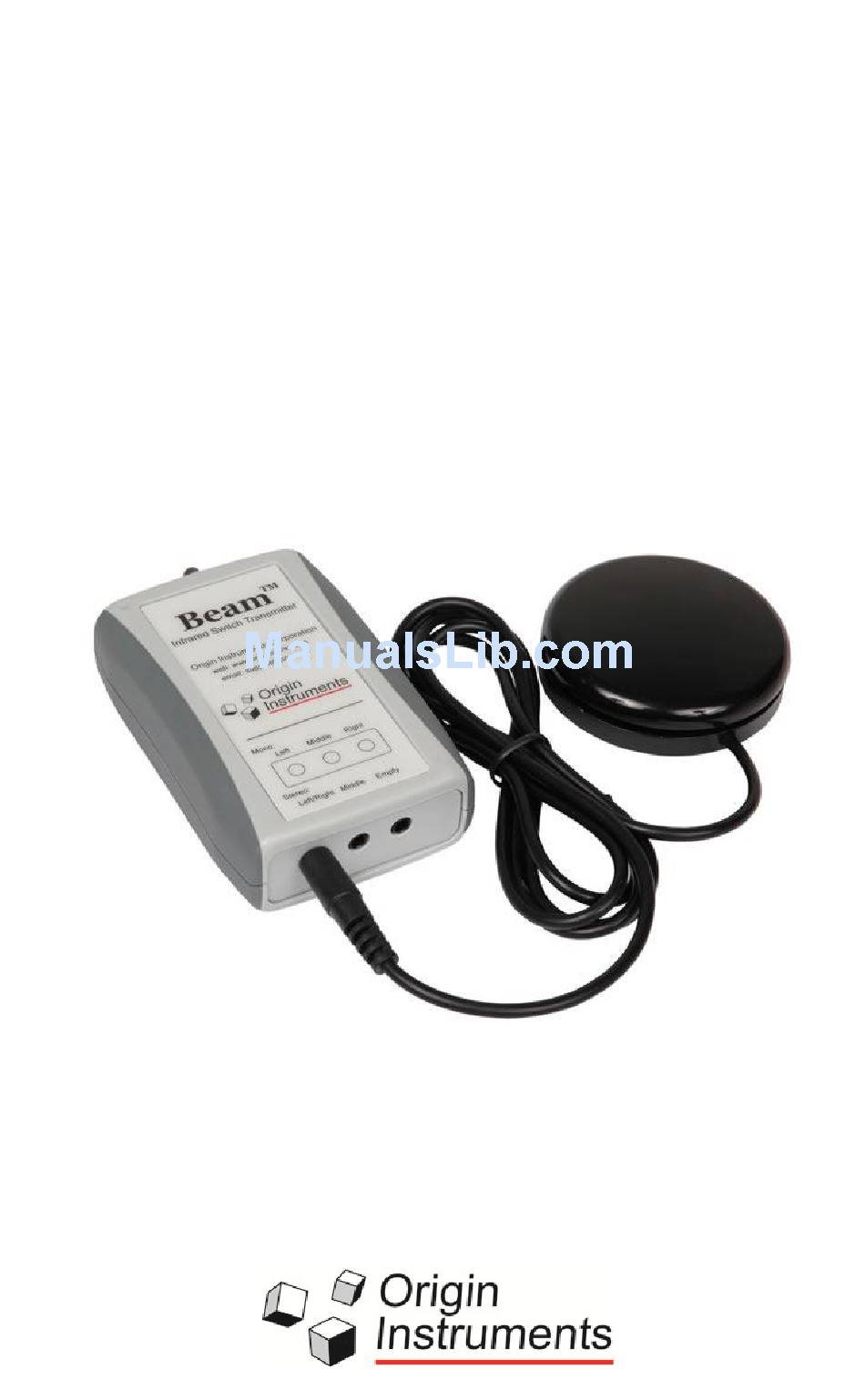

- Page 1 Beam ™ User Guide Wireless Transmitter for ™ ® HeadMouse Extreme and Swifty (Adaptive switch not included with Beam) www.orin.com...
-
Page 2: Table Of Contents
Beam User Guide Table of Contents Table of Contents ................. 2 Legal Notices ................3 FCC / CE Notice ................3 Application Disclaimer ..............4 Introduction ................... 5 Questions and Answers ..............7 Configuration ................8 HeadMouse Extreme ..............10 Swifty .................. -
Page 3: Legal Notices
Information in this User Guide is provided “as is” by Origin Instruments, is subject to change without notice, does not represent a commitment on the part of Origin Instruments, and is provided without warranty of any kind, either expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. -
Page 4: Application Disclaimer
Origin Instruments Corporation. Application Disclaimer Beam is designed for use by people who have limited or no motor capability enabling them to operate switch activated devices. However, it should not be used in an application where personal injury or property loss could occur if the Beam failed for some reason. -
Page 5: Introduction
The battery powered Beam transfers the state of up to three normally-open switches directly to the HeadMouse® Extreme or Swifty™. The Beam is an infrared device, but it doesn’t require a clear optical path to the HeadMouse or Swifty. The light can bounce off the ceiling, walls and even the user. - Page 6 Beam has three 1/8-inch (3.5-mm) microphone jacks and accepts commonly available adaptive switches. A photograph of the Beam rear panel and a stereo microphone plug are shown in the Figure 1. Mono and stereo plugs can be used in any jack; however, only the J1 socket has the capability to monitor the second button of a dual switch.
-
Page 7: Questions And Answers
Must I point the Beam directly at the receiver? In general light from the receiver will bounce off the walls, ceiling and other things in the immediate vacinity of the Beam and make it to the receiver. Certainly if Swifty is plugged into the back of a computer under a desk a more direct path may be necessary. -
Page 8: Configuration
Tip and the “Right” button will come from the Ring. If a plug is inserted into J3 the Beam will now use the Tip of J3 as the “Right” button. In all cases the “Middle” button will use the Tip of J2. For all jacks switch common is the Sleeve. - Page 9 Note: By default the Beam automatically determines whether a stereo or mono plug has been inserted in J1. However, there may be times after moving plugs between jacks and changing between mono and stereo plugs that the Beam will temporarily be confused. During these times the Beam may transmit a continuous right button for up to 30-seconds.
-
Page 10: Headmouse Extreme
Adaptive switches can be connected to HeadMouse directly or wirelessly using Beam. HeadMouse Extreme features: Built-in receiver for Beam for wireless switch input Wireless head-controlled mouse emulation Fast and responsive cursor control ... -
Page 11: Swifty
USB host and does not require external power. Swifty uses standard USB Human Interface Device (HID) drivers and works with Windows, Macintosh and Linux computers, and many AAC devices. When used with Beam up to three switches may be wirelessly interfaced to a computer. Swifty features: ... -
Page 12: General Care And Maintenance
Beam User Guide General Care and Maintenance Beam may be cleaned with a damp cloth, but it should never be soaked with any water or cleaning solution. Do not allow any kind of liquid in our around the Beam connector panel. -
Page 13: Warranty Information
Beam User Guide Warranty Information Origin Instruments warrants that Beam will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment. If the product proves defective during this warranty period, Origin Instruments will, at its option, repair or replace the defective product. - Page 14 854 Greenview Drive Grand Prairie, TX 75050-2438 USA For repairs during warranty period, Origin Instruments will pay for the return of the product to the Customer if the shipment is to a location within the United States. For non-warranty repairs and for...
-
Page 15: Notes
Beam User Guide Notes: Origin Instruments Corporation P a g e | 15... -
Page 16: Origin Instruments Corporation
©2013 Copyright by Origin Instruments Corporation. All rights reserved. HeadMouse is a registered trademark of Origin Instruments Corporation. Swifty and Beam are trademarks of Origin Instruments Corporation. All other designated trademarks and brands are the property of their respective owners.
