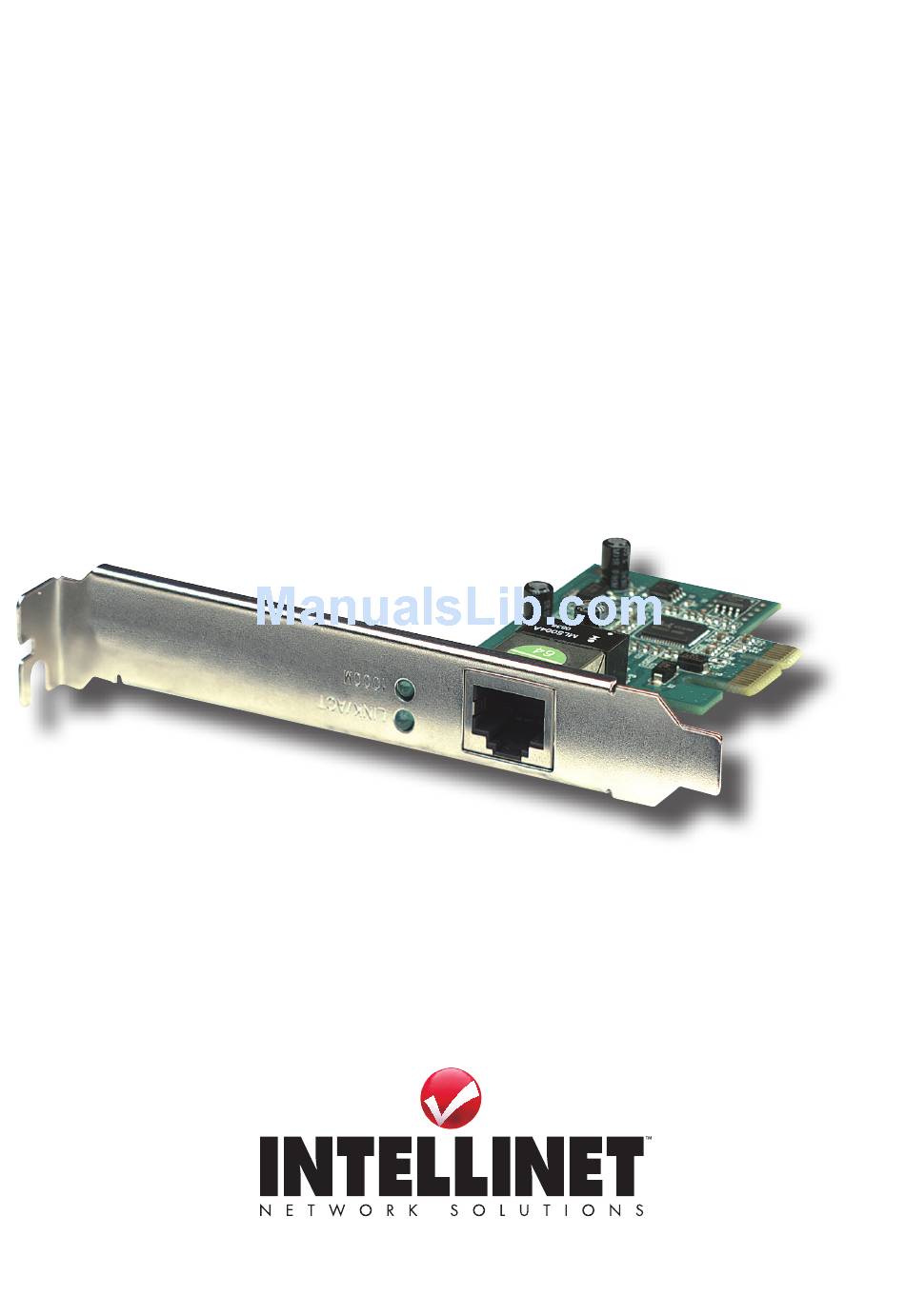

- Page 1 GiGabit PCi exPress Network Card user maNual Model 522533 INT-522533-UM-0609-02...
-
Page 3: System Requirements
Thank you for purchasing the INTELLINET NETWORK SOLUTIONS ™ Gigabit PCI Express Network Card, Model 522533. A high-performance network adapter designed to fit into the PCIe slot of your desktop computer, this card allows you to upgrade your computer to support Gigabit network speeds without changing your copper network cabling scheme to fiber optic. -
Page 4: Fcc Statement
FCC Statement This device compiles with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference; and 2. This device must accept any interference received, including interference that may cause undesired operation This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 5: Hardware Installation
hardware iNstallatioN 1. Turn off the computer and unplug the power cord. 2. Remove the computer’s cover (refer to its manual if necessary). 3. Insert the contact edge of the Gigabit PCI Express Network Card into the connector of any available PCIe bus master expansion slot. Press the card firmly into the slot, making sure the card’s contacts are fully seated. -
Page 6: Windows Nt
WinDoWS M 1. With the Gigabit PCI Express Network Card inserted into the PCIe slot, turn the computer on. 2. An Add New Hardware Wizard screen will display “PCI Express Ethernet Controller.” Insert the enclosed driver CD. 3. Select “Install the software automatically” and click “Next.” 4. -
Page 7: Windows Xp
search locations:” Select “Specify a location” and then click “Next.” 5. Insert the enclosed driver CD. 6. On the next Found New Hardware Wizard screen, enter the driver pathname “E:\” (E representing your CD-ROM drive), then click “OK.” 7. The next Found New Hardware Wizard screen will display “The wizard found a driver for the following device Ethernet Controller.”... - Page 8 linuX kERnEl 2.2. 1. Compiling rtl8169.c “gcc -DMODULE -Wall -Wstrict-prototypes -O6 -c rtl8169.c” 2. Move the object code rtl8169.o to the directory “/lib/modules/2.2.14-5.0/net” “cp rtl8169.o /lib/modules/2.2.14-5.0/net” 3. Insert module to kernel “insmod rtl8169” 4. Check the driver status “dmesg” 5. The media can be forced to one of five modes (see below). The link speed and duplex mode can be forced in five modes.
- Page 9 5. The media can be forced to one of the five modes (see below). Cmd: “insmod r8169 media = SET_MEDIA” Example: “insmod rtl8169 media=0x04” will force PHY to operate in 100 Mpbs half duplex. SET_MEDIA can be: _10_Half = 0x01 _10_Full = 0x02 _100_Half = 0x04 _100_Full = 0x08...
- Page 10 3. In the Installation Options menu, select “Driver options.” 4. In the Driver Options menu, select “Configure network drivers.” 5. In the Additional Driver Actions menu, select “Select a driver.” 6. Press <Ins> to install an unlisted driver, then press <F3> to specify a different path.
-
Page 11: Specifications
sPeCifiCatioNs nETWoRk • Weight: 39.6 g (1.4 oz.) • IEEE 802.3 (10Base-T Ethernet) • Operating temperature: 0 – 55°C • IEEE 802.3u (100Base-TX Fast (32 – 131°F) Ethernet) • Storage temperature: 0 – 65°C • IEEE 802.3ab (1000Base-T Gigabit (32 – 149°F) Ethernet) •... - Page 12 INTellINeT NeTWoRK SolUTIoNS offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
