Summary of Contents for CMS SMK 920

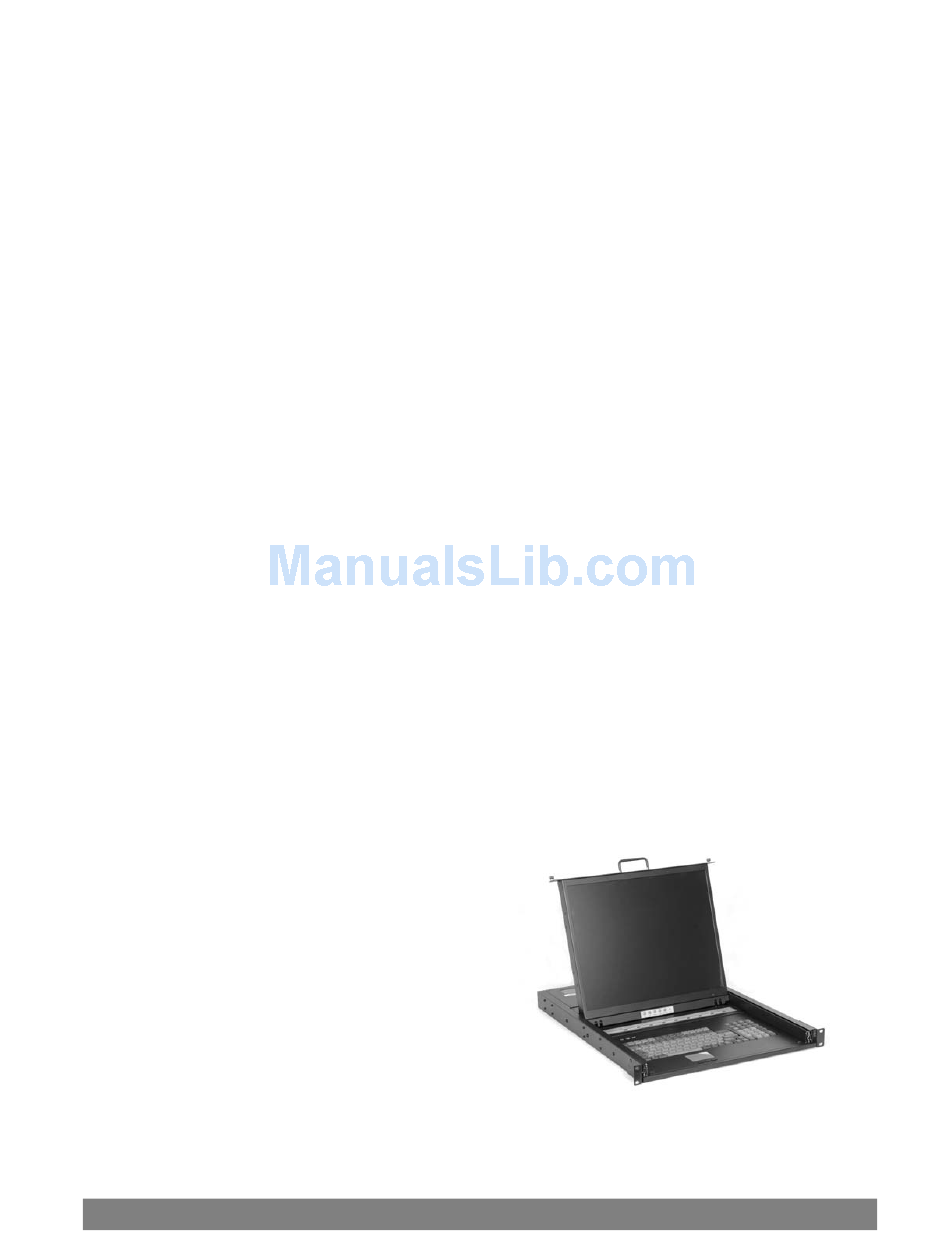

- Page 1 SMK 920/980/990 (P) User Reference Manual Revision 1.6 (100625) SMK 920/980/990 (P) Reference Manual １...
- Page 2 Keyboard *Optional 117-Key for Sun System Pointing Device Integrated TouchPad 2x Button Pointing Device Button *Optional 3x Button for Sun System Environmental Specification for SMK 920/980/990 (P) Environmental Operating Temp 0° C - 50° C Specification Relative Humidity 20-80% (non-condensing)
- Page 3 OS Configuration The SMK 920/980/990 will allow you to connect to multiple servers running on different platforms and operating systems. The unit has integrated extra support function key and extra mouse button to better accommodate a wider variety of needs . **Special optional upgrade to allow 117 keys and 3 mouse button for Sun system OS specific.
- Page 4 2.1 Insert the LCD Keyboard Drawer into the rack cabinet in the desired position. 2.2 Attach the 2x rear support bracket and extending into the proper length of the cabinet depth. And secure the 2x bracket on each side with the supplied screw. SMK 920/980/990 (P) Reference Manual ４...
- Page 5 2.3 Secure the rear and front rack mounting to properly mount and fix its position into the cabinet. 2.4 Connect the AC power cable into rear of the drawer unit. SMK 920/980/990 (P) Reference Manual ５...
- Page 6 KVM accepts both. Refer to Section 3 for further detail. (*980 Shown) *For 920P/980P/990P, available PS/2 mouse and keyboard only. 2.6 You can turn on the drawer unit main power on the back of the chassis. SMK 920/980/990 (P) Reference Manual ６...
- Page 7 2.8 Once the drawer is fully extended, lift up the LCD panel and tilt back, this will allow you to view the LCD and access the keyboard/touchpad. SMK 920/980/990 (P) Reference Manual ７...
- Page 8 LCD screen adjustment button is also located here. 2.10 To return the drawer back to the unit, fold screen down and push in the 2 tap located on each side of the rail then push the drawer back in. SMK 920/980/990 (P) Reference Manual ８...
- Page 9 3.2 Connecting KVM Ports for Host using PS/2 connection. Connect single ended D-Sub end to KVM port and other end composing of VGA D-Sub, PS/2 Keyboard (Green) and PS/2 Mouse (Purple) to corresponding ports on the system. SMK 920/980/990 (P) Reference Manual ９...
- Page 10 3.4 You can connect a local console port to operate the KVM bypassing the built-in LCD and keyboard/touchpad through the rear local console port. Connect the VGA D-Sub connector and USB keyboard and USB mouse to the port marked. **On 980P/990P, USB is replaced with PS/2 connectors. SMK 920/980/990 (P) Reference Manual １０...
- Page 11 It allows you to control one or many computer locally at the server site or remotely via the Internet using standard browser. **Not available on 980/990P model. SMK 920/980/990 (P) Reference Manual １１...
- Page 12 (name) and key setting. Pressing any key will remove the status display. 4.3 You can bring up the KVM OSD by pressing the Cap Lock key twice and then Space Bar. *For 980P/990P, the sequence will be Scroll Lock key twice and the Space Bar. SMK 920/980/990 (P) Reference Manual １２...
- Page 13 4.4 The first page display will show the OSD menu that allows you to choose the main general options you would like to proceed. 4.5 Following are list of function key to access each of the action. SMK 920/980/990 (P) Reference Manual １３...
- Page 14 4.7 By going into the menu, you will receive a new list of functions. 4.8 The language selection allows you to choose the desired display language for reference. **Non-Latin based language are for display purpose only and not for editing SMK 920/980/990 (P) Reference Manual １４...
- Page 15 By searching a wildcard *, it will return all port names. 4.11 The user security menu allows you to assign 1 supervisor and up to 8 users. User name and password are assigned here. SMK 920/980/990 (P) Reference Manual １５...
- Page 16 Use the Enter key to toggle the port right, where O means enable and X means disable. 4.13 The hot-key menu allows you to set the hot key used to bring up the OSD. SMK 920/980/990 (P) Reference Manual １６...
- Page 17 4.14 The time settings menu allows you to set the auto-scan time for host port by port. 4.15 The OSD mouse menu allows you to set the OSD cursor mouse speed. SMK 920/980/990 (P) Reference Manual １７...
- Page 18 If you do not press any command key 2 second afterward it will escape back to normal mode. 5.2 Alternately, you can manually directly change the port by selecting the pre-assign port button located on the surface of the keyboard as well. SMK 920/980/990 (P) Reference Manual １８...
-
Page 19: Screen Display Adjustment
LCD panel. Press the MENU button to bring the on screen menu out and then follow instructions. Press the UP/DOWN button to scroll through the menu and press the SELECT button to enter the selected item. And UP/DOWN button to adjust value as necessary. SMK 920/980/990 (P) Reference Manual １９... - Page 20 110 Power Cord 220 Power Cord (Option) 220 Power Cord (Option) Screw Pack Screws/Clips Bracket Extension Support Bracket SMK 9XX LCD Keyboard Drawer KVM Cable KVM Host Cable (PS/2 or USB) 1/8/16 Package Foam with Box SMK 920/980/990 (P) Reference Manual ２０...
