Summary of Contents for Bush DFTA48HDR

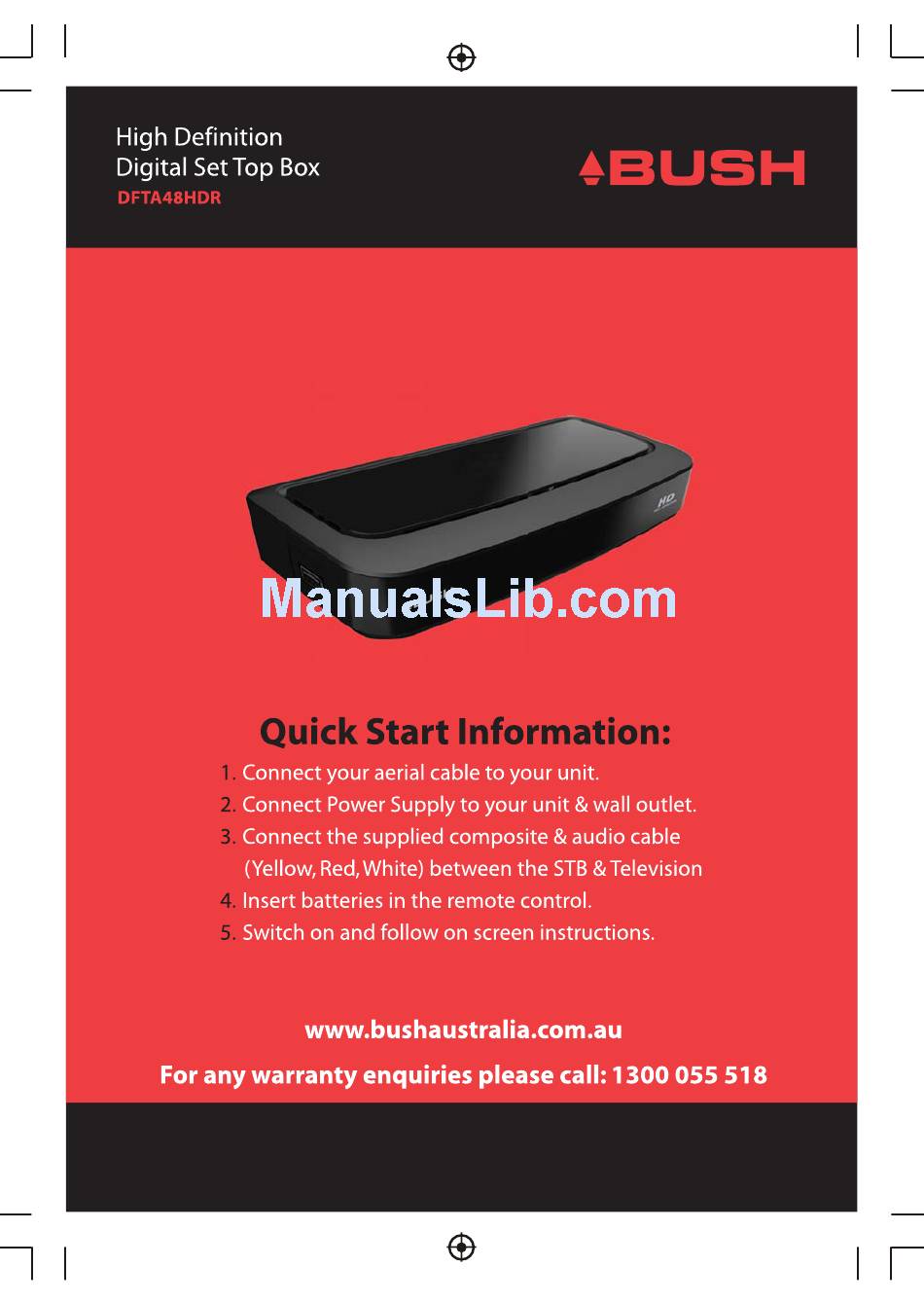

- Page 1 Size: 90x128mm...
- Page 2 Size: 90x128mm...
- Page 3 Important Safety Instructions Please note there are no user serviceable parts in this unit. Do not remove the cover or back for any reason. Refer all servicing to qualified Guundig Service agent. Do not expose the unit to rain or moisture, to prevent fire or electric shock hazards. Do not expose the unit to any liquid or water (dripping or splashing) and no objects filled with water, such as vases, should be placed on the unit.
- Page 4 Introduction Thank you for buying this Bush product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take time to read these instructions. They are designed to familiarise you with the unit s m any features and to ensure you get the very best from your purchase.
- Page 5 About the Set Top Box This Set Top Box Receiver allows you to access Digital TV Channels and Radio Broadcasts, you can also record your favourite TV programs via an external USB or Hard Disk drive device whilst watching TV . Main Features Receives All High Definition Channels Play, Pause and Record Live TV via USB Memory (USB Not Included)
-
Page 6: Table Of Contents
Table of Contents Front and Rear Panel ..................5 Remote Control....................6 Connections....................8 First Time Installation..................9 Troubleshooting.....................17 Technical Specifications.................18 Warranty......................19... -
Page 7: Front And Rear Panel
Front and Rear Panel 1. Front panel 1. STANDBY INDICATOR: Displays when the unit is in Power mode and Standby mode. The indicator will show as green when the unit is on and red when in standby. 2. REMOTE CONTROL SENSOR: Receives the signal from your remote control. 3. -
Page 8: Remote Control
Remote Control 1. LIST: Press the List Button to display your recorded programs list. 2. MUTE: Press the Mute Button to switch off the Sound only. Press again to restore audio output. 3. INFO: Press the INFO Button to display the current channel information. - Page 9 Installing the Batteries Remove the battery cover from the Remote Control and put 2xAAA size batteries inside the compartment. The diagram inside the Battery Compartment shows the correct way to install the batteries. 1.Open the cover 2.Install batteries 3.Close the cover Using the Remote Control To use the Remote Control, point it towards the front of the Digital Set Top Box.
-
Page 10: Connections
Connections Caution: Make sure to check the voltage specification of the wall outlet is the same rating with the receiver. To prevent the risk of electric shock, do not open the cover or the back of the receiver. TV Aerial VIDEO IN YELLOW (Audio) -
Page 11: First Time Installation
First Time Installation After all connections have been made properly and power is connected, switch on the TV and the Set Top Box. When using the receiver for the first time or after you have conducted a restore to Factory Default the Installation Guide will appear on your TV screen. - Page 12 Setting Favourite Programs The Favourite function in the Program Edit Menu allows you to create four shortlists of favourite programs that you can easily access. To set a TV program or radio station to your favourites list, please follow the below: 1.
- Page 13 Electronic Programme Guide (EPG) The Electronic Programme guide, is an on-screen TV guide which shows the scheduled programmes for the next seven days. Using the Electronic Programme Guide 1. Press the [EPG] button to enter the on-screen guide. 2. Press the &...
- Page 14 Picture Setting To access the Picture Menu, press Menu Button then select the [Picture] sub-menu. The Picture menu allows you to adjust the picture and video settings. Press the Up/Down Navigate Buttons to select an option and press the Right/Left Navigate Buttons to adjust that setting.
- Page 15 Manual Search In the Channel Search Menu you can select Manual Search, which means you can manually select the channels you wish to search for and store in the channel list. You can use this option to add new channels to the channel list with out replacing the whole list.
- Page 16 Auto Standby Auto Standby (inactivity setting) is used to put the Set Top Box into standby if a button hasn't been pressed for 3 hours. The default setting of the Set Top Box is Off. Option To access the Option Menu, press the MENU Button and then select the [Option] Menu. The Option Menu allows you to adjust the OSD Language, Subtitle Language and Audio Language settings.
- Page 17 Factory Default In the System Setting Menu you can select the Factory Default option to conduct a settings reset. In the Main Menu, select [Factory Default] and then press OK or Right to select. You will then need to enter your password or the default password '000000' to gain access to this section.
- Page 18 3.Movie:To watch movies via your USB, use the Navigation Buttons to select the file you wish to play and then use the Play, Pause and Stop Button to play MPEG2, XVID, AVI, MKV and VOB video files. Please Note: Not all profile's are supported. 4.
-
Page 19: Troubleshooting
Please Note: - Not all USB devices may be supported by this unit and we assume no responsibility for any loss of data that may occur. - Large data files may take longer to read, please be patient while the USB loads. - Some USB devices may not be recognised as the unit will only support USB devices with the FAT32 file system. -
Page 20: Technical Specifications
Technical Specifications Item Sub Item Parameter Tuner Input Frequency 170~230MHz 470~860MHz RF Input level -25~-78dBm IF Bandwidth 7MHz and 8MHz QPSK,16QAM,64QAM Modulation Video Decoder Format MPEG2 MP@ML MPEG4 MP@ML Output Format 576P, 720P, 1080i,1080P Output Port HDMI CVBS (RCA) MPEG-1 (layer1&2) Decoder Format Audio Audio output... -
Page 21: Warranty
In the unlikely event that your product fails to work normally, please contact the Bush Warranty on 1300 055 518 and have your receipt of purchase on hand.
