Summary of Contents for Telkom antenna

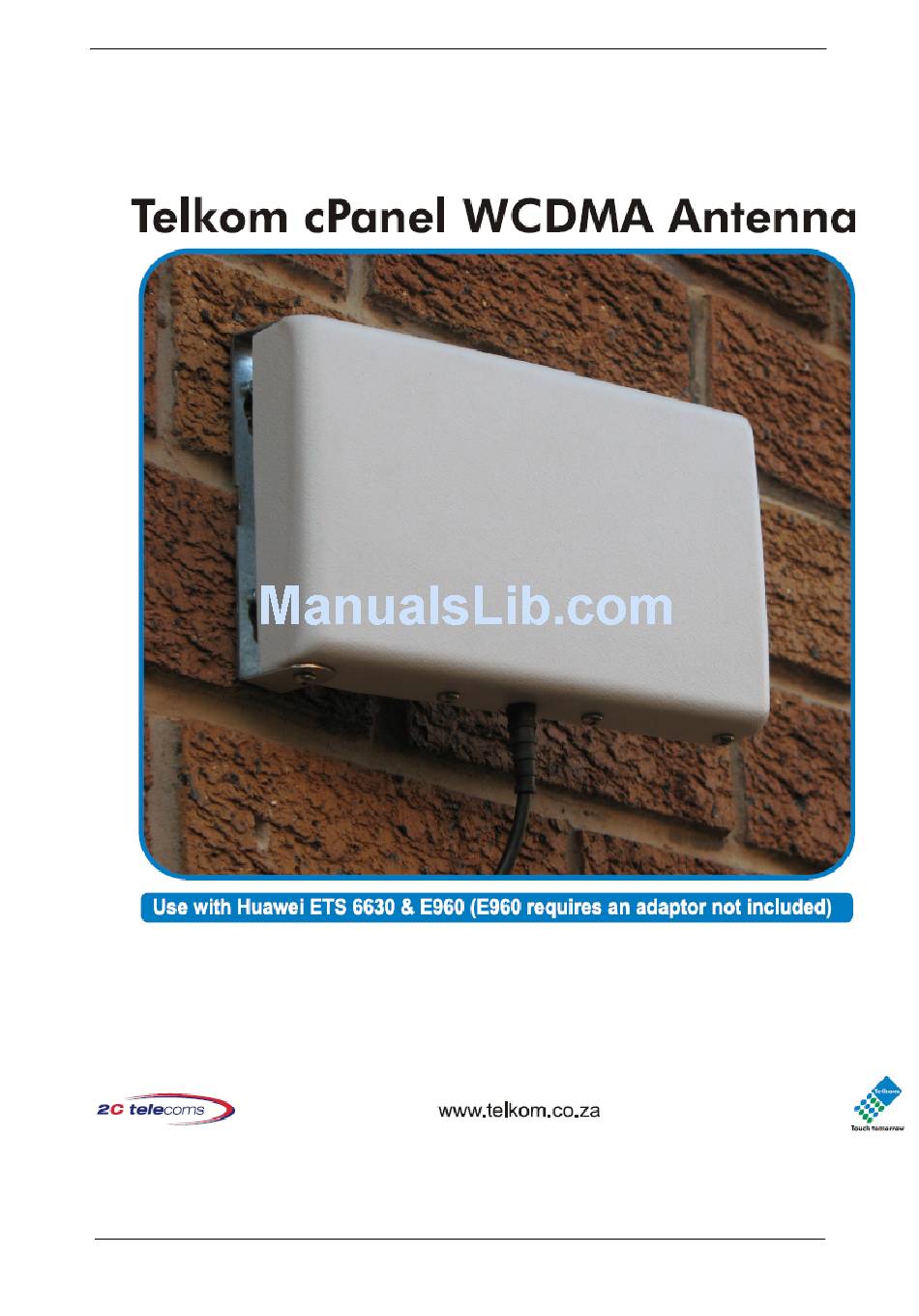

- Page 1 User / Installation Guide Rev1.0a...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ............................1 Installation procedure – Mounting the Antenna ................1 2.1. Wall mounting ..........................1 2.2. Pole Mounting ..........................2 Connection to the Modem / Terminal ....................3 3.1. Connection to the ETS6630 Terminal ..................3 3.2. Connection to the E960 Modem ....................3 Antenna Alignment ........................4... -
Page 3: Introduction
1) The antenna can be mounted indoors or outdoors 2) The antenna can be mounted on a wall or a pole 3) For best reception, the face of the Telkom cPanel antenna must be directed towards the direction of the antenna tower 2.1. -
Page 4: Pole Mounting
2) Remove a pair (top and bottom) of screws from the antenna. 3) Fit the antenna into the bracket, and use the screws (that were removed in the previous step) to mount the antenna onto the bracket. -
Page 5: Connection To The Modem / Terminal
Connection to the ETS6630 Terminal 1) Remove the ETS6630’s antenna from the Terminal. 2) Connect the Telkom cPanel antenna to the TNC connector on the side of the Terminal where the other antenna was removed. (No adapter is required) 3.2. -
Page 6: Antenna Alignment
Pin number must be entered before the received signal level is displayed on the Modem / Terminal. 4) Adjust the direction of the cPanel antenna until the maximum possible is indicated on the Huawei device. (It is advisable to move the antenna direction in small increments, and... -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS Nominal Gain: 10dBi (Excluding cable loss) Frequency Range: 1920-2170 MHz (3G, WCDMA 2100 Band) Impedance: 50 Ohm Termination: TNC Male (SMA adapter not included) Cable length: 8m Mounting type: Pole or Wall mount (kit included) Mounting placement: indoors / outdoors...
