DRM Digital Receiver DR111
Owner's Manual
NewStar Electronics
www.cdnse.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR111 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NewStar DR111

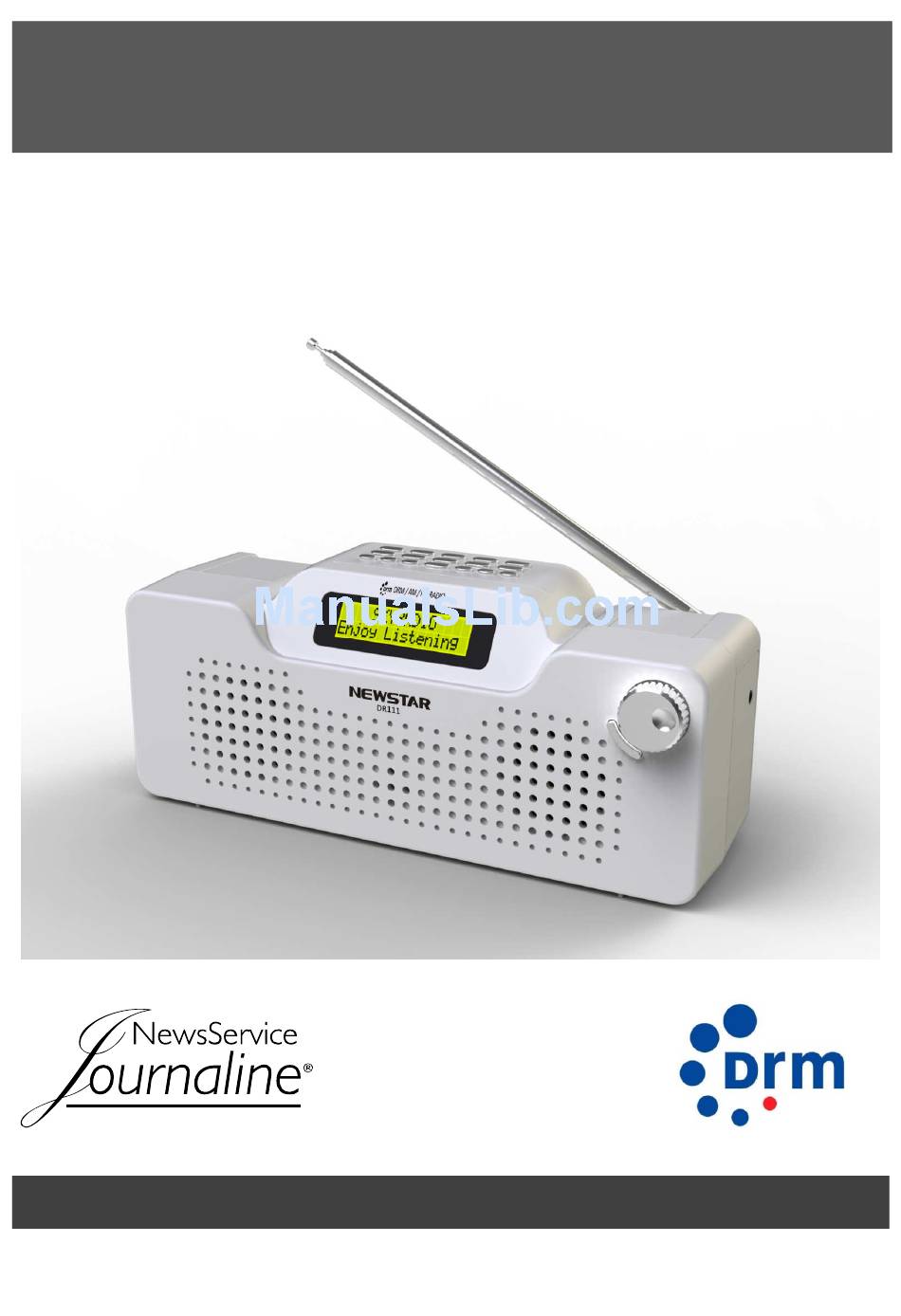

  • Page 1 DRM Digital Receiver DR111 Owner’s Manual NewStar Electronics www.cdnse.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ........... 1 Getting Started ....................3 Turn on Your Radio ..................5 Turn off Your Radio ..................5 Set ......................... 5 Clock ....................... 8 Listening to Your Radio ................9 Switching between DRM, FM, AM and MUSIC ......... 9 Manual Tuning –...

  • Page 4: Important Safety Instructions

    Thank you for choosing our product. Please read this manual carefully before operating the unit and keep it for future reference. IMPORTANT SAFETY INSTRUCTIONS No flame sources should be placed on either the AC adaptor or the unit. Do not use the unit immediately after moving it from a cold to a warm place, as condensation problems may result.
  • Page 5 WARNING The AC adaptor is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. Never use an AC adaptor that is damaged and route the power lead in a safe manner. Be certain it is not subjected to pulling or pinching.

  • Page 6: Getting Started

    Getting Started Location of Controls...
  • Page 7 1. Display 2. Fast/Slow Tuning & AFS 3. Volume/Tuning Knob 4. Preset Station 1 5. Preset Station 2 6. Preset Station 3 7. Down Arrow 8. Preset Station 4 9. Preset Station 5 10. Preset Station 6 11. Set 12. StdBy (Standby) 13.

  • Page 8: Turn On Your Radio

    Turn on Your Radio Use the provided adaptor ONLY. Use of other adaptors may result in unit damage or performance degradation. The adaptor is for 200-240V ONLY. (110V for USA model) Plug adaptor into the wall socket and connect the DC jack to the socket on the left side of unit.
  • Page 9 The display will switch menu settings in this order: Date > Time >Alarm >Sleep Timer > Backlight > MW Step > Factory Reset > Language > Software/Hardware version Date: Use |<< and >>| to select, ▲ and ▼ to set date Time: use |<<...
  • Page 10 Sleep Timer: use |<< and >>| to select field, press ▲ and ▼ to turn Sleep Timer on or off. If Sleep Timer is turned on, the radio will be turned off in specified time. Medium Wave Step: use ▲ and ▼ to change: 9 or 10 KHz Factory Setting：use ▲...

  • Page 11: Clock

    Clock Press CLOCK button, the clock will display and last for 2 seconds, then it will revert to the previous mode.

  • Page 12: Listening To Your Radio

    Listening to Your Radio Switching between DRM, FM, AM and MUSIC Press one of the following mode buttons to activate the following modes : DRM, FM/AM and MUSIC.

  • Page 13: Manual Tuning - Tuning Knob

    Manual Tuning – Tuning Knob Select the desired mode by pressing DRM, or AM/FM. Press the Rotary Knob. Turn it clockwise to increase the frequency or turn it counterclockwise to decrease the frequency. Press (AFS) FAST/SLOW button to switch between fast and slow tuning modes.

  • Page 14: Auto Tuning

    Manually Input Frequency: Turn the Rotary Knob to change to desired frequency OR Press |<< and >>| to move the cursor to the desired frequency range, then ▲ or ▼ to change the frequency . Tuning: Press INFO button or Rotary Knob when finished.

  • Page 15: Preset (Using Saved Stations)

    preset groups; FM has 2 preset groups. Each group has 6 presets. Save Presets: Tune to desired station then press & hold preset button for 2 seconds to assign the current frequency to that preset. Show Presets: press the INFO key Preset (Using Saved Stations) Select Desired Band: press DRM, or FM/AM Select Presets: press button 1- 6...

  • Page 16: Am Bandwidth Adjusting

    AM Bandwidth Adjusting In AM Mode, press CLOCK for 2 seconds Then you can use ▲ or ▼to adjust AM bandwidth After done, press CLOCK to confirm...

  • Page 17: Drm Functions

    DRM Functions DRM Additional Services (Journaline) The DR111 is capable of receiving both Audio and Journaline service. In DRM mode, press the INFO button. This will switch between the following three screens: Main-->Station Information-->Additional Services list Press the INFO button, then you can use ▲ or ▼...

  • Page 18: Drm Programme Recording

    For example, move the cursor to the PRG2:BBC Music in figure 20 and press >>| this will activate and switch to the additional audio program, to go back to the primary service, simply press INFO two times and select from an additional services list. To view Journaline information, move the cursor to Journaline, and press >>| button to select it.

  • Page 19: Drm Service Information(Expert Mode)

    By pressing the DRM button, you can switch between DRM presets and DRM recordings. The DRM recordings will display after the DRM preset groups. Use |<< and >>| to jump to the previous or next recording. Notes: The maximum recording time is limited only by SD card capacity.

  • Page 20: Drm Reception Logging

    DR111 will automatically switch to that frequency. If that frequency is unavailable within 20 seconds, the DR111 will check for frequency #2 and so on. AFS Manual Change: in AFS mode, you can manual select the designed AFS frequency by pressing the...
  • Page 21 AFS button. (This is the same button as FAST/SLOW Tuning located on the lower left side of VOLUME tuning knob)

  • Page 22: Music Playback

    Music Playback Insert an SD card or USB drive into the radio, and press the MUSIC button. This will start music playback. In the music mode, press the INFO button. This will switch between the following three displays: Main-->artist/title Information-->album/year/genre information Press preset button 1 to play or pause the music, Press preset button 2 to switch between repeat...
  • Page 23 Next or Previous Song: In music mode, press |<< or >>| button to jump to the previous or next song. Fast Forward or Backward: Press and hold |<< or >>| button while a song is playing to reverse or forward a track in 10 second intervals. Press ▲...

  • Page 24: Specifications

    Specifications RADIO FUNCTIONS DRM / AM / FM Stereo DRM Journaline Service DRM Recording DRM Logging and Expert Mode DRM Text Message DRM Alternative Frequency Switching (AFS) FM Radio Data System (RDS) Auto Tuning DISPLAY Display Area (mm / inch): 64 x 15 / 2.52 x 0.6 Display Type: 16 Characters * 2 Lines Green LED Back Light FEATURE...
  • Page 25 Adjustable AM bandwidth settings CLOCK Real Time Radio Alarm Buzzer Alarm Sleep Timer OUTPUT DEVICES Speaker Size ( mm / inch ): 50 / 1.96 Impedance: 8 ohms OUTPUT POWER (TYPICAL) AC / DC (Speaker): 0.5W Headphones: 5+5 mW POWER REQUIRED DC in: 5V DC 1000mA PERIPHERALS DC in...

  • Page 26: Warranty
