Country Flame Technologies
A Division of American Products, LLC
900 George Street
Marshfield, MO 65706
417-859-0990
417-859-0192
www.countryflame.com

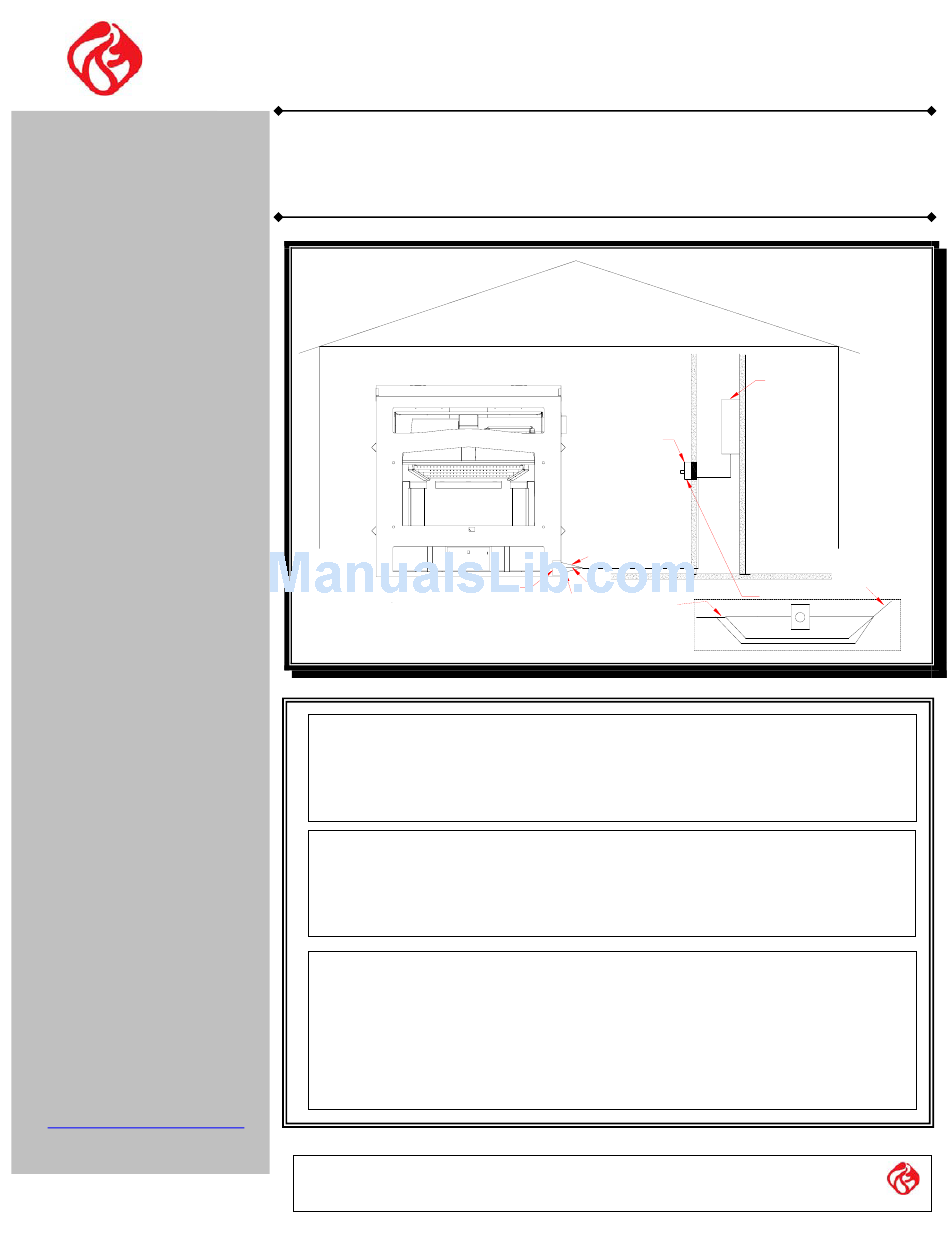

COUNTRY FLAME TECHNOLOGIES
INSTALLLATION, OPERATION, AND MAINTENANCE MANUAL
INGLENOOK VENTILATION AIR
BLOWER OPTION, MODEL IN-6200
1. INSTALL RHEOSTAT ELECTRICAL BOX
PER CUSTOMER SPECIFIED LOCATION.
2. PULL WIRES FROM CIRCUIT BREAKER PANEL TO RHEOSTAT ELECTRICAL BOX.
3. PULL BLACK WIRE BETWEEN INGLENOOK ELECTRICAL BOX & RHEOSTAT ELECTRICAL BOX.
4. INSTALL RHEOSTAT, COVER PLATE, RHEOSTAT CONTROL KNOB.
5. WIRE INGLENOOK ELECTRICAL BOX/DUPLEX RECEPTACLE PER NATIONAL/LOCAL CODES.
6. CERTIFIED ELECTRICAN TO COMPLETE ALL ELECTRICAL WORK.
WARNING:
National Electrical Code, a shock hazard will result. This shock hazard
can be fatal under certain conditions. Use a certified electrician to
perform and ensure conformance to National and local codes.
Installation and repair is to be performed by a qualified service person.
Improper installation and non-conformance to National and Local Codes can
create safety hazards and impact homeowner insurance. Contact a local
authorized dealer or Country Flame direct for additional information, if
required.
© 2004
INGLENOOK
120V (BLACK WIRE)
#5
15A DUPLEX ELECTRICAL
GROUND (GREEN WIRE)
RECEPTACLE
NEUTRAL (WHITE WIRE)
WIRES TO INGLENOOK
ELECTRICAL JUNCTION BOX
If the Inglenook blower installation does not conform to
FOR YOUR SAFETY
CIRCUIT BREAKER
PANEL
RHEOSTAT
#1
#2
#4
#3
RHEOSTAT DETAIL
BLACK
120V OUT
GROUND (GREEN WIRE)
NEUTRAL (WHITE WIRE)
COUNTRY FLAME
120V, 15A (dedicated) CIRCUIT
FROM CIRCUIT BREAKER
PANEL
BLACK
120V IN
Advertisement
Table of Contents
Summary of Contents for COUNTRY FLAME TECHNOLOGIES IN-6200
-
Page 1: For Your Safety
COUNTRY FLAME TECHNOLOGIES INSTALLLATION, OPERATION, AND MAINTENANCE MANUAL INGLENOOK VENTILATION AIR BLOWER OPTION, MODEL IN-6200 INGLENOOK CIRCUIT BREAKER PANEL RHEOSTAT 120V (BLACK WIRE) 120V, 15A (dedicated) CIRCUIT 15A DUPLEX ELECTRICAL FROM CIRCUIT BREAKER GROUND (GREEN WIRE) RECEPTACLE PANEL RHEOSTAT DETAIL 1. -
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..........................3 SAFETY INFORMATION ........................3 INSTALLATION, GENERAL......................4 INSTALLATION, ELECTRICAL .....................4 INSTALLATION, PREPARATION....................4 INSTALLATION, STEP 1 .........................7 INSTALLATION, STEP 2 .........................7 INSTALLATION, STEP 3 .........................7 INSTALLATION, STEP 4 .........................8 INSTALLATION, FINAL STEP .......................8 MAINTENANCE ..........................8 OPERATION............................8 PROBLEMS ............................8 PARTS ..............................9 LIMITED 1 YEAR WARRANTY ....................10 Version 1.0b... -
Page 3: Introduction
Inglenook gas log system. The IN-6200 enhances the natural convection design of the Inglenook by pulling cool room air into the bottom of the Inglenook, increasing the temperature of this air, and then pushing this heated air back into a home’s living space. -
Page 4: Installation, General
IN-6200 blower system is a “plug-n-operate” process. INSTALLATION, PREPARATION Unpack the IN-6200 kit and ensure that all parts have been included in the kit. Ensure that no shipping damage has occurred. If shipping damage has occurred, notify the shipping agency immediately and notify the local Country Flame Dealer where this product was purchased. - Page 5 FIGURE 1: HOUSE/INGLENOOK WIRING DIAGRAM Version 1.0b...
- Page 6 WOOD FRAMING FRESH AIR INLET ROMEX ELECTRICAL CONNECTOR TO ELECTRICAL BOX LOCATED INSIDE FIGURE 2: INGLENOOK ELECTRICAL CONNECTION FIGURE 2 shows the proper location to bring electrical power to the Inglenook. Whether the Inglenook blower system is to be immediately installed or planned as a later option, it is imperative that the electrical supply be provided to the Inglenook fireplace during initial installation.
-
Page 7: Installation, Step 1
INSTALLATION, STEP 1 Step 1 assumes that all electrical systems, up to and including the Inglenook electrical box holding the duplex outlet are installed. This standard 15-ampere electrical outlet is located on the lower right side wall behind the bottom grill. Previous pages of this manual cover installation of the electrical system or refer to the Inglenook fireplace Owners Manual for additional information. -
Page 8: Installation, Step 4
Once installed, the IN-6200 blower system should provide years of trouble free operation. MAINTENANCE The IN-6200 blower system requires little or no maintenance. On a routine basis, a light wiping of the lower compartment chamber will be required to remove dust that has been drawn into the chamber. On an annual basis, the blower unit can be removed to clean the squirrel cage housings. -
Page 9: Parts
Warning, Inglenook Blower Only PP-487 Screw Screws, 2 each, 10-32 by 3/8” PMS PP-142 Screw Screws, 2 each 12-24 by 3/8” type F PP-1310 Screw Screw, 1 each #6 by 3/8” PMS Ground PP-767 Manual Owners Manual; In-6200 IOM Manual PP-1168 Version 1.0b... -
Page 10: Limited 1 Year Warranty
Subject to the conditions set forth herein, Country Flame Technologies extends the following warranty with respect to Country Flame Inglenook blower system: If Country Flame Technologies is reasonably satisfied that any part or portion of the Inglenook fireplace blower system, covered by this Limited Warranty is defective in material or workmanship under normal use...
