Summary of Contents for Sealite SL-SIGN-20

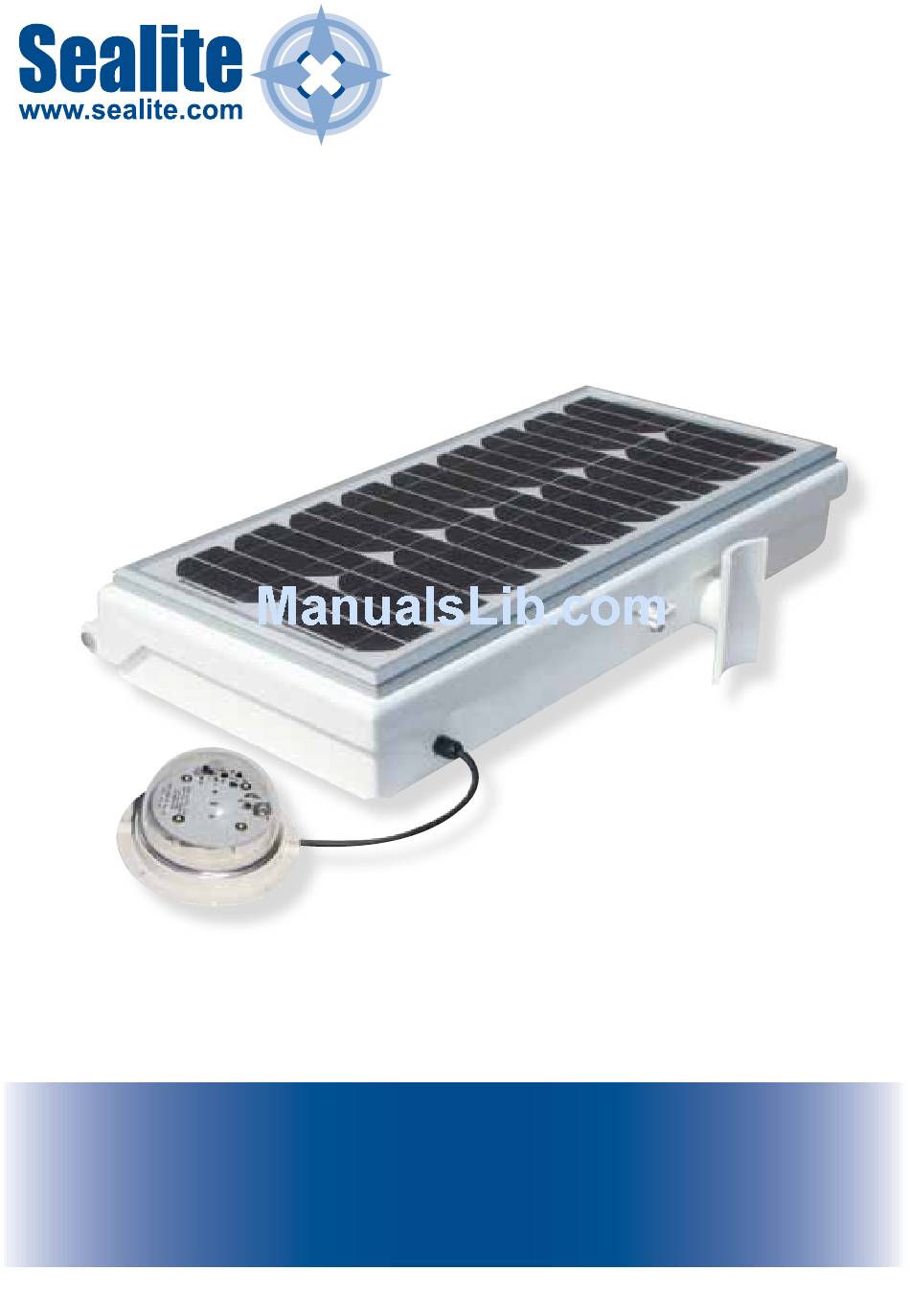

- Page 1 SL-SIGN-20 Solar-Powered LED Sign Light Installation & Service Manual Version 1.1...
- Page 2 SL-SIGN-20 Solar- Powered LED Sign Light Convenient pole mount 20watt multicrystalline solar module Hinged assembly for Lockable, heavy-duty, easy internal access powder-costed, aluminium to battery and driving assembly circuitry Domed luminaire (SL09) with 3watt surface mounted, ultra-high intensity LED for...
-
Page 3: Table Of Contents
Sealite LED Light Warranty ..............Page 10 Convenient swing-lid provides access to battery and driving circuitry Version No. Description Date Approved Manual Launch May 2010 A. Dixon Update: Spec table May 2012 J. Dore Latest products and information available at www.sealite.com... -
Page 4: Introduction
As a commitment to producing the highest quality products for our customers, Sealite has been independently certified as complying with the requirements of ISO 9001:2008 quality management system. Sealite lanterns comply with requirements of the US Coast Guard in 33 CFR part 66 for Private Aids To Navigation. -
Page 5: Sl-Sign-20 Model
Solar-Powered LED Sign Light SL-SIGN-20 Model Sealite’s Solar-Powered LED Sign Light is a remote solar-powered signage light designed to suit a range of signage illumination installations where mains power is not available. The unit can be fitted with up to 2 domed LED light fixtures, each featuring a single 3watt surface mounted ultra-high intensity LED for maximum illumination with an even 120 degree light spread. -
Page 6: Installation
The completed SL-SIGN-20-PM assembly can be mounted onto a post. Two people may be required to install this SL-SIGN-20-PM to a post, depending on the height it is mounted. a. The SL-SIGN-20-PM is designed to be fitted to a 90mm OD pipe, but can be fitted to any post from 3”OD to 4”OD. - Page 7 The completed SL-SIGN-20-FM assembly can be mounted on stakes in firm soil (not loose sand, screenings or other unbound material). a. Lay the SL-SIGN-20-FM on its side where it is to be located and mark the position for each frangible stake.
-
Page 8: Activation
For best light performance, ensure solar modules are not covered and are in clear view of the sky with no shadows. a. Open the Lid of the SL-SIGN-20 and connect the Positive(+) and Negative(-) battery wires to the terminals. b. Set the regulator to the desired lighting control option, such as D/D – Dusk till Dawn c. -
Page 9: Maintenance And Servicing
Replacing the Battery The SL-SIGN-20 battery is secured inside the power box under the solar panel. Sealite uses a standard 18Ah 12V Sealed Lead Acid battery that is easily replaced at the end of its life. -
Page 10: Sealite Led Light Warranty
2. Online Registration - please complete the Online Registration Form at; www.sealite.com Sealite Pty Ltd will repair or replace your LED light in the event of electronic failure for a period of up to three years from the date of purchase. -
Page 11: Latest Products And Information Available At Www.sealite.com
SL-SIGN-20 Solar-Powered LED Sign Light 3. The customer must give Sealite Pty Ltd notice of any defect with the product within 30 days of the customer becoming aware of the defect. 4. Rechargeable batteries have a limited number of charge cycles and may eventually need to be replaced. -
Page 12: Latest Products And Information Available At Www.sealite.com
(up to 3mt in diameter) Area Lighting Mooring Systems & Accessories Head Office Sealite Pty Ltd 11 Industrial Drive Somerville, Vic 3912 Australia Tel: +61 3 5977 6128 Fax: +61 3 5977 6124 Email: info@sealite.com Internet: www.sealite.com Latest products and information available at www.sealite.com...
