Summary of Contents for Eins MPL-3222
-

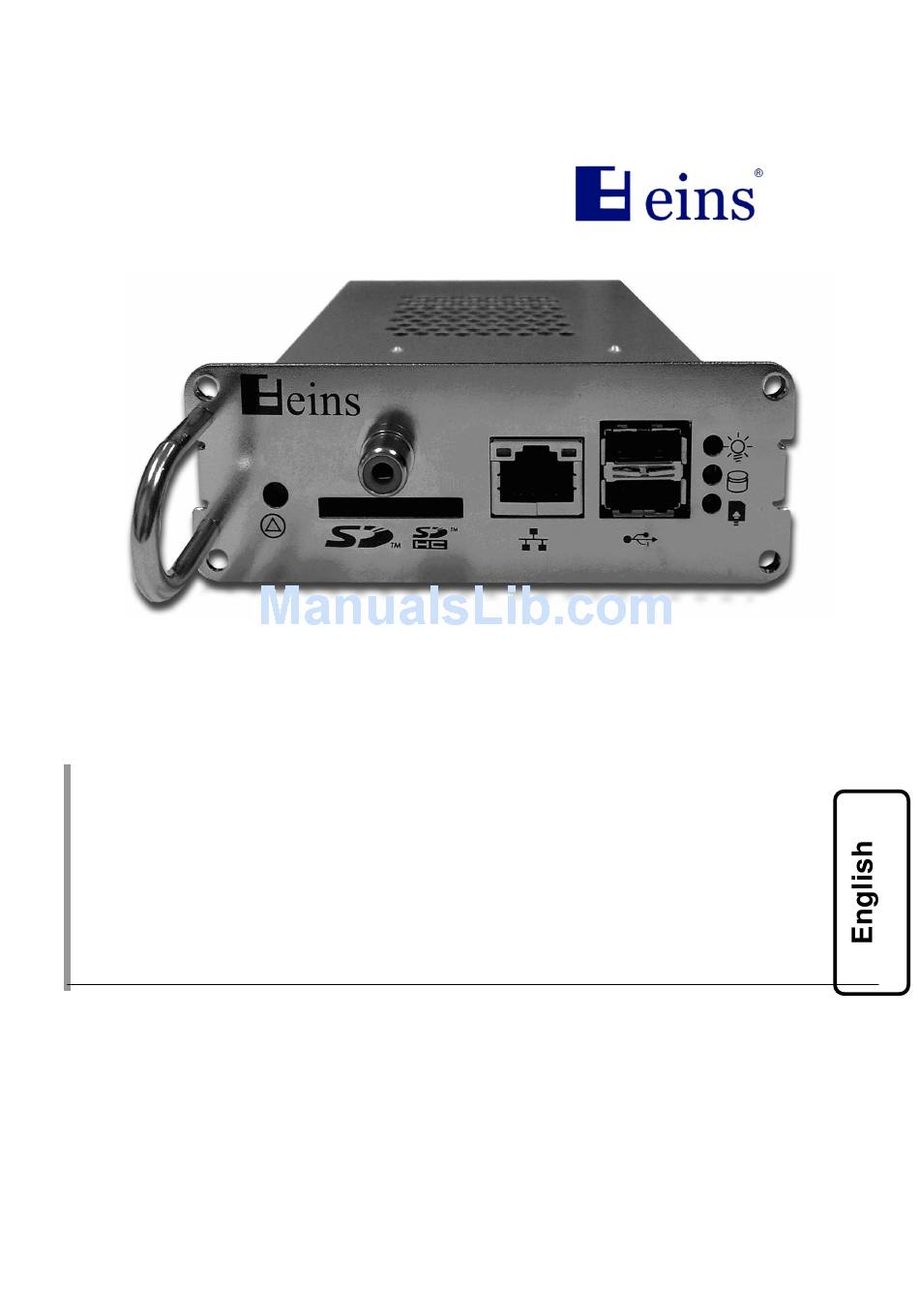

Page 1: Installation Instructions
MPL-3222 Media Player / Digital-signage Installation Instructions Before connecting, operating or adjusting this product, please read through these instructions completely. Please keep this manual for future reference. All Rights Reserved Eins Technology... -
Page 2: Safety Precautions
• When installing or removing the terminal board, care should be exercised to avoid injury. There may be some sharp-pointed solder joints on the rear side of this product that may cause unexpected injury. All Rights Reserved Eins Technology... - Page 3 Note that damage may be caused to the internal components if this product is not fully inserted. Compatible slots are SLOT1 and SLOT2 only. Slot-3 is not allowed for digital module, Media player can only be installed on SLOT1 and SLOT2 by default of the display. All Rights Reserved Eins Technology...
-
Page 4: Packing List
• Be sure to fasten all screws tightly. • Keep the removed Media Player or slot covers for future servicing needs. 4. Packing List This section lists the packing list of the Eins MPL-3222: Check Name Quantity Eins MPL-3222 RM212 Remote Controller... - Page 5 H.264, WMV9 & WMV HD as well as MPEG-1 /2 /4.2. H.264 is the new industry endorsed superb compression technology that promise to deliver the same video quality at half the bit rate required for conventional video. All Rights Reserved Eins Technology...
- Page 6 With two USB host ports, you can now attach additional external USB Thumb drive, USB Multi-Reader, powered USB hard drives. You can also playback files from the USB connection of a digital camera, PDA, Hand Phone or MP3 player. All Rights Reserved Eins Technology...
-
Page 7: Remote Control Tour
Jump to MENU page SKIP PREVIOUS/NEXT Jump to previous/next media file in playlist SETUP Jump to SETUP page EDIT Start to edit text SELECT Select content from the list Note: F1, F2 Do not have any function All Rights Reserved Eins Technology... -
Page 8: Playing Media Files
1. Use the directional buttons to move selector to “Media Type” button on screen and press from the remote control. The below page will be displayed on the screen, Sources are: USB-1 disk, USB-2 disk or SD card. All Rights Reserved Eins Technology... - Page 9 Note: When navigated from video, only the video files can be seen. If navigated from other file types (for example, audio or photo), only the matched file type will appear. 4. To play: Move the selector to the file, Press All Rights Reserved Eins Technology...
- Page 10 Pressing the repeat button fourth will be in Repeat STBY, → → → meaning repeat selected playlist and the Plasma Display will be in standby mode once playlist end. REPEAT ONE REPEAT ALL REPEAT STBY REPEAT OFF All Rights Reserved Eins Technology...
- Page 11 Photo folder and click from remote control. Press Play button from the remote control to play photo files. If you want to display photos with background music, refer to the “Setup” page for “Background Music”. All Rights Reserved Eins Technology...
- Page 12 All the settings for the streams that appear on the screen are hard coded. IP Stream 01 fixed Multicast IP is 224.1.1.1:1234 IP Stream 02 fixed Multicast IP is 224.1.1.2:1234 IP Stream 03 fixed Multicast IP is 224.1.1.3:1234, etc. up to IP Stream 10 All Rights Reserved Eins Technology...
- Page 13 Playlist Move the selector to PLAYLIST, press to get the below page: All Rights Reserved Eins Technology...
- Page 14 You can select multiple playlists. Move the selector to “DELETE”, press to delete all selected playlists. Once the delete option is selected, the files will be permanently deleted. √ √ All Rights Reserved Eins Technology...
- Page 15 3. To Edit playlists, move the cursor by right navigation key from PLAYLIST Icon to one of the PLAYLIST file name with .plst extension. 4. To insert media to the newly created Playlist, navigate to the ‘Insert Media’ button and press from the remote control. All Rights Reserved Eins Technology...
- Page 16 6. If OK button is selected, the files will be added to the current playlist as shown in the below image: All Rights Reserved Eins Technology...
- Page 17 To add more media to existing (or any other) playlist, repeat the above steps. Note: Only video files can be added to a playlist. 8. Once it has been done, move to “save” button then Press to save the changes made to the playlist. All Rights Reserved Eins Technology...
- Page 18 Navigate to the “Create New” button and press from the remote control. It will create a popup with the default pattern as Popup0.pop. You can create as many popup lists as shown in the below image: All Rights Reserved Eins Technology...
- Page 19 4. To insert banner files to the newly created Popup, navigate to the Insert Banner button and press from the remote control. On the next screen select the banner file source as shown in the following image: All Rights Reserved Eins Technology...
- Page 20 To cancel, press the cancel button to discontinue operation. If OK button is selected then the file will be added to the current popup as shown in the image below: All Rights Reserved Eins Technology...
- Page 21 10. Position of an inserted popup could be changed by the “Move Up” and “Move Down” buttons available at the left side of the playlist editor as shown in the below image: All Rights Reserved Eins Technology...
- Page 22 “Create New” button available at the left of the popup list browser and press from the remote control. It will create a marquee with the default pattern as Marquee0.mrq. One can create as many as marquee lists as desired or required as shown in the image below: All Rights Reserved Eins Technology...
- Page 23 Use “Clear” to backspace for texts correction. Press to finish editing. 4. There are Duration and Position of the marquee need to set: Duration can be set at: 10 ~ 120 seconds Position can be set at: Top & Bottom. All Rights Reserved Eins Technology...
- Page 24 In this way, the inserted marquee will not run any more on the clips that follow. Once it has been done do not forget to Save the changes made to the playlist. All Rights Reserved Eins Technology...
- Page 25 Slideshow Duration: Slideshow duration could be set to 5, 10, 15, 20, 30, or 60 seconds. Background Music: Enable or disable the background music while a slideshow is running. Expand background music option to browse and associate default background music while running a slideshow. All Rights Reserved Eins Technology...
- Page 26 DHCP. If manual IP option is selected, you will be required to enter the IP address (e.g. 192.168.1.150), Sub-net mask (e.g. 255.255.255.0), and Default Gateway and DNS settings. NOTE: Please consult your network administrator for more detailed your network environment setting. C: Update All Rights Reserved Eins Technology...
- Page 27 (factory default) or when you reset device to factory default from updates menu option. Daily Reboot Time: Reboot time could be set to a minute and will be repeated on daily basis. Daily Reboot: to Enable or disable Daily Reboot option. All Rights Reserved Eins Technology...
- Page 28 USB HDD, Thumb Drive, MP3 Player, Media Reader (CF, Micro Drive, Memory Stick (Pro), Smart Media, MMC, SD, xD) BASIC SPECIFICATION Power Requirement AC 100-240V 50/60 Hz, 13W PDP Requirement Panasonic PDP 10 series above with 1-slot available *1 Note: Support FHD and HD series. All Rights Reserved Eins Technology...
