QTech CM910 Quick Start Manual

Qtech 3g cellular modem
Hide thumbs Also See for CM910:
Table of Contents

Advertisement

Quick Links

Download this manual
QTech 3G Cellular Modem
CM910
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM910 and is the answer not in the manual?

Questions and answers

Related Manuals for QTech CM910

Summary of Contents for QTech CM910

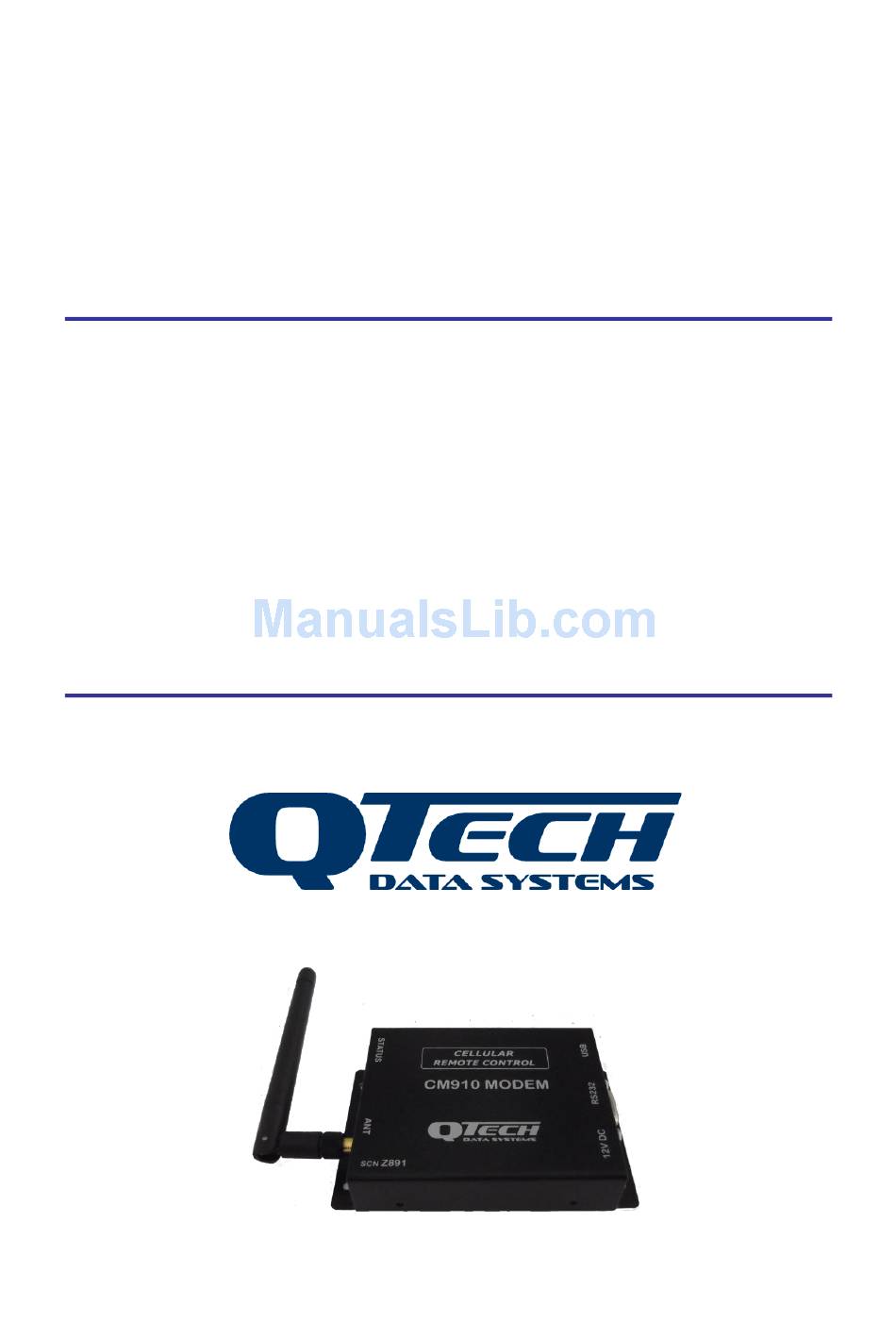

  • Page 1 QTech 3G Cellular Modem CM910 Quick Start Guide...
  • Page 2 CM910 Cellular Modem – Quick Start Guide – v2.0 October 2014 Introduction The CM910 Cellular Modem is the latest addition to the QTech Remote Control product line. It features a GSM/GPRS/UMTS (3G) cellular modem which is capable of connectivity with all current New Zealand telecommunication companies (Spark, Vodafone and 2 Degrees) for both SMS and data communications.

  • Page 3: Install The Sim Card

    Use the supplied Type A-B USB cable to connect the CM910 to your desktop computer. A driver needs to be installed to enable the CM910's USB port to become a virtual COM port on your computer. You will need to install the appropriate driver depending on your computers operating system.
  • Page 4 CM910 Cellular Modem – Quick Start Guide – v2.0 October 2014 Once the FTDI driver is installed the COM port number can be found using device manager. DATRAN SMS Direct Operation Explore the DATRAN server and double click the “SMS Direct” application.

  • Page 5: Status Indicators

    CM910 Cellular Modem – Quick Start Guide – v2.0 October 2014 Status Indicators The CM910 modem has two status LED’s: Yellow LED –Status The operation of this LED depends on the mode of operation. SMS Direct Mode The LED is being controlled by the modem Fast Flash –...

  • Page 6: Technical Details

    Modem specifications GSM/UMTS/HSPA+ bands (MHz) 800/850, 900, 2100 1. The CM910 is over voltage protected by a 30 volt Zenner diode. Voltages greater than this will blow the internal 500mA fast blow fuse. The supply voltage should be clean, continuous and transient free.
  • Page 7 CM910 Cellular Modem – Quick Start Guide – v2.0 October 2014 User Notes and Installation Details www.qtech.co.nz Ph: +64 3 366 3713 Page 7...
  • Page 8 QTech Data Systems Ltd 12 Midas Place, Middleton, Christchurch 8024 PO Box 9087, Tower Junction, Christchurch 8149 Ph: +64 3 366 3713 Fx: +64 3 365 2815 admin@qtech.co.nz techsupport@qtech.co.nz www.qtech.co.nz...
