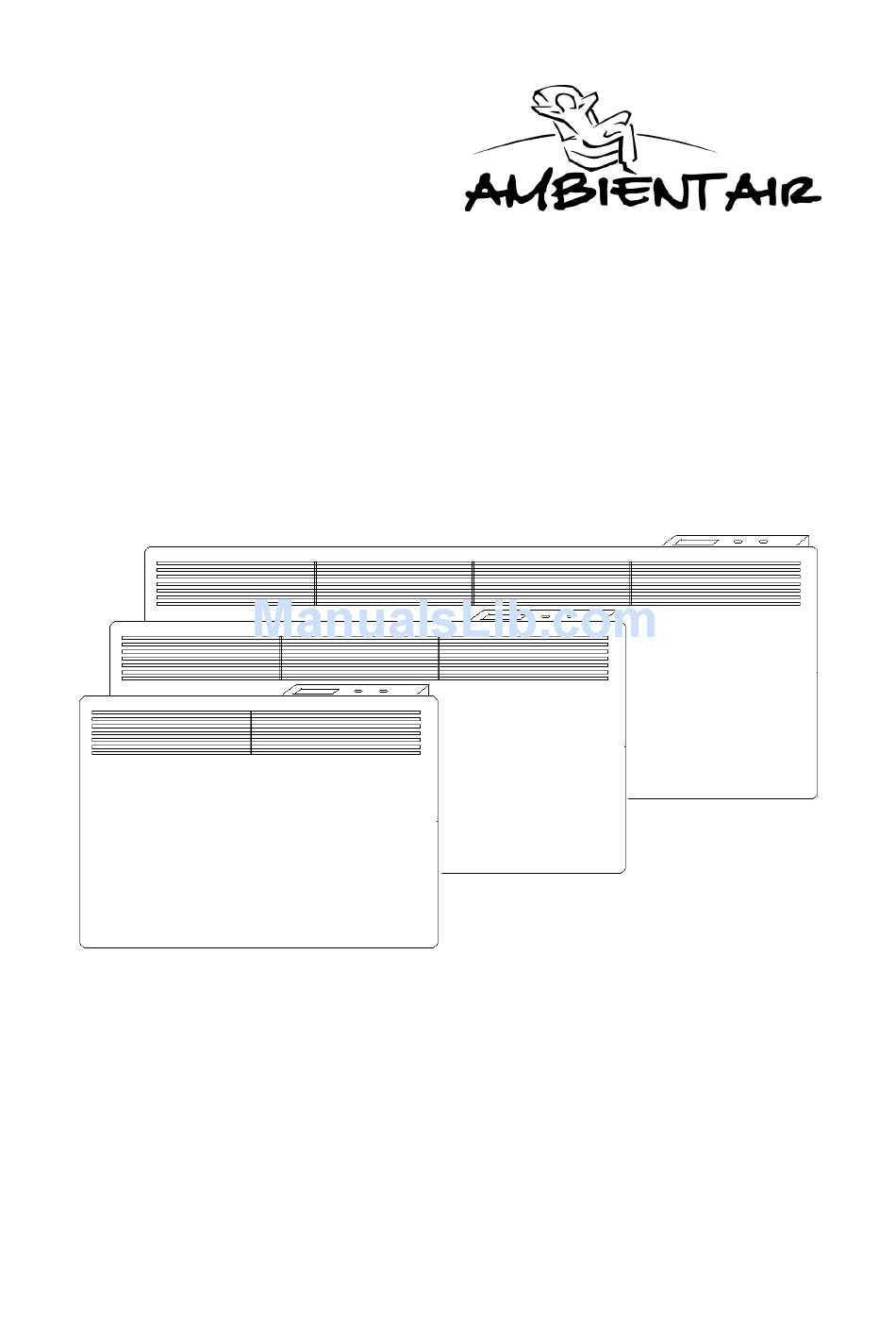

- Page 1 Users Manual Panel Heater (HPB-4E) Please read this manual carefully before use...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using an electrical appliance, basic safety precautions should always be observed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING: To reduce the risk of fire, electrical shock, or injury to person: 1. The product is for household use only. 2. -
Page 3: Specifications
SPECIFICATIONS RATED MODEL NO NET SIZE RATED VOLTAGE POWER HPB-4E 870X400X70MM ~230V/50Hz 1800W STRUCTURE AND PARTS... -
Page 4: Installation
Fasten the hanging rack on the wall as picture (2). Hook the bottom first and then push the up hook in as picture (3). Lock the up hook with screw as picture (4). The distance of hanging hole is as follows: Item HPB-4E M(mm) L(mm) -
Page 5: Instructions For Use
INSTRUCTIONS FOR USE Warning before using the heater make sure that it is mounted tightly on the wall. Damage may occur if it is mounted on an incline or decline. 1. Control panel and LCD screen Control panel: There are total 5 buttons on the control box as follows: ------Power stand by button ------Date and time settings;... - Page 6 Economic Anti-frost weekly program running mode daily program running mode heating program setting lock program contents solid time mark 2.Rationale: (1)There are 3 working modes: comfort ,economic and anti-frost （5°C）. (2) There are in total 11 programs: a. 9 daily programs(P1-P9) b.
- Page 7 6. Select running mode Press , then press to select running mode as follows (showing on screen): a. P1-P9 plus D :daily program running mode (Every day will repeat this program as running mode.) b. Fr : free running mode (You may set a program for today use.
- Page 8 means you are ready to set the program (during this period, unit will stop heating) Press to select working mode（ mean comfort； and mean economic； and mean anti-frost） ， then press to copy the working mode one segment by one segment. Press & Hold (for approximately 3 seconds) to finish the program setting and unit will return to normal running.
-
Page 9: Maintenance
Please see the explanation below these are the times the heater operates in comfort mode: • P1 3.00pm – 11.00pm • P2 7.00am – 12.00(Midnight) • P3 7.00am – 11.00pm • P4 5.00am – 7.00am then 9.00pm – 11.00pm • P5 7.00am –... -
Page 10: Conformity With Directives
4. To store the heater, put the heater back into its original package and store it in a clean dry place. 5. In case of malfunction or doubt, do not try to repair the heater yourself, it may result in a fire hazard or electric shock. CONFORMITY WITH DIRECTIVES This product is CE marked to denote conformity with Directives 73/23/EEC (Low Voltage) and 89/336/EEC (Electromagnetic Compatibility), as amended.
Need help?
Do you have a question about the HPB-4E and is the answer not in the manual?
Questions and answers

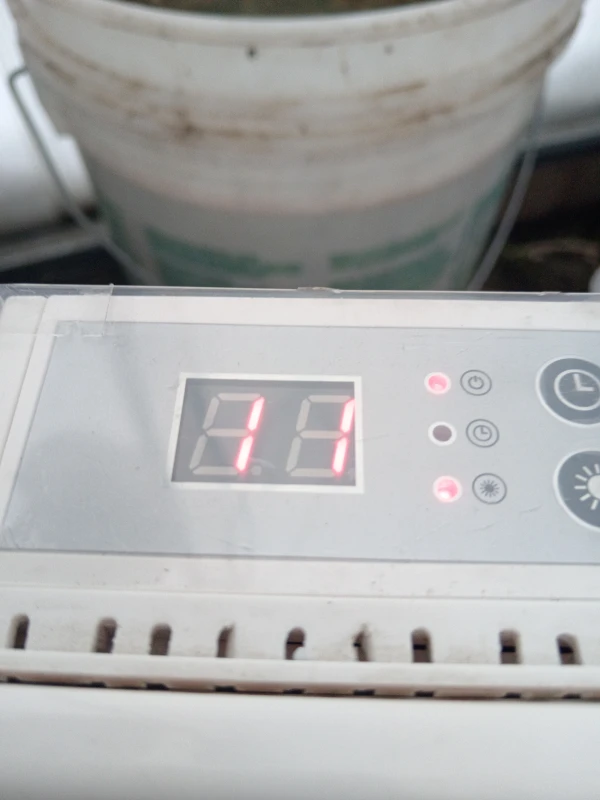

А если не поднимается температура обогревателя Equation HPB-4
The Ambient Air HPB-4E heater may not be reaching the desired temperature for several possible reasons:
1. Overload on Electrical Socket: If other appliances are connected to the same socket, it may cause an overload and affect heater performance.
2. Blocked Airflow: If air intakes or exhaust openings are blocked (e.g., by soft surfaces or objects), the heater may not function properly.
3. Improper Installation: If the heater is not mounted 30mm above the floor or not installed as instructed, it may impact heating efficiency.
4. Incorrect Program Mode: The heater may be set to economic or anti-frost mode instead of comfort mode, which would limit heating.
5. Damaged Power Cord or Plug: A damaged cord or plug can prevent the heater from operating correctly.
6. Poor Ventilation: Using the heater in a poorly ventilated area can reduce its effectiveness.
7. Malfunction: If the unit has been dropped or damaged, it may not work as intended.
8. Temperature Sensor Issues: If the room temperature sensor is not functioning properly, the heater may not detect the correct temperature.
Checking and correcting these factors can help the heater reach the desired temperature.
