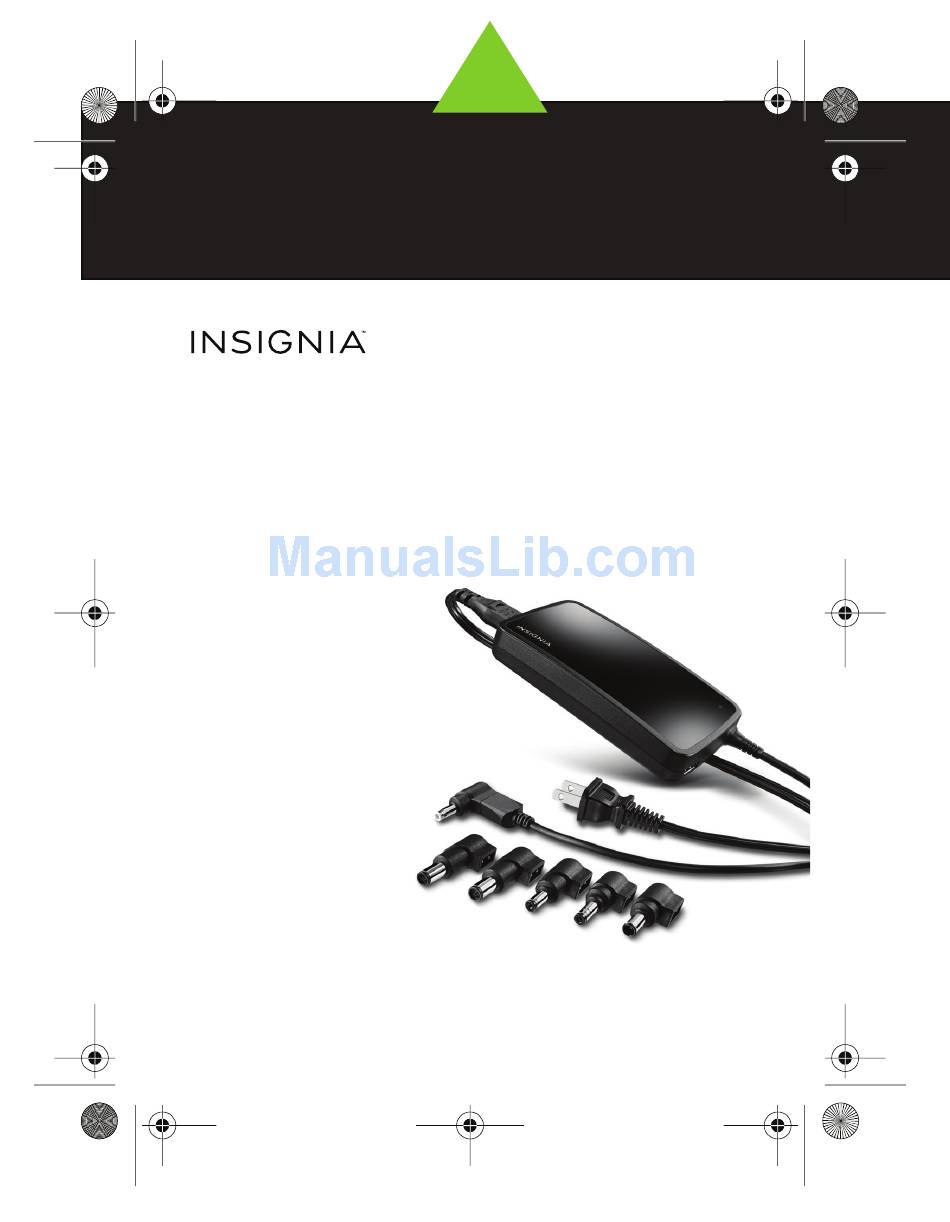

- Page 1 FINAL FOR PRINT NS-PWLC595-NS-PWLC595-C_14-1283_MAN_V2_ENG.fm Page 1 Thursday, December 4, 2014 2:55 PM USER GUIDE Slim Universal Laptop Charger with USB NS-PWLC595/NS-PWLC595-C Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
FAQ for Insignia Adapters ........8... -
Page 3: Safety Information
NS-PWLC595-NS-PWLC595-C_14-1283_MAN_V2_ENG.fm Page 3 Thursday, December 4, 2014 2:55 PM This adapter comes with a variety of numbered tips which connect to the output cable of the adapter and control the output voltage. To make sure that the proper voltage is delivered to your laptop, you must always make sure that you are using the correct tip for your specific laptop model. -
Page 4: Features
NS-PWLC595-NS-PWLC595-C_14-1283_MAN_V2_ENG.fm Page 4 Thursday, December 4, 2014 2:55 PM NS-PWLC595/NS-PWLC595-C • Do not use with laptops that require more than 90 watts of power. • Make sure to use the correct tip for your laptop by going to the Tip Wizard at http://bbyurl.us/tipfinder for a complete listing of compatible models. -
Page 5: Using The Ac Power Adapter
NS-PWLC595-NS-PWLC595-C_14-1283_MAN_V2_ENG.fm Page 5 Thursday, December 4, 2014 2:55 PM Using the AC power adapter DC input jack Output power cable AC cord outlet DC Connection AC Connection To use the AC power adapter: Locate your laptop manufacturer and model from the Tip Wizard at http://bbyurl.us/tipfinder. - Page 6 NS-PWLC595-NS-PWLC595-C_14-1283_MAN_V2_ENG.fm Page 6 Thursday, December 4, 2014 2:55 PM NS-PWLC595/NS-PWLC595-C NOTE: If the compatible tip for your laptop is not included in the adapter package, one free tip can be ordered through the Tip Wizard at http://bbyurl.us/tipfinder. Use the Tip Wizard to locate the manufacturer and model and you can order your complementary tip.
- Page 7 NS-PWLC595-NS-PWLC595-C_14-1283_MAN_V2_ENG.fm Page 7 Thursday, December 4, 2014 2:55 PM IMPORTANT: If the adapter's LED does not turn on, or if it blinks, discontinue use and contact our toll free help line for assistance (877) 467-4289. Plug the tip connected to the output cable into the DC input jack on the side or back of your laptop.
-
Page 8: Faq For Insignia Adapters
NS-PWLC595-NS-PWLC595-C_14-1283_MAN_V2_ENG.fm Page 8 Thursday, December 4, 2014 2:55 PM NS-PWLC595/NS-PWLC595-C FAQ for Insignia Adapters What tip should I use for my laptop? You can determine the correct tip for your laptop by referencing the Tip Wizard at http://bbyurl.us/tipfinder. Locate your laptop manufacturer and model and the correct tip will be listed. - Page 9 NS-PWLC595-NS-PWLC595-C_14-1283_MAN_V2_ENG.fm Page 9 Thursday, December 4, 2014 2:55 PM Why doesn't the tip fit into my laptop? If the tip does not appear to fit into your laptop you may have selected the incorrect tip for your laptop. The tip should fit snugly inside the DC input jack on the side or back of your laptop.
- Page 10 NS-PWLC595-NS-PWLC595-C_14-1283_MAN_V2_ENG.fm Page 10 Thursday, December 4, 2014 2:55 PM NS-PWLC595/NS-PWLC595-C The label on my Insignia adapter says DC OUTPUT: 15-20V but my laptop is only 19V. Will the adapter damage my laptop? The 15-20V rating refers to the capability of the adapter and it signifies that it can safely provide power to laptops with voltages within this range.
-
Page 11: Specifications
NS-PWLC595-NS-PWLC595-C_14-1283_MAN_V2_ENG.fm Page 11 Thursday, December 4, 2014 2:55 PM Specifications AC wall socket input cable 6’ (172 cm) 3.8’ (116 cm) DC power output cable 100~240V~2.5 A, 50-60Hz AC input voltage 19 Volts DC output voltage Up to 4.7 Amps maximum continuous Output current 5.1 V... - Page 12 NS-PWLC595-NS-PWLC595-C_14-1283_MAN_V2_ENG.fm Page 12 Thursday, December 4, 2014 2:55 PM NS-PWLC595/NS-PWLC595-C interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •...
- Page 13 Copyright Insignia is a trademark of Best Buy and its affiliated companies. Registered in some countries. Distributed by Best Buy Purchasing, LLC. 7601 Penn Ave South, Richfield, MN 55423 U.S.A.
- Page 14 NS-PWLC595-NS-PWLC595-C_14-1283_MAN_V2_ENG.fm Page 14 Thursday, December 4, 2014 2:55 PM NS-PWLC595/NS-PWLC595-C www.insigniaproducts.com...
-
Page 15: One-Year Limited Warranty - Insignia
Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. - Page 16 NS-PWLC595-NS-PWLC595-C_14-1283_MAN_V2_ENG.fm Page 16 Thursday, December 4, 2014 2:55 PM NS-PWLC595/NS-PWLC595-C the original packaging. If you purchased the Product from a Best Buy or Future Shop online web site (www.bestbuy.com, www.bestbuy.ca, or www.futureshop.ca), mail your original receipt and the Product to the address listed on the web site.
