Summary of Contents for ALLO Allo PRI Gateway Server

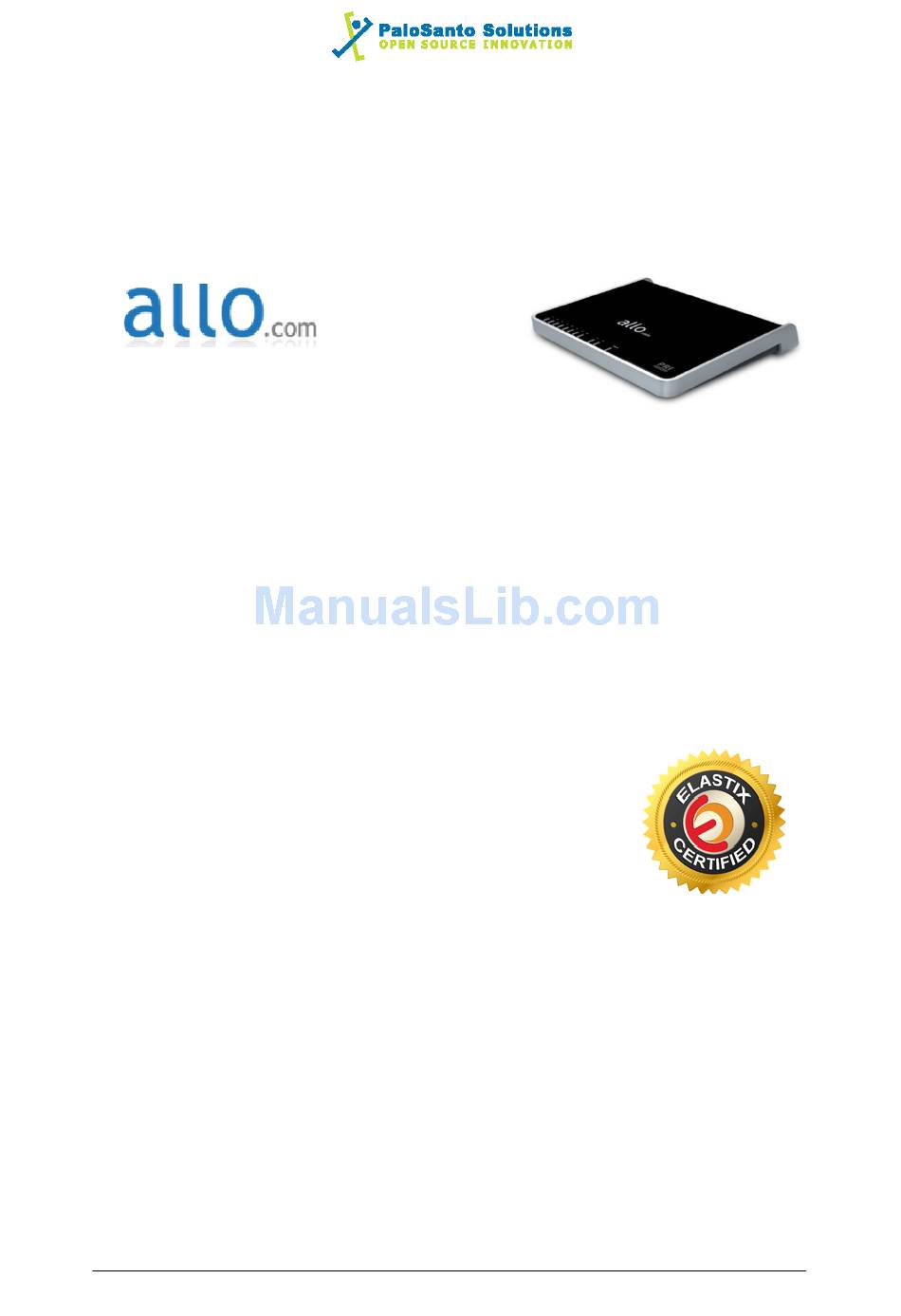

- Page 1 Allo PRI Gateway and Elastix Server Setup Guide http://www.elastix.org...
-
Page 2: Setup Diagram
PaloSanto Solutions Allo PRI Gateway Server Setup Guide 1.0 Setup Diagram Figure 1-1 is a setup diagram for a single Allo PRI Gateway configuration. We‟re going to configure a SIP Trunk for communication between a local Phone and the PSTN E1. -
Page 3: Setup Procedure
To set up the Elastix Server for the Allo PRI Gateway 1. Go to the web address of the Elastix Server Login page. The web address is determined by the customer, for this guide we have used the IP address 192.168.1.75... - Page 4 PaloSanto Solutions Allo PRI Gateway Server Setup Guide 5. Go to “PBX Configuration => Trunks => Add SIP Trunk”, see Figure 4-3. This will take you to configure a SIP Trunk. Figure 4-3. Add a SIP Trunk 6. On the “Add SIP Trunk” page (Figure 4-4), fill in the following information: General Settings •...
- Page 5 9. With this you have finished creating a SIP Trunk that will be used by the Allo PRI Gateway to register with the Elastix Server. Now, go to “PBX => PBX Configuration => Outbound Routes” to configure the outbound route to the SIP Trunk.
- Page 6 12. Click on “Submit” at the end of the page and Apply changes. To register the Allo PRI Gateway with Elastix, you will need to enter the information from the trunk created on the Elastix Server into the gateway by logging into the Allo PRI Gateway‟s WebUI.
- Page 7 Elastix Server (Figure 4-11): Account Name: (80004 in this example) Username: (80004 in this example) Registration Mode: From Gateway Proxy Address: (Elastix‟s IP Address, in this example 192.168.1.75) Authentication: Tick Auth Username: (80004 in this example) Password: (jx8FkOU13sv6 in this example) Register: Tick Registrar Address: (Elastix‟s IP Address, in this example 192.168.1.75)
- Page 8 PaloSanto Solutions Allo PRI Gateway Server Setup Guide Figure 4-11. SIP Configuration 15. Click on CREATE button. Now we have to create a PRI trunk that is going to use one of the PRI ports in the gateway. From the main screen, go to the menu “SETUP =>...
- Page 9 PaloSanto Solutions Allo PRI Gateway Server Setup Guide 17. Click on CREATE button. Now we need to create call routes in the gateway to give the calls a correct destination. To create an outbound and incoming route, go to the menu “SETUP =>...
- Page 10 PaloSanto Solutions Allo PRI Gateway Server Setup Guide 19. Once you have entered the required information, click on CREATE button. Now, we are going to configure the signaling and switch type of the PRI port. Go to “Advanced => ISDN PRI Settings” (See Figure 4-16).
- Page 11 24. To test the Allo PRI Gateway, pick up the previously configured IP (SIP) Phone and call to the PSTN by using the prefix configured in the Outbound Routes in Elastix (8-number). The call must be established. On the other hand, when you receive a...
- Page 12 PaloSanto Solutions Allo PRI Gateway Server Setup Guide call the caller should hear the IVR configured in the Inbound Route in Elastix server. This step completes the procedure.
