Summary of Contents for Furuno FR-7062
- Page 2 Yo u r L o c a l A g e n t / D e a l e r 9 - 5 2 , A s h i h a r a - c h o , N i s h i n o m i y a , J a p a n Te l e p h o n e : 0 7 9 8 - 6 5 - 2 111 Te l e f a x :...
- Page 3 This is possible — Ask Serious injury or death can result if some- your FURUNO representative or dealer to one falls from the radar scanner mast. provide this feature. Turn off the power at the mains switch- board before beginning the installation.
- Page 4 CAUTION WARNING Be sure that the power supply is Ground the equipment to prevent electrical shock and compatible with the voltage rating of mutual interference. the equipment. Connection of an incorrect power supply Observe the following compass safe can cause fire or equipment damage. The distances to prevent deviation of a voltage rating of the equipment appears magnetic compass:...
-
Page 5: Table Of Contents
TABLE OF CONTENTS EQUIPMENT LISTS ..................... iv SYSTEM CONFIGURATION ................... vi SCANNER UNIT Mounting Considerations, Precautions ..................1 Mounting Methods ........................1 Fixing Holes in Mounting Platform ..................1 Fastening the Radiator to the Radiator Bracket ................ 2 Mounting the Scanner Unit ....................... 2 Connecting the Signal Cable .................... -
Page 6: Equipment Lists
EQUIPMENT LISTS Standard Supply s t r t s i , e l , e l l l a i t a , e l , e l s t r... - Page 7 Optional Supply i f i , r e , r e t l i t l i...
-
Page 8: System Configuration
SYSTEM CONFIGURATION SCANNER UNIT XN12A-RSB-0070-059 XN13A-RSB-0070-059 XN12A-RSB-0073-059 Signal Cable MJ-B24LPF0005 (10 m, 15 m, 20 m, 30 m, 10 m standard) Radar Plotter Auto Plotter RP-110 ARP-10 (built in display unit) Gyro Gyrocompass Converter DISPLAY UNIT AD-100 RDP-122 Heading Sensor C-2000 PG-2000 Rectifier... -
Page 9: Scanner Unit

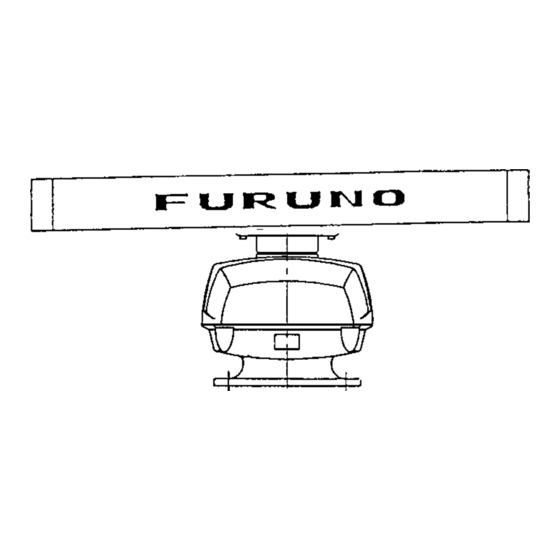

SCANNER UNIT • Do not paint the radiator aperture, to en- Mounting Considerations, sure proper emission of the radar waves. Precautions • When this radar is to be installed on larger • The scanner unit is generally installed ei- vessels, consider the following points: ther on top of the wheelhouse or on the ra- •... -
Page 10: Fastening The Radiator To The Radiator Bracket
Fastening the Radiator to the Mounting the Scanner Unit Radiator Bracket The scanner unit can be mounted using the fixing holes on the outside (200 x 200 mm) For your reference, scanner installation ma- or inside (140 x 150 mm) the scanner unit. terials list appears on page A-8. - Page 11 6. Prepare ground point in mounting platform CAUTION (within 300 mm of ground terminal on scannere unit) using M6 x 25 bolt, nut and flat washer. Do not lift the antenna unit by the radiator; lift it by the housing. 7.
-
Page 12: Connecting The Signal Cable
1. Loosen four scanner bolts to open the Connecting the Signal Cable scanner unit. Refer to Figure 11 for location. Only the signal cable runs from the display unit to the scanner unit. In order to minimize the chance of picking up electrical interfer- Upper chassis Hex. - Page 13 8. Pass the signal cable through the cable Bolt protector. Cable 4-M4 X 16 protector Plate Gasket Flat washer Figure 13 Passing the signal cable through Figure 16 Scanner unit chassis, the cable gland assembly cover opened 5. Fasten the crimp-on lug on the shield to 9.
-
Page 14: Display Unit
DISPLAY UNIT Mounting Considerations Tabletop Mounting 1. Unfasten the two bolts at the front of the The display unit can be mounted on a table- display unit to dismount the mounting top, a bulkhead or on the overhead. When se- base. -
Page 15: Bulkhead, Overhead Mounting
Bulkhead, Overhead Mounting The display unit is shipped ready for mounting on a tabletop. However, it may also be mounted on a bulkhead or on the overhead, following the illustration below. M10 hex bolt, spring washer, flat washer Fixing plate Mounting base M8 x 40 hex bolt (2 pcs.) -
Page 16: Wiring
WIRING All wiring are terminated at the rear of the display unit. Connect the scanner unit, power supply and external equipment, referring to the drawing below for connector location. Be sure to ground the display unit. CAUTION Use the power cable supplied with the radar. -
Page 17: Adjustments, Initial Settings
ADJUSTMENTS, INITIAL SETTINGS 5. Select menu item with the trackball and Adjustments, Initial Settings press the [ACQ/ENTER] key. 1. Displaying the Installation Setup 6. Select menu option with the trackball and menu press the [ACQ/ENTER] key to register. Most adjustments and initial settings may be completed on the Installation Setup menu, and 2. -
Page 18: Aligning Heading
6. Adjusting sweep timing [Tune/Video Auto Adjustment] This adjustment ensures proper radar perfor- Now under correction. mance, especially on short ranges. The radar measures the time required for a transmitted Return to installation setup menu after the correction. echo to travel to the target and return to the source. -
Page 19: Adjusting Mbs (Main Bang Suppression)
8. Entering scanner height [Sweep Timing Adjustment] Use T-ball to straighten The STC effect changes with respect to scan- target and press ENTER key. ner height above the waterline. Enter scanner Correction 0.000 nm height above the waterline to optimize the STC effect. -
Page 20: Setting A Dead Sector
10. Setting a dead sector DANGER When the scanner is installed at a close dis- tance in front of the wheelhouse, the radar ELECTRICAL SHOCK HAZARD should be set not to transmit within that area, to prevent microwave hazard. This check is done with the power on —... -
Page 21: Arp-10 Installation
The Auto Plotter ARP-10 is an optional cir- unit cover. cuit board which is accommodated in the dis- play unit of the FR-7062 to provide manual 2. Mate connector J107 on the SPU Board or automatic acquisition of 10 radar targets. -
Page 22: Adjustments
4. Adjust the GAIN, A/C and A/C RAIN con- Adjustments trols so FE-DATA1 and FE-DATA2 indi- cations on the ARP-10 TEST show less 1. Turn on heading and speed sensors. Turn than 1,000. Also, raise/lower the gain on the radar and transmit. while watching the FE-DATA1 and FE- 2.
