- Page 1 AOC-STGN-i2S User's Guide Revision 1.0a...
- Page 2 Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
-
Page 3: Product Features

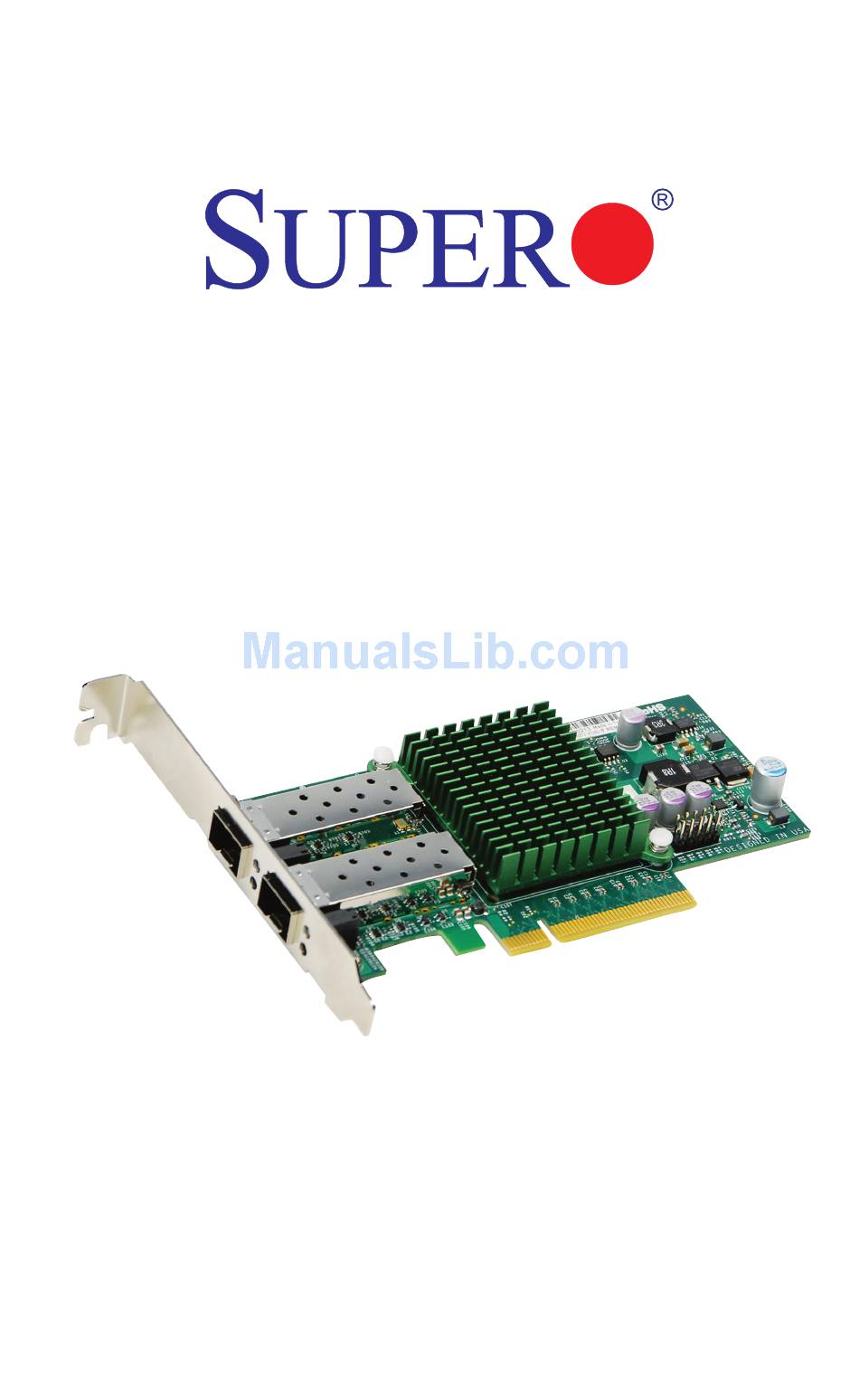

Introduction Overview This manual is written for system integrators, IT technicians and knowledgeable end users who intend to integrate Supermicro's AOC-STGN-i2S add-on card. Product Features • Intel® 82599ES 10 GbE Controller • Low-profile standard form factor • PCI-E x8 Gen. 2 (5GT/s) •... - Page 4 AOC-STGN-i2S Add-on Card User's Guide Optional Accessories • AOC-E10GSFPSR: SFP+ transceiver module for short range fiber cables (up to 300m) • AOC-E10GSFPLR: SFP+ transceiver module for long range fiber cables (up to 3000m) • AOC-TSR-FS: SFP+ transceiver module for short range fiber cables (up to 300m) •...
- Page 5 Shipping and handling charges will be applied for all orders that must be mailed when service is complete. For faster service, You can also request a RMA authorization online (http://www.supermicro.com/RmaForm/). The manufacturer warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alternation, misuse, abuse or improper maintenance of products.
- Page 6 Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
-
Page 7: Table Of Contents
Table of Contents Introduction Chapter 1 Safety Guidelines ESD Safety Guidelines ................... 1-1 General Safety Guidelines ................1-1 An Important Note to Users ................1-1 Chapter 2 Connectors, Jumpers and Indicators Front Connectors and Pin Definitions ............. 2-1 LAN Ports ......................2-2 LAN Port LEDs .................... - Page 8 AOC-STGN-i2S Add-on Card User's Guide Notes viii...
-
Page 9: Chapter 1 Safety Guidelines
Chapter 1 Safety Guidelines To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. ESD Safety Guidelines Electric Static Discharge (ESD) can damage electronic components. To prevent damage to your system, it is important to handle it very carefully. - Page 10 AOC-STGN-i2S Add-on Card User's Guide Notes...
-
Page 11: Front Connectors, And Pin Definitions
Chapter 2 Connectors, Jumpers and Indicators Front Connectors and Pin Definitions Connectors are used to attach the add-on card to the system’s mainboard. Figure 2-1. AOC-STGN-i2S Add-on Card Front Connectors and Jumpers Table 2-1 lists the add-on card’s front connectors Table 2-1. -
Page 12: Lan Ports
AOC-STGN-i2S Add-on Card User's Guide LAN Ports LAN ports allow the Add-on card to connect a maximum of two network cables (SFP+ connectors). Each LAN port provides up to 10-gigabits per second connec- tion speed and require SFP+ DAC twin axial cables up to 7 meters. The ports are designated Port 1 and Port 2. -
Page 13: Before Installation
Chapter 3 Installation Before Installation Before installation, do the follwoing: 1. Power down the system. 2. Remove the power cord from the wall socket. 3. Use industry standard anti-static equipment (such as gloves or wrist strap) and/or an environment that prevents accidental electrostatic discharge. 4. -
Page 14: Windows® 2003/2000 Installation
1. Run the CDR-NIC. (If you do not have a product CD-ROM, download drivers from the Supermicro Support Website and then transfer them to your system.) 2. When the SUPERMICRO window appears, click on the computer icon next to the product model. -
Page 15: Linux Installation
Linux Installation Follow the steps below to install the driver to a Linux system. Build a Binary RPM Package Run ‘rpmbuild -tb <filename.tar.gz>’ 2. Replace <filename.tar.gz> with the specific filename of the driver. Note: For the build to work properly, the current running kernel MUST match the version and configuration of the installed kernel sources. - Page 16 AOC-STGN-i2S Add-on Card User's Guide Note: IXGBE_NO_LRO is a compile time flag. The user can enable it at compile time to remove support for LRO from the driver. The flag is used by adding CFLAGS_EXTRA=-”DIXGBE_NO_LRO” to the make file when it’s being compiled.
- Page 17 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
