Summary of Contents for TV Logic Viewfinder VFM-056W

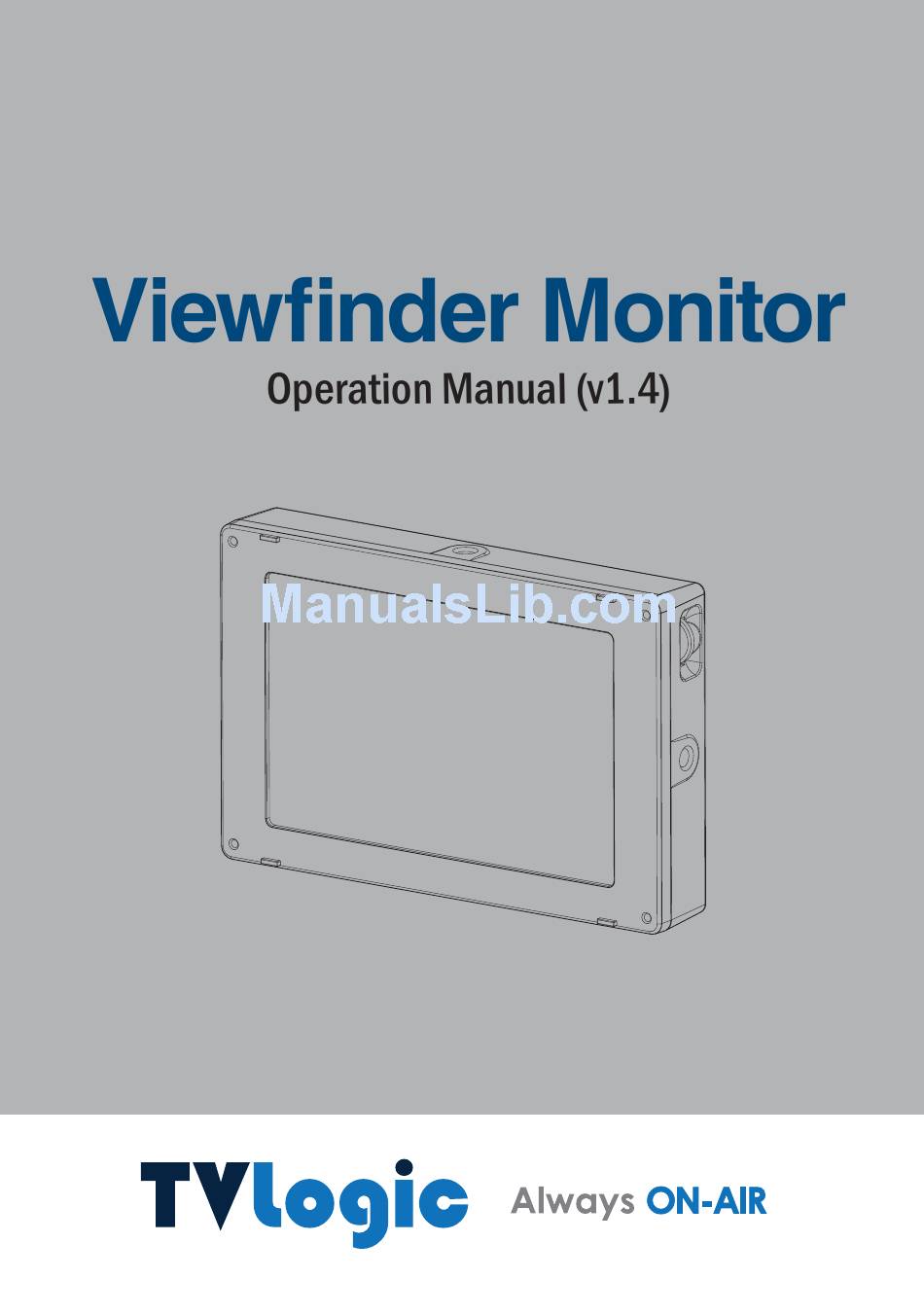

  • Page 1 VFM-056W / VFM-056WP...

  • Page 3: Table Of Contents

    Contents 1. Caution 2. Components 3. Main Features 4. Controls & Functions 5. Menu Tree & Adjustment 6. Menu Operations [1] Picture [2] Color [3] Marker [4] Display / Video [5] Waveform [6] Audio [7] System 7. Button Functions 8. Other Functions 10.

  • Page 4: Caution

    1. Caution Always use set voltage. (DC 12V) If any of the following conditions occurs, unplug the power cord from the DC outlet, and request All operating instructions must be read and a qualified service person to perform repairs. understood before the product is operated. a.
  • Page 5 1. Caution When mounting the product on a wall or ceiling, Sudden stops, excessive force and uneven be sure to install the product according to the floor surface can cause the product to fall from method recommended by the manufacturer. the cart.

  • Page 6: Components

    2. Components VFM-056W/VFM-056WP Camera Mount DC Power Adapter BNC Connector (Angle Type) DC Power Cord * Optional Accessories : Please note the optional accessories on page 27...

  • Page 7: Main Features

    3. Main Features VFM-056W/VFM-056WP Monitor contains the following features: Compatible with various SDI signals Knob Control - Easy to adjust user configuration using the formats (SD/HD/3G) control knob on the side of the monitor. - This product is compatible with various SDI signals - SD/HD/3G(A/B)-SDI BLUE ONLY/MONO/Focus Assist Function * 3G-SDI signal supports at VFM- 056WP.

  • Page 8: Controls & Functions

    4. Controls & Functions FRONT/SIDE/REAR/TOP KNOB AUDIO OUT FUNCTION/ FUNCTION SELECT POWER SWITCH BATTERY/TALLY MENU EXIT SOURCE SDI IN DC POWER JACK SDI OUT HDMI IN Pb/S-C CVBS/Y/S-Y...
  • Page 9 5. Controls & Functions SDI-IN (BNC) SIDE - Select SD/HD/3G-SDI Signal. PGM (Mini HDMI) SDI-OUT (BNC) - This terminal is used to upgrade the firmware - SD/HD-SDI Signal Output which is input or color calibration made by TVLogic. through [SDI-IN] terminal. AUDIO OUT (Phone Jack) HDMI IN (HDMI) - Used for Stereo Audio Output through Phone...

  • Page 10: Menu Tree & Adjustment

    5. Menu Tree & Adjustment [1] Menu Tree [3] Menu Control Sequence OSD(On-Screen Display) Menu helps you use Press MENU button to activate the OSD menu. various functions. 2. Move to a desired menu by scrolling the Knob. This Picture is the menu structure for 3.

  • Page 11: Menu Operations

    6. Menu Operations [1] Picture [2] Color Brightness Color Temp. - Used to set the brightness(offset) level from - Controls color temperature and allows instant -100 to 100. access to preset color temperature settings. - Available color temperatures are 3200K, 5000K, 5600K, 6500K, 9300K and User 1/2/3.

  • Page 12: Marker

    6. Menu Operations [3] Marker Marker Enable Marker Mat - Used to activate the Marker function. - Used to set the darkeness level outside of the MARKER area from OFF(transparent) to 7(Black). - The bigger the value, the darker the color. Marker Type - Used to select the marker type.

  • Page 13: Display/Video

    6. Menu Operations [4] Display/Video Scan User Aspect Horizontal/User Aspect Vertical - Used to change the Scan mode. Scroll up and - Activated only when [SCAN] mode is set to down the Knob and the mode will be changed [User Aspect] . as the following sequence.
  • Page 14 6. Menu Operations [4] Display/Video Zoom Focus Assist Level - Used to magnify the image up to 90% on a - Used to set the edge difference value between pixel basis and is displayed on full screen. the edges in an image. * (e.g.,10% Zoom : If the input signal’s resolution - Available values are from 0 to 100.

  • Page 15: Waveform

    6. Menu Operations [5] Waveform / Level Check (VFM-056WP Only) Waveform/Vector Waveform Size - Used to select among [Off], [Waveform Y], - Used to control the size of the Waveform or [Waveform Cb], [WaveForm Cr], [Vectorscope]. Vectorscope between Small and Large. - Waveform or Vectorscope is displayed on the * See section “Other Function [3] Waveform/ bottom right of the screen.
  • Page 16 6. Menu Operations [5] Waveform / Level Check (VFM-056WP Only) Y Max Luma(Y’) Zone Check - Used to set the maximum luma(Y’) level from - Used to analyze the Luma(Y’) level of the input 0 to 255. video signal and display the selected sector on - Pixels with values exceeding the max Y’...

  • Page 17: Audio

    6. Menu Operations [6] Audio Audio Volume Level Meter Reference - Used to control the output volume for the - Display the default audio level meter value, internal speakers or [AUDIO OUT] on the back ranging from -18dB to -20dB. of the monitor.

  • Page 18: System

    6. Menu Operations [6] System System Default Firmware Version - Used to initialize OSD values to factory default. - Displays current firmware version. Back Light Serial Number - Used to indicate the backlight level. - Displays the serial number of the monitor. - In case of System Default, the value returns to factory default(after color calibration).

  • Page 19: Button Functions

    7. Button Functions [1] Video Input [2] Function Key Set Button VFM-056W / VFM-056WP supports various input signals. 1. Press the [ MENU<EXIT>/ SOURCE] button on the back of the monitor for more than 2 seconds and OSD menu is activated as follows.

  • Page 20: Other Functions

    8. Other Functions [1] Pixel to Pixel * VFM-056W / VFM-056WP monitors provide pixel count info using Pixel to Pixel mode. * Select [Scan] mode in the OSD menu by pressing the [ FUNC. FUNC. SEL.] button to activate the[Pixel To Pixel] mode. * After activation of [Pixel To Pixel] mode, use the Knob to move the position.
  • Page 21 8. Other Functions [2] User Aspect Select [Aspect] mode in the OSD menu by pressing the [ FUNC./ FUNC. SEL.] button to activate the[User Aspect] mode. After activation, press the Knob to get ready for controlling. # To adjust the 16:9 aspect ratio of 1920X1080 Adjust the ratio using the Knob.
  • Page 22 8. Other Functions [3] Waveform / Vectorscope (VFM-056WP Only) Waveform Y VectorScope - Displays the Luma(Y’) component of the input - Displays the color components ‘B-Y’ and ‘R-Y’ signal into waveform. of the input signals onto the X-Y axis. - Two different types of Vetorscopes are displayed according to SD or HD input signals.
  • Page 23 8. Other Functions [4] Line Select (Waveform/VectorScope) [5] Zoom VFM-056WP Only Used to magnify the input signal from 0% to 90%. Used to select specific Vertical Line for WaveForm/VectorScope. Supports Zoom Width Scroll / Zoom Height Scroll function. It is available when LINE WaveForm is activated. Zooms IN/OUT focused on the scrolled area.
  • Page 24 8. Other Functions [6] Luma(Y’) Zone Check [7] Focus Assist VFM-056WP Only Focus Assist function assigns a color to the pixels in the shape or boundary area of the Displays the Luma(Y’) level of the input image image to inform the user to make the best focus. in colors.
  • Page 25 8. Other Functions [8] Range Error (VFM-056WP Only) [9] DSLR Scale Pixels with Y’ or C’ levels exceeding the This function is designed for some DSLR designated levels of Y MAX, Y MIN, C MAX and C cameras that output different resolution from MIN shall blink.
  • Page 26 8. Other Functions [10] HDMI To SDI Throughout (VFM-056WP Only) Video source from ‘HDMI input’ terminal can be Activate the HDMI TO SDI Throughout function output through ‘SDI throughout’ terminal. and press the [Enter] button. Only 59.94i or 59.94p formats are available for Then “Turn off/on POWER”...
  • Page 27 8. Other Functions [11] Screen TALLY Screen TALLY On/Off Used to set Tally operation according to the input level of TALLY IN terminal which is among the terminals of XLR 4P connector in the rear. Screen TALLY Operating Level - Used to set the input level of Tally operation. (Open&Low : less than 0.6V, High : more than 2.5V) - High: Set the level as “High”...
  • Page 28 9. Product Specifications VFM-056W / VFM-056WP Size 5.6” Resolution 1280 X 800 (16:10) Pixel Pitch 0.0945(H) X 0.0945(W) mm Color Depth 16.7M (6bit + Dithering) Viewing Angle H : 170 degrees / V : 170 degrees Luminance of white 300 cd/ m (Center) Contrast Ratio 500 : 1...

  • Page 29: Optional Accessories

    10. Optional Accessories Carrying Case Sun-Hood External Acrylic Filter V-Mount Tripod Camera Mount Hot shoe Ball Head Support * Available battery Brackets - BB-056S (SONY) - BB-056C (CANON) - BB-056P (PANASONIC) - BB-056AA (AA) Battery Bracket Battery Bracket...
  • Page 30 Memo...
  • Page 32 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 345-4 Gasan-dong, Geumcheon-gu, Seoul, 153-802, KOREA TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr...
