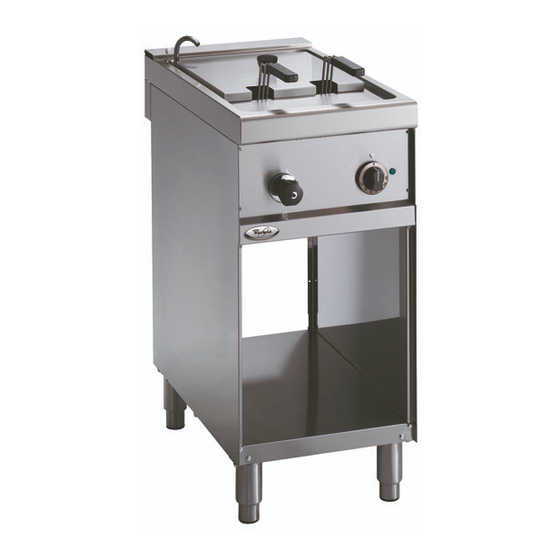

Whirlpool ADN 656 Instructions For Installation, Use E Maintenance

Electric pasta cooker.
Hide thumbs

Advertisement

Instructions for installation,
use e maintenance
ELECTRIC PASTA COOKER
ADN 656
ADN 641
0810_GB_42
04/2008

Advertisement

Table of Contents

   Related Manuals for Whirlpool ADN 656

No related manuals

   Summary of Contents for Whirlpool ADN 656

  • Page 1 0810_GB_42 Instructions for installation, use e maintenance ELECTRIC PASTA COOKER ADN 656 ADN 641 04/2008...
  • Page 2 CHARACTERISTICS Supplied by: Date: Customer Service: e-mail 0810_GB_42 - ELECTRIC PASTA COOKER 04/2008 2 · 12...
  • Page 3: Table Of Contents

    INDEX Diagram Characteristics of the appliances 3 Technical data 4 Installation instructions 4.1 Safety rules 4.2 Structure, framework and safety devices of the appliances 4.3 Assembly 4.3.1 Installation premises 4.3.2 Statutory regulations and technical requirements 4.3.3 Installation 4.3.4 Electrical connection 4.3.5 Equipotential Operation preparation 5.1 Preparation and Start-up...
  • Page 4: Diagram

    1 - DIAGRAM ADN 641 Electric power Data plate Electric power Data plate ADN 656 Electric power Data plate Electric power Data plate 0810_GB_42 - ELECTRIC PASTA COOKER 04/2008 4 · 12...
  • Page 5: Characteristics Of The Appliances

    THE APPLIANCE MUST BE INSTALLED BY QUALIFIED PERSONNEL. 3 - TECHNICAL DATA Model Description Dimensions in mm. (LxDxH) N˚ Tank Capacity ADN 656 Electric pasta cooker 400 x 600 x 270 13 l ADN 641 Electric pasta cooker 400 x 700 x 900...
  • Page 6: Installation Instructions

    4 - INSTALLATION INSTRUCTIONS 4.1 Safety rules 4.3.2 Statutory regulations and technical requirements During installation of the appliance, the following regulations must • Only a local gas utility technician is authorized to carry out gas be adhered to: installations and connections. The statutory regulations (applied •...
  • Page 7: Preparation And Start-up

    5 - SET-UP FOR OPERATION 5.1 Preparation and Start-up 5.3 Replacing parts All parts must be replaced by authorized technicians only! Before starting up the appliance, remove the protective wrapping. To replace the following parts first remove all the control knobs and Then carefully clean the working surface and the external parts with control panel (after loosening the fixing screws), then extract the lukewarm water and detergent, using a damp rag to remove all traces...
  • Page 8: Start-up

    6 - INSTRUCTIONS FOR USE Fig. 1 6.4 Turning the appliance off in case of breakdown 6.4.1 What to do in case of failure In case of breakdown or malfunctioning or failure turn off the appliance. Switch off any electric power. Call the service centre. 6.4.2 What to do in case of prolonged period of disuse When the appliance is not to be used for a long time, clean thor- oughly, cas instructed in the chapter 6.5 “Appliance care and fre-...
  • Page 9: Warnings And Advice For Maintenance Of "stainless Steel Appliances

    6 - INSTRUCTIONS FOR USE More damage can be caused by: • outside rust (i.e. from other components, tools or incipient rust) • iron particles (i.e. file dust) • contact with non-ferrous metals (element build up) • lack of oxygen (i.e. no air inlet, water lacking oxygen). 6.6.2 Warnings and advice for maintenance of “stain- less steel”...
  • Page 10: Weee Directive

    6 - INSTRUCTIONS FOR USE 6.6.3 The 2002/96/EC (WEEE) Directive: information to users This informational note is meant only Fig. A for owners of equipment marked with the symbol shown in fig. A on the adhe- sive label featuring the technical specifi- cations applied on the actual product (the label also giving the serial number).
  • Page 11: Appendix: Electrical Diagram

    7 - APPENDIX: ELECTRICAL DIAGRAMS ADN 656 ADN 641 P3 P1 P2 230V Terminal board Commutator Green indicator light Heating element inferior 1500 W Heating element superior 1500 W Total power: 3.0 kW 0810_GB_42 - ELECTRIC PASTA COOKER 04/2008 11 · 12...
  • Page 12 THE MANUFACTURER RESERVES THE RIGHT TO MAKE ANY CHANGES DEEMED NECESSARY. THE MANUFACTURER CANNOT BE HELD RESPONSIBLE IF THE INSTRUCTIONS CONTAINED IN THIS MANUAL ARE NOT OBSERVED. WHIRLPOOL EUROPE srl V.le Guido Borghi, 27 I – 21025 Comerio – VA...
