Summary of Contents for Nexus NXT-90

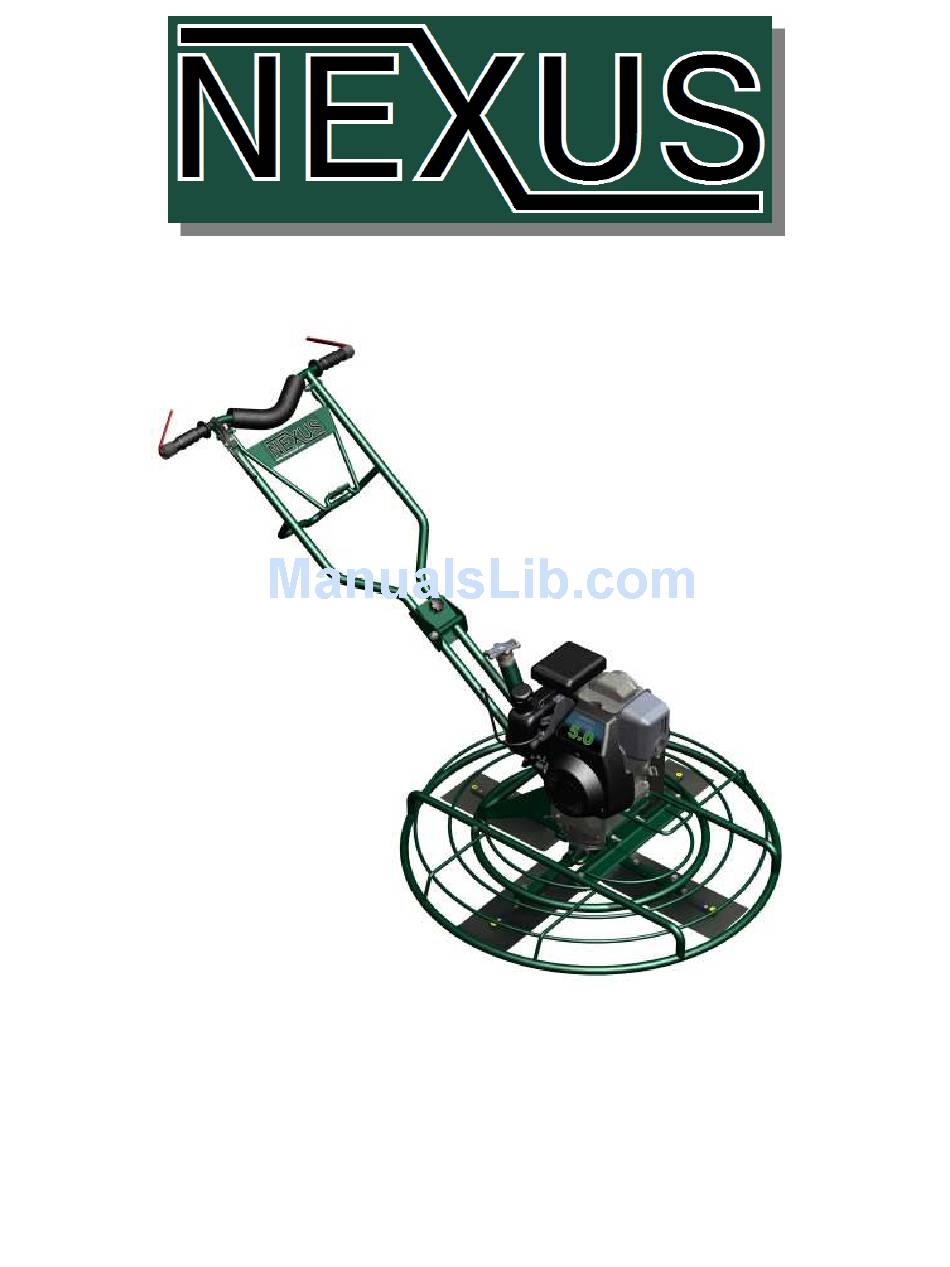

  • Page 1 POWER TROWEL POWER TROWEL POWER TROWEL POWER TROWEL Model Model: : : : NXT NXT- - - - 90 Model Model Operator’s Manual Operator’s Manual Operator’s Manual Operator’s Manual Document #: NEX-0001 Created Date: 01/2008 Revision: ORIGINAL ORIGINAL LANGUAGE ORIGINAL ORIGINAL LANGUAGE LANGUAGE...

  • Page 2: Revision

    (905) 458-5455 Facsimile: (905) 458-5484 ORIGINAL LANGUAGE OPERATING INSTRUCTIONS FOR NEXUS WALK-BEHIND POWER TROWELS © 2008 BY BARTELL MORRISON INC. ALL RIGHTS RESERVED. No part of this work may be reproduced or transmitted in any form or by any means, electronic or mechanical, including...

  • Page 3: Table Of Contents

    PRODUCT SAFETY PRODUCT SAFETY 5 5 5 5 PRODUCT SAFETY PRODUCT SAFETY 1.0 MEET THE NEXUS NXT- - - - 90 POWER TROWEL 1.0 MEET THE NEXUS NXT 90 POWER TROWEL 6 6 6 6 1.0 MEET THE NEXUS NXT 1.0 MEET THE NEXUS NXT...
  • Page 4 This page intentionally left blank Toll Free: (866) 501-1683 / Phone: (905) 458-5455 / Fax: (905) 458-5484 Page 4 of 38...

  • Page 5: Product Safety

    PRODUCT SAFETY PRODUCT SAFETY PRODUCT SAFETY PRODUCT SAFETY READ OPERATING INSTRUCTIONS READ OPERA TING INSTRUCTIONS READ OPERA READ OPERA TING INSTRUCTIONS TING INSTRUCTIONS Read and understand this entire manual before attempting to operate or service the equipment described herein. Failure to follow these operating instructions could result in serious injury or death.

  • Page 6: Safety Features

    AND CARE AND CARE The Nexus NXT-90 Power Trowel is designed for use on uncured concrete. It should be operated at all times in accordance with the instructions detailed in this manual: Use of this equipment for any purpose other than that stated within creates the risk •...

  • Page 7: Nxt-90 Dimensions

    1 1 1 1 ..3 3 3 3 NXT- - - - 90 90 DIMENSIONS DIMENSIONS DIMENSIONS DIMENSIONS 27-5/8” (70cm) 38-3/4” (98cm) 41-3/8” (105cm) FIGURE 1: FIGURE 1: FOLDED DIMENSIONS (HONDA GC160 MODEL SHOWN) FIGURE 1: FIGURE 1: Toll Free: (866) 501-1683 / Phone: (905) 458-5455 / Fax: (905) 458-5484 Page 7 of 38...
  • Page 8 28-1/8” (71.5cm) 37-1/2” (95cm) 38-3/4” (98cm) 64-3/8” (163.5cm) FIGURE 2: OPERATING DIMENSIONS (HONDA GC160 MODEL SHOWN) FIGURE 2: FIGURE 2: FIGURE 2: Toll Free: (866) 501-1683 / Phone: (905) 458-5455 / Fax: (905) 458-5484 Page 8 of 38...

  • Page 9: Nxt-90 Main Components

    Clutch and Belt: Clutch and Belt: Clutch and Belt: Clutch and Belt: The engine of the NXT-90 drives a centrifugal clutch, allowing the engine to idle without turning the spider. The drive belt, when engaged with the clutch, drives the gearbox pulley.
  • Page 10 The lever will move in different directions for different engine Honda configurations. On the GC160 model of NXT-90, setting the throttle lever to minimum will shut down the engine, while the other models will simply set the Power Trowel to idle.

  • Page 11: Lifting The Nxt-90

    FIGURE 4: FIGURE 4: FIGURE 4: The NXT-90 should be lifted by mechanical means. With the handle folded and locked in position the lift point can be used with a grab hook or sling to lift the Power Trowel into position.

  • Page 12: Safety

    The operator and any service personnel should read and understand the entire manual before working with or servicing the NXT-90. The NXT-90 manual should be kept at all times in a place that • is accessible to any persons working with the machine.
  • Page 13 NEVER perform maintenance on a running piece of equipment. Shut down the • engine and allow it to cool before servicing the NXT-90, including mechanical work or lubrication. ALWAYS replace missing, damaged or unclear safety labels to ensure operator •...

  • Page 14: Safety And Operational Labels

    ALWAYS tie down the NXT-90 when being transported in a truck or on a flatbed. • Empty the fuel tank if transporting it over long distances. NEVER attempt to lift the NXT-90 alone, always lift with a mechanical aid. •...
  • Page 15 1 & 2 1 & 2 1 & 2 1 & 2 Nexus Product Brand Labels Nexus Model and Serial Number plate (2 3 3 3 3 locations) Product Model Number 4 4 4 4 NXT-90 WARNING: Use appropriate protective...
  • Page 16 DANGER: Exhaust products can be toxic, use in well-ventilated environment CAUTION: Mechanical lift point; hoist by this point only Maximum sound level 105dB WARNING: Shut down engine and allow sufficient cooling time before refueling this equipment CAUTION: Read and understand entire operator’s manual before using or servicing this equipment Toll Free: (866) 501-1683 / Phone: (905) 458-5455 / Fax: (905) 458-5484...
  • Page 17 FIGURE 6: FIGURE 6: It should be noted that the NXT-90 will immediately begin to rotate in the opposite direction to the blades when both of the handles are released. Even with the engine shut down, the drivetrain will have sufficient momentum to spin the handle up to 180 (1/2 turn) before coming to a stop.

  • Page 18: Setting Up The Nxt

    Your Nexus NXT-90 comes fully assembled with the folding handle and engine already installed. Nexus equipment is shipped without engine oil or gasoline, so fill these fluids per your engine’s instruction manual before proceeding. When starting an engine for the first time, or after a long period of storage, several pulls may be required before the engine runs.
  • Page 19 ALWAYS unfold the handle and lock in the open position before starting the engine. Failure to do this may result in equipment damage or personal injury. To completely unfold the handle: 1. Grab the lock arm at the hook and push backward, toward the engine, until the latch releases the grab bar (see Figure 8).
  • Page 20 FIGURE 9: FIGURE 9: UNFOLDING THE HANDLE FIGURE 9: FIGURE 9: FIGURE 10: HANDLE LOCK KNOB FIGURE 10: FIGURE 10: FIGURE 10: Toll Free: (866) 501-1683 / Phone: (905) 458-5455 / Fax: (905) 458-5484 Page 20 of 38...

  • Page 21: Starting The Nxt-90

    5. Hold one of the deadman levers inward with your left hand and grab the starter cord with your right hand. While constantly holding the deadman lever down, firmly pull the starter cord as directed in your engine’s manual (see Figure 11). FIGURE 11: PULL-STARTING THE NXT-90 FIGURE 11: FIGURE 11:...

  • Page 22: Trowel Technique

    A rough floor will damage your trowel blades and create excessive vibration. Unfold the handle, start the engine and learn the feel and control of your Nexus Power Trowel, starting at low throttle and working up to full throttle.

  • Page 23: Trowelling

    TROWE TROWE TROWE TROWEL L L L L L L L ING Trowelling the concrete surface eliminates large aggretates near the surface, levels bumps and depressions, and consolidates the surface to make it stronger. The surface must first be sufficiently cured to support the weight of the trowel. The surface should first be leveled using a float or vibratory screed.
  • Page 24 FIGURE 14: FIGURE 14: TROWELLING PASS DIRECTION FIGURE 14: FIGURE 14: Toll Free: (866) 501-1683 / Phone: (905) 458-5455 / Fax: (905) 458-5484 Page 24 of 38...

  • Page 25: Power Trowel Blades

    FIGURE 1 To reverse a blade, follow these steps: 1. Raise the NXT-90 above the floor by putting blocks under the safety ring or by suspending it by the hoist hook on the folded handle. Work away from the wet concrete or any grates where small parts can be lost.

  • Page 26: Float Blades

    FLOAT BLADES FLOAT BLADES Clip-on float blades are an optional addition to your NXT-90, allowing you to begin the trowelling operation much sooner after the concrete pour than the standard finishing blades. The increased surface area of the float blades allows your NXT-90 to “float” on wetter concrete than the finishing blades will permit.

  • Page 27: Float Pans

    “Panning” is the earliest step that can be performed on wet concrete. The optional float pan allows the NXT-90 to begin working on concrete at the earliest possible time after the pour, and is the most effective tool for floating the concrete. The float pan fits to the existing finishing blades with minimal effort.

  • Page 28: Blade Pitch

    BLADE PITCH BLADE PITCH BLADE PITCH BLADE PITCH The blade pitch is controlled by the knob directly behind the engine. The blades are pitched up as the concrete cures in order to place more direct pressure on the surface being trowelled. To raise the blade pitch turn the pitch knob clockwise. If the pitch is initially at the lowest setting, several full turns will be required before the blades start to raise.

  • Page 29: Storage And Service

    The most important daily activity is to keep the equipment clean and prevent the build-up of dried concrete. The NXT-90 can be cleaned with spray from a hose or pressure washer. Remove all concrete residue, concentrating on moving parts such as the spider assembly, pitch assembly, and drivetrain.

  • Page 30: Preventative Maintenance And Routine Service

    Nexus dealer. For your convenience we have provided this space to record relevant data about your NXT-90. When in need of parts or service be prepared to provide your serial number. Locate the serial number now and record in the space below.

  • Page 31: Routine Service Intervals

    Each After 1.5 Each 3 Each 6 Each 9 Each 12 months months months months months Routine Routine Service Intervals Service Intervals Routine Routine Service Intervals Service Intervals 50 hrs 100 hrs 200 hrs 300 hrs 400 hrs General Inspection: Guards Check Warning stickers...

  • Page 32: Storage

    ROUTINE SERVICE INTERVALS ROUTINE SERVICE INTERVALS ROUTINE SERVICE INTERVALS Due to the nature and environment of use, Nexus Power Trowels could be exposed to severe operating conditions. Some general maintenance guidelines will extend the useful life of your trowel. • The initial service for your Power Trowel should be performed after 25 hours of use, at which time your mechanic (or authorized repair shop) should complete all of the recommended checks in the schedule on Page 31.

  • Page 33: Trowel Arm Adjustment

    TROWEL ARM ADJUSTMENT TROWEL ARM ADJUSTMENT If your NXT-90 Power Trowel is experiencing excessive wobble while in use (i.e. the entire machine is rocking at the same rate that the blades are turning) you may have a bent or out of alignment trowel arm. Inspect the trowel arms for a distinct bend. If one or more arms are in fact bent they must be replaced.
  • Page 34 FIGURE 23: FIGURE 23: SPIDER OIL BATH FILL HOLES FIGURE 23: FIGURE 23: 10. Re-assemble the NXT-90 and test handling on a smooth surface. Toll Free: (866) 501-1683 / Phone: (905) 458-5455 / Fax: (905) 458-5484 Page 34 of 38...
  • Page 35 This page intentionally left blank Toll Free: (866) 501-1683 / Phone: (905) 458-5455 / Fax: (905) 458-5484 Page 35 of 38...
  • Page 36 Declaration of Conformity / Certificat de conformité / Gelijkvormigheids certificaat Declaración de Conformidad/Declaração de Conformidade/Dichiarazione Di Conformita Bartell Morrison Inc. 375 Annagem Blvd Mississauga, Ontario, Canada L5T 3A7 Tel: 905-458-5455 Fax: 905-458-5484 Declare under our sole responsibility that the product to which this declaration relates is in conformity with the following standard(s) or other normative documents.
  • Page 37 Numero de serie da maquina Numero de serie do motor Massa Modello Numero di seria la macchina Numero di seria la motore Massa (kg) NXT-90 Walk Behind Power Trowel (63.6) Noise Level Pressure level Vibration level Puissance acoustique Pression acoustique Niveau de vibration...
  • Page 38 NOTES NOTES NOTES NOTES Toll Free: (866) 501-1683 / Phone: (905) 458-5455 / Fax: (905) 458-5484 Page 38 of 38...
