Error Messages

Memory Problems

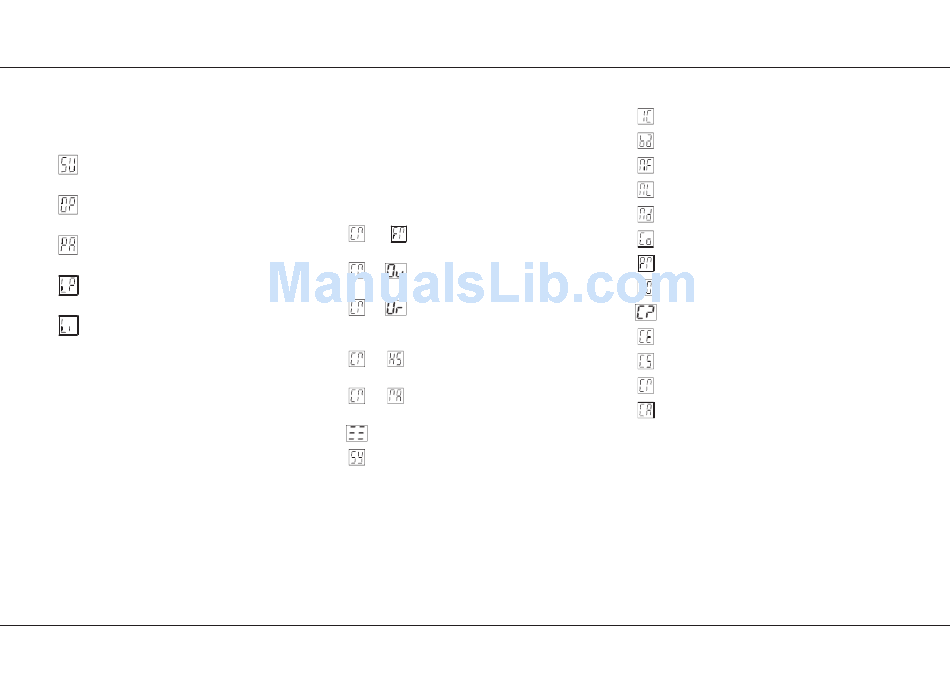

The memory Page displays may show one of the
following messages if a memory error is detected
when the desk is turned on.
Mode switch in any position.
Super User set up options have been
corrupted
The output Strobe / Full Level channel
memory has been corrupted
The DMX patch memory has been
corrupted
Lost Pattern - The sequence memories
have been corrupted
The Midi lighting control data has been
corrupted
All these problems are likely to be transitory.
They may require a Super User Clear Memory
and/or Reset operation and some
reprogramming. Always keep a copy of important
shows on a Memory Card.
7359700/p33/4
p33/4

Hardware Problems

The Lightmaster XLS will display 'CR' (crash) in
the Page display if the hardware is not operating
correctly. There are two types of crashes: those
that will allow some desk operations to proceed
despite the fault and those that prevent the desk
working completely.
Faults that allow desk operations to continue:
— Display —
Page Step No.
Chaser frame memory recovery
failed (Faulty Eprom )
Analogue input ICs not reading
0 volt line correctly
Analogue input ICs not reading
'Vref' correctly
Faults that prevent the desk working completely:
Eprom checksum not correct
(Faulty Eprom)
RAM testing has failed
(Faulty RAM)
Mode switch in faulty position
Unaccepted system exclusive
message received in MIDI.
When a hardware problem is detected the desk
will stop but the outputs will stay at their previous
levels.
To continue after a hardware problem is
detected, press the Page +, Page - or Go buttons.
If the problem persists the desk will again be
halted until the hardware is repaired.
Error Messages

Memory Card Errors

Insert Card
Battery Low
Not Formatted
Not a Lightmaster XLS Card
No Data Saved
Corrupt Card
Protected
Not Verified
Card Error
Card Error
Card Send Error
Card Receive Error
Card Addressing Error
Page 33
