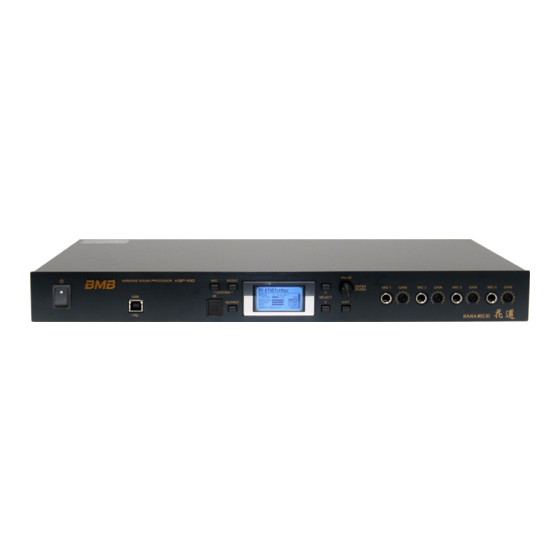

BMB KSP-100 Owner's Manual

Karaoke sound processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Contents
USING THE UNIT SAFELY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Main Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Panel Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Turning the Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Turning the Power Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Top Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Changing the Page of the Top Screen . . . . . . . . . . . . . . . . . . . . . . 8
Moving the Cursor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Displaying the Advanced Settings Screen . . . . . . . . . . . . . . . . . . 8
Changing a Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" (p .2) and "IMPORTANT NOTES" (p .4) . These sections provide important information
concerning the proper operation of the unit . Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, read
Owner's Manual in its entirety . This manual should be saved and kept on hand as a convenient reference .
Copyright © 2013 BMB International Corp .
All rights reserved . No part of this publication may be reproduced in any form without the written permission of BMB International Corp .
Convenient Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Calling Up Scenes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Saving Scenes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Editing the KSP-100's Basic Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Control) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Automatically Switching the Input Signal . . . . . . . . . . . . . . . . . . . . . . .11
Signals are Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Releasing Panel Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
(Factory Reset) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Changing the Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Setting the MIC Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Setting the MUSIC Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Setting the OUTPUT Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Setting the SYSTEM Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
