MC104DVR High Resolution Windshield Mounted
Dashboard Camera with DVR - Quick Setup Guide
This easy to install, windshield mounted mobile camera with DVR enables
you to monitor driver behavior and provides recorded evidence when an
accident occurs. Features include:
True HD video resolution: 1280 x 720 @ 30 fps (720p)
•
Integrated 2.5" dia. LCD screen
•
Built-in microphone (can be disabled)
•
SD / MMC card slot (supports 1GB to 32GB cards)
•
Motion detection
•
Flip down OSD provides convenient viewing and adjustment of video
•
settings
Internal battery backup
•
120° max field of view
•
Mounts easily to windshield with suction cup mount
•
What's Included:
Suction cup mount
•
Cigarette lighter power plug
•
USB transfer cable
•
Manual
•

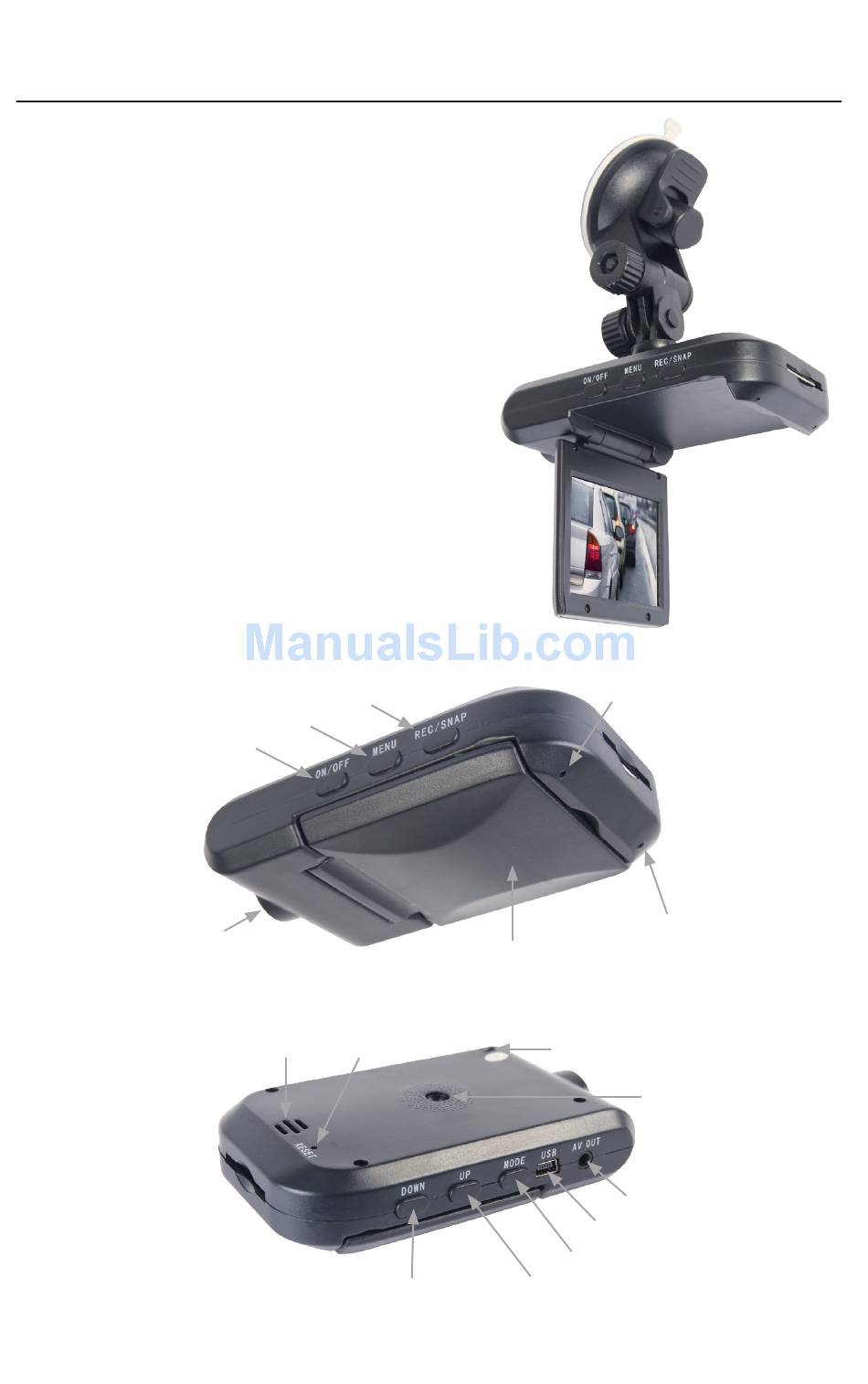

Power ON / OFF
Lens and
IR array
www.Observint.com
REC / SNAP
MENU button
Camera/DVR unit left side
Speaker
Reset switch
DOWN (menu) button
Camera/DVR unit right side
Flip-down LCD display
Light level sensor
Mode button
UP (menu) button
1
© 2013 Observint Technologies, Inc. All rights reserved.
Working (green),
charging (red)
LED indicator
SD / MMC
card slot
Microphone
Hole for
mounting
bracket
AV Out jack/
5 Vdc in
USB / charging port
MC104DVR_RM 11/19/13
Advertisement
Summary of Contents for Observint MC104DVR
- Page 1 Light level sensor Hole for mounting bracket AV Out jack/ 5 Vdc in USB / charging port Mode button DOWN (menu) button UP (menu) button Camera/DVR unit right side www.Observint.com MC104DVR_RM 11/19/13 © 2013 Observint Technologies, Inc. All rights reserved.
- Page 2 When power is applied, the DVR will charge the internal LI-ion battery, and begin recording if an SD/MMC card is installed. — To stop recording, push the REC/SNAP button on the left side of the unit. MC104DVR High Resolution Windshield Camera/DVR...
- Page 3 Using the USB cable: • Plug the USB cable into the USB port on the Camera/DVR unit, then into a USB jack on a running computer. — When power is applied, the Camera/DVR unit open USB mode (see below) will charge the internal LI-ion battery. To stop —...
- Page 4 An additional mode, USB mode, is not configurable. See “Downloading recorded video and snapshots (USB mode)” below. Typical Video mode scene Video Output menu (first page) Video Output menu (second page) Typical Capture mode scene Capture menu (first page) Capture menu (second page) Capture menu (third page) Typical Play mode of Video scene Typical Play mode of Capture scene...
- Page 5 To navigate the Video, Capture and Play modes configuration menus and change settings: Power on the Camera/DVR unit, if needed. If the unit is recording video, stop recording by pressing the REC/SNAP button. Press the MENU button once to open the configuration menu for the mode the camera is operating in. The mode is indicated by the icon in the upper right corner (see the scene examples above) for Video mode ( ), Capture mode ( ), and...
-
Page 6: Step 4. Recording Video
The formatting operation is usually completed in less than 10 seconds. Press the REC/SNAP button to select the option (format the card) and return to the parameters list. Press the MENU button to close the configuration menu. Step 4. Recording Video Battery charge level Video mode icon Guidelines for recording video:... - Page 7 Step 6. Previewing video and snapshots To preview recorded video and snapshots using the DVR: Turn on the Camera/DVR unit by pressing the ON/OFF button (if needed). If the camera is recording video, press the REC/SNAP button to stop the recording. Press the MODE button repeatedly until the Play mode display appears.
