ELITA E50 User Manual

'ELITA E50' is up - to - date vehicle alarm system designed for users looking for quality and appreciating their time. System generates
secure variable code and functions in conformity to the requirements of EU Directives. 'ELITA E50' is distinguished not only by the reliable
engine immobilization preventing vehicle theft but also by possibility of turning the alarm OFF by means of adjustable PIN code. This is
extremely handy when facing remote control loss for example during some travel or when the remote control battery is low.

1. SYSTEM UNIT.

System unit performs main security functions, thus it is extremely important to hide it well in the passenger compartment of a vehicle. After
the installation of the system unit all system settings and pre-programming of the new remote controls is done by using the PIN code.
Manufacturer supplies alarm system with default 4 - digit PIN code (Fig. 1) that can be found on the Identification label of alarm system
(Fig. 2). Afterwards the user should change it into some other easy memorable 4 - digit number. It is recommended to write down the new
PIN code, however do not keep this information in your vehicle. In addition, do not use your birthday date or home address for the PIN
code.
PIN code
Fig. 1 The PIN code

2. REMOTE CONTROL.

The system comes with 2 remote controls (radio transmitters) (Fig. 3) though it is possible to program up to 5 remote controls (see section
6.4.). It is recommended to replace remote control battery after every 12 months. All types of 23A batteries (12V) are eligible for use.
Though remote control casing ensures protection of inside electronics from moisture, dipping of remote control device into water is not
allowed under any circumstances.

3. ALARM ARMING USING REMOTE CONTROL BUTTON

3.1. ALARM ARMING. Shortly press remote control button
bursts of light. Security alarm is turned ON. If vehicle incorporates central lock, the doors are locked.
3.2. ARMING WITH NO SENSOR. In case the system is connected with single-level sensor, press and hold button
will flash once, after 2 seconds direction indicators will shortly go on once more. Release the button. Protection is ON, however the sensor
detecting vehicle body vibrations or movements inside the passenger compartment is deactivated and does not trigger the alarm system.
Vehicle doors, luggage compartment and engine hood are secured! If the system is connected with two-level sensor and you want to turn on
the security without triggering sensor warning signal, press and hold button
direction indicators will go ON. Release the button. If you wish to turn the arming ON without a sensor - press and hold the button
Vehicle direction indicators flash once, after 2 seconds direction indicators will shortly go on once more. Release the button only with
direction indicators in the off position.
3.3. ALARM INTERRUPT. System alarm starts generating noise (warning) in case of vehicle door, engine bonnet or luggage compartment
opening, body movement or passenger compartment break-in when alarm is operational. Press remote control button
alarming yet the security system remaining operational. If you want to turn OFF the response to vibration or volume sensor till the next
rearming, perform actions in section 3.2.
3.4. CLOSING WINDOWS AND SUNROOF ON ARMING. Installation of 'ELITA E50' enables system setting in a way the system
generates a 40 second pulse designed for closing of windows and sunroof. In case of holding any of the buttons
generation, the latter will be discontinued.
3.5. CENTRAL LOCK CONTROL WITH ENGINE OPERATIONAL. If doors of the vehicle are closed and the engine is ON, doors are
locked with first press of button
3.6. AUTOMATIC DOOR LOCKING ON START UP OF THE ENGINE. The driver will definitely feel safer if the doors are locked
automatically on the start of the engine. After turn OFF of the engine the doors are unlocked. To turn automatic door lock ON or OFF
disarm the system or turn OFF the engine, simultaneously press
3.7. CHECKING WHETHER THE SYSTEM IS ON. Press remote control button
flash once.
3.8. VEHICLE LOCATOR, PANIC AND EMERGENCY CALL FUNCTION. If the system is armed, press and hold remote control
button . Direction indicators flash once, 1.5 seconds afterwards the siren starts sounding. The function can be used for locating your
M
vehicle in a big parking lot, for warning nosy parkers, or attracting attention of by passers in case of emergency.

4.DISARMING WITH REMOTE CONTROL BUTTON

4.1. DISARMING. Shortly press remote control button
turned OFF. If vehicle incorporates central lock, the doors are unlocked automatically.
4.2. CONTROL OF OPTIONAL DEVICES. Installation features enables 'CODEperfect E50' wiring in a way the system generates a pulse
by pressing button for over 2 seconds. Duration of the pulse equals to duration of the button pressing. The pulse is designed for control
I
of electromechanical engine hood or luggage compartment release catch.

5. CONTROL OF OTHER DEVICES.

5.1. OPENING LUGGAGE COMPARTMENT. If construction of your luggage compartment is suitable, it can be pre-programmed during
installation to open automatically when pressing
control, which can be pre-programmed to vehicle alarm system. If arming is turned on the system will not respond to luggage compartment
opening and sensors, therefore doors will be locked. When closing the luggage compartment system will return to arming.
VEHICLE ALARM SYSTEM 'ELITA E50'
Disarming
Engine imobilization OFF
Device Control
Fig. 3 Two - button remote control.
and unlocked with the second press. Very handy when travelling with children or heating vehicle.
M
. Direction indicators flash twice, system LED goes OFF. Security system is
I
button for 2 seconds. For this purpose could be used three or four-button remote
User Manual

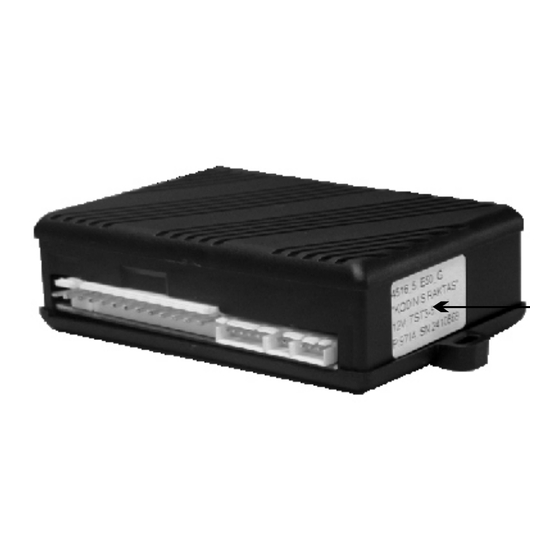

Fig. 2 The Identification label.
Arming
Alarm Interrupt
Sensor Deactivation
Central Lock Control
Arming Verifivation
Emergency Call
.
. Vehicle direction indicators flash once, system LED starts flashing in short
M
. The direction indicators will flash once, after 2 seconds the
M
and buttons and hold them till a short alarm signal.
M I
. If the system is armed, vehicle direction indicators
M
.
Label
. Direction indicators
M
.
M
to terminate
M
during impulse
M
