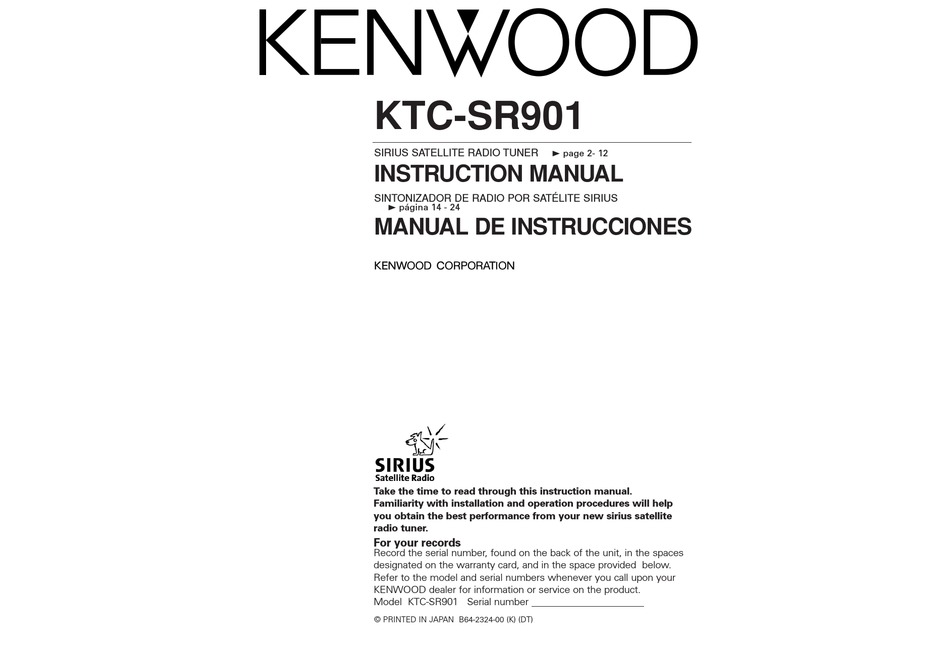

KTC-SR901
SIRIUS SATELLITE RADIO TUNER

INSTRUCTION MANUAL

SINTONIZADOR DE RADIO POR SATÉLITE SIRIUS
3 página 14 - 24
MANUAL DE INSTRUCCIONES
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help
you obtain the best performance from your new sirius satellite
radio tuner.
For your records
Record the serial number, found on the back of the unit, in the spaces
designated on the warranty card, and in the space provided below.
Refer to the model and serial numbers whenever you call upon your
KENWOOD dealer for information or service on the product.
Model KTC-SR901 Serial number
© PRINTED IN JAPAN B64-2324-00 (K) (DT)
3 page 2- 12

Advertisement

loading

Summary of Contents for Kenwood KTC-SR901

  • Page 1: Instruction Manual

    Refer to the model and serial numbers whenever you call upon your KENWOOD dealer for information or service on the product. Model KTC-SR901 Serial number © PRINTED IN JAPAN B64-2324-00 (K) (DT)
  • Page 2: Table Of Contents

    NOTE To prevent injury and/or fire, take the • If you experience problems during installation, consult your Kenwood dealer. following precautions: • If the unit does not seem to be working right, • When extending the battery, or ground wires,...
  • Page 3: Esn Display

    Press the [FM] button. Each time the button is pressed the preset band switches between the SR1,SR2,SR3 and SR4. the service by Sirius Satellite Radio. Consult SIRIUS if ”CALL 888- 539 SIRIUS TO <B models> SUBSCRIBE”/”CALL 888 539-SIRI” appears. Press the [FM] button.
  • Page 4: Channel Scan

    Operations Channel Scan (A models only) Switching Category (B models only) Every receivable Channel is checked for 10 seconds. The Category that includes the Channel received switches to the next. <KDC-X859,KDC-X759,KDC-MP919> Press the [AM] button. Select SCAN in the MENU items of Control unit, and press the [4] or [¢] button for at least 1 second.
  • Page 5: Safety Precautions

    English Connecting Wires to Terminals To KENWOOD disc changer / DAB control input / Sirius control input Control unit Connection wire Sirius (supplied with the...
  • Page 6: Troubleshooting Guide

    Installation I Mounting the Sirius Satellite radio tuner Unit • When making a hole in the chassis, check 2CAUTION that the gas tank, break pipe, wire • Install the Sirius satellite radio tuner unit harness, or other part is not located on...
  • Page 7: Specifications

    Specifications Specifications subject to change without notice. Sirius tuner section Frequency range (L Band) ...1452.960 MHz ~ 1490.624 MHz Frequency range (Band III) ...174.928 MHz ~ 239.200 MHz Usable sensitivity (L Band) ...- 10 dBm ~ - 97.5 dBm Usable sensitivity (Band III)... 0 dBm ~ - 100 dBm Mode ...Mode I, II, III, IV General Operating voltage ...14.4 V (11 ~ 16 V allowable)
