Summary of Contents for Oricom TV7300

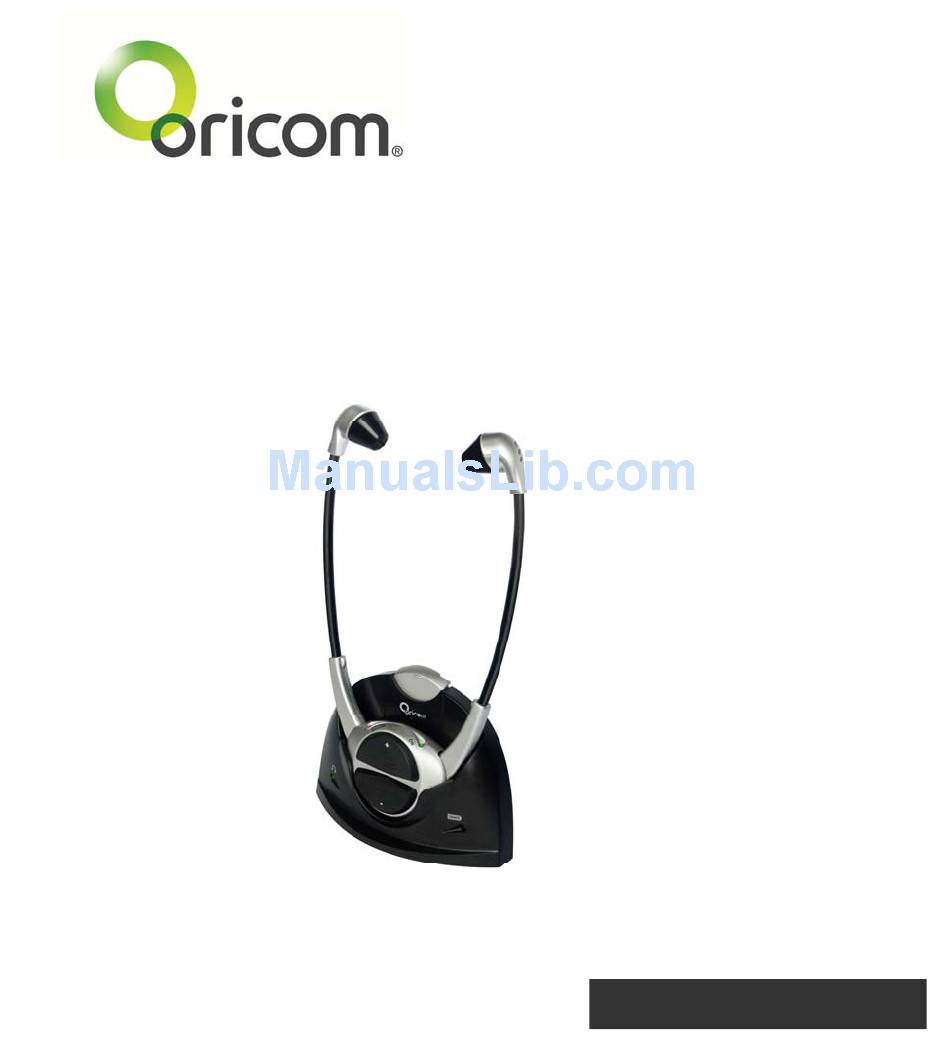

- Page 1 TV7300 Amplified Wireless Televisión Listening Device Keep this user guide for future reference. Always retain your proof of purchase in case of warranty service and reister your product on line at www.oricom.com.au User Guide...
- Page 2 Introduction The Oricom Digital TV Listener is an amplification system specifically designed for people with hearing difficulties. It can be used with all kinds of Audio, Television systems, suitable for individuals or groups without any interference. Audio output from a TV or audio device is encoded and transmitted by the Base, the wireless Headset receives the signal and decodes it to original audio sound.
-
Page 3: Table Of Contents
Pack Contents 1. Headset 2. Alternative ear pads 3. Base 4. Power adaptor with cable (1.5m) (AUS, UK, EU & US) 5. Slider tool 6. Batteries 7. 3.5mm to 3.5mm cable 8. 3.5mm to 6.3mm adaptor (1.5m) 9. 3.5mm to 2 pin RCA cable 10. -
Page 4: First Use / Charging Batteries
First use / Charging batteries Important: The Oricom Digital TV Listener is supplied with two batteries. Before use, batteries MUST be fully charged, full charge will take about 2-3 hours when the battery is empty. Caution: If battery is already fully charged, the red LED will stay off. - Page 5 Connect Multi-input adaptor Select the Australian power plug and connect to the socket on the ac adaptor. Insert power adaptor into mains power socket. Insert power jack (7) into ‘DC IN 5V’ socket on the back of the Base.
- Page 6 Turn power on at mains and Base. Red lights will show on Base and Headset to indicate batteries are charging. After 2-3 hours, when fully charged the Insert batteries (6) into Headset and red lights will be off. Base. Place Headset in Base. Caution: Please be sure to insert the battery correctly (see above).
-
Page 7: Connecting To Tv, Hifi And Other Audio Equipment
TV or sound device please ensure that you connect the TV7300 to an audio output access on your TV and NOT on your set top box. If you are unsure or cannot identify the right connection or the input/output definition please refer to the user manual of your TV. - Page 8 This can cause some distortion or a very high acoustic level, even with the Volume set to Low. If this happens, please contact the Oricom Customer Services department. They will be able to provide you with a solution to attenuate the sensitivity of your...
-
Page 9: Using Headset
Using Headset: Once charged and Volume adjustment: connected to your TV, HiFi equipment, Press ‘+’ button to increase volume and open the arms and Headset will ‘-’ button to decrease volume. operate. A green light on the Headset will show it is in use. Headset beeps when volume reaches maximum or minimum. - Page 10 Use the slider tool (Item 5 page 2) to adjust the Volume, Balance, Tone or switch Mono to Stereo. Open the back panel on the Headset. 3 ‘slider switches’ will be present. Volume adjustment: Balance adjustment: Set ‘BAL VOL’ slider to ‘VOL’. Set ‘BAL VOL’...
-
Page 11: Battery Status & Recharging
Tone adjustment: Mono / Stereo adjustment: Set ‘BAL VOL’ slider to ‘VOL’ Set ‘MS’ slider to ‘S’, Headset will be in Set ‘T <-> B/V’ slider to ‘T’ ‘Stereo’. Press ‘+’ button to increase treble and Set ‘MS’ slider to ‘M’, Headset will be in decrease bass. -
Page 12: Pairing Extra Headsets
Charging battery in Headset: Insert battery into headset, place Headset in Base. During charging the red light on Headset will stay lit until fully charged. Pairing extra Headsets Note: Up to 4 Headsets can be paired to each Base. Important: Pairing must be completed while Base lights are flashing. If lights stop flashing before pairing is complete you must repeat the process. -
Page 13: Cleaning & Maintenance
Base: Switch power off at Base. Headset: Press and hold down the ‘-’ (minus) button. Press and hold down ‘CH’ button, switch power back on, continue to hold ‘CH’ While holding the button, open arms button until both lights on the front start and the green indicator lights up. -
Page 14: Spare/Replacement Parts
Spare/replacement parts Spare parts are available by calling our Support Line: 1300 889 785 1. Battery (x2) 2. Additional Headsets 3. Ear pads (both types x 2) General information Specifications Digital 2.4 GHZ AFHSS transmission (Adaptive Frequency Hopping) - CD sound quality! 79 channels (20 hopping channels) Receiving amplification: up to 125dBspl. - Page 15 Please note that if a Customer Support Team member advises that your product does not qualify for return, this warranty does not apply to your product. Products that are authorised to be returned to Oricom in Australia must include all of the following: ...
- Page 16 Warranty Information (Australia) This Warranty is provided by Oricom International Pty Ltd ABN 46 086 116 369, Unit 1, 4 Sovereign Place, South Windsor NSW 2756, herein after referred to as “Oricom”.
- Page 17 No change to the conditions of this Warranty is valid unless it is made in writing and signed by an authorised representative of Oricom. Oricom will not be in breach of a warranty expressly set out in this User Guide or under the Competition and Consumer Act 2010 and excludes any liability for...
- Page 18 Competition and Consumer Act 2010 applies to this Warranty and which may not be so excluded, restricted or modified. For warranties that cannot be excluded, restricted or modified, Oricom limits the remedies available to those specified in the relevant legislation.
