VARIZOOM TOC F1 Operation Manual

Single channel wireless lens control system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TOC F1
Operations Manual
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TOC F1 and is the answer not in the manual?

Questions and answers

Summary of Contents for VARIZOOM TOC F1

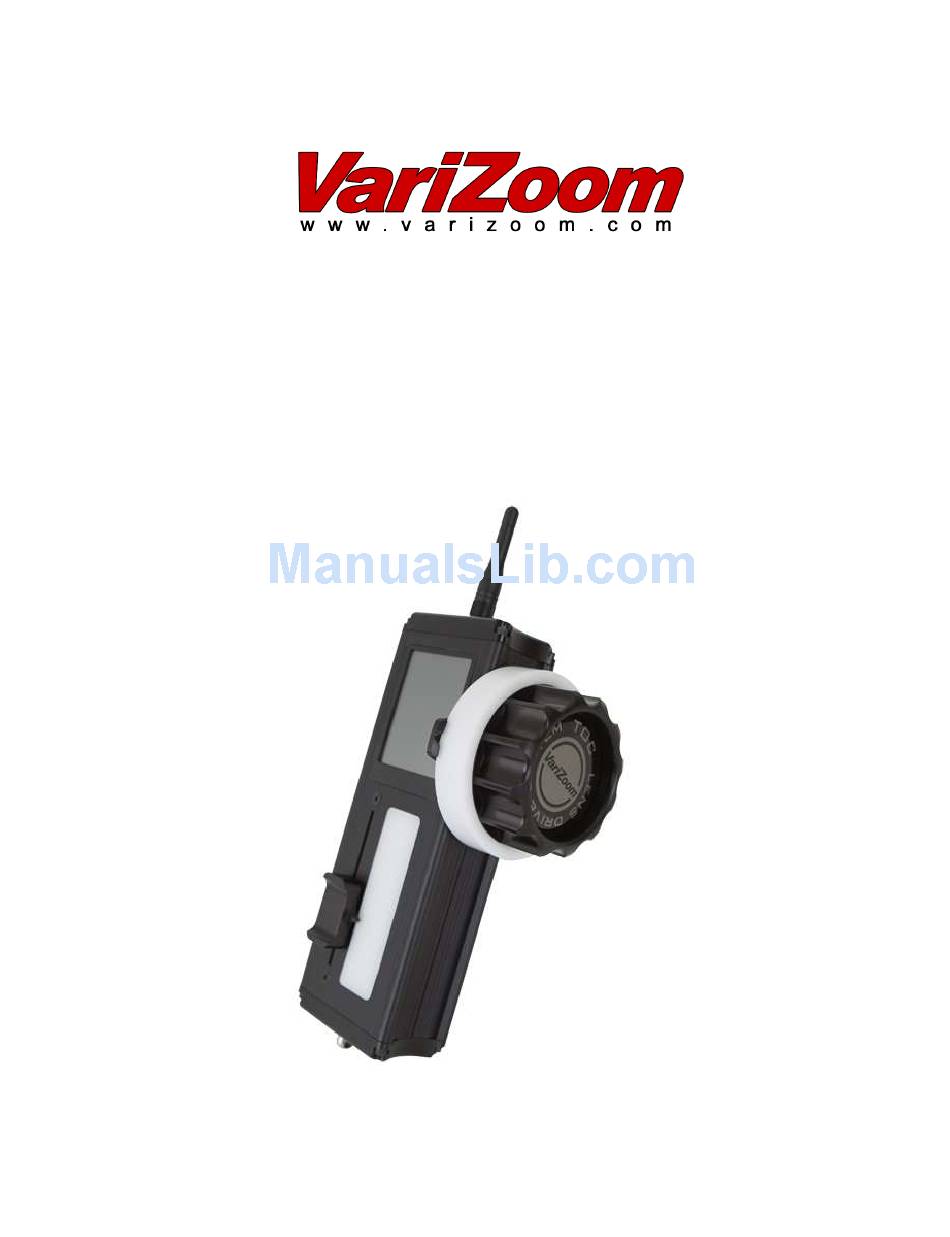

  • Page 1 TOC F1 Operations Manual - 1 -...

  • Page 2: General Description

    General Description The TOC F1 is a single channel wireless lens control system. The system can be used on most broadcast or cinema lenses. The TOC F1 includes a hand held controller/transmitter, rechargeable battery, lens drive motor, single channel receiver, universal gear set, and battery charger...
  • Page 3 Check with the lens or camera manufacturer’s user manual to ensure that this won’t interfere. POWERING THE RECEIVER: Only use a VariZoom-supplied cable to power the TOC receiver. It is very important that you power the receiver with a maximum of 24VDC regulated (actual measured voltage –...
  • Page 4 After the motor has been mounted on the rod, secure the gear against the proper lens ring and tighten the dovetail clamp. Mount your TOC receiver and attach the antenna. First plug the lens motor into TOC receiver (yellow to yellow) Then plug power from camera into TOC receiver (red to red).

  • Page 5: Basic Operation

    The lens motor will then move to the position at which the knob is set. The lens motor is now ready for use, and will move according to the position of the knob on the hand controller. Note: If you turn off power to the receiver, it will store the calibration set in the last use.

  • Page 6: Home Screen

    1. Home Screen From the Home Screen, you can monitor the current lens position as well as enter the Control, Calibrate, Setup, and System menu screens. 2. Control Menu From the Control menu screen, you can set motor or knob limits, reverse motor or knob response direction, and adjust smoothing. To set a limit, simply move the knob to the where you want the limit, and tap the “set limit”...

  • Page 7: Calibrate Menu

    3. Calibrate Menu The Calibrate menu is where you will calibrate the motor to the current lens that you are using. For all lenses that have stop points (most ENG and cinema lenses), after you have mounted the motor to the lens tap the “Automatic” button, and the motor will automatically move to both ends of the lens range, and then the lens is calibrated.

  • Page 8: Setup Menu

    4. Setup Menu The setup menu is where you can adjust power feedback, Com Mode, Backlash compensation, and Controller input. “Power Feedback” will allow you to adjust the motor output power during auto calibration. Some lenses require more force to move the lens rings than others. If the motor power is set too low, then the motor will not have enough force to push the lens gear to its limits, and result in incorrect calibration.

  • Page 9: System Menu

    5. System Menu The system menu is where you can monitor battery output, as well as adjust screen brightness, toggle LED’s on/off, or reset all parameters if needed. If screen brightness is adjust to 100, it will enter “daylight mode”, which will change the color scheme to be more visible in extreme brightness.
  • Page 10 TOC system. Please be aware that some “full auto” modes may override the lens servo switches. More questions? Give us a call at 512-219-7722 or visit the website for updated instruction manuals – www.varizoom.com - 10 -...
