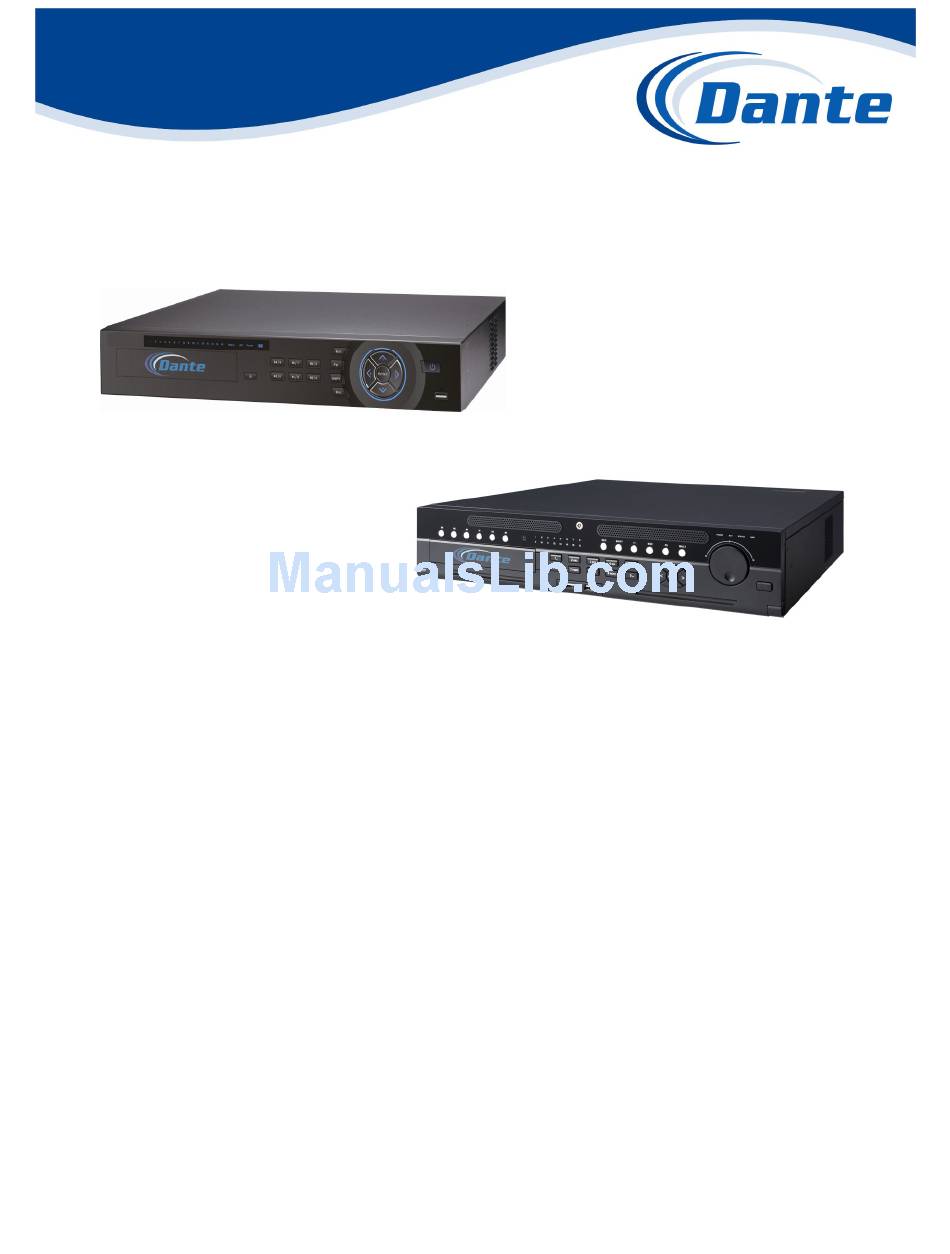

DNA3300
DNA3700
IP NVR Appliances
Installation and Operations Manual
Model Number: DNA3300 and DNA3700 Series
Description: NVR IP Video Recording and
Management Software

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DNA3300 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Dante DNA3300 Series

Summary of Contents for Dante DNA3300 Series

  • Page 1 DNA3300 DNA3700 IP NVR Appliances Installation and Operations Manual Model Number: DNA3300 and DNA3700 Series Description: NVR IP Video Recording and Management Software...

  • Page 2: Important Safeguards And Warnings

    Important Safeguards and Warnings 1． ． ． ． Electrical safety All installation and operation here should conform to user local electrical safety codes. The product must be grounded to reduce the risk of electric shock. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.

  • Page 3: Features And Specifications

    1 Features and Specifications 1.1 Overview This series NVR is a high performance network video recorder. This series product support local preview, multiple-window display, recorded file local storage, remote control and mouse shortcut menu operation, and remote management and control function. This series product supports centre storage, front-end storage and client-end storage.

  • Page 4: Specifications

    IR control function (For some series product only.). Shortcut menu • operation via remote control. Support IPC or NVS remote video preview and control. • 1.3 Specifications 1.3.1 DNA3300 Series Model DNA3300 System 8/16/32-channel series product support 8/16/32-channel HD connection System respectively.
  • Page 5 Decode Max supports 32-channel D1, or 16-channel 720P, or 8-channel 1080P Capacity decode. Video 8/16/32-ch network compression video input Video Input Video 1-channel VGA analog video output. Output HDMI 1-ch HDMI output. Version number is 1.4 Window 1/4/8/9/16/25/36-window Split 1-ch bidirectional talk input Audio Audio Input...
  • Page 6 Window Clock Built-in clock. General Indicator One power status indicator light. Light One network status indicator light. One HDD status indicator light. Power ＜30W(Exclude HDD) Consump tion Working -10 ～+55 Temperat Working 10℅－90℅ Humidity 86kpa－106kpa pressure Dimensio 1.5U, 440mm × 460mm × 68mm Weight 5kg～6kg（Exclude HDD）...
  • Page 7 sources) Window 1/4/8/9/16/25/36-window Split Audio 1-ch bidirectional talk input Audio Input Audio 1-ch bidirectional talk output Output Audio G.711a Compres sion Alarm 16-ch alarm input Alarm Input Alarm 6-ch alarm output Output Relay output. Relay （DC 30V/1A，AC 125V/0.5A（Activation output） ） Including one controllable DC +12V output.
  • Page 8 General Indicator One power status indicator light. Light One network status indicator light. One HDD status indicator light. Power ＜35W(Exclude HDD) Consump tion Working -10 ～+55 Temperat Working 10℅－90℅ Humidity 86kpa－106kpa pressure Dimensio 440mm×460mm×89mm 444mm×430mm×89m Weight 5.5kg～6.5kg（Exclude HDD） 8.5kg～9.5kg（Exclude HDD） Desk installation Installatio...

  • Page 9: Front Panel And Rear Panel

    2 Front Panel and Rear Panel 2.1 Front Panel 2.1.1 DNA3300 Series The front panel is shown as in Figure 2-1. Figure 2-1 Please refer to the following sheet for front panel button information. Name Icon Function Power button, press this button for three seconds to boot up Power button or shut down NVR.
  • Page 10 One-window monitor mode, click this button to display assistant function: PTZ control and image color. Backspace function: in numeral control or text control, press it for 1.5seconds to delete the previous character before the cursor. Assistant In motion detection setup, working with Fn and direction keys to realize setup.
  • Page 11 2.1.2 DNA3700 The front panel is shown as below. See Figure 2-2. Figure 2-2 Please refer to the following sheet for front panel button information. Name Icon Function Power button, press this button for three seconds to boot up or Power button shut down NVR.
  • Page 12 Backspace function: in numeral control or text control, press it for 1.5 seconds to delete the previous character before the cursor. In motion detection setup, working with Fn and direction keys to realize setup. In text mode, click it to switch between numeral, English character(small/capitalized) and etc.

  • Page 13: Rear Panel

    Power indication POWER Power indication light light Record light 1-16 It becomes on when system is recording. abnormal It becomes on when there is no HDD, HDD error occurs, or status indictor HDD is full. light Rear Panel 2.2.1 DNA Series The NVR74 series rear panel is shown as below.
  • Page 14 There are four groups. The first group is from 1～16 Alarm input port port 1 to port 4, the second group is from port 1～16 5 to port 8, the third group is from 9 to 12, and the fourth group is from 13 to 16. They are to receive the signal from the external alarm source.

  • Page 15: Nvr74-8P/74-16P Series

    2.2.2 NVR74-8P/74-16P Series The NVR74-8P series rear panel is shown as below. See Figure 2-4. Figure 2-4 The NVR74-16P series rear panel is shown as below. See Figure 2-5. Figure 2-5 Please refer to the following sheet for detailed information. Port Name Function Power switch...
  • Page 16 Port Name Function NO1～NO5 Alarm output port 5 groups of alarm output ports. (Group 1：port NO1～C1,Group 2:port NO2～C2,Group 3:port 1～5 C1～C5 NO3～C3, Group 4：port NO4～C4, Group 5: port NO5, C5, NC5).Output alarm signal to the alarm device. Please make sure there is power to the external alarm device.
  • Page 17 Port Name Function Built-in Switch. Support PoE. The 16 PoE ports 16 PoE ports series products supports total 150W power. One PORTS PoE port max supports 15W. 2.2.3 DNA3700 Series The DNA3700 series rear panel is shown as below. See Figure 2-6. Figure 2-6 Please refer to the following sheet for detailed information.
  • Page 18 Port Name Function NO1～C1,Group 2:port NO2～C2,Group 3:port 1～5 C1～C5 NO3～C3, Group 4：port NO4～C4, Group 5: port NO5, C5, NC5).Output alarm signal to the alarm device. Please make sure there is power to the external alarm device. NO: Normal open alarm output port. C: Alarm output public end.

  • Page 19: Alarm Connection

    2.3 Alarm Connection 2.3.1 Alarm Port The alarm port is shown as below. See Figure 2-7. The following figure is based on the DNA3700 series. Figure 2-7 Icon Function 1～16 ALARM1～ALARM16. The alarm becomes activated in the low level. NO1 C1， NO2 C2， NO3 C3， NO4 Four NO activation output groups.

  • Page 20: Alarm Input And Output Port

    Figure 2-8 Note There are two alarm input types: NO/NC. When connect the ground port of the alarm device to the NVR, user can use any of the GND ports Connect the NC port of the alarm device to the alarm input port (ALARM) of the NVR. When there is peripheral power supplying for the alarm device, please make sure it is earthed with the NVR.

  • Page 21: Bidirectional Talk

    Between touches with different 1000VAC 1minute polarity Between touch and winding 1000VAC 1minute Between touches with same Surge voltage 1500V (10×160us) polarity 3ms max Length of open time 3ms max Length of close time Longevity Mechanical 50×106 (3Hz) Electrical 200×103 (0.5Hz) Temperature ~+70...

  • Page 22: Mouse Operation

    Login the Web and then enable the corresponding channel real-time monitor. Please refer to the above interface (Figure 2-9) to enable bidirectional talk. Listening Operation At the PC-end, speak via the speaker or the pickup, and then user can get the audio from the earphone or sound box at the device-end.
  • Page 23 In multiple-window mode, double left click one channel to view in full-window. Double left click current video again to go back to previous multiple-window mode. Right click In real-time monitor mode, pops up shortcut menu. mouse Exit current menu without saving the modification. Press middle In numeral input box: Increase or decrease numeral value.

  • Page 24: Device Installation

    HDD of 7200rpm or higher. Usually we do not recommend the PC HDD. Please follow the instructions below to install hard disk. 3.3.1 DNA3300 Series The following figures are based on the DNA3300 series. ① Use the screwdriver to loose the screws of the rear panel and then remove the front cover.
  • Page 25 ② Put the HDD to the HDD bracket in the chassis and then line up the four screws to the four holes in the HDD. Use the screwdriver to fix the screws firmly to secure HDD on the HDD bracket ③...

  • Page 26: Cd-Rom Installation

    3. Put the HDD to the slot and adjust the 4. Put the front panel back and use the handle to secure it. key to fix firmly. HDD Handle Installation 1. Line up the handle to the HDD side 2. Use the screwdriver to fix the handle (without the interface) on the HDD.
  • Page 27 Fix the CD-ROM bracket at the HDD Install a pair of the CD-ROM bracket. Please make bracket. sure the reverse side is secure too. Install SATA burner. Line up the SATA User screwdriver to fix the screws. burner to the hole positions. Put the bracket back.

  • Page 28: Connection Sample

    Secure the HDD bracket and put the top cover back. Connection Sample 3.5.1 DNA3300 Series Please refer to Figure 3-1 for connection sample. The following figure is based on the 74 series product. Figure 3-1...
  • Page 29 3.5.2 DNA3700 Series Please refer to Figure 3-2 for connection sample. Figure 3-2...

  • Page 30: Local Basic Operation

    4 Local Basic Operation 4.1 Boot up and Shutdown 4.1.1 Boot up Before the boot up, please make sure: The rated input voltage matches the device power on-off button. Please make sure the power wire connection is OK. Then click the power on-off button. Always use the stable current, if necessary UPS is a best alternative measure.
  • Page 31 Figure 4-1 Click Smart add, Cancel button or Next button, system goes to login interface. See Figure 4-2. System consists of four accounts: Username: admin. Password: admin. (administrator, local and network) Username: 888888. Password: 888888. (administrator, local only) Username: 666666. Password: 666666(Lower authority user who can only monitor, playback, backup and etc.) Username: default.
  • Page 32 Click OK button, user can go to General interface. See Figure 4-3. For detailed information, please refer to chapter 4.14.1. Figure 4-3 Click Next button, user can go to network interface. See Figure 4-4. For detailed information, please refer to chapter 4.12. Figure 4-4 Click Next button, user can go to remote device interface.
  • Page 33 Figure 4-5 Click Next button, user can go to Schedule interface. See Figure 4-6. For detailed information, please refer to chapter 4.8.2. Figure 4-6 Click Finish button, system pops up a dialogue box. Click the OK button, the startup wizard is complete. See Figure 4-7.

  • Page 34: Navigation Bar

    Figure 4-7 4.3 Navigation Bar User need to go to the Main menu->Setting->System->General to enable navigation bar function; otherwise user can not see the following interface. The navigation bar is shown as below. See Figure 4-8. Figure 4-8 4.3.1 Main Menu Click button to go to the main menu interface.

  • Page 35: Output Screen

    Note Screen 2 funciton is null if tour is in process. Please disable tour funciton first, Right now, the screen 2 operation can only be realized on the navigation bard. The operations on the right-click menu are for screen 1 only. 4.3.3 Output Screen Select corresponding window-split mode and output channels.

  • Page 36: Smart Add

    4.3.10 Remote Device Click , system goes to the remote device interface. Please refer to chapter 4.4 4.3.11 Network Click , system goes to the network interface. It is to set network IP address, default gateway and etc. Please refer to chapter 4.12. 4.3.12 HDD Manager Click ，...
  • Page 37 Figure 4-13 Now user can go to the smart add interface. See Figure 4-14. Figure 4-14 Click smart add button, user can see device enables DHCP function. See Figure 4-15.
  • Page 38 Figure 4-15 System pops up the following interface for user to confirm IP information if there are several IP segments. See Figure 4-16. Figure 4-16...

  • Page 39: Remote Device Connection

    Now user can see system is auto adding IPC to the corresponding channels. See Figure 4-17. Figure 4-17 User can see the following dialog box after system successfully added network cameras. See Figure 4-18. Figure 4-18 4.5 Remote Device 4.5.1 Remote Device Connection From Mani menu->Setting->Remote device or right click mouse on the preview interface and then select...
  • Page 40 The default setup is TCP. See Figure 4-20. Important Please note the manual add function is for Dante(Private), Panasonic, Sony, Dynacolor, Samsung, AXIS, Arecont, ONVIF and Custom. When the type is the custom, user can just input URL address, user name and password connect to the network camera without considering network camera manufacture.

  • Page 41: Shortcut Menu

    Figure 4-20 4.5.2 Short-Cut Menu In the preview interface, for the channel of no IPC connection, user can click the icon “+” in the centre of the interface to quickly go to the Remote Device interface. See Figure 4-21. Figure 4-21 4.5.3 Image From main menu->setting->camera->image, user can see the image interface is shown as below.
  • Page 42 the grey part of the video, the distortion may occur if the white balance is not accurate. Please note the video may not be attractive if the value is too low. The recommended value ranges from 40 to 60. Brightness: It is to adjust monitor window bright. The value ranges from 0 to 100. The default value is 50.

  • Page 43: Channel Name

    Figure 4-22 4.5.4 Channel Name From main menu->Setting->Camera-Channel name, user can see an interface shown as in Figure 4-23. It is to modify channel name. It max supports 31-character. Please note user can only modify the channel name of the connected network camera. Figure 4-23...

  • Page 44: Built-In Switch Setup

    4.5.5 Upgrade It is to update the network camera. From main menu->setting->camera->remote, the interface is shown as below. See Figure 4-24. Click Browse button and then select the upgrade file. Then select a channel (or user can select device type filter to select several devices at the same time.) Click Begin button to upgrade.
  • Page 45 etc. See Figure 4-26. Figure 4-26 4.6 Preview After device booted up, the system is in multiple-channel display mode. See Figure 4-27.Please note the displayed window amount may vary. The following figure is for reference only. Please refer to chapter 1.3 Specifications for the window-amount user product supported.

  • Page 46: Preview Control Interface

    Please refer to the following sheet for detailed information. Recording status Video loss Motion detection Camera lock Tips Preview drag: If user want to change position of channel 1 and channel 2 when user are previewing, user can left click mouse in the channel 1 and then drag to channel 2, release mouse user can switch channel 1 and channel 2 positions.

  • Page 47: Right-Click Menu

    Figure 4-30 Right click mouse to cancel zoom and go back to the original interface. Manual record function It is to backup the video of current channel to the USB device. System can not backup the video of multiple-channel at the same time. Click button , system begins recording.

  • Page 48: Preview Display Effect Setup

    Remote device: Search and add a remote device. Alarm output: Generate alarm output signal manually. Main menu: Go to system main menu interface. Tips: Right click mouse to go back to the previous interface. Figure 4-31 4.6.4 Preview Display Effect Setup 4.6.4.1 Video Color Here user can set hue, brightness, contrast, saturation, gain, white level, color mode and etc.
  • Page 49 Figure 4-32 Please refer to the following sheet for detailed information. Item Note Period There are two periods in one day. User can set different sharpness, brightness, and contrast setup for different periods. Effective Time Check the box here to enable this function and then set period time.
  • Page 50 Item Note setup. 4.6.4.2 Display From Main Menu->Setting->System->Display, user can go to the following interface. See Figure 4-33. Here user can set menu and video preview effect. All user operation here does not affect the record file and playback effect. Figure 4-33 Now user can set corresponding information.

  • Page 51: Preview Tour Parameters

    Figure 4-34 4.6.5 Preview Tour Parameters Set preview display mode, channel display sequence and tour setup. Set preview display mode: On the preview interface, right click mouse, user can view right-click menu. Now user can select preview window amount and channel. Set channel display mode: On the preview interface, if user want to change channel 1 and channel 16 position, please right click channel 1 video window and then drag to the channel 16 video window, release button, user can change channel 1 and channel 16 position.
  • Page 52 Figure 4-35 Tips On the navigation bar, click to enable/disable tour. Click Save button to save current setup. 4.7 PTZ Note: Before user control the PTZ, please make sure the PTZ decoder and the NVR network connection is OK and the corresponding settings are right. 4.7.1 PTZ Settings Cable Connection Please follow the procedures below to go on cable connection...

  • Page 53: Ptz Control

    Parity: There are three options: odd/even/none. Default setup is none. Please note: Pelco D uses 2400 Baud Rate Figure 4-36 If user are connecting to network PTZ, the PTZ type shall be remote. See Figure 4-37. Figure 4-37 4.7.2 PTZ Control After completing all the setting please click save button.
  • Page 54 Figure 4-38 The PTZ setup is shown as in See Figure 4-39. Please note the commend name is grey once device does not support this function. The PTZ operation is only valid in one-window mode. Here user can control PTZ direction, speed, zoom, focus, iris, preset, tour, scan, pattern aux function, light and wiper, rotation and etc.
  • Page 55 zone user dragged, the higher the speed. Figure 4-40 Name Function function Shortcut Function function Shortcut Zoom Near ► │ │ Focus Near ⊳ Iris close Open In Figure 4-39, click to open the menu, user can set preset, tour, pattern, scan and etc. See Figure 4-41.
  • Page 56 4.7.2.1 PTZ Function Setup Click , user can go to the following interface to set preset, tour, pattern, and scan. See Figure 4-42. Figure 4-42 Preset Setup In Figure 4-42, click preset button and use eight direction arrows to adjust camera to the proper position. The interface is shown as in Figure 4-43.
  • Page 57 Figure 4-44 Pattern Setup In Figure 4-42, click Pattern button and input pattern number. Click Begin button to start direction operation. Or user can go back to Figure 4-39 to operate zoom/focus/iris/direction operation. In Figure 4-42, click End button. Figure 4-45 Scan Setup In Figure 4-42, click Scan button.
  • Page 58 Figure 4-46 4.7.2.2 Call PTZ Function Call Preset In Figure 4-41, input preset value and then click to call a preset. Click again to stop call. Call Pattern In Figure 4-41, input pattern value and then click to call a pattern. Click again to stop call.

  • Page 59: Record And Snapshot

    Figure 4-47 4.8 Record and Snapshot The record/snapshot priority is: Alarm->Motion detect->Schedule. 4.8.1 Encode 4.8.1.1 Encode Encode setting is to set IPC encode mode, resolution, bit stream type and etc From Main menu->Setting->System->Encode, user can see the following interface. See Figure 4-48. Channel: Select the channel user want.
  • Page 60 Figure 4-48 4.8.1.2 Overlay Click overlay button, user can see an interface is shown in Figure 4-49. Cover area: Here is for user to cover area section. User can drag user mouse to set proper section size. In one channel video, system max supports 4 zones in one channel. User can set with Fn button or direction buttons.
  • Page 61 Figure 4-49 4.8.1.3 Snapshot Here user can set snapshot mode, picture size, quality and frequency. See Figure 4-50. Snapshot mode: There are two modes: regular and trigger. If user set regular mode, user need to set snapshot frequency. If user set trigger snapshot, user need to set snapshot activation operation. Image size: Here user can set snapshot picture size.
  • Page 62 Figure 4-50 Figure 4-51 4.8.2 Schedule The record type priority is: Alarm>Motion detect>Regular. 4.8.2.1 Schedule Record Set record time, record plan and etc. Please note system is in 24-hour record by default after its first boot up. In the main menu, from Main menu->Setting->Storage->Schedule, user can go to schedule menu. See Figure 4-55.
  • Page 63 Channel: Please select the channel number first. User can select “all” if user want to set for the whole channels. : Sync connection icon. Select icon of several dates, all checked items can be edited or together. Now the icon is shown as : Click it to delete a record type from one period.
  • Page 64 Figure 4-54 Please check the box to select the corresponding function. After completing all the setups please click save button, system goes back to the previous menu. There are color bars for user reference. Green color stands for regular recording, yellow color stands for motion detection and red color stands for alarm recording.

  • Page 65: Schedule Snapshot

    Figure 4-56 Quick Setup Copy function allows user to copy one channel setup to another. After setting in channel 1, click Copy button, user can go to interface Figure 4-57. User can see current channel name is grey such as channel 1.
  • Page 66 Figure 4-58 From Main menu->Setting->Camera->Encode->Snapshot, user can go to snapshot interface. See Figure 4-59. Select the snapshot channel from the dropdown list and then select snapshot mode as Timing (Schedule) from the dropdown list and then set picture size, quality and snapshot frequency. Figure 4-59...

  • Page 67: Motion Detect Record/Snapshot

    In the main menu, from Main menu->Setting->Storage->Schedule, user can go to schedule menu. See Figure 4-55. Here user can set snapshot period. There are total six periods in one day. Please refer to chapter 4.8.2.1 for detailed setup information. The setup steps are general the same. Figure 4-60 Note Please note the trigger snapshot has the higher priority than regular snapshot.
  • Page 68 Figure 4-61 Select motion detect from the event type dropdown list. Select a channel from the dropdown list and then check the enable button to enable motion detect function. Click Region Select button to set motion detect zone. There are 396(PAL)/330(NTSC) small zones.
  • Page 69 Click Copy button to copy current setup to other channel(s). Click OK button to complete motion detect record setup. Figure 4-62 Figure 4-63 4.8.3.2 Motion Detect Snapshot From Main menu->Setting->Camera->Encode->Snapshot, user can go to snapshot interface. See Figure 4-64. In Figure 4-64, select trigger snapshot from the dropdown list and then set picture size, quality and snapshot frequency.

  • Page 70: Alarm Record/Snapshot

    Figure 4-64 4.8.4 Alarm Record/Snapshot 4.8.4.1 Alarm Record Before user set alarm setup information, please go to chapter 0 to connect alarm input and alarm output cable (such as light, siren and etc). The record priority is: Alarm>Motion detect>Regular. In the main menu, from Setting->Event-> Alarm, user can see alarm setup interface. See Figure 4-65. Alarm in: Here is for user to select channel number.
  • Page 71 Figure 4-65 From Mani menu->Setting->Storage->Schedule, user can go to Figure 4-55. Select alarm channel, period and the record type shall be alarm. Please refer to chapter 4.8.2. Click Copy button to copy current setup to other channel(s). Click OK button to save alarm record information. 4.8.4.2 Alarm Snapshot Please refer to Step a) to step c) of chapter 4.8.3.2 to enable timing snapshot.

  • Page 72: Manual Record/Snapshot

    Figure 4-66 4.8.5 Manual Record/Snapshot User need to have proper rights to implement the following operations. Please make sure the HDD has been properly installed. 4.8.5.1 Manual Record Right click mouse select manual record main menu, from Setting->Storage->Manual Record. Manual record menu is shown as in Figure 4-67. Tips User can click Rec button on the front panel (if possible) to go to the Manual Record interface.

  • Page 73: Holiday Record/Snapshot

    Figure 4-67 Check the box here to select manual record channel(s). User can see the corresponding indicator light on the front panel is on. Channel: It is to display device all channels. Manual: It has the highest priority. Enable corresponding channel to record no matter what period applied in the record setup.
  • Page 74 Figure 4-68. Figure 4-68 Click Add new holiday button, user can see an interface shown as in Figure 4-69. Here user can set holiday date name, repeat mode, start time/end time and etc. Figure 4-69...

  • Page 75: Other Record/Snapshot

    Click Add button to complete holiday setup. Now user can enable holiday setup and then click Apply button. From Main menu->setting->Storage->schedule, user can go to schedule interface. See Figure 4-70. Now user can set period and record type of holiday time. Please refer to chapter 4.8.2.1 for detailed setup information.

  • Page 76: Search Interface

    4.9.2 Search Interface From Main menu->Search, or on the preview interface right click mouse and then select search item, user can go to the following interface. See Figure 4-71. Figure 4-71 Please refer to the following sheet for more information. Name Function Display...
  • Page 77 mode In 1-window playback mode: user can select 1-X channels (X depends on the product channel amount). channel In 4-window playback mode: user can select 4 channels according to user selection requirement. pane. In 9-window playback mode, user can switch between 1-8, 9-16 and etc channels.
  • Page 78 In normal play mode, when user pause current play, user can click ⊳│ and │ to begin frame by frame playback. In frame by frame playback mode, click ►/ to restore normal playback. ► Slow play In playback mode, click it to realize various slow play modes such as slow play 1, slow play 2, and etc.
  • Page 79 display 32 files from one channel. After user clip on record file, click Backup button user can save it. For one device, if there is a backup in process, user can not start a new backup operation. It is to edit the file. ●Please play the file user want to edit and then click this button when user want to edit.
  • Page 80 channel This function is null if there is no record file or system is in smart search process. when playback Note: All the operations here (such as playback speed, channel, time and progress) have relationship with hardware version. Some series NVRs do not support some functions or playback speeds. 4.9.2.1 Smart Search During the multiple-channel playback mode, double click one channel and then click the button,...
  • Page 81 After user searched files, system implement accurate playback once user click Play for the first time. System does not support accurate playback for picture. System supports synchronization playback and non-synchronous playback. The synchronization playback supports all channels and non-synchronous playback only supports accurately playback of current select channel.

  • Page 82: Picture Playback

    Mark Manager Click the mark manager button on the Search interface (Figure 4-71); user can go to Mark Manager interface. See Figure 4-75. System can manage all the record mark information of current channel by default. User can view all mark information of current channel by time. Figure 4-75 Modify Double click one mark information item, user can see system pops up a dialogue box for user to change...
  • Page 83 Figure 4-76 c) Select backup device and then set channel, file start time and end time. d) Click add button, system begins search. All matched files are listed below. System automatically calculates the capacity needed and remained. See Figure 4-77. e) System only backup files with a √...
  • Page 84 h) Click backup button, system begins burning. At the same time, the backup button becomes stop button. User can view the remaining time and process bar at the left bottom. Note During backup process, user can click ESC to exit current interface for other operation (For some series product only).

  • Page 85: Backup Log

    Format: Click Format button, system pops up a dialogue box for user to confirm current operation. System begins format process after user click the OK button. Note: System can not open config backup interface again if there is backup operation in the process. System refreshes device when user go to the config backup every time and set current directory as the root directory of the peripheral device.
  • Page 86 Figure 4-80 4.11 Alarm 4.11.1 Detect Alarm In the main menu, from Setting to Detect, user can see motion detect interface. See Figure 4-81.There are three detection types: motion detection, video loss, tampering. 4.11.1.1 Motion Detect After analysis video, system can generate a motion detect alarm when the detected moving signal reached the sensitivity user set here.
  • Page 87 screen prompt, alarm upload, email will not be activated again. After 10s, if system detects another alarm signal, it can generate an alarm since the anti-dither time is out. Period: Click set button, user can see an interface is shown as in Figure 4-84. Here user can set motion detect period.
  • Page 88 Figure 4-81 Figure 4-82...
  • Page 89 Figure 4-83 Figure 4-84...
  • Page 90 Figure 4-85 Motion detect here only has relationship with the sensitivity and region setup. It has no relationship with other setups. 4.11.1.2 Tampering When someone viciously masks the lens, or the output video is in one-color due to the environments light change, the system can alert user to guarantee video continuity.
  • Page 91 Figure 4-86 4.11.1.3 Video Loss In Figure 4-81, select video loss from the type list. User can see the interface is shown as in Figure 4-87. This function allows user to be informed when video loss phenomenon occurred. User can enable alarm output channel and then enable show message function.

  • Page 92: Alarm Output

    Figure 4-87 4.11.2 Alarm output From Main menu->Setting->Event->Alarm output, user can see an interface shown as in Figure 4-88. Here is for user to set proper alarm output (Auto/manual/stop). Click OK button of the alarm reset, user can clear all alarm output status. Figure 4-88...

  • Page 93: Alarm Setup

    Please highlight icon to select the corresponding alarm output. After all the setups please click OK button, system goes back to the previous menu. 4.11.3 Alarm Setup In the main menu, from Setting->Event->Alarm, user can see alarm setup interface. Alarm in: Here is for user to select channel number. In the main menu, from Setting->Event->Alarm, user can see alarm setup interface.
  • Page 94 screen prompt, alarm upload, email will not be activated again. After 10s, if system detects another alarm signal, it can generate an alarm since the anti-dither time is out. Alarm output: The number here is the device alarm output port. User can select the corresponding ports(s) so that system can activate the corresponding alarm device(s) when an alarm occurred.
  • Page 95 Figure 4-89 Figure 4-90...
  • Page 96 Figure 4-91 Figure 4-92...
  • Page 97 Figure 4-93 Figure 4-94...
  • Page 98 Figure 4-95 Please highlight icon to select the corresponding function. After setting all the setups please click save button, system goes back to the previous menu. 4.11.4 Abnormality There are two types: Disk/Network. Disk: Disk error, no disk, no space. See Figure 4-96 and Figure 4-97. Network: Disconnection, IP conflict, MAC conflict.
  • Page 99 Figure 4-96 Figure 4-97...

  • Page 100: Basic Setup

    Figure 4-98 4.12 Network 4.12.1 Basic Setup The single network adapter interface is shown as in Figure 4-99 and the dual network adapters interface is shown as in Figure 4-100. Network Mode : Includes multiple access, fault tolerance, and load balancing Multiple-address mode: eth0 and eth1 operate separately.
  • Page 101 IP Version: There are two options: IPv4 and IPv6. Right now, system supports these two IP address format and user can access via them. MAC address: The host in the LAN can get a unique MAC address. It is for user to access in the LAN. It is read-only.
  • Page 102 Figure 4-99 Figure 4-100...
  • Page 103 4.12.1.1 Connection The connection setup interface is shown as in Figure 4-101. Max connection: system support maximal 128 users. 0 means there is no connection limit. TCP port: Default value is 37777. UDP port: Default value is 37778. HTTP port: Default value is 80. HTTPS port: Default value is 443.
  • Page 104 Figure 4-102 WIFI working status: Here user can view current connection status. Please note: After successful connection, user can see WIFI connection icon at the top right corner of the preview interface. When the hotspot verification type is WEP, system displays as AUTO since the device can not detect its encryption type.
  • Page 105 APN: It is the wireless connection server. It is to set user access the wireless network via which method. AUTH: It is the authentication mode. It supports PAP/CHAP. Dial number: Please input 3G network dialup number user got from user ISP. User name: It is the user name for user to login the 3G network.
  • Page 106 Figure 4-104 4.12.1.5 DDNS Setup DDNS setup interface is shown as in Figure 4-105. User need a PC of fixed IP in the internet and there is the DDNS software running in this PC. In other words, this PC is a DNS (domain name server). In network DDNS, please select DDNS type and highlight enable item.
  • Page 107 Figure 4-105 Please note DDNS type includes: CN99 DDNS, NO-IP DDNS, Quick DDNS, Dyndns DDNS and sysdns DDNS. All the DDNS can be valid at the same time, user can select as user requirement. Private DDNS function shall work with special DDNS server and special Professional Surveillance Software (PSS).
  • Page 108 installed of the device IP. User name: It is optional. User can input user commonly used email address. Important Do not register frequently. The interval between two registrations shall be more than 60 seconds. Too many registration requests may result in server attack. System may take back the domain name that is idle for one year.
  • Page 109 Figure 4-106 Figure 4-107 4.12.1.7 IP Filter IP filter interface is shown as in Figure 4-108. User can add IP in the following list. The list supports max 64 IP addresses. System supports valid address of IPv4 and IPv6. Please note system needs to check the validity of all IPv6 addresses and implement optimization.
  • Page 110 Type: User can select trusted site and blacklist from the dropdown list. User can view the IP address on the following column. Start address/end address: Select one type from the dropdown list, user can input IP address in the start address and end address. Now user can click Add IP address or Add IP section to add. For the newly added IP address, it is in enable status by default.
  • Page 111 Figure 4-109 4.12.1.8 Email The email interface is shown as below. See Figure 4-110. SMTP server: Please input user email SMTP server IP here. Port: Please input corresponding port value here. User name: Please input the user name to login the sender email box. Password: Please input the corresponding password here.
  • Page 112 xyz@xyx.com xyz@xyx.com Figure 4-110 4.12.1.9 FTP User need to download or buy FTP service tool (such as Ser-U FTP SERVER) to establish FTP service. Please install Ser-U FTP SERVER first. From “start” -> “program” -> Serv-U FTP Server -> Serv-U Administator.
  • Page 113 Figure 4-112 System also supports upload multiple NVRs to one FTP server. User can create multiple folders under this FTP. FTP interface is shown as in Figure 4-113. Please highlight the icon in front of Enable to activate FTP function. Here user can input FTP server address, port and remote directory.
  • Page 114 4.12.1.10 SNMP SNMP is an abbreviation of Simple Network Management Protocol. It provides the basic network management frame of the network management system. The SNMP widely used in many environments. It is used in many network device, software and system. User can set in the following interface.
  • Page 115 Figure 4-115 Here user can set a multiple cast group. Please refer to the following sheet for detailed information. IP multiple cast group address -224.0.0.0-239.255.255.255 -“D” address space The higher four-bit of the first byte=”1110” Reserved local multiple cast group address -224.0.0.0-224.0.0.255 -TTL=1 When sending out telegraph -For example...
  • Page 116 Please note multiple cast function applies to special series only. 4.12.1.12 Alarm Centre This interface is reserved for user to develop. See Figure 4-116. Figure 4-116 4.12.1.13 Auto register This function allows the device to auto register to the proxy user specified. In this way, user can use the client-end to access the NVR and etc via the proxy.
  • Page 117 Figure 4-117 2) The proxy server software developed from the SDK. Please open the software and input the global setup. Please make sure the auto connection port here is the same as the port user set in the previous step. 3) Now user can add device.

  • Page 118: Network Test

    Figure 4-118 4.12.1.15 P2P The P2P interface is shown as in Figure 4-119. User can visit www.easy4ip.com to scan the QR code to login. Figure 4-119 4.12.2 Network Test In this interface, user can see network test and network load information. 4.12.2.1 Network Test From main menu->Info-Network->Test, the network test interface is shown as in Figure 4-120.
  • Page 119 Test: Click it to test the connection with the destination IP address. The test results can display average delay and packet loss rate and user can also view the network status as OK, bad, no connection and etc. Network Sniffer backup: Please insert USB2.0 device and click the Refresh button, user can view the device on the following column.

  • Page 120: Hdd Setup

    Figure 4-121 4.13 HDD Setup Here user can view HDD information such as type, status, total capacity, record time and etc. The operation includes format, resume from error, change HDD property (Read write, Read-only). Here user can also set alarm and HDD storage position. 4.13.1 Format From Mani-menu->Setting->Storage->HDD Manager, user can go to HDD management interface.

  • Page 121: Hdd Information

    Figure 4-122 b) Select a HDD and then select format from the dropdown list. Click Execute button. c) Click OK button to complete the setup. User can see system needs to restart to activate current setup. 4.13.2 HDD Information Here is to list hard disk type, total space, free space, and status. See Figure 4-123. ○...
  • Page 122 Figure 4-123 In Figure 4-123, click one HDD item, the S.M.A.R.T interface is shown as in Figure 4-124. Figure 4-124...
  • Page 123 Parameter Function SATA 1 here means there is 1 HDD. For different series product, the max HDD amount may vary, When HDD is working properly, system is shown as O. . “_” means there is no HDD. User can view the HDD amount the device connected to; ﹡...
  • Page 124 Figure 4-125 Please select the correspond group from the dropdown list and then click Apply button. Click main stream/sub stream/snapshot button to set corresponding HDD group information. See Figure 4-126 through Figure 4-128. Figure 4-126...
  • Page 125 Figure 4-127 Figure 4-128 4.13.4 RAID Manager Important Please make sure user purchased product support the RAID function, otherwise user can not see the following interface. Right now, RAID supports Raid0, Raid1, Raid5, Raid6, and Raid10. Local hotspare supports Raid1, Raid5, Raid6, and Raid10.

  • Page 126: Raid Config

    4.13.4.1 RAID Config It is for user to manage RAID HDD. It can display RAID name, type, free space, total space, status and etc. Here user can add/delete RAID HDD. Click Add button to select RAID type and then select HDDs, click OK button to add. See Figure 4-129. Figure 4-129 4.13.4.2 Hotspare disks Click Hotspare disks tab name, user can add the hot spare HDD.

  • Page 127: Basic Setups

    Figure 4-130 4.14 Basic Setups Set NVR basic setup, device setup and other setups. 4.14.1 Device Setup From Main menu->Setting->System->General, user can go to the general interface. See Figure 4-132. Pack duration: Here is for user to specify record duration. The value ranges from 0 to 120 minutes. Default value is 60 minutes.

  • Page 128: Data And Time

    IPC Time Sync: User can input an interval here to synchronize the NVR time and IPC time. Startup wizard: Once user check the box here, system will go to the startup wizard directly when the system restarts the next time. Otherwise, it will go to the login interface. Mouse property: User can set double click speed via dragging the slide bard.
  • Page 129 Figure 4-132 4.14.3 Holiday Holiday setup interface is shown as in Figure 4-133. Click Add new holiday button, user can input new holiday information. See Figure 4-134. Here user can set holiday name, repeat mode and start/end time. Figure 4-133...

  • Page 130: Device Maintenance And Manager

    Figure 4-134 4.15 Device Maintenance and Manager 4.15.1 System Info 4.15.1.1 Version From main menu->Info->System->version, user can go to version interface. Here is for user to view some version information. See Figure 4-135. Please note the following figure for reference only. Channel Alarm in Alarm out...
  • Page 131 Figure 4-135 4.15.1.2 BPS Here is for user to view current video bit rate (kb/s) and resolution. See Figure 4-136. Figure 4-136...
  • Page 132 4.15.1.3 Online User Here is for user manage online users connected to user NVR. See Figure 4-137. User can click button to disconnect or block one user if user have proper system right. System detects there is any newly added or deleted user in each five seconds and refresh the list automatically.
  • Page 133 Figure 4-138 4.15.1.5 Remote 4.15.1.5.1 Device Status Here user can view the IPC status of the corresponding channel such as motion detect, video loss, tampering, alarm and etc. See Figure 4-139. IPC status: : Front-end does not support. : Front-end supports. : There is alarm event from current front-end.
  • Page 134 Figure 4-139 4.15.1.5.2 Firmware It is to view channel, IP address, manufacturer, type, system version, SN, video input, audio input, external alarm and etc. See Figure 4-140. DNA1435WB DNA1355B DNA1335WB DNA1467WA DNA1992YM2 DNA1367WB Figure 4-140...
  • Page 135 4.15.2 Log From Main menu->Info->Log, user can go to the following interface. See Figure 4-141. Start time/end time: Pleased select start time and end time, then click search button. User can view the log files in a list. System max displays 100 logs in one page. It can max save 1024 log files. Please use page up/down button on the interface or the front panel to view more.
  • Page 136 Figure 4-142 4.15.3 Account Here is for user to implement account management. See Figure 4-143 and Figure 4-144. Here user can: Add new user Modify user Add group Modify group Modify password. For account management please note: For the user account name and the user group, the string max length is 6-byte. The backspace in front of or at the back of the string is invalid.
  • Page 137 Figure 4-143 Figure 4-144...
  • Page 138 4.15.3.1 Add/Modify Group Click add group button, the interface is shown as below. See Figure 4-145. Here user can input group name and then input some memo information if necessary. There are many rights such as control panel, shut down, real-time monitor, playback, record, record file backup, PTZ, user account, system information view, alarm input/output setup, system setup, log view, clear log, upgrade system, control device and etc.
  • Page 139 Figure 4-146 4.15.4 Update From Mani menu->Setting->Info->Update, user can go to the following interface. See Figure 4-147. Insert USB device that contain the upgrade file. Click Start button and then select the .bin file. User can see the corresponding dialogue box after the update process is complete. Figure 4-147...
  • Page 140 4.15.5 Default User can restore factory default setup to fix some problems when the device is running slowly. Configuration error occurred. From Main menu->Setting->System->Default, user can go to the default interface. See Figure 4-148. Click default icon, system pops up a dialogue box. User can highlight to restore factory default setup.

  • Page 141: Auto Maintain

    Function: There are various devices for user to select. Console is for user to use the COM or mini-end software to upgrade or debug the program. The control keyboard is for user to control the device via the special keyboard. Transparent COM (adapter) is to connect to the PC to transfer data directly.

  • Page 142: Logout /Shutdown/Restart

    Figure 4-150 4.15.8 Logout /Shutdown/Restart From Mani menu->Operation->Shutdown, user can see an interface shown as in Figure 4-151. Shutdown: System shuts down and turns off power. Logout: Log out menu. User need to input password when user login the next time. Restart: reboot device.

  • Page 143: Web Operation

    5 Web Operation 5.1 General Introduction The device web provides channel monitor menu tree, search, alarm setup, system setup, PTZ control and monitor window and etc. Important The following operation is based on 32-channel series device. 5.1.1 Preparation Before log in, please make sure: Network connection is right NVR and PC network setup is right.
  • Page 144 If it is user second time to insert the PoE, system can check the saved MAC address according to <Channel>---<IPC mac> map to make sure current IPC has connected or not. If system finds the previous information and the channel is idle, system can map it to the previously used channel.

  • Page 145: Lan Mode

    Figure 5-2 After installation, the interface is shown as below. See Figure 5-3. Figure 5-3 Please input user user name and password. Default factory name is admin and password is admin. Note: For security reasons, please modify user password after user first login. 5.2 LAN Mode For the LAN mode, after user logged in, user can see the main window.

  • Page 146: Section 4: Start Talk Button

    Section 1: there are six function buttons: Live（chapter 0）, setup (chapter 5.8), info (Chapter 5.9), playback (chapter 5.10), alarm (chapter 5.11), and logout (chapter 5.12). Section 2: There are monitor channels successfully connected to the NVR. Please refer to Figure 5-4 for main stream and extra stream switch information. Figure 5-4 Section 3: Open all.

  • Page 147: Section 6: Local Play Button

    Section 6: Local play button. The Web can playback the saved (Extension name is dav) files in the PC-end. Click local play button, system pops up the following interface for user to select local play file. See Figure 5-8. Figure 5-8 Section 7：Zero-channel encoding.

  • Page 148: Real-Time Monitor

    5.3 Real-time Monitor In section 2, left click the channel name user want to view, user can see the corresponding video in current window. On the top left corner, user can view device IP(172.11.10.11), channel number(1), network monitor bit stream(2202Kbps) and stream type(M=main stream, S=sub stream). See Figure 5-10. Figure 5-10 On the top right corner, there are six unction buttons.
  • Page 149 Parameter Function Select Preset from the dropdown list. Preset Turn the camera to the corresponding position and Input the preset value. Click Add button to add a preset. Select Tour from the dropdown list. Tour Input preset value in the column. Click Add preset button, user have added one preset in the tour.

  • Page 150: Zero-Channel Encode

    5.5 Image/Alarm-out Select one monitor channel video and then click Image button in section 9, the interface is shown as Figure 5-13. 5.5.1 Image Here user can adjust its brightness, contrast, hue and saturation. (Current channel border becomes green). Or user can click Reset button to restore system default setup. Figure 5-13 5.5.2 Alarm output Here user can enable or disable the alarm signal of the corresponding port.

  • Page 151: Wan Login

    Figure 5-15 5.7 WAN Login In WAN mode, after user logged in, the interface is shown as below. See Figure 5-16. Figure 5-16 Please refer to the following contents for LAN and WAN login difference. 1) In the WAN mode, system opens the main stream of the first channel to monitor by default. The open/close button on the left pane is null.
  • Page 152 Figure 5-17. Figure 5-17 Important The window display mode and the channel number are by default. For example, for the 16-channel, the max window split mode is 16. 3) Multiple-channel monitor, system adopts extra stream to monitor by default. Double click one channel, system switches to single channel and system uses main stream to monitor.
  • Page 153 Figure 5-18 Figure 5-19 Please refer to the following sheet for log parameter information. Parameter Function Click Device search button, user can view the searched device Device search information on the list. It includes device IP address, port, device name, manufacturer and type. Select a device in the list and then click Add button, system can connect the device automatically and add it to the Added device list.
  • Page 154 Note: System supports manufactures such as Panasonic, Sony, Dynacolor, Samsung, AXIS, Arecont, Dante(Private) and Onvif standard protocol. If user do not input IP address here. System uses default IP 192.168.0.0 and system does not connect to this IP.
  • Page 155 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel from the dropdown list. Period It divides one day (24 hours) to two periods. User can set different hue, brightness, and contrast for different periods. It is to adjust monitor video brightness and darkness level.
  • Page 156 The device auto exposures according to the environments situation so that the darkest area of the video is cleared Mode For the WDR scene, this function can lower the high bright section and enhance the brightness of the low bright section. So that user can view these two sections clearly at the same time.
  • Page 157 Figure 5-21 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel from the dropdown list. Video enable Check the box here to enable extra stream video. This item is enabled by default. Code stream It includes main stream, motion stream and alarm stream.
  • Page 158 VBR mode. Reference bit Recommended bit rate value according to the resolution and rate frame rate user have set. I Frame Here user can set the P frame amount between two I frames. The value ranges from 1 to 150. Default value is 50. Recommended value is frame rate *2.
  • Page 159 5.8.1.3.3 Video Overlay The video overlay interface is shown as in Figure 5-23. Figure 5-23 Please refer to the following sheet for detailed information. Parameter Function Check Preview or Monitor first. Cover-area Click Set button, user can privacy mask the specified video in the preview or monitor video.
  • Page 160 Figure 5-24 5.8.1.4 Channel Name Here user can set channel name. See Figure 5-25. Figure 5-25 5.8.1.5 IPC Upgrade This interface is to upgrade network camera. See Figure 5-26. Click Browse button to select upgrade file. Or user can use filter to select several network cameras at the same time.
  • Page 161 Figure 5-26 5.8.2 Network 5.8.2.1 TCP/IP The TCP/IP interface is shown as in Figure 5-27. Figure 5-27 Please refer to the following sheet for detailed information. Parameter Function Mode There are two modes: static mode and the DHCP mode. The IP/submask/gateway are null when user select the DHCP mode to auto search the IP.
  • Page 162 IP/submask/gateway manually. If user select the DHCP mode, user can view the IP/submask/gateway from the DHCP. If user switch from the DHCP mode to the static mode, user need to reset the IP parameters. Besides, IP/submask/gateway and DHCP are read-only when the PPPoE dial is OK.
  • Page 163 Figure 5-29 Please refer to the following sheet for detailed information. Parameter Function Max connection It is the max Web connection for the same device. The value ranges from 1 to 120. The default setup is 120. TCP port The default value is 37777. User can input the actual port number if necessary.
  • Page 164 Figure 5-30 Please check the box to enable WIFI function and then click the Search SSID button. Now user can view all the wireless network information in the following list. Double click a name to connect to it. Click Refresh button, user can view latest connection status. 5.8.2.5 3G 5.8.2.5.1 CDMA/GPRS The CDMA/GPRS interface is shown as in Figure 5-31.
  • Page 165 Please refer to the following sheet for detailed information. Parameter Function Here user can select 3G network type to distinguish the 3G WLAN type module from different ISP. The types include WCDMA， CDMA1x and etc. APN/Dial No. Here is the important parameter of PPP. Authorization It includes PAP,CHAP,NO_AUTH.
  • Page 166 Device connects to the internet via PPPoE after reboot. User can get the IP address in the WAN from the IP address column. Please note, user need to use previous IP address in the LAN to login the device. Please go to the IP address item to via the device current device information.
  • Page 167 Parameter Function Server IP DDNS server IP address Server Port DDNS server port. Domain Name User self-defined domain name. User The user name user input to log in the server. Password The password user input to log in the server. Update period Device sends out alive signal to the server regularly.
  • Page 168 Figure 5-35 5.8.2.9 1.1.1.1 Email The email interface is shown as in Figure 5-36. xyz@xyz.com xyz@xyz.com Figure 5-36 Please refer to the following sheet for detailed information. Parameter Function Please check the box here to enable email function. Enable Input server address and then enable this function. SMTP Server Port Default value is 25.
  • Page 169 Parameter Function For the server supports the anonymity function. User can auto Anonymity login anonymously. User do not need to input the user name. password and the sender information. The user name of the sender email account. User Name The password of sender email account. Password Sender email address.
  • Page 170 Figure 5-37 5.8.2.11 SNMP The SNMP interface is shown as in Figure 5-38. The SNMP allows the communication between the network management work station software and the proxy of the managed device. It is reserved for the 3 party to develop. Figure 5-38 Please refer to the following sheet for detailed information.
  • Page 171 Parameter Function It is a string. It is a command between the manage process Read Community and the proxy process. It defined the authentication, access control and the management relationship between one proxy and one group of the managers. Please make sure the device and the proxy are the same.
  • Page 172 Please follow the steps listed below to use this function. Please set proxy server address, port, and sub-device name at the device-end. Please enable the auto register function, the device can auto register to the proxy server. Figure 5-40 5.8.2.14 Alarm Centre The alarm center interface is shown as below.
  • Page 173 User need to implement server certificate again if user have changed device IP. User need to download root certificate if it is user first time to use HTTPS on current PC. Figure 5-42 5.8.2.15.1 Create Server Certificate If it is user first time to use this function, please follow the steps listed below. In Figure 5-42, click button, input country name, state name and etc.
  • Page 174 Figure 5-45 Click Open button, user can go to the following interface. See Figure 5-46. Figure 5-46 Click Install certificate button, user can go to certificate wizard. See Figure 5-47.
  • Page 175 Figure 5-47 Click Next button to continue. Now user can select a location for the certificate. See Figure 5-48. Figure 5-48 Click Next button, user can see the certificate import process is complete. See Figure 5-49.
  • Page 176 Figure 5-49 Click Finish button, user can see system pops up a security warning dialogue box. See Figure 5-50. Figure 5-50 Click Yes button, system pops up the following dialogue box, user can see the certificate download is complete. See Figure 5-51. Figure 5-51 5.8.2.15.3 View and set HTTPS port From Setup->Network->Connection, user can see the following interface.
  • Page 177 Figure 5-52 5.8.2.15.4 Login Open the browser and then input https://xx.xx.xx.xx:port. xx.xx.xx.xx: is user device IP or domain mane. Port is user HTTPS port. If user are using default HTTPS value 443, user do not need to add port information here. User can input https://xx.xx.xx.xx to access. Now user can see the login interface if user setup is right.
  • Page 178 Figure 5-53 Figure 5-54...
  • Page 179 Figure 5-55 Figure 5-56 Figure 5-57...
  • Page 180 Figure 5-58 Please refer to the following sheet for detailed information. Parameter Function Enable User need to check the box to enable motion detection function. Please select a channel from the dropdown list. Motion detection function becomes activated in the specified Period periods.
  • Page 181 Parameter Function Show System can pop up a message to alarm user in the local host message screen if user enabled this function. Check the box here to enable this function. The buzzer beeps Buzzer when an alarm occurs. Alarm upload System can upload the alarm signal to the centre (Including alarm centre.
  • Page 182 Figure 5-59 5.8.3.1.3 Tampering The tampering interface is shown as in Figure 5-60. After analysis video, system can generate a tampering alarm when the detected moving signal reached the sensitivity user set here. For detailed setups, please refer to chapter 5.8.3.1.1 motion detect for detailed information. Figure 5-60 5.8.3.2 Alarm Before operation, please make sure user have properly connected alarm devices such as buzzer.
  • Page 183 Figure 5-61 Figure 5-62...
  • Page 184 Figure 5-63 Please refer to the following sheet for detailed information. Parameter Function Enable User need to check the box to enable this function. Please select a channel from the dropdown list. Period This function becomes activated in the specified periods. There are six periods in one day.
  • Page 185 Parameter Function System can pop up a message to alarm user in the local Show message host screen if user enabled this function. Check the box here to enable this function. The buzzer Buzzer beeps when an alarm occurs. Alarm upload System can upload the alarm signal to the centre (Including alarm centre).
  • Page 186 setup. For setup information, please refer to chapter 5.8.3.2.1. Figure 5-65 5.8.3.2.4 IPC Offline Alarm The IPC offline alarm interface is shown as in Figure 5-66. System can generate an alarm once the network camera is offline. For setup information, please refer to chapter 5.8.3.2.1.
  • Page 187 5.8.3.3 Abnormality It includes six types: No disk, disk error, disks no space, disconnect, IP conflict, MAC conflict. See Figure 5-67 through Figure 5-72. Figure 5-67 Figure 5-68 Figure 5-69 Figure 5-70...
  • Page 188 Figure 5-71 Figure 5-72 Please refer to the following sheet for detailed information. Parameter Function Event The abnormal events include: No disk, disk error, disk no space, net Type disconnection, IP conflict and MAC conflict. User can set one or more items here. Less than: User can set the minimum percentage value here (For disk not space only).
  • Page 189 Parameter Function Check the box here to enable this function. The buzzer beeps when an Buzzer alarm occurs. 5.8.4 Storage 5.8.4.1 Schedule In this interfaces, user can add or remove the schedule record setup. See Figure 5-73. There are four record modes: general (auto), motion detect, alarm and MD&alarm. There are six periods in one day.
  • Page 190 Figure 5-75 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel from the dropdown list. Pre-record Please input pre-record time here. The value ranges from 0 to 30. Redundancy Check the box here to enable redundancy function. Please note this function is null if there is only one HDD.
  • Page 191 Parameter Function 5/6/7. If user wan to save current setup of channel 1 to all channels, user can click the first box “ALL”. Click the OK button to save current copy setup. Click the OK button in the Encode interface, the copy function succeeded.
  • Page 192 Figure 5-78 5.8.4.3 Record Control The interface is shown as in Figure 5-79. Figure 5-79 Please refer to the following sheet for detailed information. Parameter Function Here user can view channel number. Channel The number displayed here is the max channel amount of user device.
  • Page 193 It has the highest priority. Manual Enable corresponding channel to record no matter what period applied in the record setup. Stop current channel record no matter what period applied in the Stop record setup. Check the corresponding All button, user can enable or disable all Start all/ stop all channels record.
  • Page 194 Figure 5-81 5.8.4.5 Storage 5.8.4.5.1 Main Stream The main stream interface is shown as in Figure 5-82. Here user can set corresponding HDD group to save main stream. Figure 5-82 5.8.4.5.2 Sub Stream The sub stream interface is shown as in Figure 5-83. Here user can set corresponding HDD group to save sub stream.
  • Page 195 Figure 5-83 5.8.4.5.3 Snapshot The snapshot interface is shown as in Figure 5-84. Here user can set corresponding HDD group to save snapshot picture. Figure 5-84 5.8.5 Setting 5.8.5.1 General The general interface includes general, date/time and holiday setup. 5.8.5.1.1 General The general interface is shown as in Figure 5-85.
  • Page 196 Please refer to the following sheet for detailed information. Parameter Function It is to set device name. Device ID Device No. It is device channel number. Language User can select the language from the dropdown list. Please note the device needs to reboot to get the modification activated.
  • Page 197 There are two options: 24-H and 12-H. Time Format The time zone of the device. Time zone It is to set system time. It becomes valid after user set. System time Sync PC User can click this button to save the system time as user PC current time.
  • Page 198 5.8.5.2.1 User name In this interface user can add/remove user and modify user name. See Figure 5-88. Figure 5-88 Add user: It is to add a name to group and set the user rights. See Figure 5-89. There are four default users: admin/888888/666666 and hidden user “default”. Except user 6666, other users have administrator right.
  • Page 199 Modify user It is to modify the user property, belonging group, password and rights. See Figure 5-90. Modify password It is to modify the user password. User need to input the old password and then input the new password twice to confirm the new setup. Please click the OK button to save. Please note, the password ranges from 1-digit to 6-digit.
  • Page 200 Add group: It is to add group and set its corresponding rights. See Figure 5-92. Please input the group name and then check the box to select the corresponding rights. It includes: shutdown/reboot device, live view, record control, PTZ control and etc. Figure 5-92 Modify group Click the modify group button, user can see an interface is shown as in Figure 5-93.
  • Page 201 5.8.5.3 Display Display interface includes GUI, TV adjust, Tour and zero-channel encoding. 5.8.5.3.1 Display Here user can set background color and transparency level. See Figure 5-94. Figure 5-94 Please refer to the following sheet for detailed information. Parameter Function There four options: Resolution...
  • Page 202 Figure 5-95 Please refer to the following sheet for detailed information. Parameter Function Check the box here to enable tour function. Enable tour Here is for user to adjust transparency. The value ranges from 5 to Interval 120s. The default setup is 5s. Here user can set window mode and channel group.
  • Page 203 Figure 5-96 5.8.5.5 Default The default setup interface is shown as in Figure 5-97. Here user can select Network/Event/Storage/Setting/Camera. Or user can check the All box to select all items. Figure 5-97 5.8.5.6 Import/Export The interface is shown as in Figure 5-98. This interface is for user to export or import the configuration files.
  • Page 204 Please refer to the following sheet for detailed information. Parameter Function Click to select import file. Browse It is to import the local setup files to the system. Import It is to export the corresponding WEB setup to user local PC. Export 5.8.5.7 Auto maintain The auto maintain interface is shown as in Figure 5-99.
  • Page 205 5.8.5.9 RS232 The RS232 interface is shown as in Figure 5-101. Figure 5-101 Please refer to the following sheet for detailed information. Parameter Function Select the corresponding dome protocol. Protocol Default setup is console. Select the baud rate. Baud Rate Default setup is 115200.
  • Page 206 Figure 5-102 Figure 5-103 Please refer to the following sheet for detailed information. Parameter Function Select speed dome connected channel. Channel There are two options: local/remote. PTZ Type Please select remote type if user are connecting to the network PTZ. Select the corresponding dome protocol such as PELCOD.
  • Page 207 Parameter Function setup. Default setup is none. Please set according to the speed dome dial Parity switch setup. Information 5.9.1 Version The version interface is shown as in Figure 5-104. Here user can view record channel, alarm input/output information, software version, release date and etc.

  • Page 208: Online User

    Parameter Function Log types include: system operation, configuration operation, data Type operation, event operation, record operation, user management, log clear. Set the start time of the requested log. Start time Set the end time of the requested log. End time User can select log type from the drop down list and then click search Search button to view the list.
  • Page 209 Figure 5-107 Then please click File list button, user can see the corresponding files in the list. See Figure 5-108. Figure 5-108 Select a file user want to play and then click Play button, system can begin playback. User can select to playback in full-screen.
  • Page 210 Figure 5-109 Select the file(s) user want to download and then click download button, user can see an interface shown as in Figure 5-110. The Download button becomes Stop button and there is a process bar for user reference. Please go to user default file saved path to view the files. Figure 5-110...
  • Page 211 Load more Click More button in Figure 5-110, user can see an interface shown as in Figure 5-111. It is for user to search record or picture. User can select record channel, record type and record time to download. Figure 5-111 Watermark Watermark interface is shown as in Figure 5-112.
  • Page 212 5.11 Alarm Click alarm function, user can see an interface is shown as Figure 5-113. Here user can set device alarm type and alarm sound setup (Please make sure user have enabled audio function of corresponding alarm events.). Figure 5-113 Please refer to the following sheet for detailed information.

  • Page 213: Un-Install Web Control

    5.12 Log out Click log out button, system goes back to log in interface. See Figure 5-114. User need to input user name and password to login again. Figure 5-114 5.13 Un-install Web Control User can use web un-install tool “uninstall web.bat” to un-install web control. Please note, before user un-installation, please close all web pages, otherwise the un-installation might result in error.
  • Page 214 6 Glossary DHCP: DHCP (Dynamic Host Configuration Protocol) is a network protocol. It is one of the TCP/IP protocol cluster. It is principally used to assign temporary IP addresses to computers on a network. DDNS: DDNS (Dynamic Domain Name Server) is a service that maps Internet domain names to IP addresses.

  • Page 215: Appendix A Hdd Capacity Calculation

    Appendix A HDD Capacity Calculation Calculate total capacity needed by each device according to video recording (video recording type and video file storage time). Step 1: According to Formula (1) to calculate storage capacity that is the capacity of each channel needed for each hour, unit Mbyte.

  • Page 216: Appendix C Compatible Backup Device List

    8 Appendix C Compatible Backup Device List Compatible USB drive list Manufacturer Model Capacity Sandisk Cruzer Micro 512M Sandisk Cruzer Micro Sandisk Cruzer Micro Sandisk Cruzer Freedom 256M Sandisk Cruzer Freedom 512M Sandisk Cruzer Freedom Sandisk Cruzer Freedom Kingston DataTraveler Kingston DataTraveler Kingston...
  • Page 217 Manufacturer Model Capacity Kingston Data Traveler Locker+ 32GB Netac U228 Compatible SD Card List Please refer to the following sheet for compatible SD card brand. Brand Standard Capacity Card type Transcend SDHC6 16GB Kingston SDHC4 Kingston Kingston Sandisk SDHC2 Micro-SD Sandisk Micro-SD Compatible Portable HDD List...
  • Page 218 Manufacturer Model SONY AW-G170S Pioneer NVR-217CH Pioneer NVR-215CHG Compatible SATA HDD List Port Manufacturer Series Model Capacity Mode Seagate Seagate SV35.1 ST3250824SV 250G SATA Seagate Seagate SV35.1 ST3500641SV 500G SATA Seagate Seagate SV35.2 ST3250820SV 250G SATA Seagate Seagate SV35.2 ST3320620SV 320G SATA Seagate...
  • Page 219 Port Manufacturer Series Model Capacity Mode Seagate Seagate Pipeline ST3320311CS 250G SATA Seagate Seagate Pipeline ST3500414CS 500G SATA Seagate Seagate Pipeline ST3500312CS 500G SATA Seagate Seagate Pipeline ST31000424CS SATA Seagate Seagate Pipeline ST31000322CS SATA Seagate Seagate Pipeline ST1000VM002 SATA Seagate Seagate Pipeline ST1500VM002...
  • Page 220 Port Manufacturer Series Model Capacity Mode Constellation ES Seagate Seagate ST2000NM0051 SATA Constellation ES Seagate Seagate ST1000NM0051 SATA Constellation ES Seagate Seagate ST500NM0051 500G SATA Constellation ES Seagate Seagate ST33000650NS SATA Constellation ES.2 Seagate Seagate ST32000645NS SATA Constellation ES.2 Seagate Seagate ST33000651NS SATA...
  • Page 221 Port Manufacturer Series Model Capacity Mode Digital Westem WD Caviar RE16 WD3200YS-01PGB0 320G SATA Digital Westem WD Caviar RE2 WD5000YS-01MPB0 500G SATA Digital Westem WD AV—AVJS WD2500AVJS-63WDA0 500G SATA Digital Westem WD AV—AVJS WD3200AVJS-63WDA0 320G SATA Digital Westem WD AV—AVJS WD5000AVJS-63YJA0 500G SATA...
  • Page 222 Port Manufacturer Series Model Capacity Mode Digital Westem WDAV-GP—EVDS WD20EVDS-63T3B0 SATA Digital Westem WDAV-GP—AVDS WD5000AVDS-63U7B0 500G SATA Digital Westem WD AV-GP WD30EURS SATA Digital Westem WD AV-GP WD25EURS 2.5T SATA Digital Westem WD AV-GP WD20EURS SATA Digital Westem WD AV-GP WD15EURS 1.5T SATA...
  • Page 223 Port Manufacturer Series Model Capacity Mode Hitachi HitachiCinemaStar™ HCT721075SLA360 750G SATA 7K1000.B Hitachi HitachiCinemaStar™ HCT721010SLA360 SATA 7K1000.B Maxtor DiamondMax 20 STM3320820AS 320G SATA Maxtor DiamondMax 20 STM3250820AS 250G SATA Compatible 2.5-inch HDD List Manufacturer Series Model Capacity Seagate ST1000LM024 SATA Seagate ST500LM012 500G...

  • Page 224: Appendix D Compatible Cd/Dvd

    Appendix D Compatible CD/DVD Manufacturer Model Port Mode Type Sony DRX-S50U DVD-RW Sony DRX-S70U DVD-RW Sony AW-G170S SATA DVD-RW Samsung TS-H653A SATA DVD-RW Panasonic SW-9588-C SATA DVD-RW Sony DRX-S50U DVD-RW BenQ 5232WI DVD-RW...

  • Page 225: Appendix E Compatible Displayer List

    10 Appendix E Compatible Displayer List Brand Model Dimension (Unit: inch) BENQ（LCD） ET-0007-TA 19-inch (wide screen) DELL（LCD） E178FPc 17-inch BENQ（LCD） Q7T4 17-inch BENQ（LCD） Q7T3 17-inch LENOVO（LCD） LXB-L17C 17-inch SANGSUNG（LCD） 225BW 22-inch (wide screen) LENOVO(CRT) LXB-FD17069HB 17-inch LENOVO(CRT) LXB-HF769A 17-inch LENOVO(CRT) LX-GJ556D 17-inch Samsung (LCD)

  • Page 226: Appendix F Toxic Or Hazardous Materials Or Elements

    11 Appendix F Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Sheet ○ ○ ○ ○ ○ ○ Metal(Case) Plastic Parts ○ ○ ○ ○ ○ ○ （Panel） ○ ○ ○ ○...
  • Page 227 NVR Models with 2 x 1000Mbps Ports - set up 2 separate Networks In order to create 2 separate networks user needs to configure half of the cameras with one set of IP addresses and half with another set. In this example it is used 10.15.0.1 192.168.1.1 so the cameras need to be in these network ranges.
  • Page 228 Here, one gateway of Ethernet1 is set as 10.15.0.1 And gateway of Ethernet2 is set as 192.168.1.1...
  • Page 229 Select devices in different network segments. In our example 10.15.5.100 192.168.1.108 are selected. Search all cameras under "Private", find them, assign new IP addresses. Status of cameras are in menu and then find images.
  • Page 230 User may also can browse images on website. Also recommended are gigabit switches from HP Procurve 1080-G Switch or better.
