Summary of Contents for Response CA2

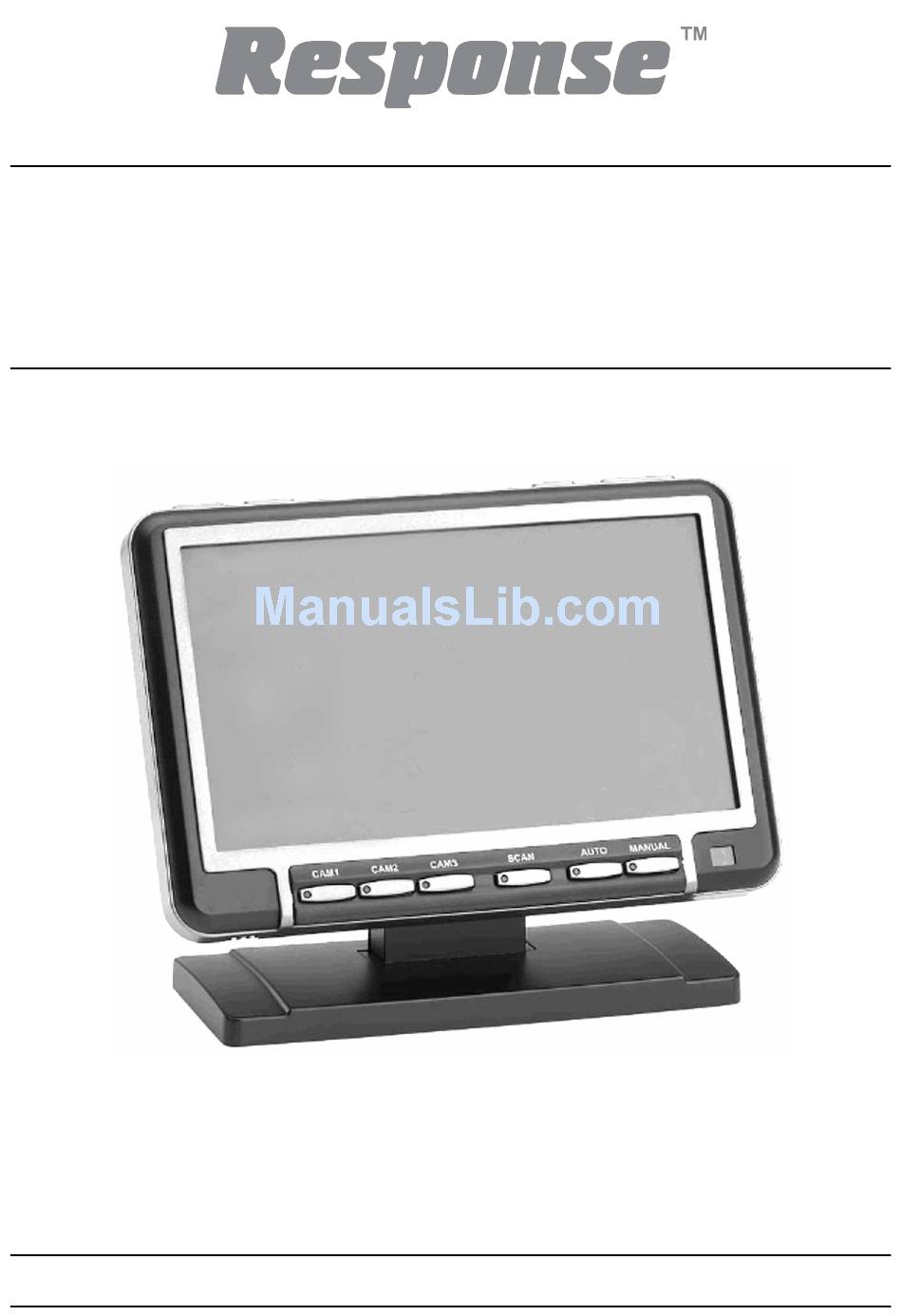

- Page 1 LCD Screen for Wireless / Wired CCTV Kits Installation and Operating Instructions These instructions should be retained in a safe place for future reference.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION MAINTENANCE 2 KIT CONTENTS 7 TROUBLESHOOTING 3 FEATURES 8 ACCESSORIES IN THE RANGE 4 INSTALLATION 9 TECHNICAL SPECIFICATION Wireless Camera(s) Setup Screen Installation and Setup 10 APPENDIX Screen Mounting Guide OPERATION Wired/Wireless Source Function DISPOSAL – RECYCLING INSTRUCTIONS Wireless Camera(s) Function 5.2.1 Manual Function 12 GUARANTEE AND... -
Page 3: Introduction
INTRODUCTION Section 1 The Response Colour LCD Screen allows surveillance of any vulnerable places or areas you wish to monitor. It allows you to connect both wired and wireless cameras (operating on the 2.4GHz transmission frequency). You can connect up to 2 wired cameras and up to 3 wireless cameras for surveillance. - Page 4 SAFETY AND INSTALLATION TIPS: The screen is intended for internal use only. The Remote Control is supplied fitted with a CR2025 Lithium coin cell battery. If it is removed, do not place in your mouth as this could impair your health. Keep these cells out of reach from young children as they are a choking hazard.
-
Page 5: Kit Contents
CONTENTS Section 2 x 7” Colour LCD Screen 1 x Remote Control (supplied fitted with a 3V CR2025 battery) 2 x Wired cameras adaptor leads 1 x Power supply adaptor 1 x Monitor fixing kit – wall plugs and screws 1 x Installation and operating manual Tools Required: (only for wall/ceiling mounting the screen) -
Page 6: Installation
INSTALLATION Section 4 4.1 Wireless Camera(s) Setup This screen is compatible with wireless cameras operating on the 2.4GHz frequency. Do not set multiple cameras on the same channel or interference will appear on the screen. It is possible to link up to 3 wireless cameras; however you may need to adjust the orientation of the screen depending on the reception of the viewing channel. - Page 7 2. To connect wired cameras or other devices such as a DVD player to this screen, use the supplied wired cameras adaptor lead. Up to two units can be connected to this monitor at the same time using the two adaptors supplied. 2.1 Plug the jack plug end(s) of the adaptor(s) into the AV IN ports.
-
Page 8: Operation
OPERATION Section 5 The output from the screen can be viewed on a larger screen using the optional A/V OUT port. Use any of the supplied two adaptors leads with this kit. You will need to source a suitable AV output adaptor with male type RCA plugs to connect to the adaptors supplied. -
Page 9: Wired/Wireless Source Function
Wired / Wireless Source Function Each time the ‘SOURCE’ button is pressed, the screen will change from wireless to wired. If any wired cameras or devices are connected using the wired adaptors, then press this button to view the required source. Wireless Camera(s) Functions 5.2.1 Manual Function To view a specific wireless camera, press the ‘MANUAL’... -
Page 10: Volume Adjustment For A/V Input Source(S)
Volume Adjustment for A/V Input Source(s) The sound level of the audio from the screen can be adjusted by pressing the ‘+’ or ‘-‘ button on the Volume / Adjust button. General Screen Settings Press the Menu button to cycle through the following settings: Alarm volume - adjust by pressing the ‘+’... -
Page 11: Maintenance
MAINTENANCE Section 6 Clean the LCD screen using a soft damp cloth. Replace the battery in the remote control once every 2 years. Only use a Lithium 3V CR2025 type coin cell battery or any equivalent type. TROUBLE SHOOTING Section 7 PROBLEM SOLUTION camera picture on... -
Page 12: Accessories In The Range
ACCESSORIES IN THE RANGE Section 8 There are a range of accessories available in the Response CCTV product range to expand your system: CWK1 Wired Colour Camera CCTV Kit 2 Channel Digital Video Image Recorder CWFK1 Wireless Colour Camera CCTV Kit... -
Page 13: Technical Specification
TECHNICAL SPECIFICATION Section 9 ITEM PROFESSIONAL HEAVY DUTY CAMERA TV system PAL or NTSC standard Frequency range 2.41 to 2.47GHz Screen size 7.0 inch Resolution 1440 x 234 dots 480 horizontal lines minimum Power supply DC 9V, 2.0 A Brightness 300cd / m Contrast rate 150 : 1... -
Page 14: Appendix
APPENDIX Section 10 Screen Mounting Guide: 118.8mm... -
Page 15: Disposal - Recycling Instructions
DISPOSAL – RECYCLING INSTRUCTIONS Section 11 Directive (2002/96/EC) This product is classified by the Waste Electrical or Electronic Equipment (WEEE) Directive. It should not be disposed of with other household or commercial waste. At the end of its useful life the packaging and product should be disposed of via a suitable recycling centre. -
Page 16: Customer Helpline
1. Proof of purchase. 2. A full description of the fault. 3. All relevant batteries (disconnected). Response is a trademark of Novar ED&S. CUSTOMER HELPLINE Most issues can be solved over the phone in a few minutes. Please contact our Helpline Team on the number below for any...
