R

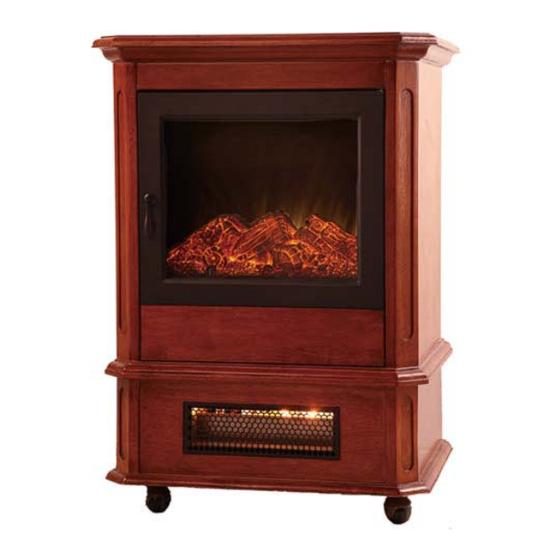

Westpointe Portable
Infrared Fireplace Heater
Instruction Manual
Model No.: SREF01 / TV NO.: 138807
3194320
FOR INDOOR USE ONLY
PLEASE READ THIS ENTIRE INSTRUCTION MANUAL BEFORE USING
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE
OF PLUG TO WIDE SLOT, FULLY INSERT.
Please keep this instruction manual for future reference
!
Warning:
Adult assembly required.
Keep screws and parts out of reach of children.
Customer Service: (866) 814-0585, 8:00am to 5:00pm, Eastern Standard Time
Monday thru Friday
(Made in China)
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Westpointe SREF01
- Page 1 Westpointe Portable Infrared Fireplace Heater Instruction Manual Model No.: SREF01 / TV NO.: 138807 3194320 FOR INDOOR USE ONLY PLEASE READ THIS ENTIRE INSTRUCTION MANUAL BEFORE USING CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
-
Page 2: Important Instructions
Warnings IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read all instructions before using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. The grill directly in front of the heater outlet becomes hot during heater operation. -
Page 3: Grounding Instructions
Grounding instructions WARNING: This hearter has a voltage rating of 120 volts. The cord has a plug as shown in A. An adapter as shown in C is available for connecting three-blade METAL SCREW grounding-type plugs to two-slot receptacles. The green grounding lug extending from the adapter must be COVER OF GROUNDED GROUNDING... -
Page 4: Heater Specifications
Heater Specifications Infrared Fireplace Heater 1. Power Supply: AC110-120V / 50-60Hz 2. Heat Output Rate: 1350W 3. Temperature range: 50 - 95 Fahrenheit 4. Heating elements: 3 U-shape infrared bulbs 5. Remote control Unpacking the Infrared Fireplace Heater 1. First, check the carton to make sure there are no obvious damages that may have occurred during shipment. - Page 5 Operating Instructions Note: The heater may emit a slight harmless odor when first turned on. This is caused by activating the internal heater components for the first time and should not occur again. Visually inspect the Infrared Heater for any damages before operation. Do not operate the heater if any damages are detected.
- Page 6 Operating Instructions 3) If the heater internal temperature goes up to 104 F , the fan and electronic ionizer start working. The negative ions generated will be blown out with air through the vent. 3. Press SET button et parameter. In sequence it comes temperature - timer –...
- Page 7 Operating Instructions F button When heater is in normal operating, press F button to switch temperature mode, C means Centigrade and F means Fahrenheit. Indicator lights for corresponding temperature mode. Press the F button to switch from Fahrenheit to Centigrade ON/OFF HI/LOW ON/OFF...
-
Page 8: Care And Maintenance
Assembly lnstructions Install the cord wrap on the back of the heater as illustrated, fixing it by 2 tapping screws. Tapping screw Cord wrap Care and Maintenance Before care or maintenance is applied, always unplug the cord from the electrical outlet. The cabinet housing can be wiped down with furniture polish. - Page 9 Negative Ion Generator ELECTRONIC IONIZER SPECIFICATIONS I/P: AC110-120V / 50-60Hz PIN: 1W O/P: DC3.8KV ION DENSITY: 3 X 10 PCS/CM WORK PRINCIPLE AND FUNCITIONS The main work principle of the positive and negative ion generator (plasma generator) is to increase the low voltage to positive high voltage and negative high voltage with voltage increasing circuit.
-
Page 10: Troubleshooting
Trouble Shooting Warning: To avoid risk of electric shock, please unplug the heater before maintenance. Malfunction Malfunction Cause Solution Remarks No electricity 1) Disconnected plug 1) Inspect main socket switch and fuse 2) Fuse burned out 2) If fuse burned out, 3) Main switch does contact our customer not turn on... -
Page 11: Warranty Information
Warranty Information The appliance has been manufactured under the highest standards of quality and workmanship. We warrant to the original consumer purchaser that all aspects of this product will be free of defects in material and workmanship for one year from the date of purchase. A replacement for any defective part will be supplied free of charge for installation by the consumer.
