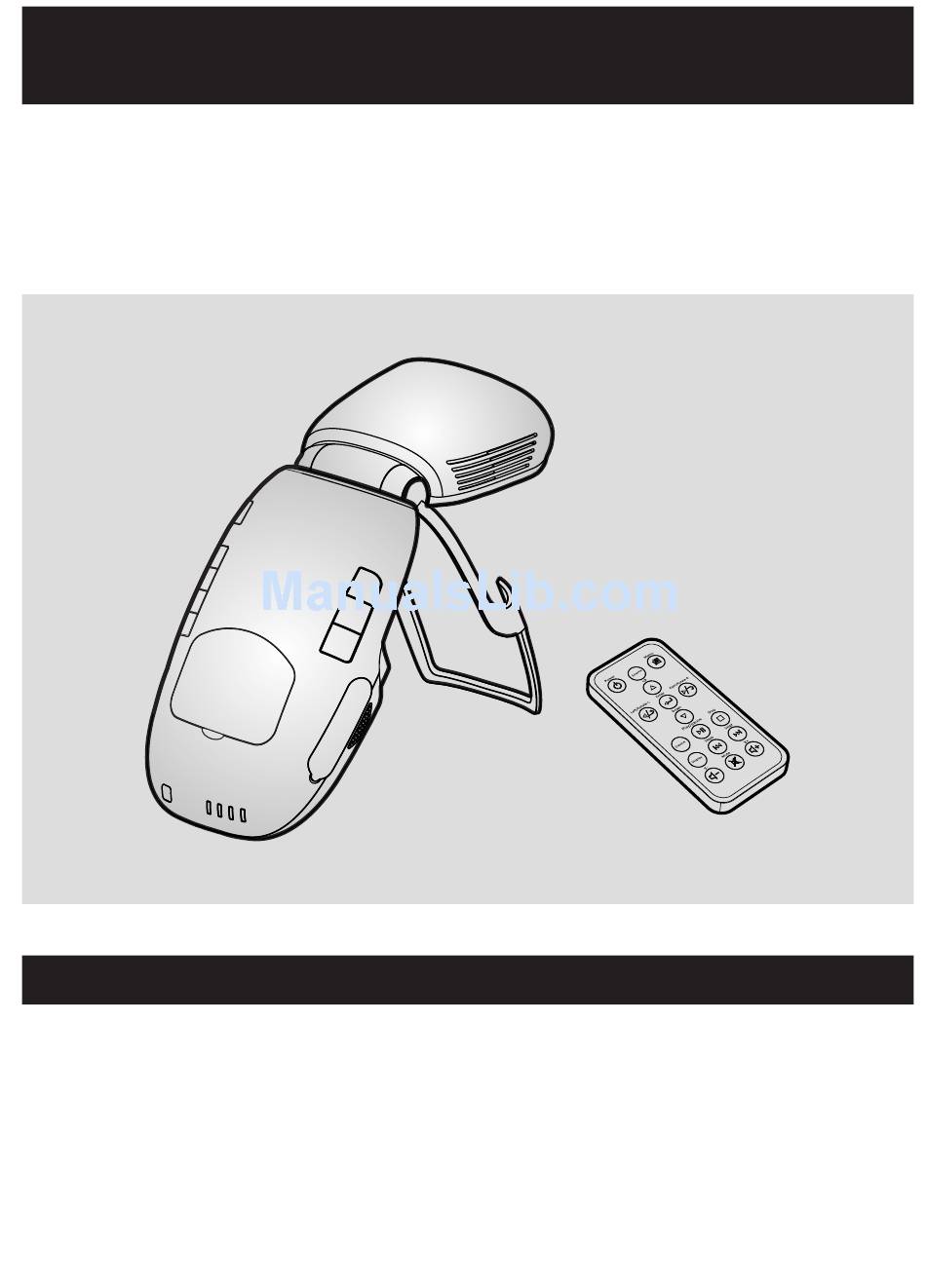

Page 1
1 Introduction The brand new iEmmet has an Apple-certified docking port. Plug in your Apple iPod iPhone to the docking station and you can play audio, keynote presentations, video, and images stored on the Apple device. The projection size is up to 80'', ideal for business meetings or home entertainment.
2 Specification Projection technology 854*480 (WVGA) Native resolution Aspect ratio 16:9 (4:3) Brightness 40 Lumens (normal mode), 30 Lumens (save mode). NTSC >120% NTSC Uniformity ≥70% 10 00:1 Contrast ratio 12-80inches (It can be adjusted according to the light and projection distance). Projection size 0.3M, 12inches;...
Page 3
4 投影机、遥控器外观及各部件名称 3 Package contents AC power VGA cord Battery User cord Remote Mobile phone adapter manual (optional) (Lithium-ion) cord control (optional) (optional) 4 投影机、遥控器外观及各部件名称 4 Pico projector, remote control appearance and parts name 4.1 Pico projector Focus knob IR receiver Battery indicator(25%) Venthole Battery indicator(50%)
5 Projector angle adjustment Note Slide the latch to open projector Using and connection 6.1 Connecting to an iPod iPhone Plugging iPod iPhone directly into the docking station Open the cap and connect iPod iPhone to the docking station. note Press Source to switch to Dock mode.
8 Remote control function Power Off button Source switch button Device button Power ower off. Press the button Press device key, ◆ P ◆ ◆ Source Device and then enter to switch between the Main UI, AV, DOCK and PC finally choose the input.
Page 6
9 Adjust the brightness when using battery power There are 2 brightness modes when using battery power, normal and save mode (default). To choose normal mode, press the up arrow on the projector for 3 seconds and enter the setup menu to choose Power – Power management. Or press Menu Menu button”...
Page 7
Important note: When using the projector with a rechargeable lithium-ion battery, use only a manufacturer specified battery. In order to reduce risk for fire or explosion, do not use other types of batteries. For the correct battery disposal please refer to local environmental regulations.
13 Trouble shooting Symptoms Checkpoints Reasons Ensure the AC power adapter is No power The projector properly connected. can not be turned on Low battery Charge the battery. The source is not Turn the video source on and check turned on or connected that the signal is connected correctly.
