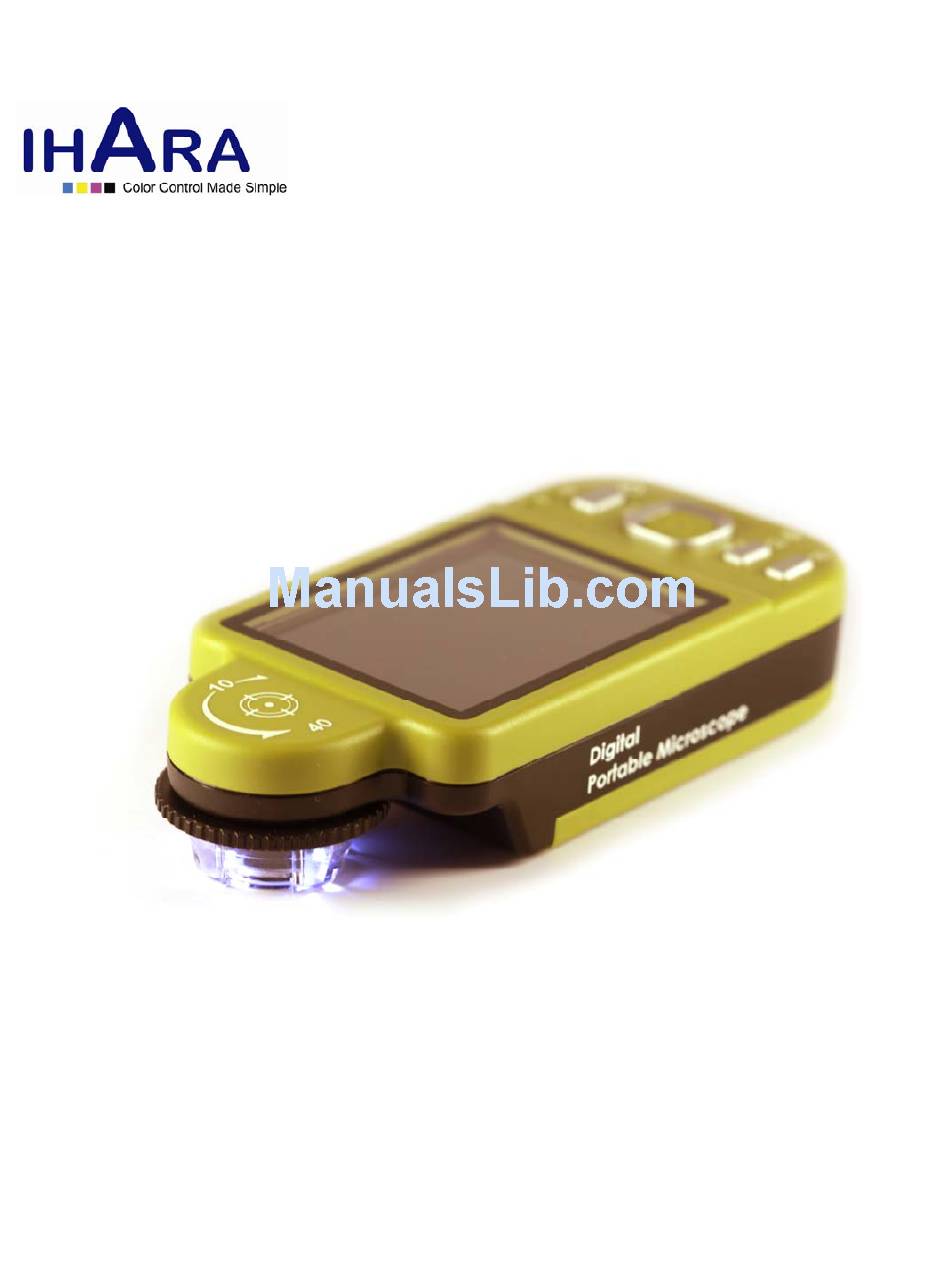

- Page 1 VT300 User’s Guide Digital Portable Microscope www.ihara-us.com Version 1.2AI...
-
Page 2: Products Introduction
1. Products Introduction 1.1 Packing Contents Objects packed inside the box include one host and ten fittings as follows. Please charge the Li-ion battery for 6 to 8 hours for the first time. Name Name Host of Portable Li-ion Battery Microscope USB1.1Transmissio User’s Guide... - Page 3 (16) Lens: the lens is applied to photography. (17) Battery Container: Where is the Li-ion battery put. [please refer to item (5) of Section 1.5]. (18) RESET Hole: in case the machine stops (which means no reaction in the image by pressing any button), insert slender clip into the hole to trigger the RESET button.
- Page 4 Camera. In other modes, press the button of Preview Photo /Back to back to the Menu and switch function as displayed in the following image: (1) Camera : Observation mode. Please refer to the above image. Small icons are used to represent function modes. Mode : the machine is in observing mode.
- Page 5 Battery in Using : only use the battery without any external power supply. Full High Medium Battery Charging : use USB power supply to charge the battery. The charging will stop if the battery is full, and only USB power supply will be used.
- Page 6 The scale might be incorrect because of concaved and convex observed object making the focusing distance is not standard. For the standard focus, please use the flushing-way [Please refer to item (2) of Section 1.3]. The scales will be varied with magnification rates changes. The unit in the scale is 「μm ...
- Page 7 Press button to go previous photo. It can enlarge and shrink the viewing photo by & button. After it enlarges the photo, it can move the photo up, down, left & right through / / / . Press button to return the original window status, then it can allow to swift next photo.
- Page 8 Select (Yes) for deletion and (No) for not. (5) USB Disk : VT300 has its internal memory(2GB), save files as USB storage device directly to C Slot. For transmission files to PC, please refer to item (1) of Section 1.5 and the following image.
- Page 9 (A) Refer to section 1.5.5 to connect to computer. (B) To operate by the device, please access “PC cam” and press “confirm”. (C) Start the application in the computer as introduced in section 2.2. (D) Click “connect” on the application as shown in section 3.4. (7) Set Up : a model to set the system and provides seven functions for selection according to your own orientation.
-
Page 10: Program Installation
2.3 Install Driver (Step 3) Please click step 3 [Install VT300 Driver] to install the driver. 2.4 Quit Installation Program (Step 4) After installing Application Program and Driver, please click and select the position of Step 4. Click Exit to Install VT300 Program window. -
Page 11: Operate Application Program
3. Operate Application Program Operation Instruction of Application Program is composed of 6 parts about primary operation functions. For detailed contents, please refer to the Operation Instruction set in the Installation CD (User’s Manual\English\ Application Program Operation Manual). 3.1 Video Preview Window After connecting to microscope camera, the window will show video information, videos, files, as well as operations icons and special function. -
Page 12: Printed Notice
(2) Center Concentration Model : the model provides 4 different center concentrations including cross, scope, rectangle and circular to aim at shot objects as an auxiliary function. Please refer to the following image for tools of the model. (3) Image Control Model : you can take the machine by your left or right hand, adjust image direction of yourself or object, as well as adjusting contrast, brightness and exposure rate of the image. - Page 13 Operation Environment than 85% (No Condensation) For any change, please visit http://www.ihara-us.com to check information. 4.3 Safety Instructions (1) As an electronic product, please do not use the machine in any place in which all electronic products are prohibited or required to shut off electronic products.
- Page 14 VT300 Warranty Product Portable Digital Microscope Machine Type Serial Number Month Year Purchase Date Purchaser...
- Page 15 Purchaser Address Email Machine Type Distributor Seal for Confirmation ( Stamp is necessary for validation of the Warranty ) Distributor’s seal shall include name of the shop, telephone and address Please ask the distributor to fill in the name of the shop, address, purchase date and other contents and seal to protect your rights and validate one-year warranty since upon the purchase date.
