Summary of Contents for Richter ART-4

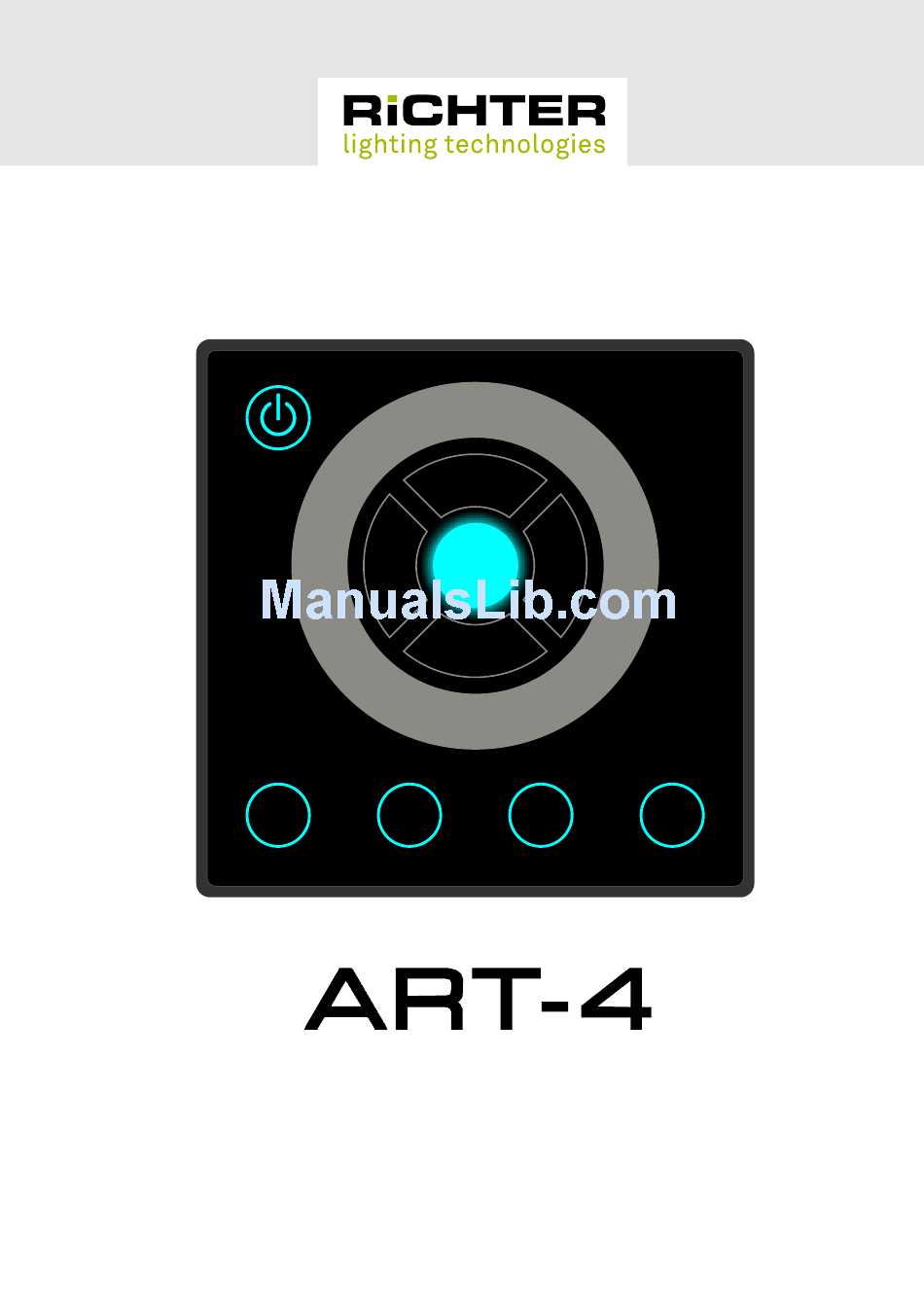

- Page 1 User manual...
-
Page 2: Table Of Contents
5.3 Setting Fadetime for Color Exchange ........6 6. SCENE .................. 7 6.1 Recording SCENE ............. 7 6.2 Playback SCENE ...............7 6.3 SCENE Record Lock/Unlock ..........7 7. Key Tone ................8 8. Default Setting ................8 Physical Dimensions ..............9 Technical Specification ..............9 ART-4 User Instruction... -
Page 3: Product Description
Product Description Thank you for purchasing our digital product ART-4. You now hold a premiere LED controller with DMX 512/PWM output. Its compact and portable design is convenient to mount and easy to operate for users. The key features consist of... -
Page 4: Control Panel And Functions
Control Panel and Functions ART-4 (EU) Figure 1: 1. Power key Used to power on/off ART-4. 2. C key (color) Used to select color. 3. P key (program) Used to select built-in program. 4. S key (speed) Used to adjust speed. -
Page 5: Rear Panel View
Rear Panel View The ART-4 features one group DMX OUT with 4-pin terminal connector, one group POWER IN & PWM OUT with 6-pin terminal connector, a Link In and Link Out for online operation. The configuration of the terminal is as the... -
Page 6: Operation Guide
Operation Guide 1. ON/OFF ART-4 can be connected to a DC power at any voltage from 12V to 24V. When the indicator of POWER button lights up, the unit powers on and resumes the output setting of last time. In normal mode, to touch POWER key and hold on for 2s, ART-4 switches to the state of standby. -
Page 7: Built-In Program
-- "1" for 10min, "2" for 20min, "3" for 30min and "4" for 40min. * NOTE: In the process of adjusting brightness and speed, the toggle produces clicks. However, the click disappears when the toggle reaches the maximum /minimum value. Page 5 ART-4 User Instruction... -
Page 8: Color
All indicators flash momentarily once to confirm the setting. The existing mode ends and changes to normal mode automatically. Different keys represent different fadetime. The table2 details the fadetime information. Table 2 Keys P/C/B/S 0s (no fade time) Fadetime Page 6 ART-4 User Instruction... -
Page 9: Scene
To unlock scene record, touch "P" key and "S" key and hold on for about 10 seconds until all keys flash once. * NOTE: Each figure key can have a color, or a scene , or both elements recorded. Page 7 ART-4 User Instruction... -
Page 10: Key Tone
9. Online Control Each ART-4 can be linked via the "Link IN/OUT" port on the rear panel that allows the users to implement the online control for multi-device accordingly. Please be noted that maximum of 32 devices are allowed to be connected on a link. -
Page 11: Physical Dimensions
Power in & PWM out 6-pin green terminal Operation Temperature 0 degC to +40 degC Storage Temperature -20 degC to + 70 degC Weight US 150g / EU 100g Dimensions EU 86(L) x86(W) x15.5(H)mm US 76(L) x120(W) x15.5(H)mm Page 9 ART-4 User Instruction... - Page 12 Any improvement and changes to specifications, design and this manual, may be made at any time without prior notice. RICHTER LIGHTING TECHNOLOGIES GMBH Boebinger Strasse 34 D-73540 Heubach Tel. +49(0)7173-71440-0 Fax.+49(0)7173-71440-12 mail: info (at) richter-lt.de web: www.richter-lt.de 24-004-2860-00 Rev1.0 ART-4 User Instruction...
