RMC1E -
General Assembly, Installation, and Operation Instructions for use with Natural Gas Burners;
ATTENTION! READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE ● CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE
Adjustable Wrench, Pipe Wrench, Flat Head Screwdriver, Phillips Screwdriver, Pipe Sealing compound
(Only required if fittings not already prepared with pre-wrapped Teflon thread tape).
1. Air Mixer for LP Gas Burner Inlet Assembly (MA2)
2. Burner Orifice #53,49 and 45 (01-XX)
3. Internally Tapped 3/8 Flared x 3/8 MIP Elbow (A2T)
4a. Pilot Support Bracket for F & TNA burners (PB-1)
4b. Pilot Support Bracket for CS & CXF burners (PB-2)
5. 10-32 x 3/8 bolts (qty. 3)
6. 10-32 Hex nut (qty 1)
7. Valve Plug ( used when replacing, servicing or
upgrading Motor Drive) (VALVE PLUG EASY).
1
2
3
Kit to upgrade from "ME" or "RE" to "SE" functionality. Includes: Solenoid, Receiver and batteries. One of four Wireless Remote Transmitter
Latching Solenoid for Remote
Ready (STV-LS)
What sets Rasmussen Safety Pilot Kits apart from those of other manufacturers, aside from quality, is the ease and affordability with
which our valve can be upgraded from manual operation to one of several remote control devices!
Variable Flame Height "EASY"
F, FX, CS, CXF, TNA or Propane Gas Burners: FA, FAX, CA, CXFA, TNA/LP
12028 E. PHILADELPHIA ST. WHITTIER CA 90601 U.S.A.

REQUIRED TOOLS AND MATERIALS

4A
9
(Green mark indicates Natural Gas,
Red indicates Propane Gas)
"SE" "Remote Ready" Upgrade Kit (SE-UP1)
Devices is also required (each sold separately, see below, at right)
Battery Pack/Receiver
www.rasmussen.biz

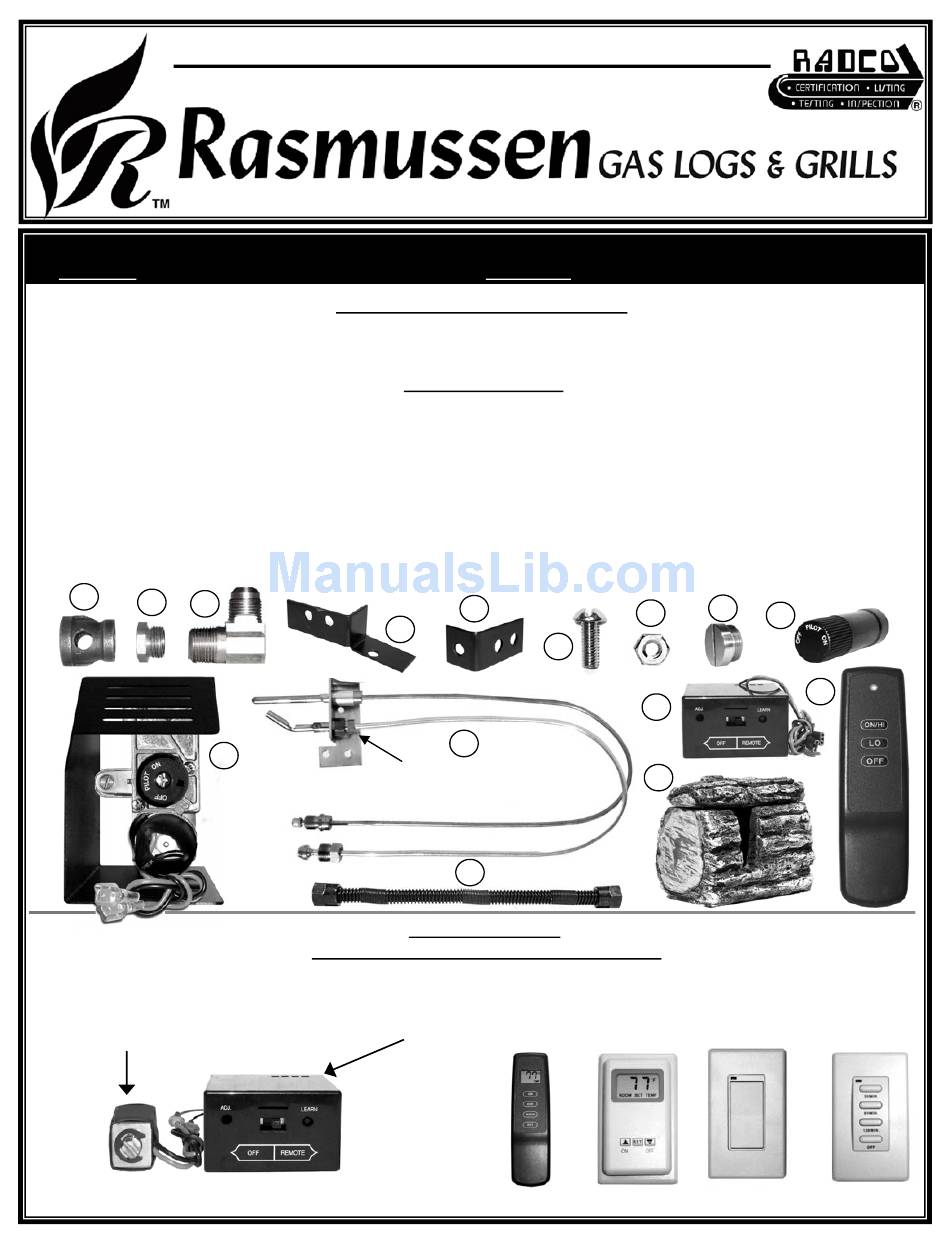

RMC1E PARTS LIST

8. Valve Knob Extender (STV-KE2)
9. "EASY" Safety Valve (STV-10) & Heat shield (HS-ST1)
10. Pilot Thermocouple Assembly (J95R -NG or -LP)
11. 10" flex Connector (SSCB-10)
12. Remote Receiver (BPR2)
13. Ceramic Log House (RH2) (Sold Separately)
14. Variable Flame Height Remote Control Transmitter
(STR-RMD)
4B
5
10
11

UPGRADE OPTION

Wireless On/Off
Remote with
Thermostat
(BPR-1)
(THR-2R)
1
Control
7
6
8
12
13
Wireless Wall
Wireless Wall
Thermostat
Switch (WS-2R)
(TS-2R)
LISTED BY
LISTING NO. 1180
FORM: RMC1E-10-06
14
Wireless Wall Timer
(30/60/120 Minutes)
(WT-2R)
