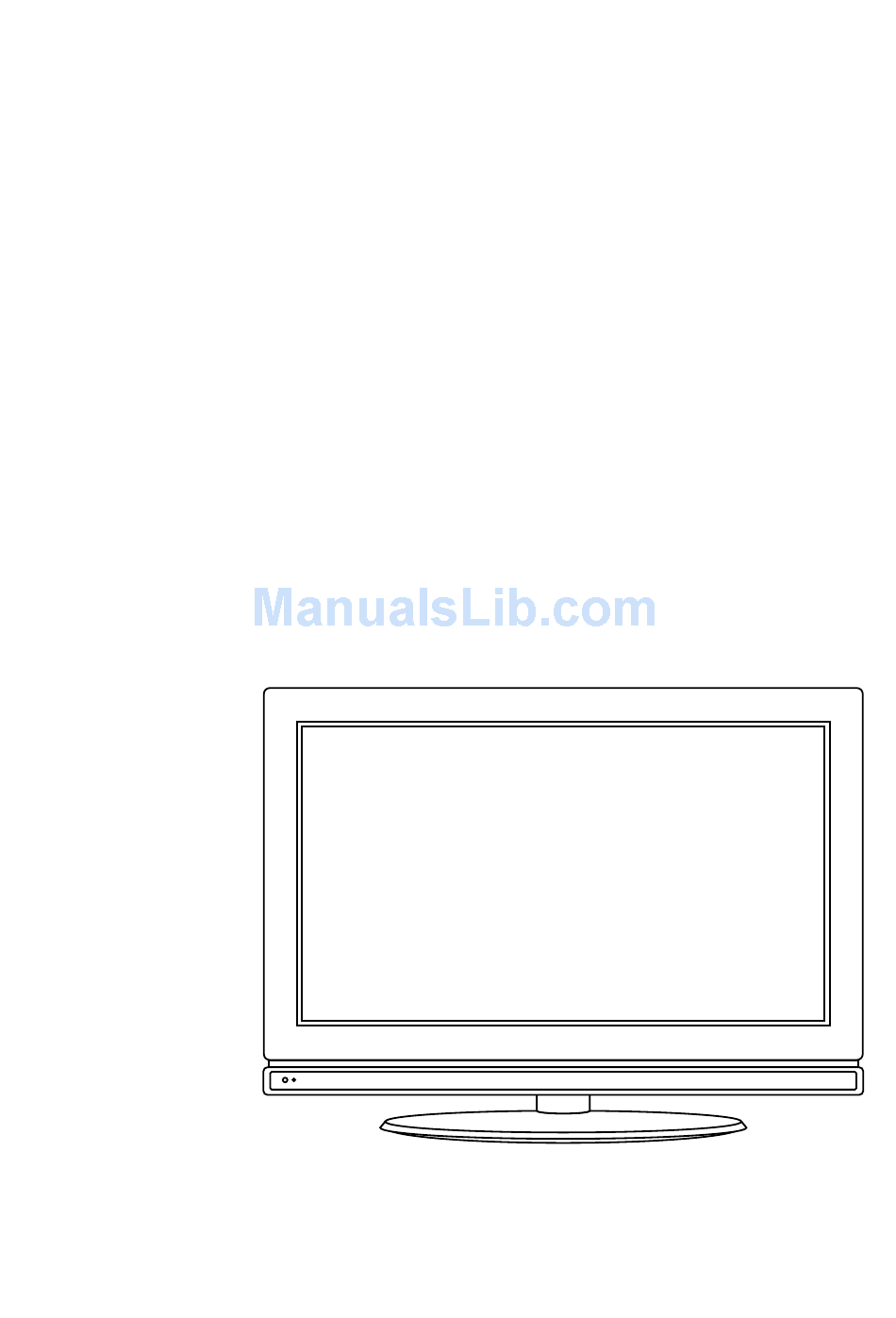

- Page 1 LCD digital colour TV C2698DVBR USER GUIDE...
-
Page 2: Lcd Screen
LCD Screen Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue or green) may appear constantly on the LCD screen and is not a malfunction. HELP If you have any problem setting up this Television, trouble getting a signal or difficulties with the operation of the DVD player. - Page 3 Caution Safety Information Unit and Accessories Getting Started Front View Rear View Remote Control Key Functions Menu Operation Basic TV operation PICTURE menu options SOUND menu options SETUP and PC SETUP menu options 13-14 Channel menu options 15-16 DTV menu options PIP function SimpleTroubleshooting Technical Specifications...
-
Page 4: Correct Disposal Of This Product
caution Caution The lightening flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 5: Safety Information
Safety Information Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below. Electrical safety The TV set should only be connected to a mains supply which matches that stated on the label on the mains adaptor To prevent overload, don't share the same mains supply socket with too many other items of equipment. -
Page 6: Unit And Accessories
Unit and Accessories Unit and Accessories Source TV/Radio Quick Help Start Menu Guide Pic Swap Exit Info Menu Picture Sound +Day -Day qprs wxyz Recording Lists Power cable 2x-AA batteries 1 x LCD TV 1 x PVR EASY START GUIDE USER GUIDE EASY START GUIDE USER GUIDE... -
Page 7: Getting Started
Getting Started Getting Started SWITCH: Switch: Power ON/OFF LED Indicator Remote Control Window (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby) LED Indicator: Press POWER button to turn on and standby Indicator on(Red) Standby mode Indicator on(Green) Power on mode Power TV/AV Press to display the input source menu. -
Page 8: Power Off
Getting Started Switch: Turn on/off the power supply Common Interface 1. AC POWER INPUT: 100-240V AC 50/60HZ. 2. HDMI 1 / 2: (High definition multimedia interface) Connect to the HDMI output on external equipment. 3. VGA: (Video Graphics Adaptor) connect to the VGA on a PC to display PC graphics. 4. -
Page 9: Remote Control Key Functions
Remote Control Key Functions TV/Radio... - Page 10 TV/Radio...
-
Page 11: Menu Operation
Menu Operation Basic TV operation TURN ON THE LCD TV: 1.Connect the power cable to the mains supply and turn on the power by using the “POWER SWITCH” at the rear bottom right of the set. The standby indicator on the front of the TV will light up in red. - Page 12 Press the MENU button to display the main menu as below. buttons to select menu, and press button to enter the menu. Mains menu Picture Sound Function PC Setup Setup Hint: you should operate Sub menu the OSD menu Picture menu as the picture according to the hint.
-
Page 13: Picture Menu Options
In this manual, the OSD (On Screen Display) may be different from your TV's because it is just example to help the TV operation. PICTURE menu options Press the MENU button on your TV or on the remote control then use the buttons to select the picture menu, press the button to enter the menu (see picture below). -
Page 14: Sound Menu Options
SOUND menu options Press the MENU button on your TV or on the remote control then use the buttons to select the Sound menu, press the button to enter the menu (see picture below). 1. Use the buttons to select what you want to adjust in the Sound menu. -
Page 15: Setup Menu Options
SETUP menu options Press the MENU button on your TV or on the remote control then use the buttons to select the Setup menu, press the button to enter the menu (see picture below). 1. Use the buttons to select what you want to adjust in the Setup menu. -
Page 16: Channel Menu Options
Channel menu options The Channel menu is only available in TV mode. Press the MENU button on your TV or on the remote control then use the buttons to select the Channel menu, press the button to enter the menu (see picture below). 1. - Page 17 Program Table: Press the button to enter Program Table menu as below, Channel Information Operations Swap: Swap two channels' position. Select the channel, and press RED button, then select the channel you want to swap, and press OK button to swap. Move: Move a channel.
-
Page 18: Function Menu Options
Function menu options The Function menu is only available in DTV mode. Press the MENU button on your TV or on the remote control then use the buttons to select the Function menu, press the button to enter the menu (see picture below). Function 1. -
Page 19: Pip Picture In Picture Function
Parental Lock: Setting or modify the Parental lock. Menu or Exit PIP Picture In Picture Function CH+/- Pic Swap CH+/- sound sound Pic Swap Exit... -
Page 20: Simple Troubleshooting
Simple Troubleshooting If the display or performance fails check the TV in accordance with the following instructions. If the TV still fails to function correctly contact your dealer for assistance. SYMPTOM REMEDY GENERAL Dead. No LED Lit No power to the TV. Check all connections to the TV. -
Page 21: Techincal Specifications
Techincal Specifications Techincal Specifications TVSystem PAL BG/DK/I Screen size 26"(diagonal) Resolution 1366x768pixels (RGB) Aerial input (unbalanced) Audio output power 2x10 W Power Consumption AC 100-240V 50/60Hz 160 W Weigh 9.3 kg Remote control Type infrared Control distance Control angle 30° (horizontal) Batteries 2 x 1.5 V, size AA Dimensions...
