Easy Weigh PC-100 Owner's Manual

Price computing scale
Hide thumbs Also See for PC-100:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Easy Weigh
TM
O W N E R ' S M A N U A L
M O D E L: P C -1 0 0
PRICE COMPUTING SCALE
VER 2.20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Easy Weigh PC-100

Summary of Contents for Easy Weigh PC-100

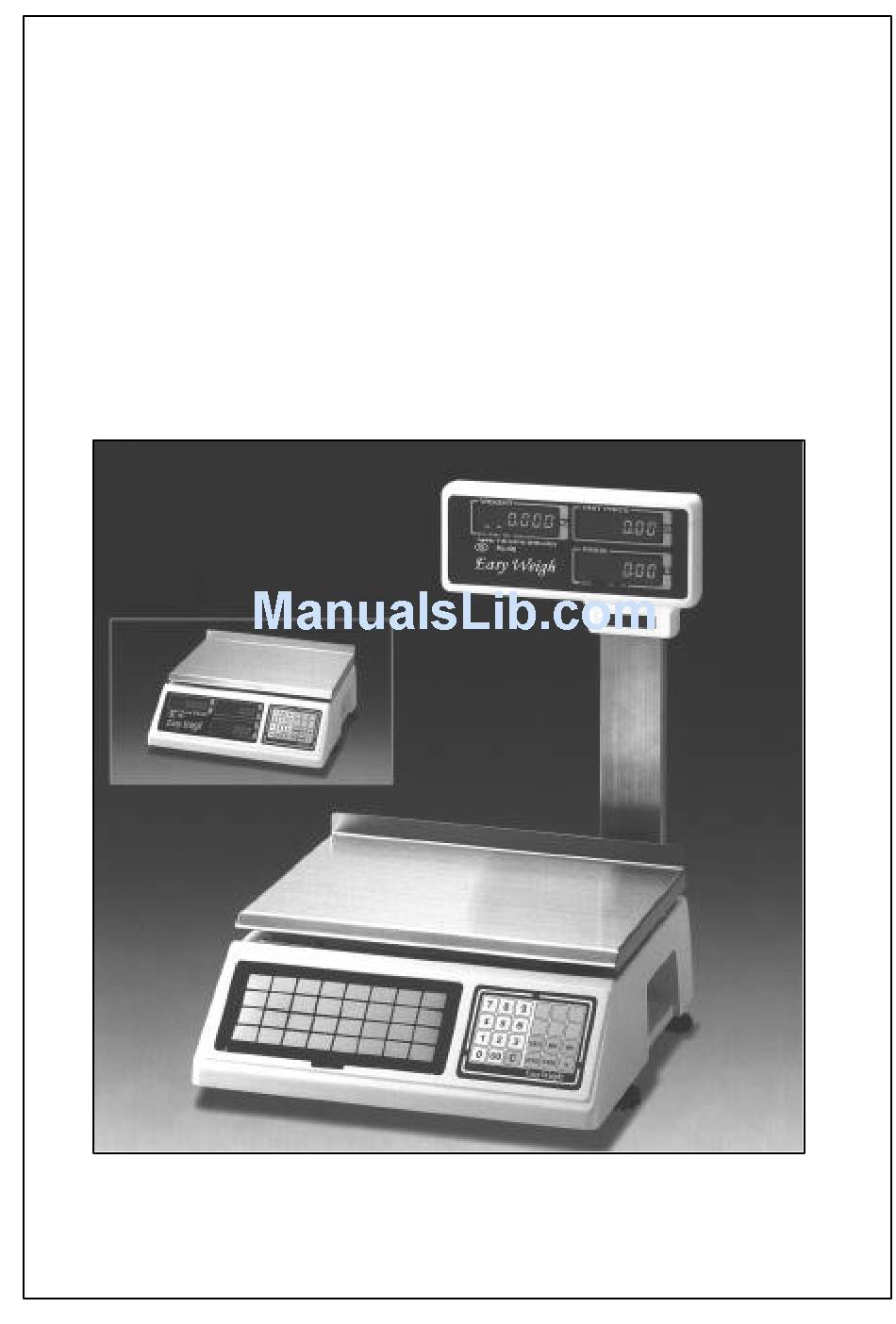

  • Page 1 Easy Weigh O W N E R ’ S M A N U A L M O D E L: P C -1 0 0 PRICE COMPUTING SCALE VER 2.20...

  • Page 2: Table Of Contents

    INTERFACE CROSS REFERENCE CHART ....12 WARRANTEE (Supplied as separate document.) PREFACE Easy Weigh™ Corporation would like to thank you for purchasing our model PC-100 Advanced Price Computing scale. We are committed to creating high quality low maintenance products and supplying our customers with diligent customer service.

  • Page 3: Specifications

    Specifications Model: PC-100 30 / 60 lb Dual Range Maximum Capacity: Dual Range 0 to 30 lb x 0.01 lb / 30 to 60 lb x 0.02 lb Minimum Graduation: Maximum Tare: Half Capacity 0 to 29.99 lb Internal Resolution:...

  • Page 4: Function Keys

    Function Keys Numeric keys, used to enter pricing data, tare, programming, etc. Clear key, used to release error conditions and to clear erroneous entries. ZERO Zero key, used to manually set the zero point. TARE Tare key, used to enter tares and clear tares. Save key, used to disable the price / tare auto-clear SAVE function.

  • Page 5: Display

    Ý key, reserved for future use. Direct PLU keys, these are the 6 light blue keys located on the upper right-side of all PC-100 scales. Direct PLU keys can also be found on the left-side keypad of the PC-100 Pole Display model.

  • Page 6: Unpacking & Assembly

    Unpacking & Assembly Your PC-100 scale should come with the following: Parts Name Units IN CARTON BOX STYROFOAM BODY POLY BAG MANUAL POLY BAG AC CORD MANUAL PAN SCREWS , pole model only CAL SEALING BOLTS FUSE 4-10 CAL PLATE AND SEAL...

  • Page 7: Safety Precautions

    Once you have unboxed your PC-100 you must determine whether you have a Pole or Standard display model. If you have a Standard display model, simply connect the power cord to the scale and then to a 110 VAC 60 Hz outlet. If you have Pole display model follow the instructions below on how to assemble it.

  • Page 8: Operating The Scale

    Operating the Scale Make sure the platter is sitting properly on top of the platform and that there is nothing on top of the platter. Also, make sure that the scale is plugged into the proper outlet. Place the power switch into the ON position.
  • Page 9 Steps 2 and 4 can be interchanged. Once you press the TARE key you will notice that the NET light will come on indicating to you that the weight shown is a net weight. For example: After you place an item on the scale and enter a price the displays may look like this: After step 5 you will notice that the displays will return to there initial state of 0.00.

  • Page 10: Program Mode

    Weighing Using Direct PLUs: 1. Press the Direct PLU key on the keyboard and change the price if desired. 2. Place an item on the platter 3. Remove the item from the platter Steps 1 and 2 can be interchanged. You can learn how to program Direct PLUs in the next section.
  • Page 11 3. You can now enter a Tare weight for this PLU. The displays will now show the following: 4. Once you have entered the Tare, press the MW key. Step 5 is Percent Tare programming. This feature can be disabled so if you do not see the following displays then go to step 6.

  • Page 12: Check Stand Operation

    Check Stand Operation If you have purchased your PC-100 scale with the RS -232 kit you will be able to interface your scale to a PC or virtually any ECR (Electronic Cash Register.) If you do not have this feature or aren’t sure, please contact your local Easy Weigh™...

  • Page 13: Options & Accessories

    Adjusting feet (set of 4) 4B0-00001-020000 For any type of service or troubleshooting, please contact your nearest Easy Weigh™ Authorized dealer. DO NOT attempt to service, repair, or disassemble this or any scale as this is legally permissible to only licensed professionals.

  • Page 14: Interface Cross Reference Chart

    A complete list of cable diagrams is located at: http://www.easyweighscales.com/ docs/PC-100 Cable Diagrams P.pdf/ A complete list of cable diagrams is also located in the PC-100 Service Manual. Interface Cross Reference Chart Type Make Models Setting Casio SA-3000 CRS-3000 DataSym...
  • Page 15 Xcom America, Inc. c/o Easy Weigh 404 Paulding Avenue Northvale, NJ 07647 www.easyweighscales.com Copyright 2003, All rights reserved. 800-20101-020000...
