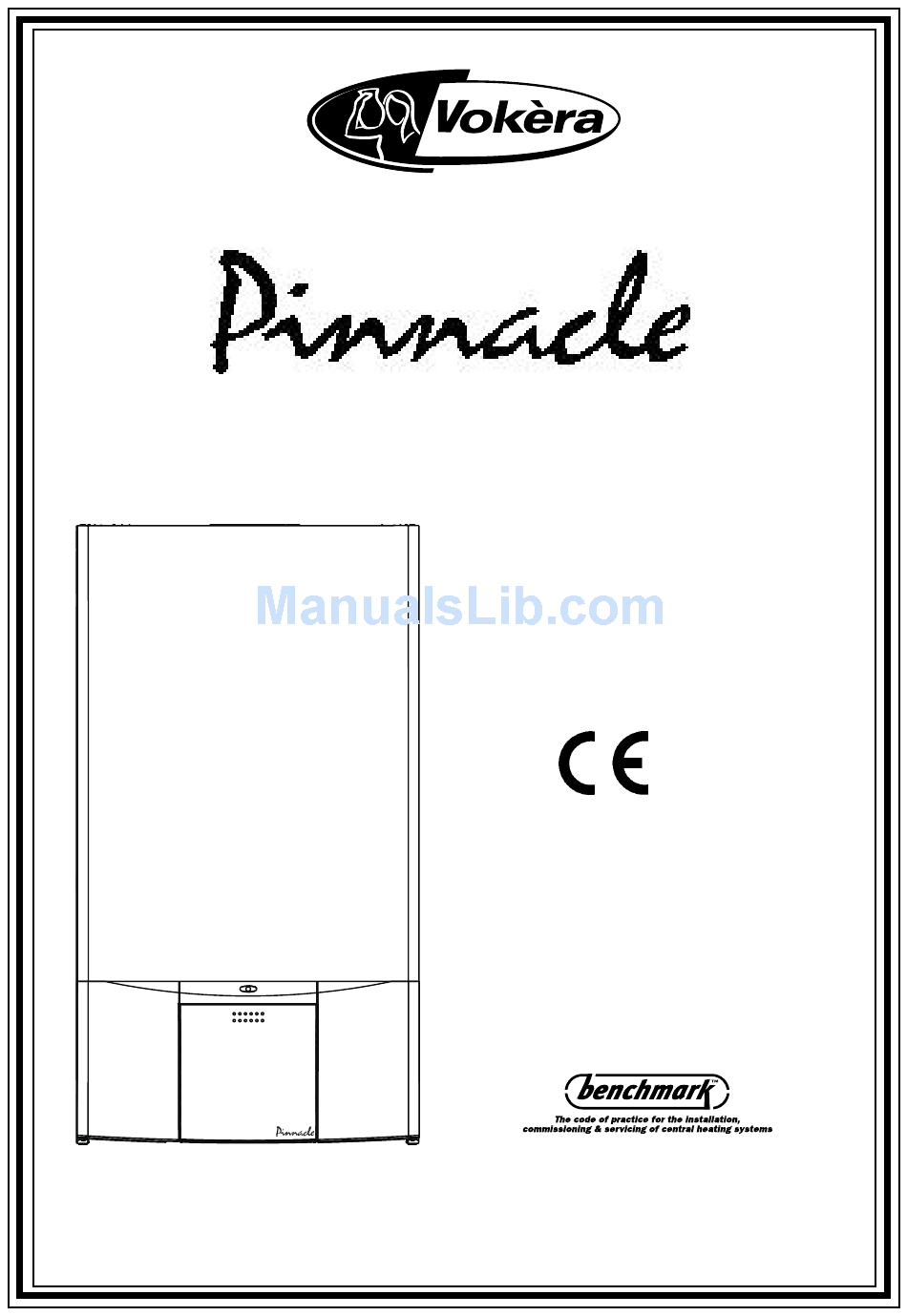

- Page 1 Users Instructions THESE INSTRUCTIONS TO BE RETAINED BY USER...
-
Page 2: Table Of Contents
Dear Customer Your Vokera Pinnacle boiler has been designed to meet and exceed the very latest standards in gas central heating technology, and if cared for, will give years of reliable use and efficiency. Please therefore take some time to read these instructions carefully. -
Page 3: Things You Should Know Page
The Benchmark Log Book is supplied with your FROST PROTECTION SYSTEM boiler. This important document must be The Pinnacle is equipped with a built-in frost completed during the installation/commissioning protection system, this enables the boiler to over- of your boiler. All CORGI Registered Installers ride the time controls –... -
Page 4: Lighting The Boiler
LIGHTING THE BOILER ADJUSTING THE OPERATING TEMPERATURE Ensure the gas and electrical supply to the boiler Usually your installer will have adjusted the are turned on. The boiler will now go through a operating temperatures to suit your requirements, self-test and purge sequence indicated by the however should you wish to view or alter them, letter ‘A’... -
Page 5: Fault Code Table
FAULT CODE TABLE Code Reason Action required E 00 Ignition anomaly Reset appliance, if fault continues, call engineer E 02 No flame detected Check gas is on, reset appliance, if fault continues, call engineer E 03 Internal fault Call engineer E 04 Power failure Reset appliance, if fault continues, call engineer... -
Page 6: How To
WHAT IF I HAVE FREQUENTLY TO TOP-UP 333 0220 (UK) or 05655057 (ROI) if you would THE SYSTEM prefer a Vokera service engineer or agent to If the system regularly requires topping-up, it may service your appliance. Alternatively your local be indicative of a leak. -
Page 7: Mechanical Clock
Press the ‘m’ button until the actual minutes VOKERA DIGITAL CLOCK are showing in the display. The Vokera digital time clock will automatically Now release the button. switch your boiler on and off. It has a total of The ‘:’... - Page 8 Press the ‘m’ button until the desired minutes are shown. Press the Select button until the symbol is shown (see fig. 10). Press the button. Fig. 9 Fig. 10 5.2.4 ENTERING (off) COMMANDS Repeatedly press the Prog. Button until the — :—...
- Page 9 NOTE...
- Page 12 Vokèra Ltd. Floor, Catherine House, Boundary Way, Hemel Hempstead, Herts, HP2 7RP Email: enquiries@vokera.co.uk Web: www.vokera.co.uk Sales, Technical Advice, General Enquiries - Tel: 0870 333 0520 Fax: 01442 281403 After Sales Service - Tel: 0870 333 0220 Vokèra Ireland...
