- Page 1 Embertec Emberplug™ AV with Active Powerdown™ Instruction Booklet EPUSAV-ET-01 Patents granted and Patents Pending...
- Page 2 Please read this Instruction Booklet before installing your Embertec Emberplug™ AV. Your embertec emberplug™ can simply be plugged into the wall outlet, or it can be plugged in and attached with a screw. Step by step Instructions on how to install the unit with the screw the embertec emberplug does not require fastening to the wall with the supplied screw, but for the best secure fit read the following instructions.
- Page 3 Close to your television is the best position, and within normal operation of your existing remote control(s). 6. Plug the embertec emberplug™ aV into a 110V or 120V power point. 7. Power is now applied to the 'Power saver' socket. the Led monitoring light on the embertec emberplug™...
- Page 4 NOTE: Other appliances such as lamps, chargers etc, may be plugged into the 'always On' sockets if needed, or with the 'Power saver' if only needed when your aV system is being used. SmartSensor ALWAYS ON Set Top Box Recorder Cable Console POWER SAVER Console...
- Page 5 Contents Quick installation guide Quick Connection guide What you need to know What is MusicMode™ Fast Facts embertec emberplug™ specifications troubleshooting guide Warranty...

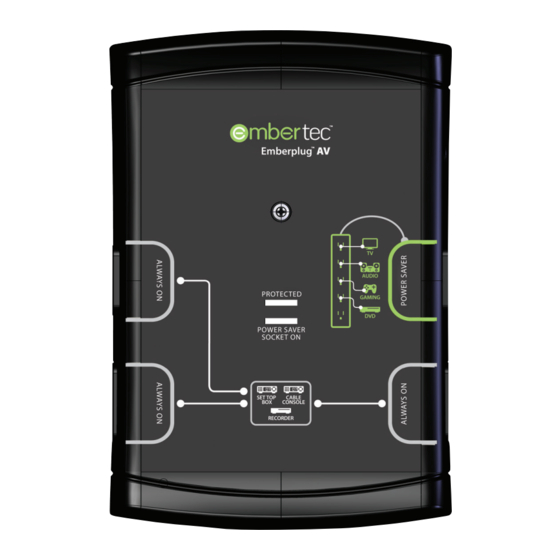

- Page 6 Your Embertec Emberplug™ AV embertec emberplug™ aV smartsensor On/Off ‘Power saver’ socket indicator light Wall screw – in socket...
- Page 7 Connect these with your existing powerstrip. • the Led monitoring light indicates that power is available at the 'Power saver' socket of the embertec emberplug™ aV. • Overload protection circuit breaker re-set button (on bottom of device, not shown).
- Page 8 • it is recommended to regularly inspect the embertec emberplug™ aV for damage. the embertec emberplug™ aV must not be used if it shows any signs of damage. • this embertec emberplug™ aV is for indoor household use. do not use outdoors.
- Page 9 When will Active Powerdown™ Switch the Audio Visual (AV) Equipment off? • if your embertec emberplug™ aV detects that your audio Visual (aV) equipment is on but has not been used for a period of 1, 2 or 8 hours (depending on your settings), the Led light on the smartsensor will flash for approximately 10 minutes to warn you that power down is imminent.
- Page 10 What Audio Visual Equipment Can Be Used With The Embertec Emberplug™ AV? embertec emberplug™ aV is a power saving device that is suitable for all audio Visual (aV) applications and setups, including: Always On socket • audio Visual (aV) equipment that requires constant power for timers,...
- Page 11 Turning OFF your AV Equipment • simply turn your equipment off in the normal way. Once the audio Visual (aV) components have been switched off, the embertec emberplug™ aV will remove power from the Power saver socket after a delay of approximately 1 minute.
- Page 12 Changing settings for Active Powerdown™ using the SmartSensor Your embertec emberplug™ is equipped with a number of settings to suit your lifestyle. You can set your timer to either 1 or 2 hours, depending on usage habits. this means the smartsensor will flash after the set period, warning of imminent power down.
- Page 13 1 or 2 hours after the 8 hour period or after a power down has occurred.
-
Page 14: Specifications
Once reset, use any remote control to activate power to the Power saver socket. Connect one device at a time. if any of the devices cause the safety device to trip again then get the offending device serviced. if the embertec emberplug™ aV fails to operate, please contact embertec on 831-708-2621. - Page 15 Embertec Emberplug™ Specifications At October 2012 Physical AV = Audio Visual (Product Code: EPUSAV-ET-01) dimensions: 130.85mm W x 191.70mm H x 53.28mm d (5.15in W x 7.55in H x 2.10in d) Weight: 530g (1.17 lbs) 60g (0.13 lbs) smartsensor Colour:...
- Page 16 ‘always On’ socket. equipment in standby mode. • the embertec emberplug™ aV has not detected the equipment is in standby. Please repeat this process by switching on the audio Visual (aV) component again, waiting 10 seconds, and switching off again making sure all appliances are in standby mode.
- Page 17 device.
- Page 18 • any damage to equipment that is not properly connected to an embertec emberplug, or damage to equipment connected to an embertec emberplug that is not properly connected to an aC power line with a protective ground.
- Page 19 Check with your utility company or visit us on the web for more information. For further assistance please contact us on customerservice@embertec.com embertec Usa LLC 7960 B soquel drive #389 aptos, Ca 95003 telephone: 831-708-2621 Website: www.embertec.com e-mail: customerservice@embertec.com...
- Page 20 Patents granted and Patents Pending...
